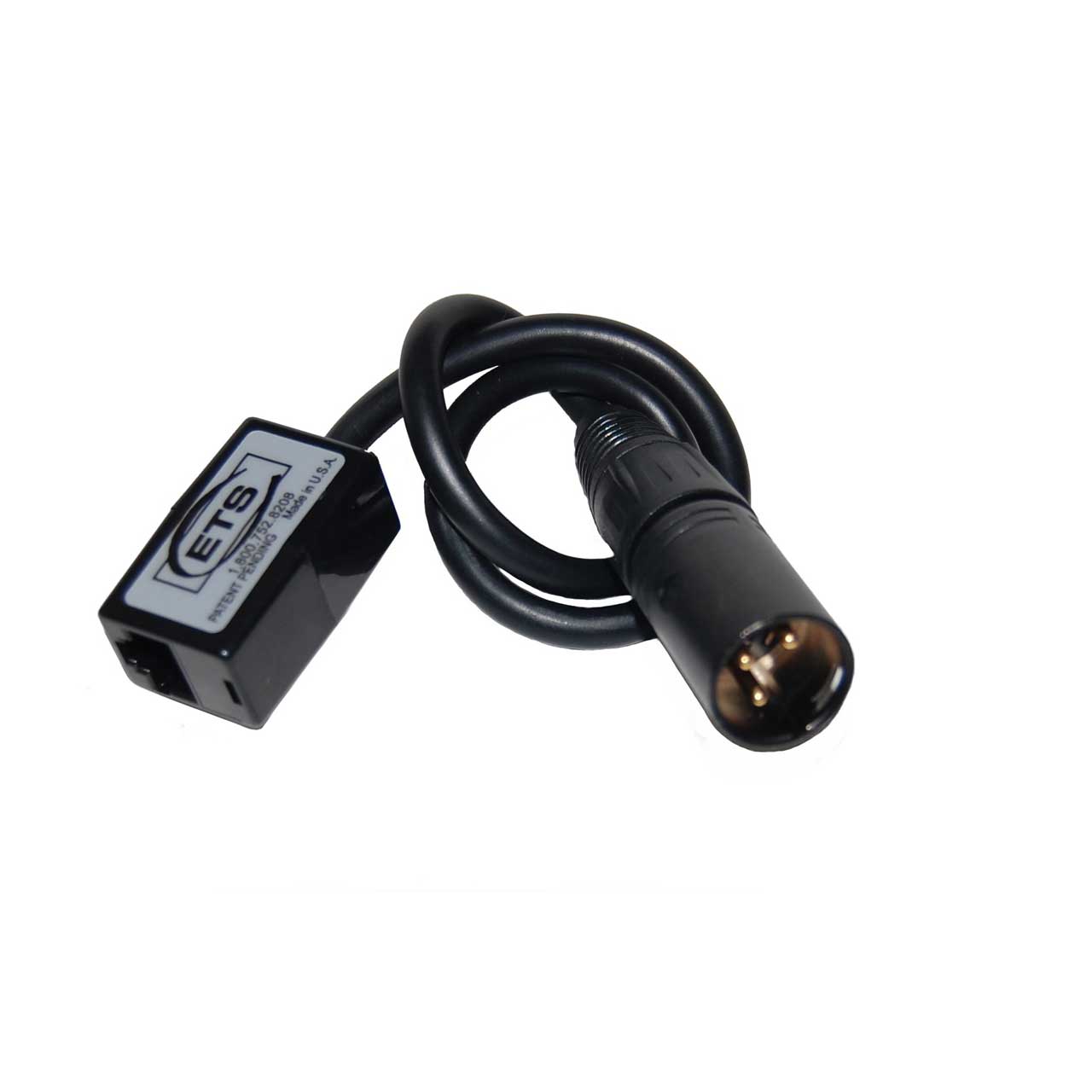

    ETS ETS-PA850 Digital Audio Adapter - M-XLR 3-Pin to RJ45 Jack

    Item #: ETS-PA850   •   MFG #: PA850



    List Price:$76.95
    Our Price:$65.69

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The ETS Digital Audio Adapter (PA850 Series) is impedance-matched, balanced, and isolated to provide excellent performance sending AES/EBU signals over Category 5 or better Unshielded Twisted Pair (UTP) wiring. Testing has shown the signal performance over UTP is equal to that of 110 ohm single Shielded Twisted Pair wire even at the highest bit rates.

      Experiments with High Performance Category5 cable have shown that Digital Audio signal performance over UTP is equal to that of 110-ohm Shielded Twisted Pair wire, even at the highest bit rates.

      The ETS exclusive balun design balances and isolates the signal, eliminating unwanted jitter. The careful impedance-matching prevents reflections that can degrade signal reception and decoding.

      Used by engineers and technicians in broadcast rooms, recording studios, and post-production facilities, you will find these adapters economical, reliable, as well as indispensable.


      • Features

        • Send AES/EBU digital audio over Category5 UTP cable to 100 meters
        • Longer run distances with lower noise
        • Less expensive materials and installation cost than coax
        • Fully-isolated design
        • Impedance-matched and balanced to maximize signal quality and minimize undesirable reflections

      • Specifications

        • Bandwidth: 100KHz to 30MHz, +/- 1 dB
        • Connectors: XLR 3-pin to 8 pin Modular (RJ45)
        • Insertion Loss: 0.25dB
        • Max Signal: 6V
        • Impedance Match: 110Ω to 100Ω UTP
        • Comm Mode Reject.: > 50 dB
        • Return Loss: 20 dB, 50KHz to 30MHz
        • Distance: 330 ft
        • Dimensions: 18" Long
        • Net Weight: ~ 0.17 lbs (0.08 Kg)
