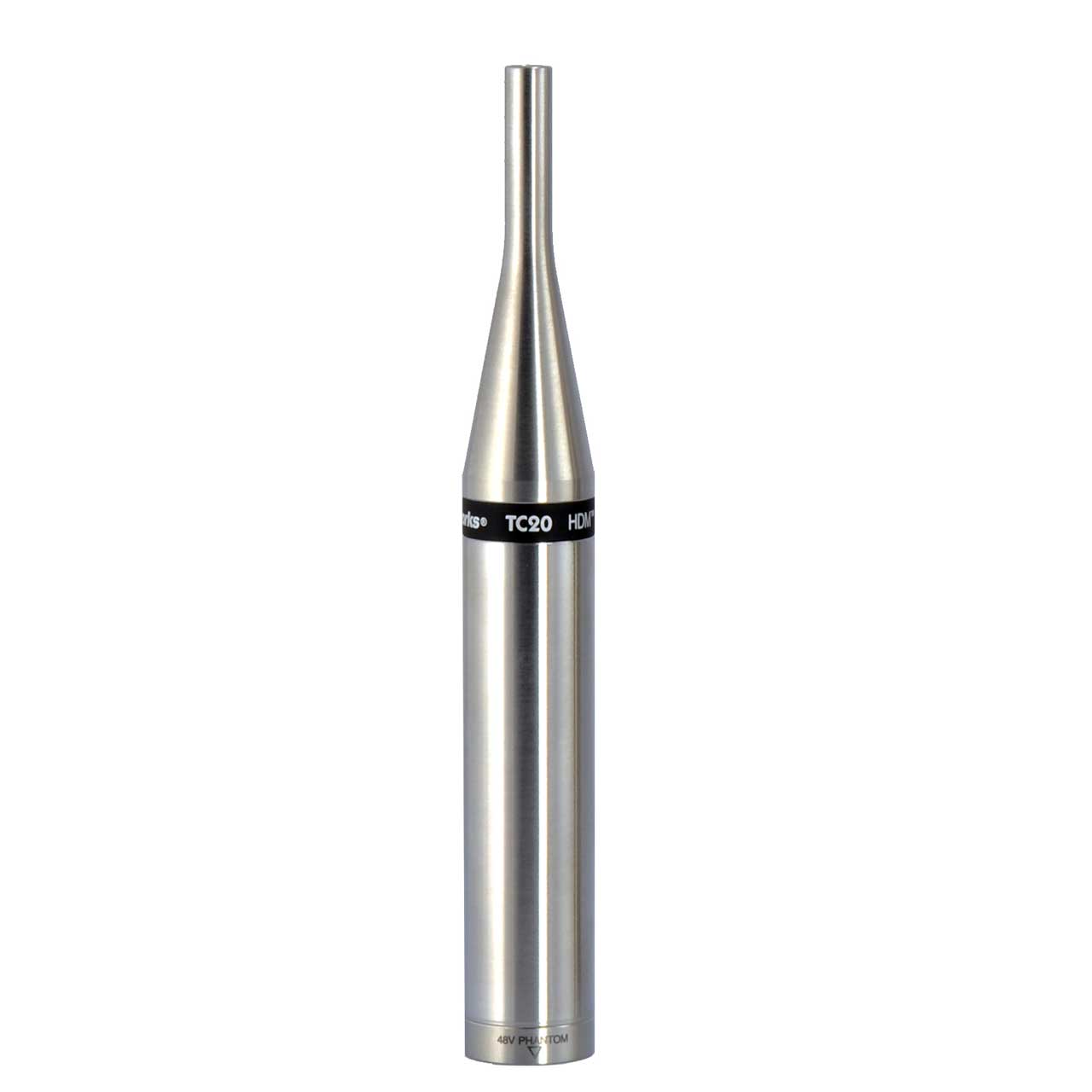

Earthworks TC20 Omni Microphone - 10Hz - 20kHz

TC20 - Overview

• Features:

  • Our least expensive general-purpose omni with high frequency response to 20kHz
  • Ideal for a wide variety of instruments and vocals, including acoustic guitar, string instruments and piano
  • For live sound the TC20 can be used for close miking instrument amps, drums or brass
  • Omnidirectional polar pattern
  • Accurate and uncolored
  • Effortlessly handle high sound pressure levels up to 150dB SPL while simultaneously capturing subtle details
  • Fast impulse response and diaphragm settling time
  • Exceptional flat frequency response and are time coherent, so they sound natural and uncolored
  • Requires 48V Phantom Power


• Specifications:

  • Frequency Response: 10Hz to 20kHz 1/-3dB
  • Polar Pattern: Omnidirectional
  • Sensitivity: 8mV/Pa (-42dBV/Pa)
  • Power Requirements: 24-48V Phantom, 10mA
  • Max Acoustic Input: 150dB SPL
  • Output: XLR-3
  • Output Impedance: 65 Ohms, balanced (Between pins 2 & 3)
  • Min Output Load: 600Ω between pins 2 & 3
  • Noise: 26dB SPL equivalent (A weighted)
  • Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)
  • Weight: .35 lb. (160g)


• Item Includes:

  • LP1530 - LevelPad switchable -15 or -30dB for all QTC models
  • MC1 - Microphone Clip for QTC, TC, SR, P, DP & M Series mics (specify black or white)
  • MC2 - Shock mount Microphone Clip for QTC, TC, SR, P, DP & M Series mics
  • OMW1 - Foam Teardrop Windscreen for QTC, TC & M Series Mics
  • OMW2 - 100 mile-per-hour Windscreen for QTC, TC & M Series Mics
  • OMW3 - Standard Foam Windscreen for QTC, TC & M Series Mics


• Warranty:

  • 15 Years


• GTIN:

  0827517101002
