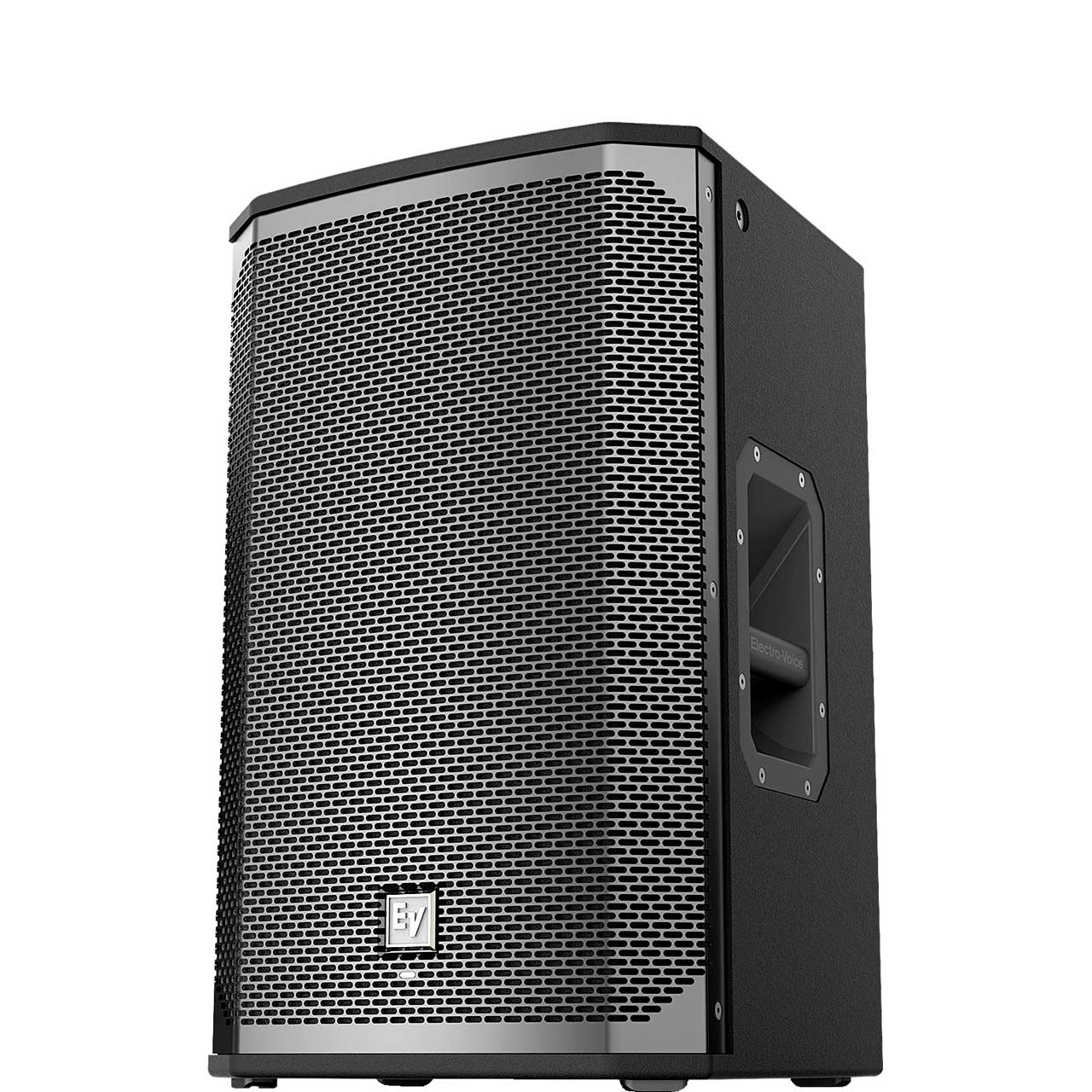

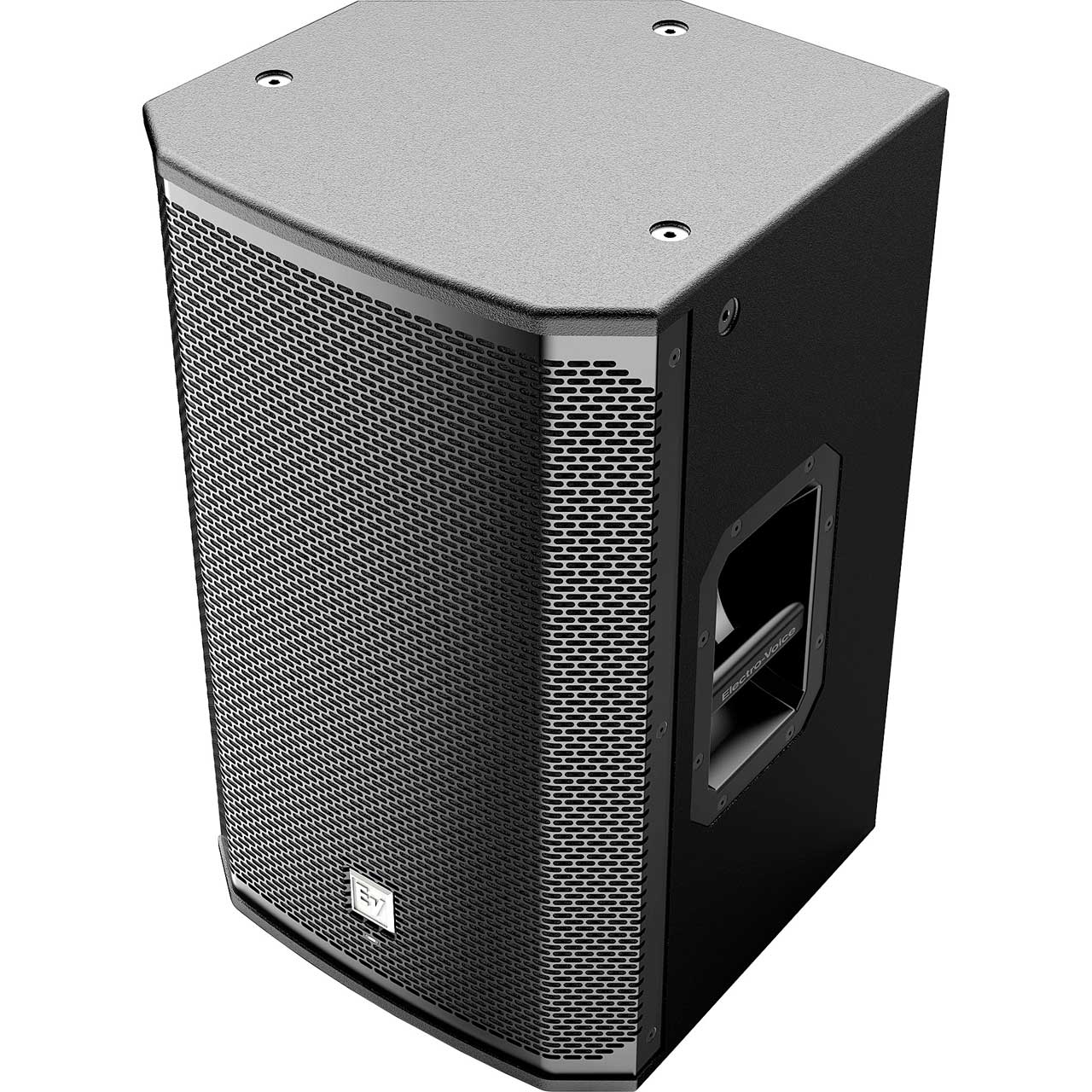

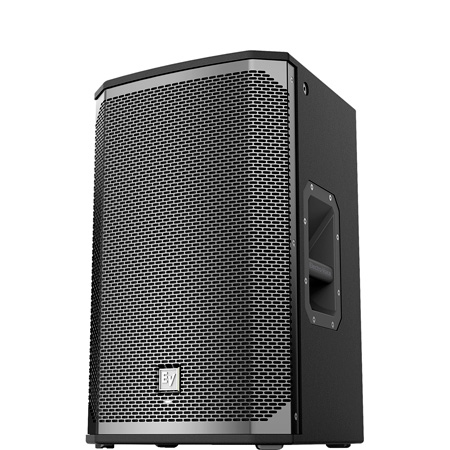

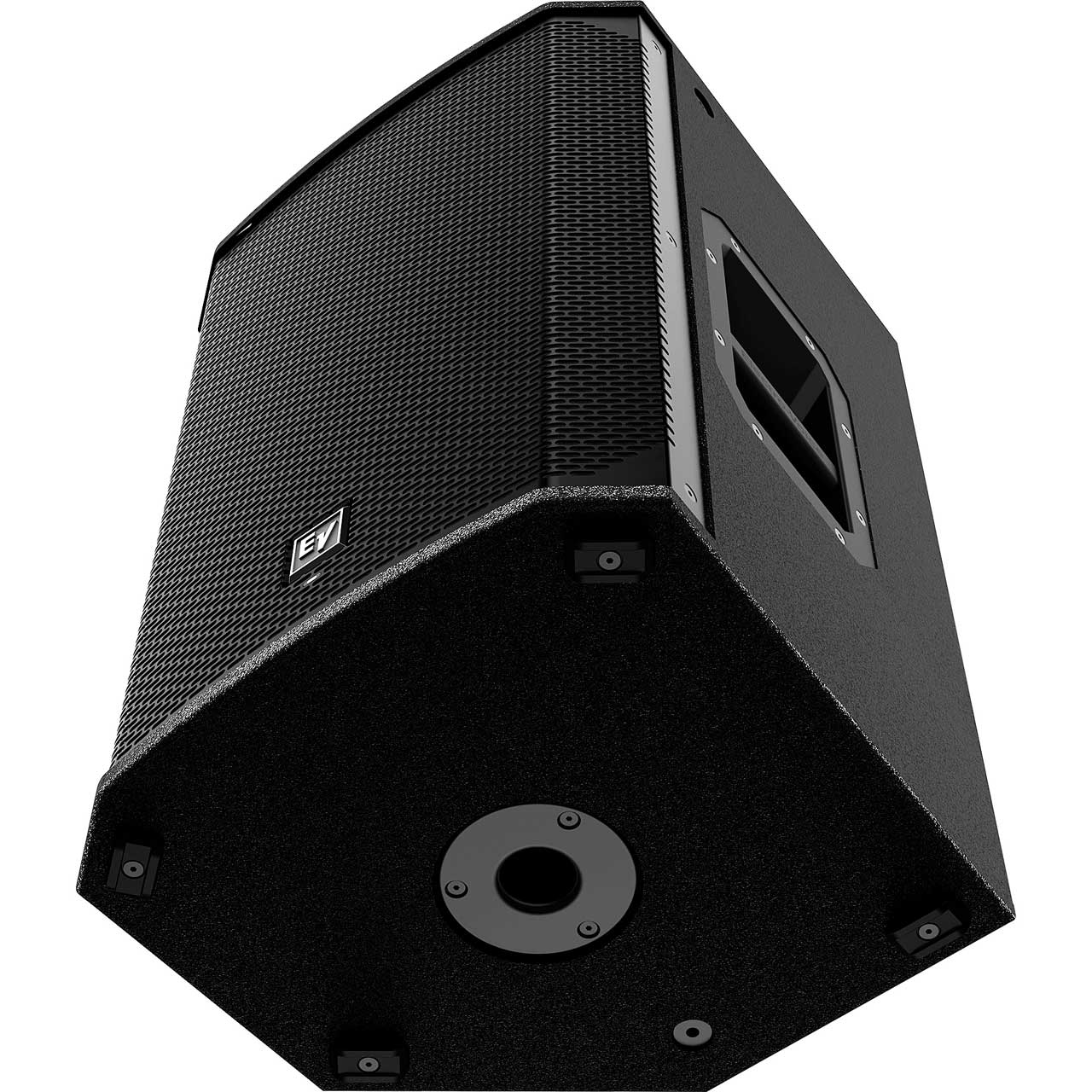

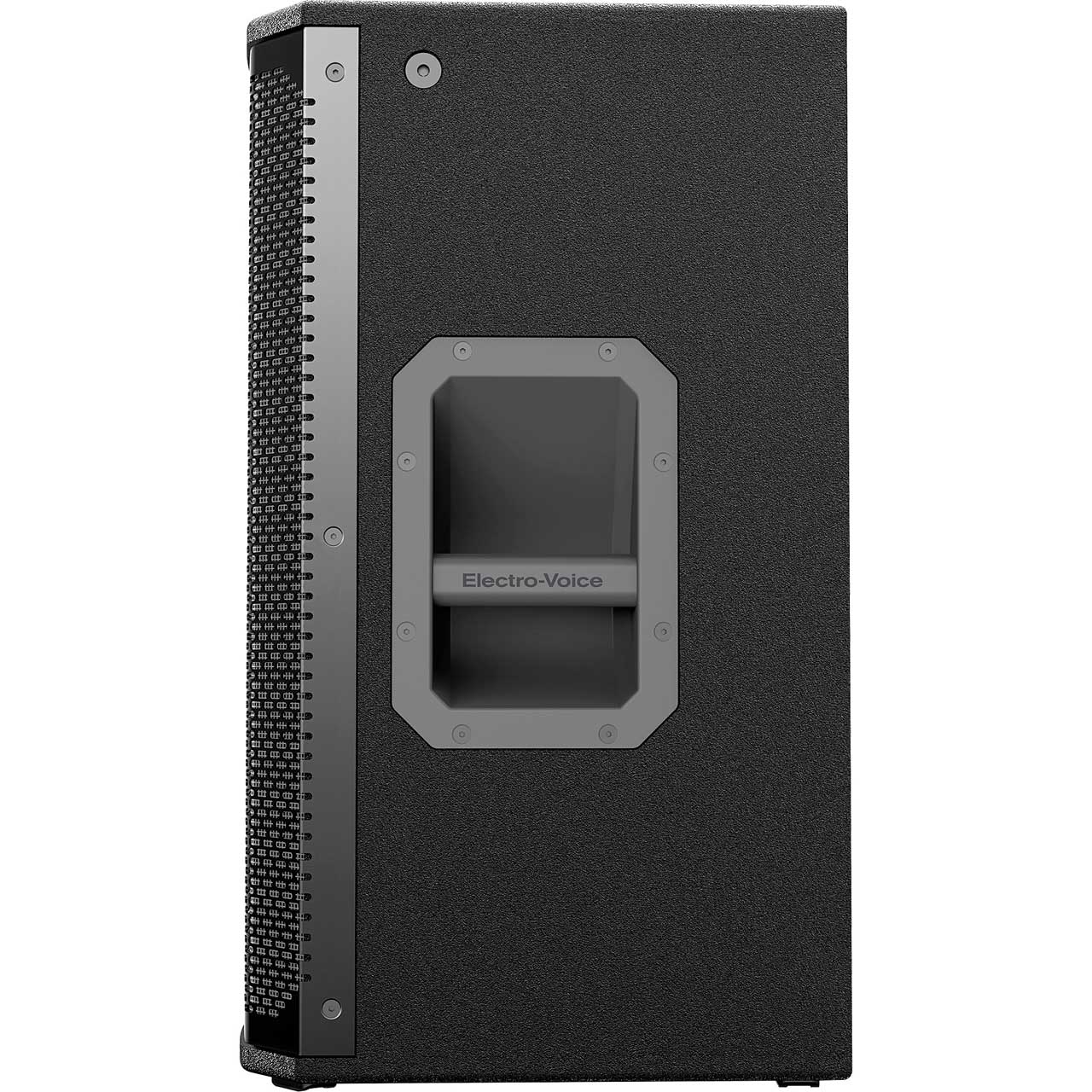

Electro-Voice EKX-12 12 Inch Two-Way Passive Loudspeaker

ITEM #: EV-EKX-12 MFG #: EKX-12

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,253.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EKX-12 - Overview

    EV engineering and innovation working together for maximum sonic impact
    The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

    The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

    Ideal for portable and installed applications
    Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminum pole-mounts, and all-metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.

    • Features:

      • EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
      • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
      • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
      • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
      • 90° x 60° pattern for best coverage on mid-size stages. 40° monitor angle with rubber feet.

    • Specifications:

      • Axial Sensitivity: (SPL, 1 W @ 1 m) 95 dB
      • Connector Type: Dual NL4
      • Coverage: (Nominal -6 dB) H 90 Deg.
      • Crossover Frequency: 1.6 k Hz
      • Enclosure Material: 15 mm, plywood with EVCoat
      • Frequency Response: (-10 dB) 55 Hz - 20 k Hz Full Space Measurement
      • Frequency Response: (-3 dB) 82 Hz - 18 k Hz Full Space Measurement
      • Grill: 18 AWG steel with powdercoat
      • HF Transducer: DH-1M 1-inch titanium compression driver
      • LF Transducer: EVS-12M 300 mm (12 in)
      • Maximum SPL: 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
      • Minimum Impedance: 7.5 Ohm
      • Nominal Impedance: 8 Ohm
      • Power Handling (Continuous / Peak): 350 W/1400 W
      • Recommended High-Pass Frequency: 55 Hz
      • Shipping Weight: 21.4 kg (47.18 lbs)
      • Suspension: (8) M10 threaded mounting points
      • Height: 14RU 607 mm (23.9")
      • Width: 375 mm (14.76")
      • Depth: 356 mm (14.02")
      • Weight Net: 17.4 kg (38.36 lbs)

    • GTIN:

      0800549772129
