Electro-Voice EVF-2151D Dual 15 Inch Front-Loaded 1000 Watt Subwoofer - White

ITEM #: EV-EVF2151DWT MFG #: EVF-2151D-WHT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,079.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


EVF-2151D-WHT - Overview

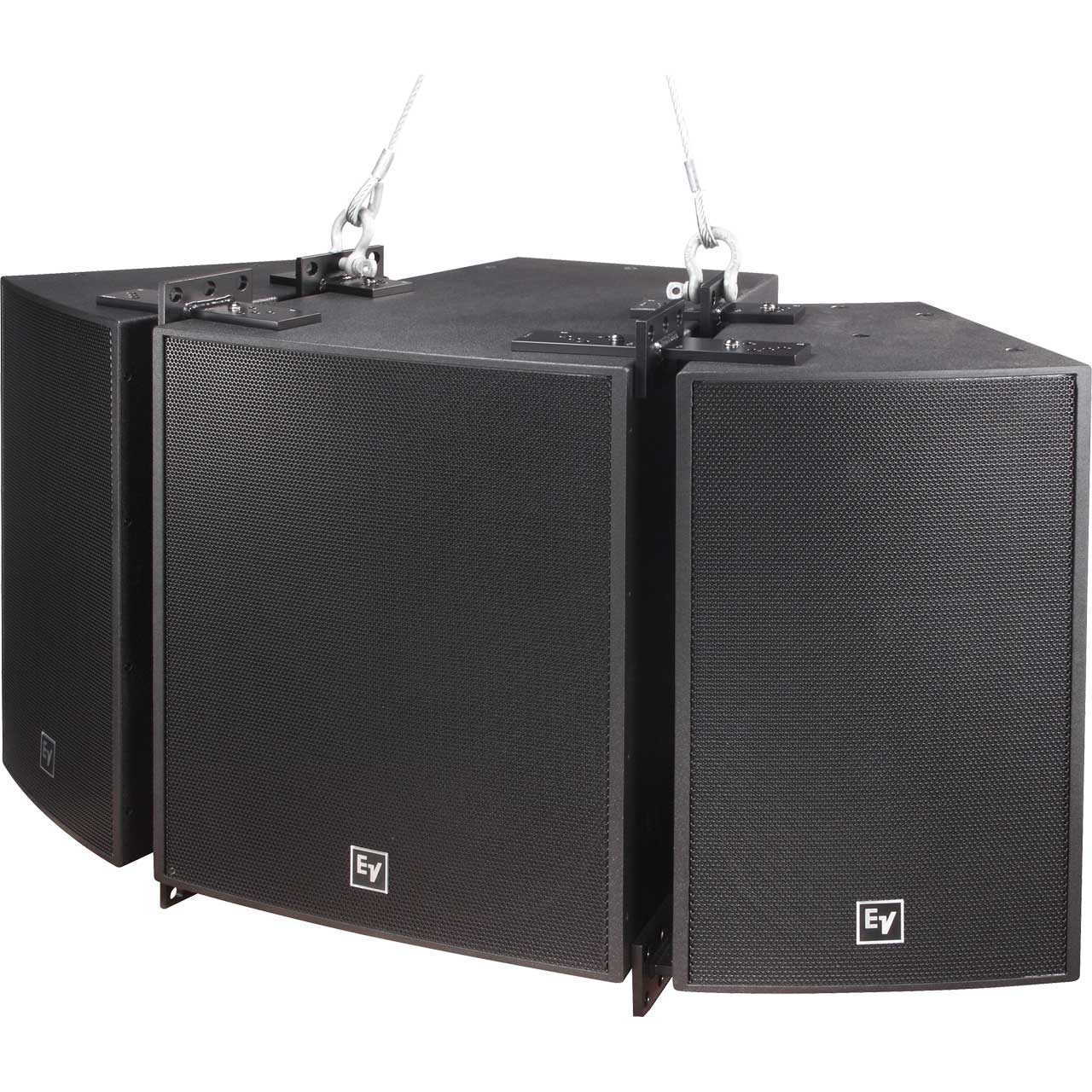

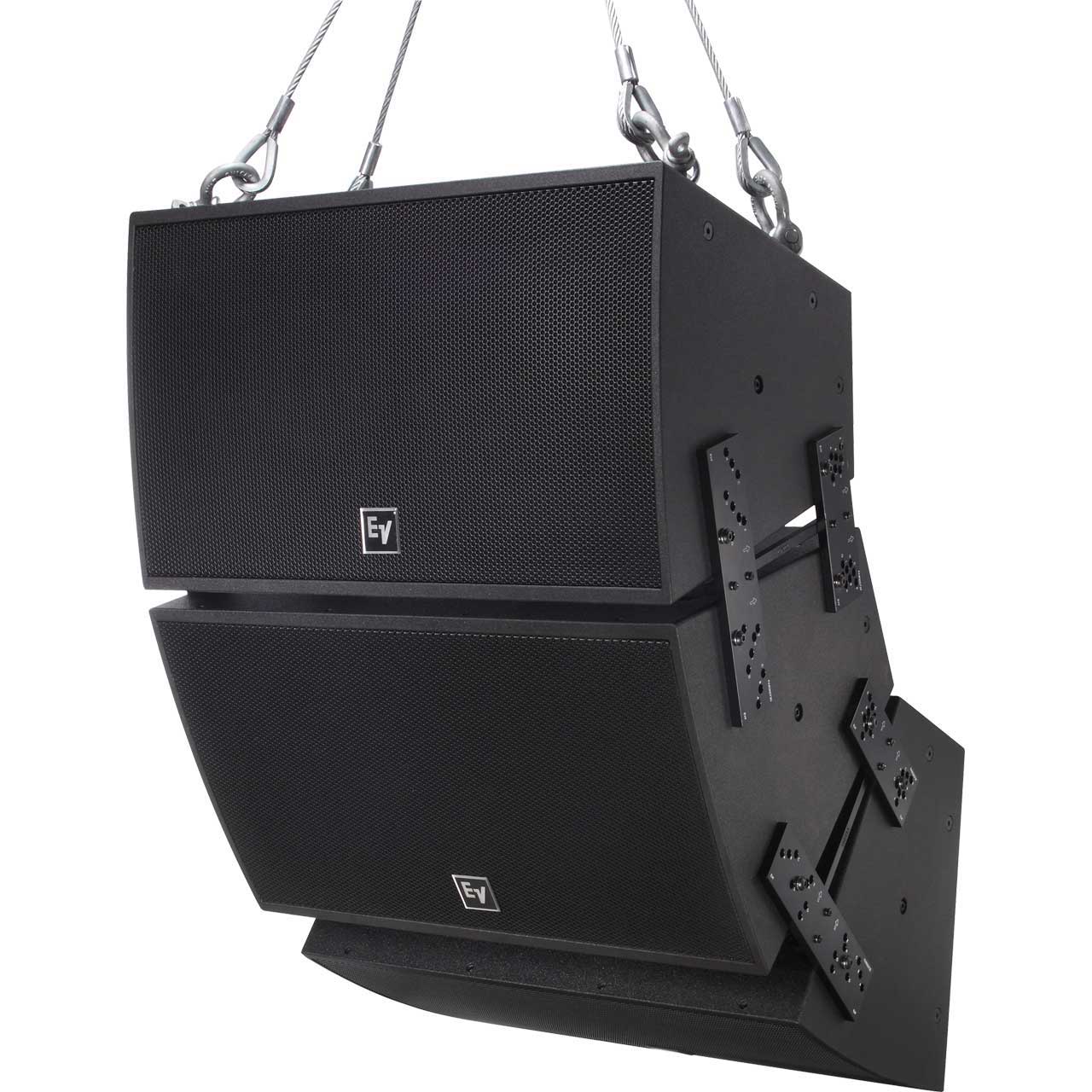

The Electro-Voice EVF-2151D is a high-power, front-loaded bass element that can be used in a variety of applications where high-quality sound reinforcement is required in a lightweight package. The EVF-2151D utilizes two DVX3159A 15" woofers, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The EVF-2151D's features make it a professional loudspeaker for any fixed install application. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for protection from the elements. For maximum protection against extreme outdoor elements, a fully-weatherized fiberglass version is available. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers available, you have the tools to maximize flexibility of system design, no matter what the application or budget. The innovative input panel provides a choice of Phoenix style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Please Note: Images are for reference only. Product is white in color.

  • Features:

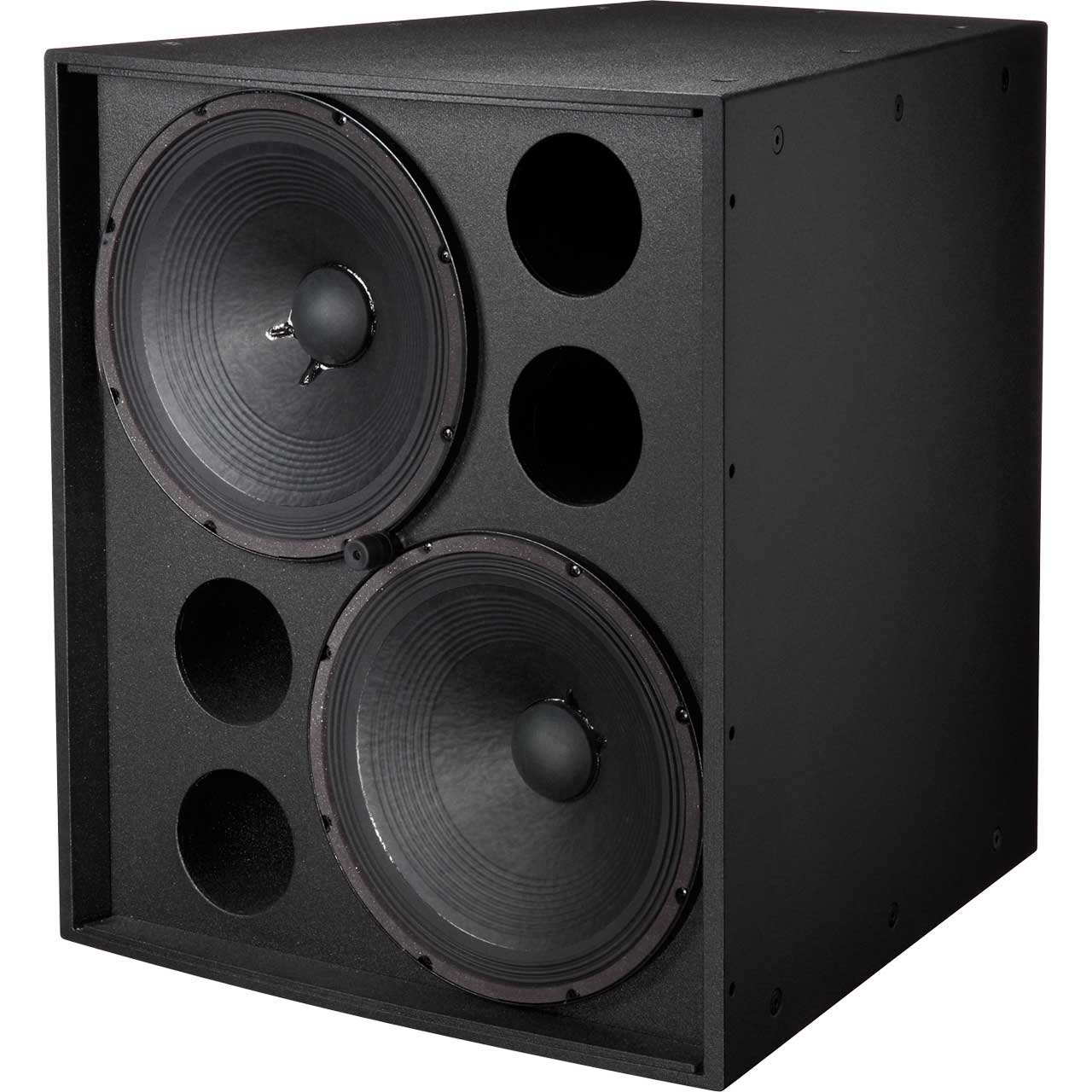

    • Dual 15" Low Frequency front loaded bass element.
    • Very linear frequency response from 41Hz to 330Hz
    • 18mm / 13 ply birch plywood with internal reinforced steel rigging hardware top and bottom.
    • optional flying hardware
    • Input phoenix panel to handle up to 10AWG connector
    • 22 x 10M threaded suspension points
    • 150W- 100V/70V Line transformer optional
    • ANSI /IEC 60529 - IP44
    • Maximum sustained humidity <80%
    • Salt content of normal air <20%
    • Galvanneal grill with vinyl coated acoustic screen and stainless steel Fasteners
    • White

  • Specifications:

    • Frequency response (-3dB): 40Hz - 2600 Hz
    • Frequency response (-10dB): 30 Hz - 3200 Hz
    • Axial Sensitivity (1W/1Mtr): 101 dB
    • Maximum Calc. SPL: 137 dB
    • Power Handling: 1000 W Cont / 4000W Peak
    • Nominal impedance: - 4 Ohms
    • Minimum impedance: - 2.7 Ohms
    • Connectors: Phoenix 10 AWG terminals
    • Dimensions: 30.2 x 26.6 x 28.6 In
    • Weight: max. 117 lbs
    • Coverage (Nominal -6 dB) V: Omnidirectional°
    • Recommended High-Pass Frequency: 35Hz
    • LF Transducer: Two 15" DVX3159A drivers

  • Item Includes:

    • 1x EVF-2151D Subwoofer
    • 1x EVI-M10K eyebolt kit (4 eyebolts)

  • Warranty:

    • 5 Year Warranty
