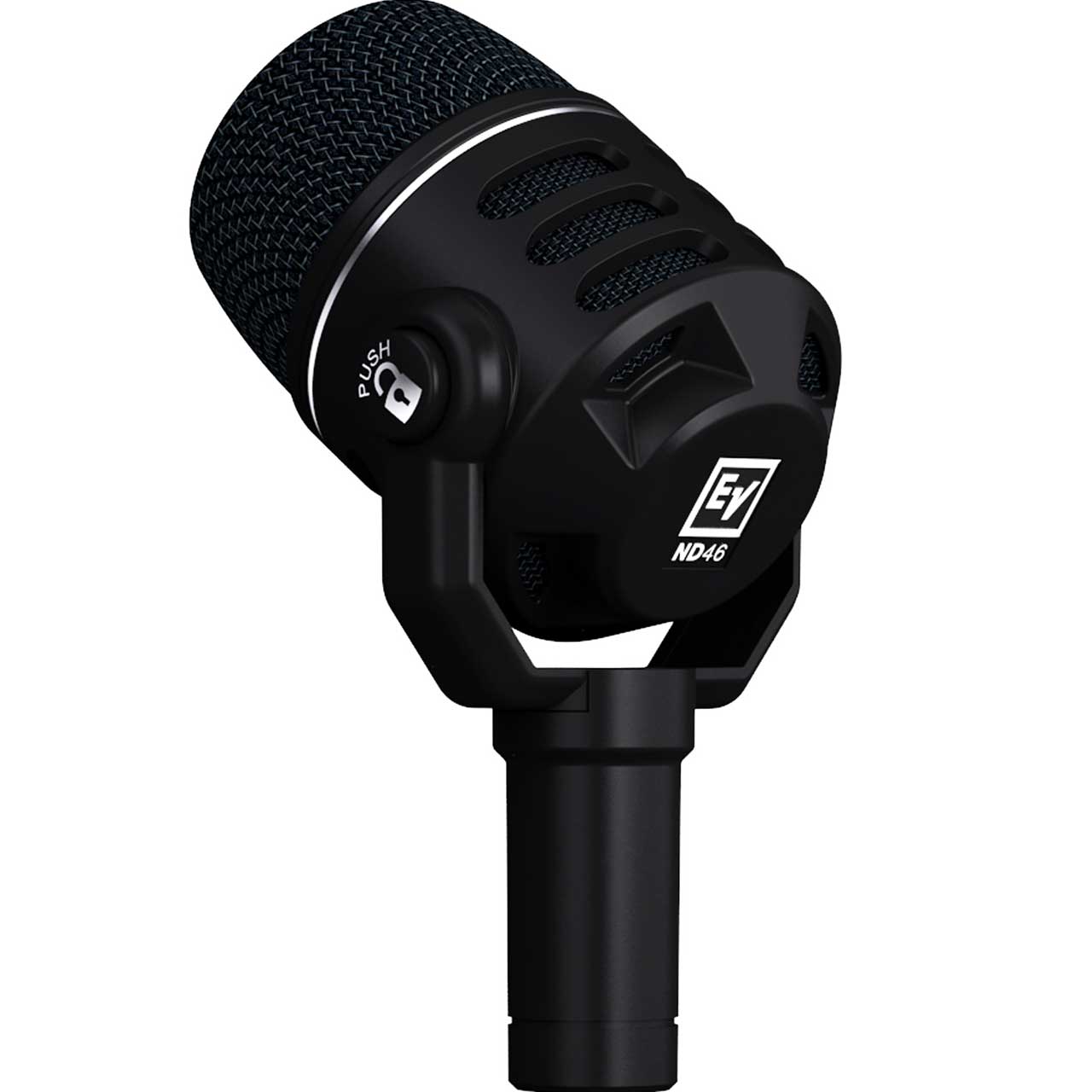

Electro-Voice ND46 Supercardioid Dynamic Instrument Microphone

ITEM #: EV-ND46 MFG #: ND46

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$179.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ND46 - Overview

    The ND Series instrument models are an excellent choice for both live sound and studio work. Three dynamic models and one small-diaphragm condenser model are available, each optimized for their applications by polar pattern, capsule voicing and mechanical design.

    The larger ND46 supercardioid dynamic instrument microphone is designed for drums and general instrument miking, with a unique locking pivot mechanism for simple and accurate positioning -particularly in hard-to-reach areas of drum kits. It will also achieve excellent results on lower frequency applications, including floor toms and bass cabinets.

    Each ND Series model is equipped with features that are unique to both its price point and its particular application - all designed to offer superior sound quality, acoustic control and robustness. At the heart of the new dynamic models is a new large-diaphragm capsule design which takes the technology of the original N/Dym capsule to new levels of sonic performance. Vocalists can select a specific ND Series model to provide optimal results according to venue size and/or stage volume. Sound engineers and musicians will benefit from an easy set-up due to innovative mechanical solutions that solve typical instrument mic placement challenges. The series features dent-resistant Memraflex grilles, humbucking coils to guard against EMF noise and shock-mounted capsules to minimize handling noise.

    • Features:

      • Shock-mounted capsule minimizes handling noise: Low frequency bumps and thumps won't get into the PA
      • Humbucking coil guards against line hum: Use with confidence near speaker cabinets and EMF-generating equipment racks
      • Memraflex grille resists denting: Durable tight-mesh grilles withstand extraordinarily rough treatment

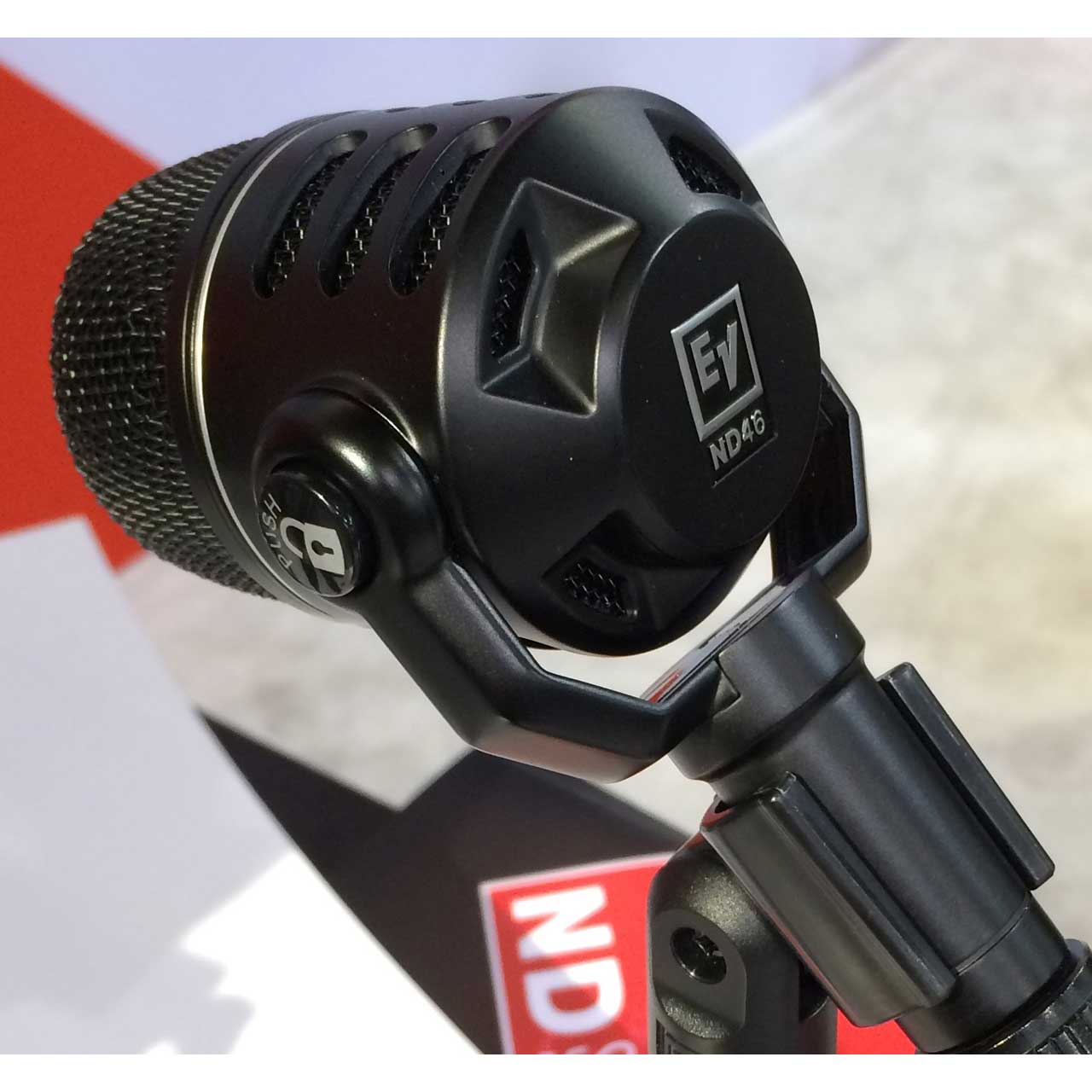

      • Easy mic placement with locking pivoting head: Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock
      • Rich, robust and fully detailed instrument sound: Tuned for rich, well-rounded frequency response for drums and guitar cabinets and exceptional transient response for punctuation

    • Specifications:

      • Audio Frequency Response: 70 - 18,000
      • Case Material: Die cast zinc
      • Connector Type: 3-pin XLR
      • Diameter (Max): 2.2"
      • Element: Dynamic
      • Finish: Black polyurethane paint
      • Impedance, Low-Z balanced: 350 Ω
      • Maximum SPL: > 140 dB
      • Mic Type: Instrument
      • Open Circuit Voltage: 2.4 mV/Pascal
      • Polar Pattern: Supercardioid
      • Power Requirement: Passive
      • Wired/Wireless: Wired
      • Height: 5.67"
      • Weight Net: 0.68 lbs

    • Item Includes:

      • ND46 microphone
      • Stand clamp
      • Carry case

    • GTIN:

      0800549805391
