DPA 4099 CORE+ Classic Touring Kit with four Instrument Mics and Accessories - Loud SPL - Cardboard Box

ITEM #: DPA-KIT4099D4CC MFG #: KIT-4099-DP-4C-C

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,080.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


KIT-4099-DP-4C-C - Overview

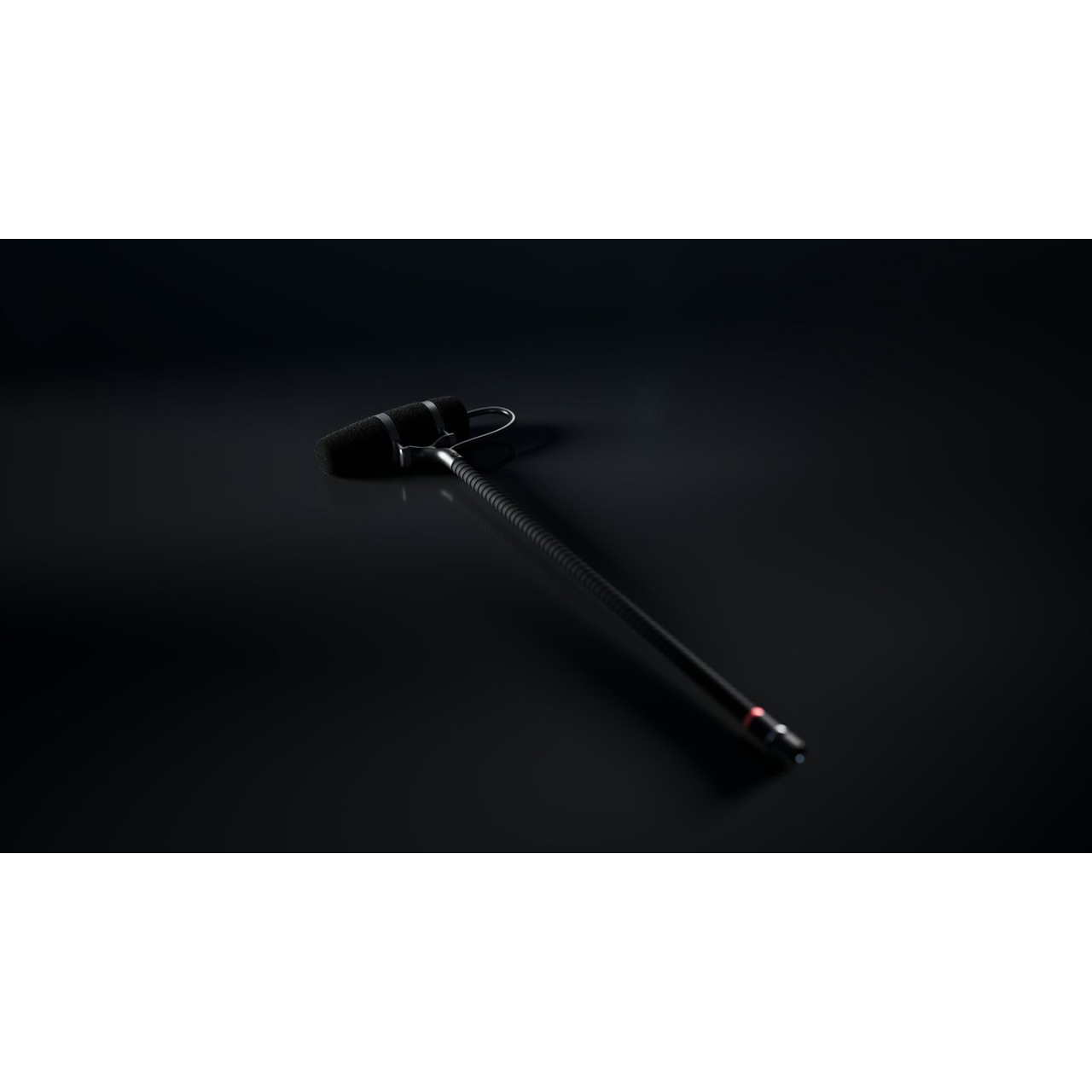

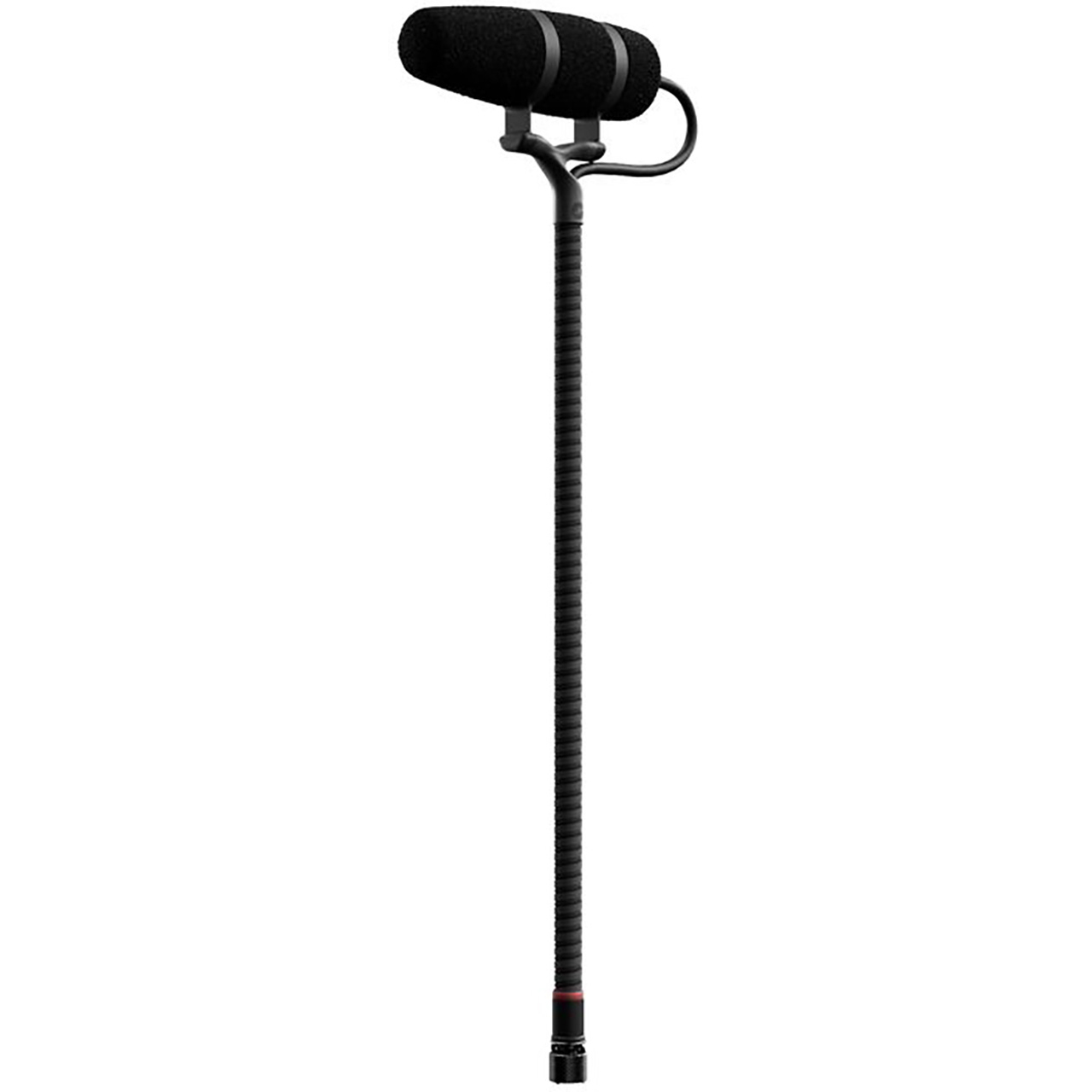

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.

This DPA 4099 CORE+ Classic Touring Kit 4C includes four Loud SPL Mics and Accessories in a cardboard box. CORE+ versions ensure the highest sound quality and bring more clarity and details to your music.

CORE+ captures an instrument's true voice - picked up or amplified with DPA's renowned authenticity. With CORE+ technology inside, the 4099 captures every nuance with pristine clarity, ensuring that the character of the instrument remains untouched, both on-axis and in the surrounding soundscape.

One Microphone, ∞ Possibilities
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.

DPA's versatile and practical instrument clip system has been a key selling point since the launch of the original 4099 in 2008. The principle of attaching the clip to the gooseneck has proven highly effective in both classical and rock applications, offering secure and flexible mounting solutions..And now, they have enhanced the clip system - improving not only the acoustic performance of the microphone but also the security, reliability and efficiency of the mounting process. These refinements make it easier to close-mic instruments and adjust capsule positioning for optimal performance.

The 4099 CORE+ is fully backwards compatible with all generations of DPA instrument clips and with accessories featuring MicroDot connector, ensuring seamless integration with your existing setup.

  • Features:

    • CORE+ technology
    • High SPL handling
    • Wide dynamic range
    • Supercardioid pick up pattern
    • Superior gain before feedback
    • MicroLock® connector
    • IP58 certified
    • Advanced, flexible clip program

  • Specifications:

    • Directional Pattern: Supercardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB, at 7.9" (20cm): 80Hz - 17kHz with 2dB soft boost at 10kHz - 12kHz
    • Sensitivity, Nominal, ±3dB at 1kHz: 6 mV/Pa; -44dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 23dB(A) re. 20 µPa (max. 26dB(A))
    • Distortion, THD < 0.5%: 135dB SPL RMS, 138dB SPL peak
    • Distortion, THD < 1%: 138dB SPL RMS, 141dB SPL peak
    • Dynamic Range: Typ. 118dB
    • Max. SPL, THD 10%: 145dB SPL peak
    • Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD9099 or DAD9001: 100Ω
    • Cable Drive Capability: Up to 984ft (300m) with DAD9001/DAD9099 XLR Adapter
    • Output Balance Principle: Signal Balanced with DAD9099 or DAD9001 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz to 15kHz with DAD9099 or DAD9001 XLR Adapter
    • Power Supply: For wireless systems Min. 5V - max. 10V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12V
    • Current Consumption: Typ. 1.5mA (microphone). 3.5mA with DAD9099 or DAD9001 XLR Adapter
    • Connector: MicroLock
    • Weight: 0.63oz (18g)
    • Microphone Diameter: 0.22" (5.7mm)
    • Microphone Length: 1.97" (50mm)
    • Cable Length: 5.9ft (1.8m)
    • Cable Diameter: 0.06" (1.6mm)
    • Gooseneck Length: 5.5" (140mm)
    • Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
    • Relative Humidity (RH): Up to 90%
    • Sensitivity Selection Tolerance (at 1kHz): ±1dB
    • Color: Black

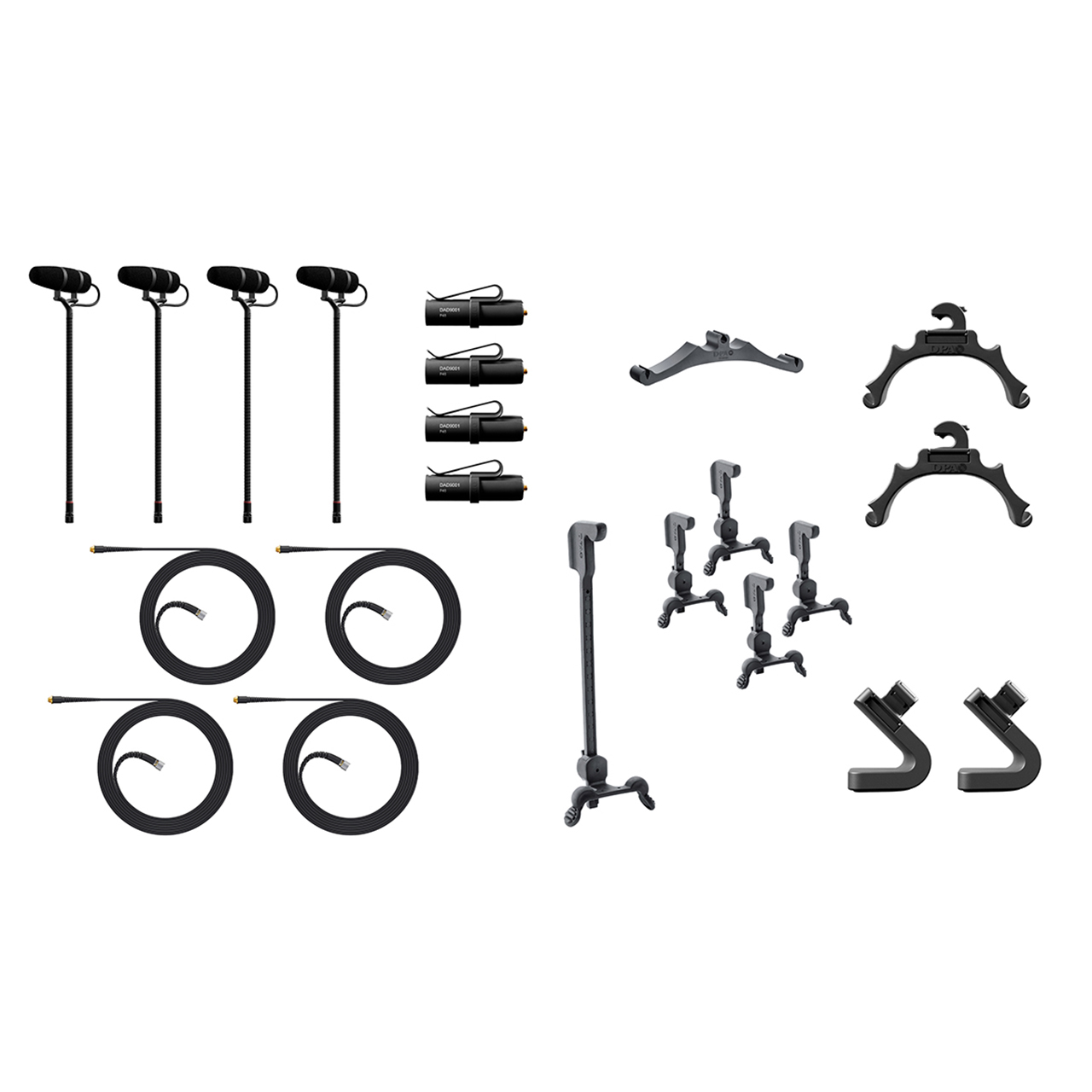

  • Item Includes:

    • 4x 4099-DP-1 Instrument Microphone, Loud SPL (carboard box)
    • 4x MicroLock Extension Cable, 1.6 mm / 0.06 in
    • 4x DAD9001 MicroLock to 3-pin XLR with Belt Clip
    • 1x Microphone Clip for Bass
    • 2x Microphone Clip for Cello
    • 1x Microphone Clip for Guitar
    • 2x Microphone Clip for Piano
    • 4x Microphone Clip for Violin

  • GTIN:

    5713055031893
