Electro-Voice RE3-BPNID-5L Bodypack Wireless Transmitter/Receiver System without Microphone (5L: 488 to 524 MHz)

ITEM #: EV-RE3-BPNID-5L MFG #: RE3-BPNID-5L

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Electro-Voice
Free Shipping with $49 Minimum Order

Our Price:

$568.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    RE3-BPNID-5L - Overview

    Electro-Voice RE3-BPNID-5L Bodypack UHF wireless set containing no input device for the bodypack transmitter. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.

    Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

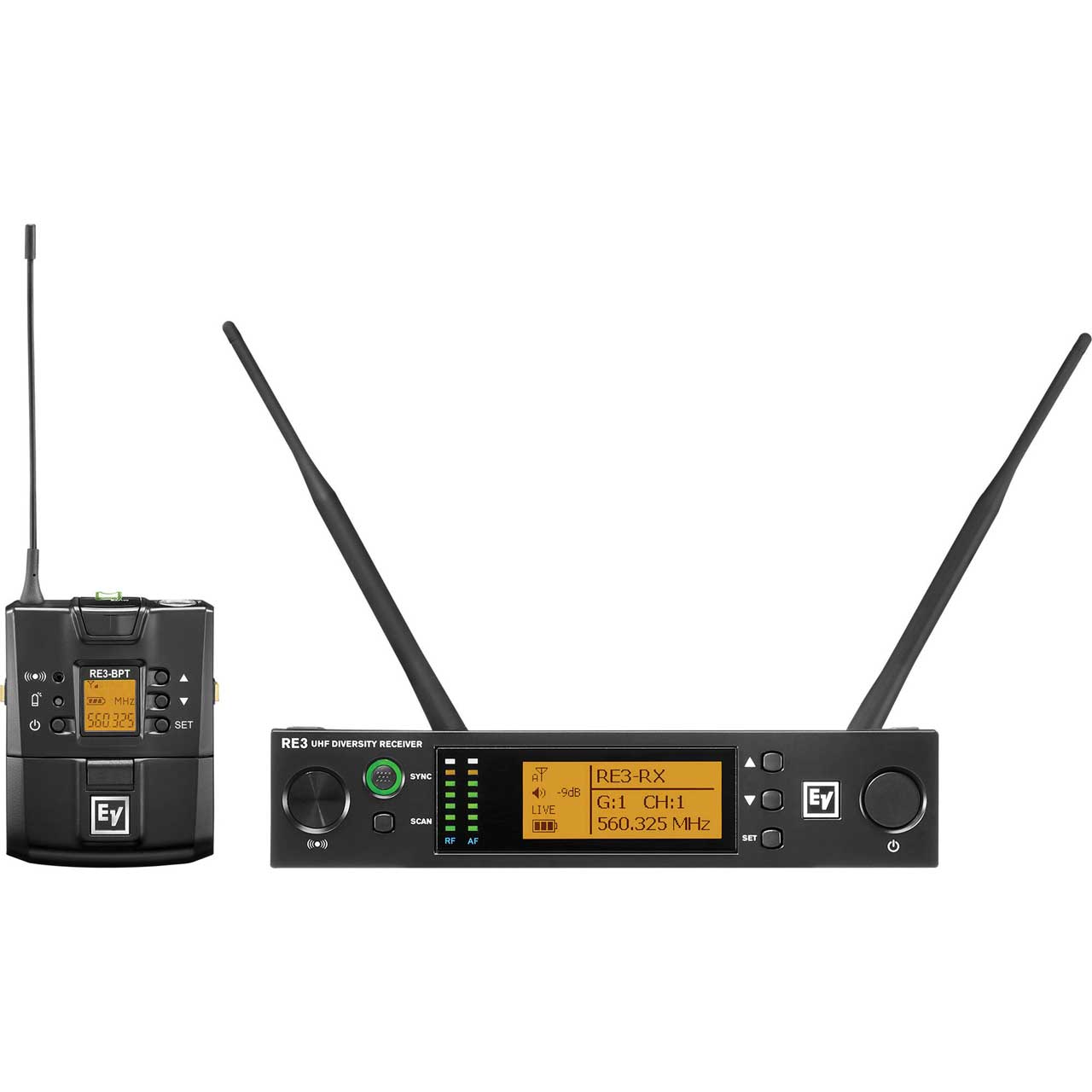

    Components of the set

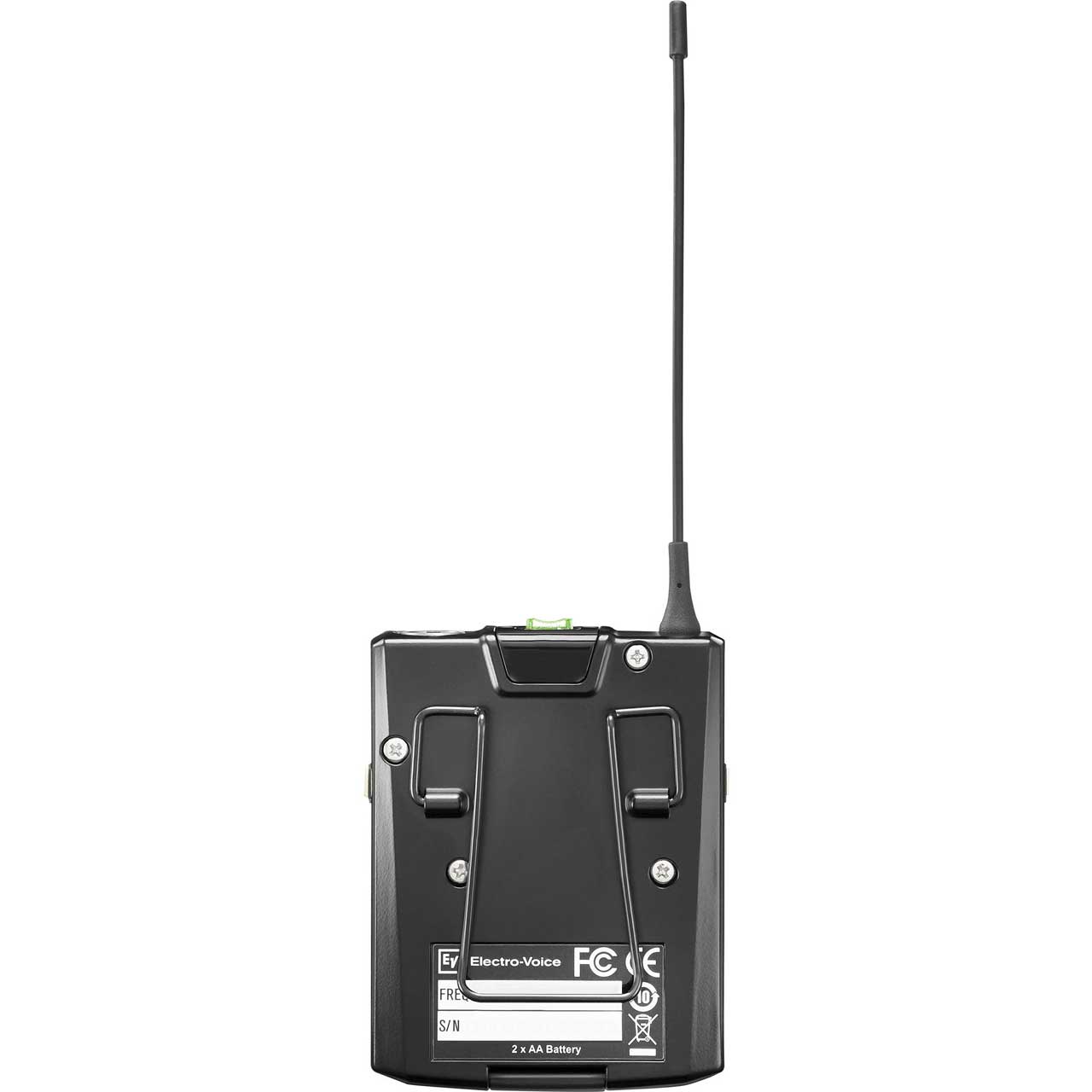

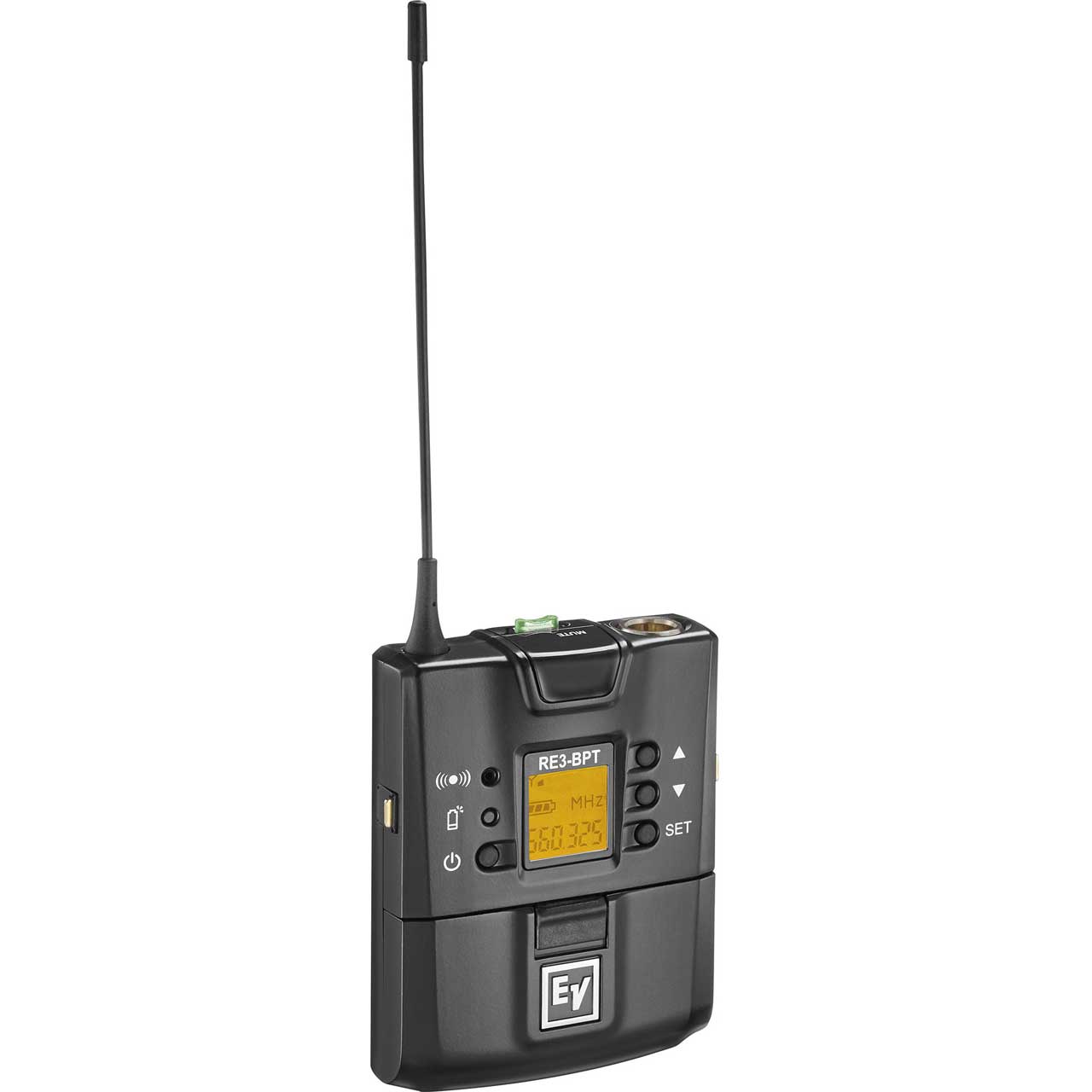

    RE3-BPT Bodypack Transmitter:
    Robust metal body
    Sync function for easy frequency setup
    Selectable low and high output power (band specific)
    Up to 36 MHz tuning bandwidth (band specific)
    Unique magnetic latch and lock for easy access to batteries

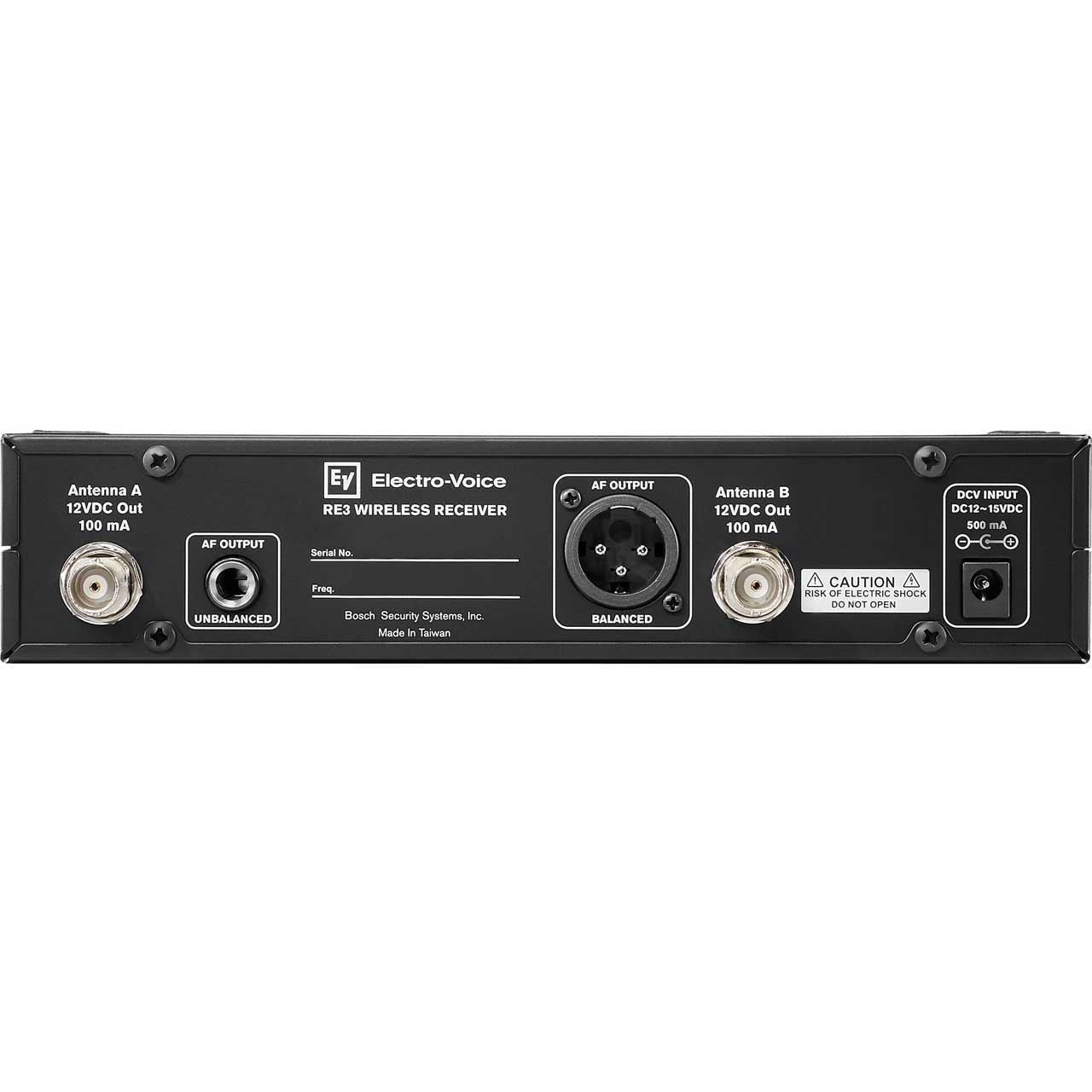

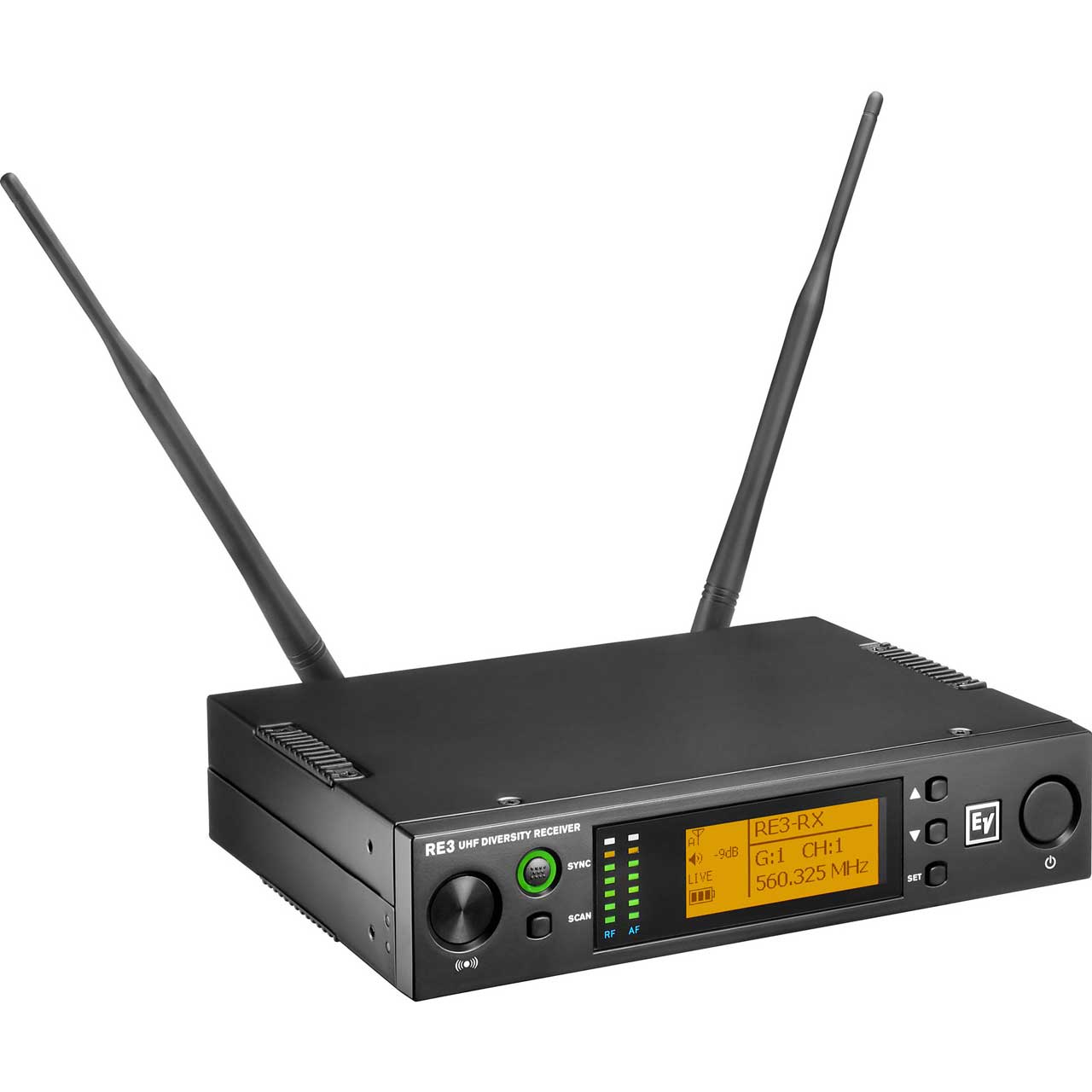

    RE3-RX Diversity Receiver:
    Diversity reception minimizes dropouts
    Frequency scanning for selecting open frequencies
    Sync function links transmitter to receiver for easy setup
    Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
    Easy-to-read LCD display

    • Features:

      • Rack mountable 1/2 space receiver with mounting hardware
      • Robust metal handheld and bodypack transmitter bodies
      • Easy-to-read LDC displays
      • Frequency scanning for selecting open frequencies
      • Sync function links transmitter to receiver
      • Keylock function protects settings from unwanted changes
      • Diversity reception technology for trouble-free operation
      • Broad selection of transmitter microphone types maximize application diversity
      • Wide selection of tuning bandwidths to help compensate for changing global RF regulations
      • Frequencies independently adjustable in 25kHz steps
      • Eight groups of pre-coordinated frequencies with up to 22 coordinated channels per group
      • Simple multi-channel system setup
      • Transmitters powered by common AA cells
      • Selectable hi and low transmitter power in most global regions.
      • Extensive selection of optional system accessories available


    • Specifications:

      • Band Name: 5L
      • Bandwidth Limits (MHz): 488 - 524
      • Tuning Bandwidth: 36 MHz
      • Selectable Frequencies: 1440
      • Transmit Output Power (mW): 10 and 50
      • Coverage: Global:


    • Item Includes:

      • 1x RE3-BPT Bodypack Transmitter
      • 1x RE3-RX Diversity Receiver
      • 2x Receiver antennas
      • 1x Universal power supply
      • 2x AA batteries
      • 1x Receiver rack mounting hardware
      • 1x Owner's manual
      • 1x Documentation packet
      • 1x Declaration of conformity


    • GTIN:

      0800549895095
