Electro-Voice RE3-BPT-5H UHF Bodypack Mic Transmitter - 560-596 MHz - 4-Pin Mini Jack Input

ITEM #: EV-RE3-BPT-5H MFG #: F.01U.353.075

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$311.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    F.01U.353.075 - Overview

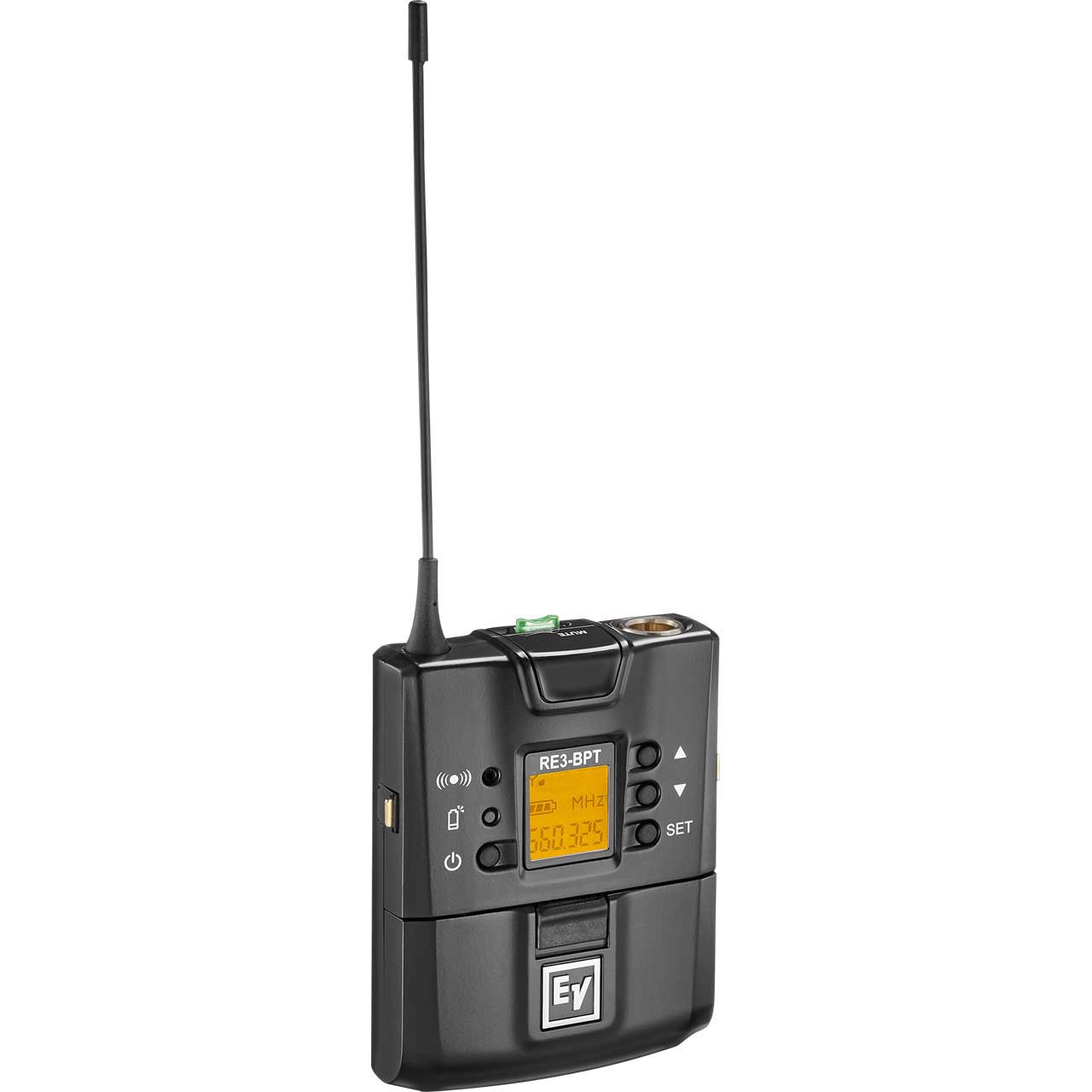

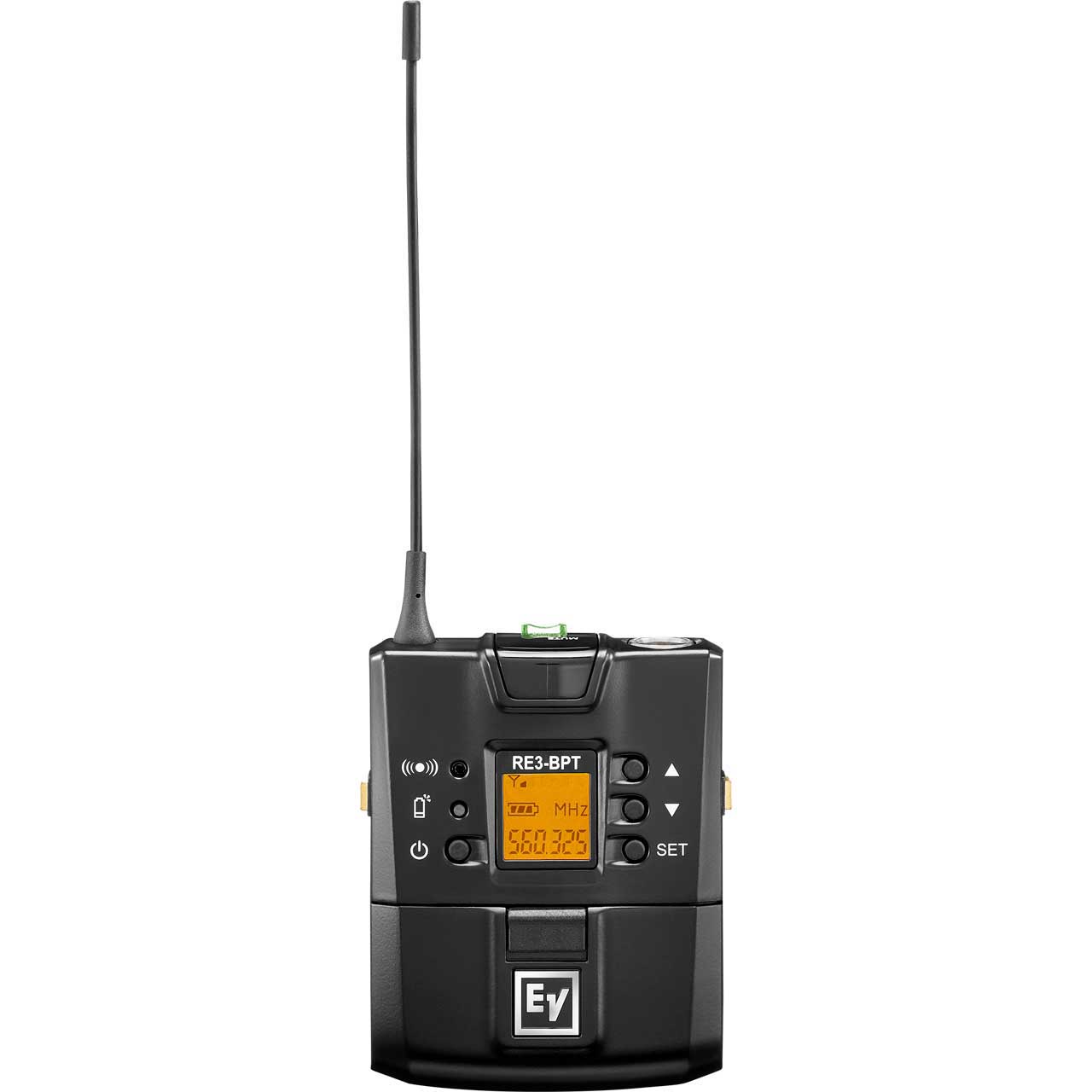

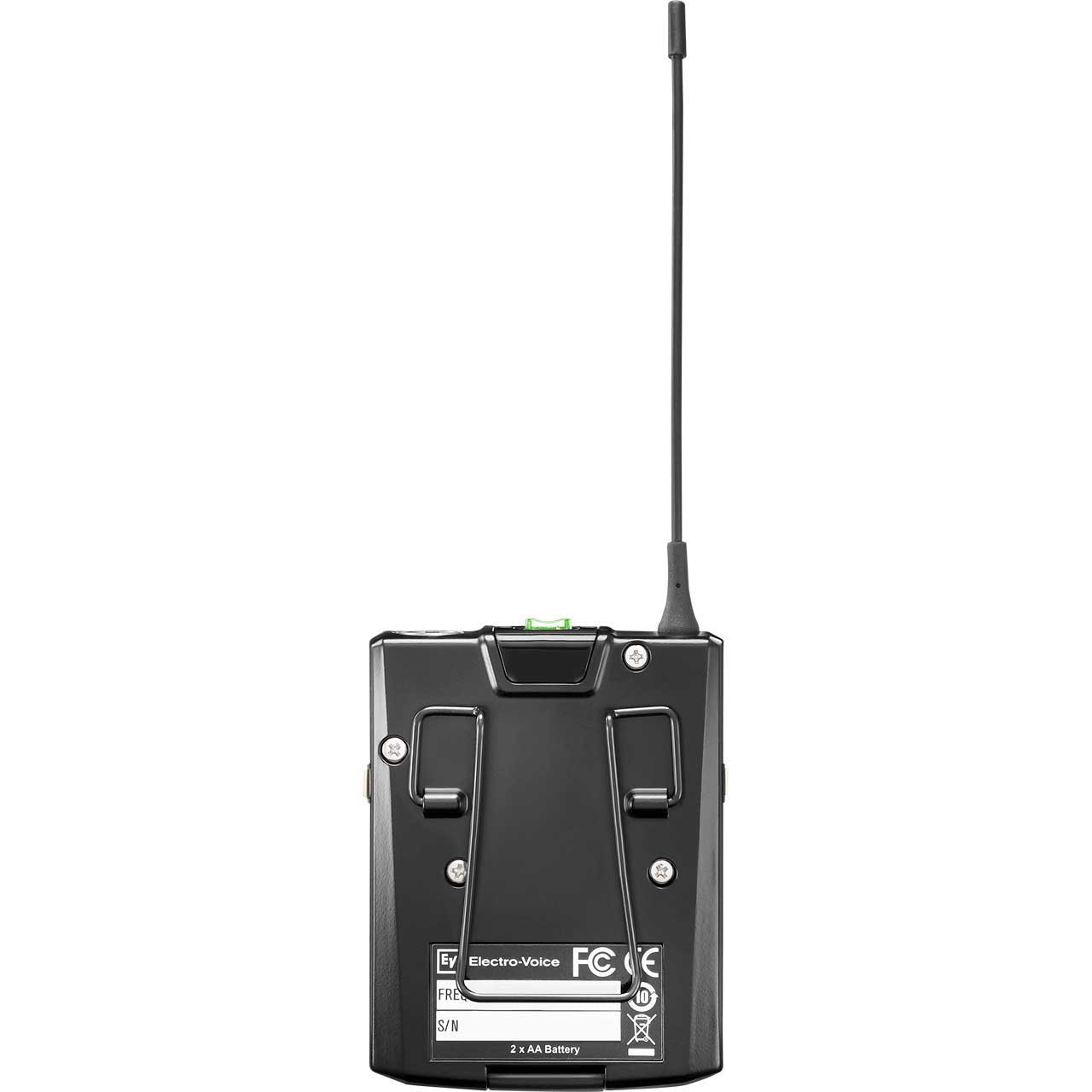

    The EV RE3-BPT is a small, lightweight yet robust UHF bodypack microphone transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energy fitness and athletic situations, this sleek and rugged transmitter fits comfortably and accepts a wide variety of input devices.

    The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells.

    The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

    The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges.

    The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.

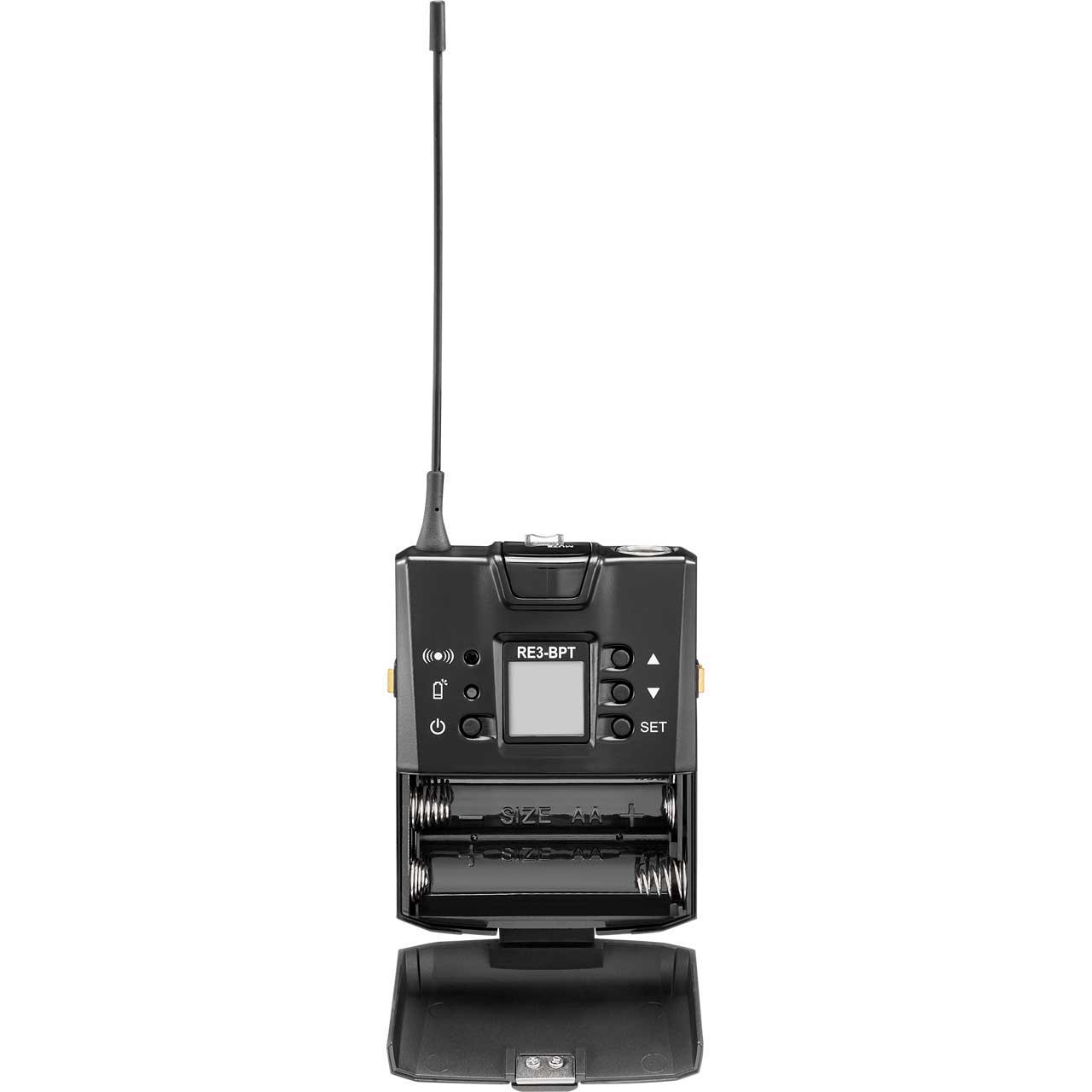

    The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

    Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

    • Features:

      • Robust metal body
      • Sync function for easy frequency setup
      • Selectable low and high output power (band specific)
      • Up to 36 MHz tuning bandwidth (band specific)
      • Unique magnetic latch and lock for easy access to batteries

    • Specifications:

      • Frequency oscillation mode: Phase-locked loop (PLL)
      • Band name: 5H
      • Tuning bandwidth: 36 MHz
      • Carrier frequency range: 560-596 MHz
      • Sync frequency: Ultrasonic
      • RF power output: Low 10mW / High 50mW
      • Display by: LCD + LED
      • Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
      • RF stability: <±10kHz@Fc
      • Modulation frequency shift: Wideband FM ±48kHz deviation
      • Harmonic radiation: <-50dBc
      • Input jack: 4-pin mini jack
      • Battery: 2 x AA alkaline battery or NiMH rechargeable battery
      • Charging contacts: Yes
      • Finish: Black polyurethane paint
      • Dimensions (without antenna): Height: 3.2 in. (81.5mm) - Width: 2.54 in. (64.5mm) - Depth: 0.98 in. (25mm)
      • Net weight: 6.14 oz. (0.174 kg)
      • Gross weight: 8.29 oz. (0.235 kg)

    • Item Includes:

      • 1x Electro-Voice RE3-BPT-5H
      • 2x AA batteries
      • 1x Engineering datasheet
      • 1x Warranty and product documentation information card
