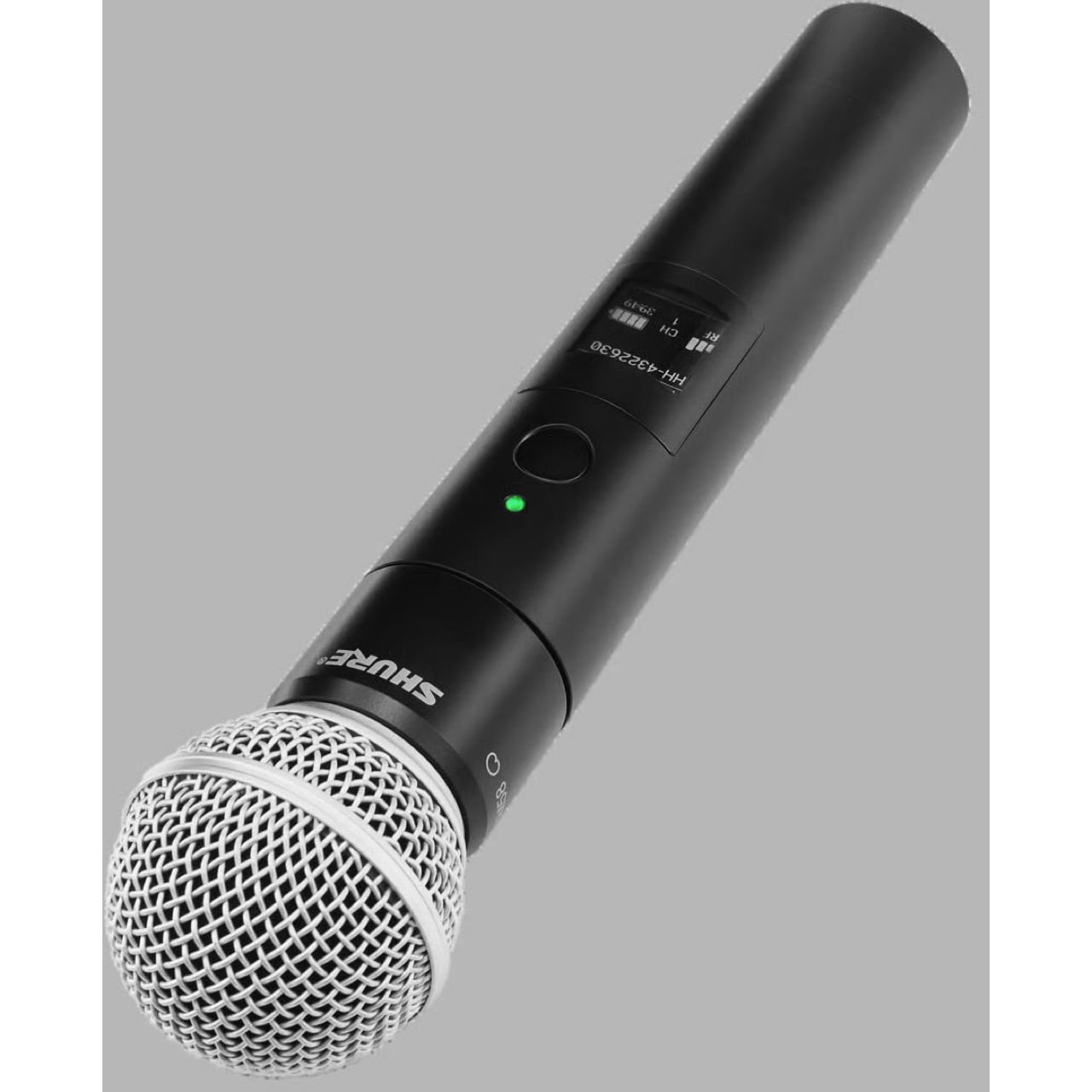

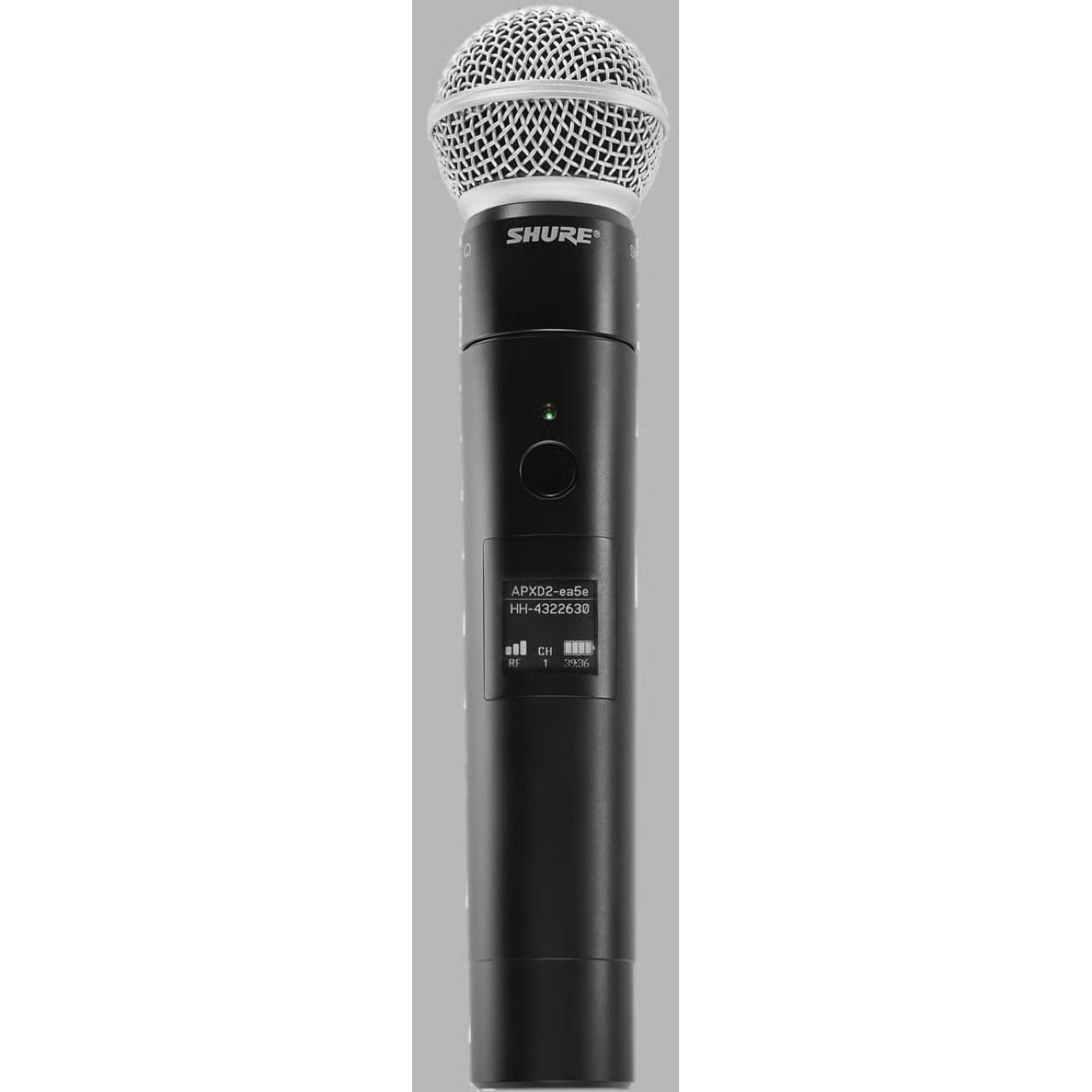

Shure MXW2XTA/SM58=-Z10 Rechargeable Handheld Transmitter with SM58 Capsule - TAA Compliant

MXW2XTA/SM58=-Z10 - Overview

• Features:

  • Dual transmit antennas maximize transmission range regardless of hand placement.
  • Programmable mute button can control one or multiple transmitters; can be configured as push-to-talk, push-to-mute, or push-on/push-off functioning.
  • MXW neXt transmitters can be remotely muted/unmuted by room control system.
  • Power switch can be defeated to prevent accidental powering off.
  • Out-of-range alert reminds user to return transmitter to charging station.
  • Information screen displays battery time remaining, room assignment, and more.
  • Adjustable transmit power provides reliable wireless coverage up to 160 feet (50 meters).
  • Always-on AES-256 encryption provides enhanced privacy for meeting audio.


• Specifications:

  • Working Range: 150ft (45m) (Outdoor and line-of-sight between user and MXWAPX. Actual range depends on RF power setting, signal absorption, reflections, and interference.)
  • Audio Frequency Response: 30Hz - 19kHz (+0.5dB/3dB) (Dependent on microphone type and audio output. Microphone transducers not included in measurement. MXWAPX set to Direct Mode.)
  • Digital Audio Processing: 24 bit / 48kHz
  • Digital Audio Networking: Dante, AES67
  • Security:
    - AES-256 Encryption
    - Dante and DECT over-the-air
  • Latency: 18ms (nominal) (MXW1/2/6/8X microphone input to MXWAPX output. MXWAPX set to SD RF density mode. Latency depends on output port and RF density mode.)
  • System Audio Polarity: Positive pressure on MXW1X/2X/6X/8X microphone diaphragm produces positive voltage on + pin (with respect to - pin) of MXWAPX analog output and a positive digital signal on the MXWAPX USB and Dante outputs.
  • Radio Transmission: Time Division Multiple Access (TDMA), Gaussian Frequency Shift Keying (GFSK), 365 kHz max. deviation
  • DECT RF Sensitivity: < -90 dBm
  • Cable Requirements: Cat 5e or higher, shielded, 100 m maximum between network devices
  • Network Addressing Capability: DHCP, link-local, static
  • Operating Temperature Range: 41°F - 104°F (5°C - 40°C)
  • Operating Humidity: RH < 95%
  • Storage Temperature Range: -4°F - 140°F (-20°C - 60°C)
  • Dimensions (LxWxH): 11.18" x 5.24" x 3.23" (284mm x 133.1mm x 82mm)
  • Weight: 2lbs (0.9kg)


• Item Includes:

  • 1x MXW2XTA/SM58=-Z10
