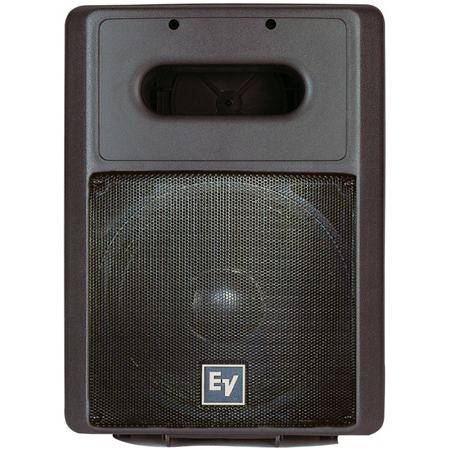

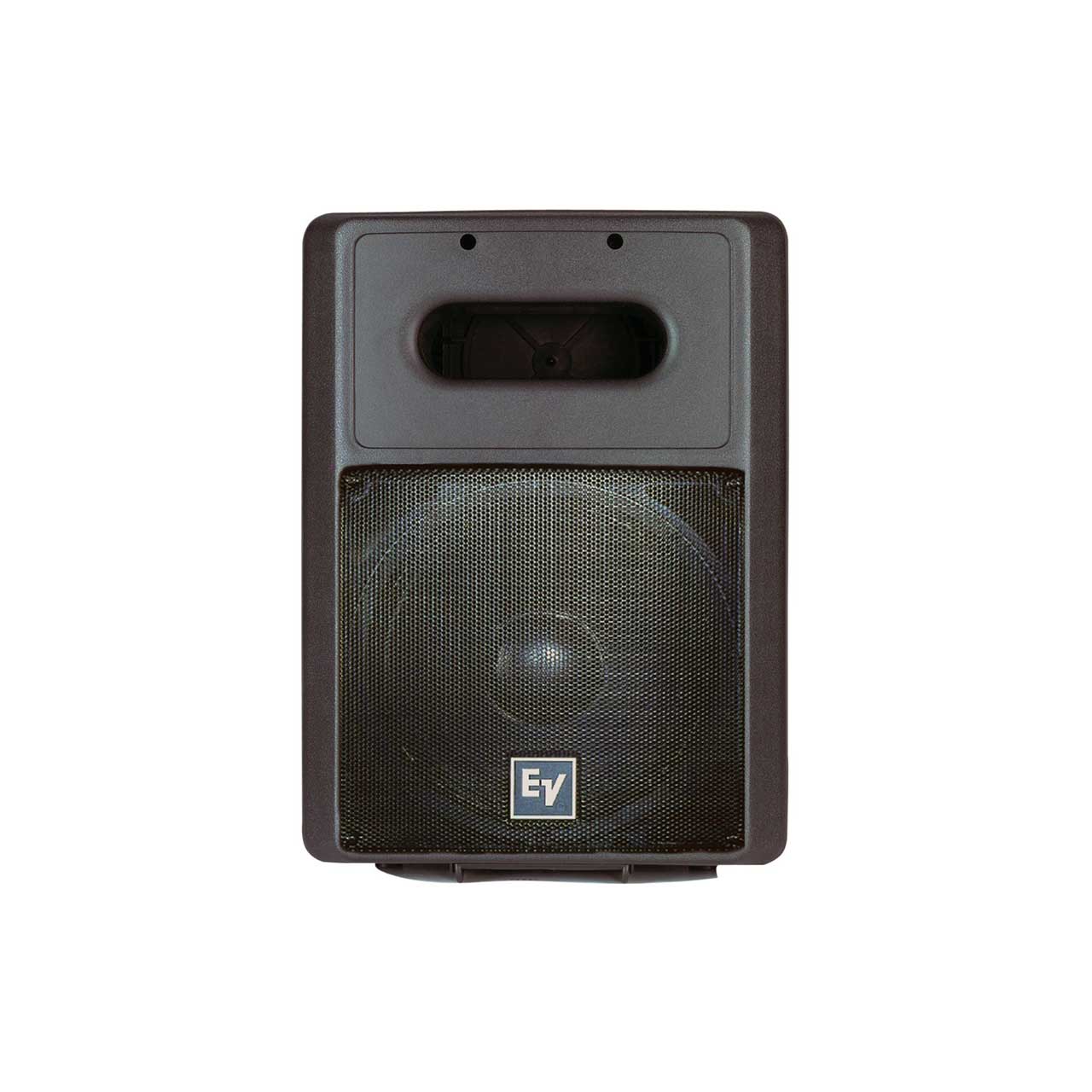

Electro Voice SB122 12in Subwoofer w/NL4 Connector

ITEM #: EV-SB122 MFG #: 302013001

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    302013001 - Overview

    The quest for an affordable subwoofer that is compact, lightweight AND powerful is finally over. Introducing the Electro-Voice SB122, quite possibly the smallest, most powerful subwoofer on the planet. Don't let your eyes fool you into thinking this little sub can't pound. Packing 400 watts continuous (1600W peak) in a diminutive 15kg (33lbs) package, the SB122 employs the new EVS12SB 12-inch long-excursion woofer for outstanding low frequency response. Aesthetically, the SB122 sports a half-face grille with grille cloth, and a newly stylized EV logo. The rich feature set includes a top mounted pole cup, ergonomic carrying handle, large port, and a built-in low-pass filter that eliminates the need for external processing. Of course, external processing is still an option for professionals seeking greater overall system performance gains. And, with a price that makes it all seem too good to be true, SB122 is sure to make you rethink what a compact sub can be.

    • Features:

      • Sb122 performance with enhanced weather-resistance
      • Low-pass filter for parallel connection without added amp
      • Large vent for enhanced LF output
      • Cast-frame EVS12SB long-excursion woofer
      • Power handling: 400 W continuous, 1600 W peak
      • Parallel Neutrik Speakon high current input connectors
      • Strong, composite trapezoidal enclosure
      • Pole mount on top for pairing with Zx1
      • Integral handle
      • Available in black
    • Specifications:

      • Freq. Response1 (-3 dB): 63 Hz - 174 Hz.
      • Freq. Range1 (-10 dB): 44 Hz - 250 Hz.
      • Rec. Hipass Frequency: 50 Hz.
      • Axial Sensitivity1: 96 dB (1W/1m).
      • Max. Calculated SPL: 128 dB.
      • Power Handling (Cont.): 400 Watts.
      • Power Handling (Peak): 1,600 Watts.
      • LF Transducer: EVS12SB, 12 in (305mm) Driver.
      • Rec. Crossover Freq. Range, Biamp: 80 Hz - 160 Hz.
      • Impedance: 8 Ohms.
      • Connectors: (2) Neutrik Speakon NL4's.
      • Grille: Stainless Steel with Hydrophobic Cloth.
      • Dimensions (H x W x D): 23.1" x 16.9" x 12.3" (586mm x 429mm x 312mm).
      • Net Weight: 41.0 lbs (18.6 kg).
      • Shipping Weight: 44.4 lbs (20.2 kg).
    • GTIN:
