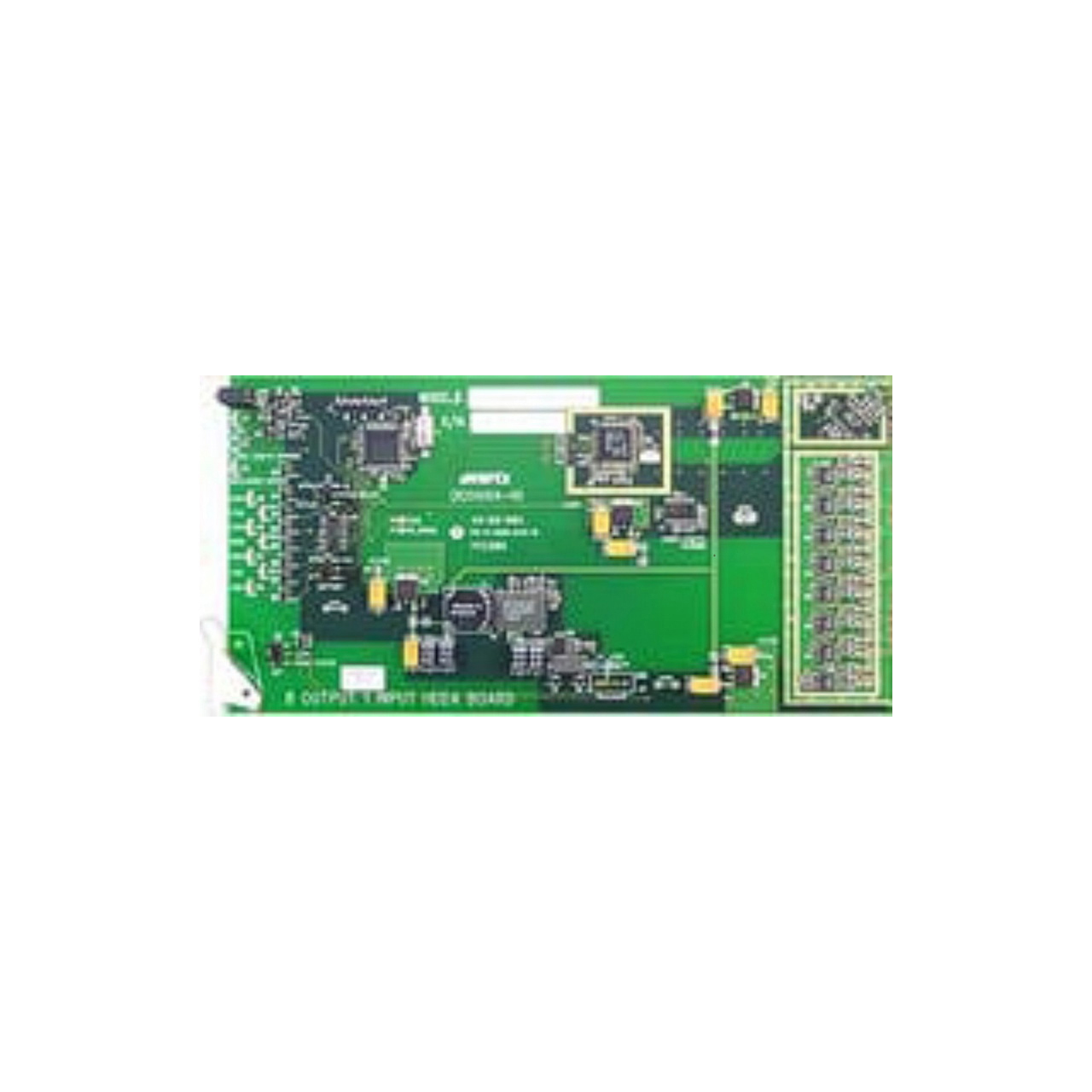

Evertz 500DA-AESB Balanced AES Audio Distribution Amplifier - 1x4

500DA-AESB - Overview

The 500DA-AESB is housed in the Evertz 3RU 500FR Exponent frame that will hold up to 16 modules.

• Features:

  • Data reclocking provides jitter reduction
  • VistaLINK® capable for remote monitoring via SNMP (using VistaLINK® PRO) when installed in 500FR frame with 500FC VistaLINK® Frame Controller+
  • Card Edge LED's: Module Health Status and Error LED indication for input PLL out of lock, parity error or biphase coding error
  • AES3-1992 standard for AES audio on 110O twisted pair cable
  • EQ and reclock provide extended cable length compensation >984 ft (>300m)
  • Transformer coupled 110Ω balanced input
  • Four 110Ω balanced AES outputs


• Specifications:

  AES Audio Input
  • Standard: AES3-1992
  • Number of Inputs: 1x
  • Connector: 3 pin removable terminal strip
  • Signal Level: 2 to 7V p-p
  • Coupling: Transformer
  • Impedance: 110Ω
  • Return Loss: > 14dB 100kHz to 6MHz
  • Equalization: Automatic to 984300m with Belden 1800B (or equivalent) @ 48kHz AES signal
  • Sampling Rate: 32kHz, 44.1kHz, 48kHz, and 96kHz

    AES Audio Output
  • Number of Outputs: 4x Balanced AES reclocked
  • Connector: 3 pin removable terminal strip (screwdown adapter module included)
  • Signal Level: 5V p-p
  • Impedance: 110Ω
  • Return Loss: > 30dB 100kHz to 6MHz

    Electrical
  • Voltage: +12V DC
  • Power: 5 Watts
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive
  • Number of Slots: 1x
