    OG-3GDA-2X4 - Overview

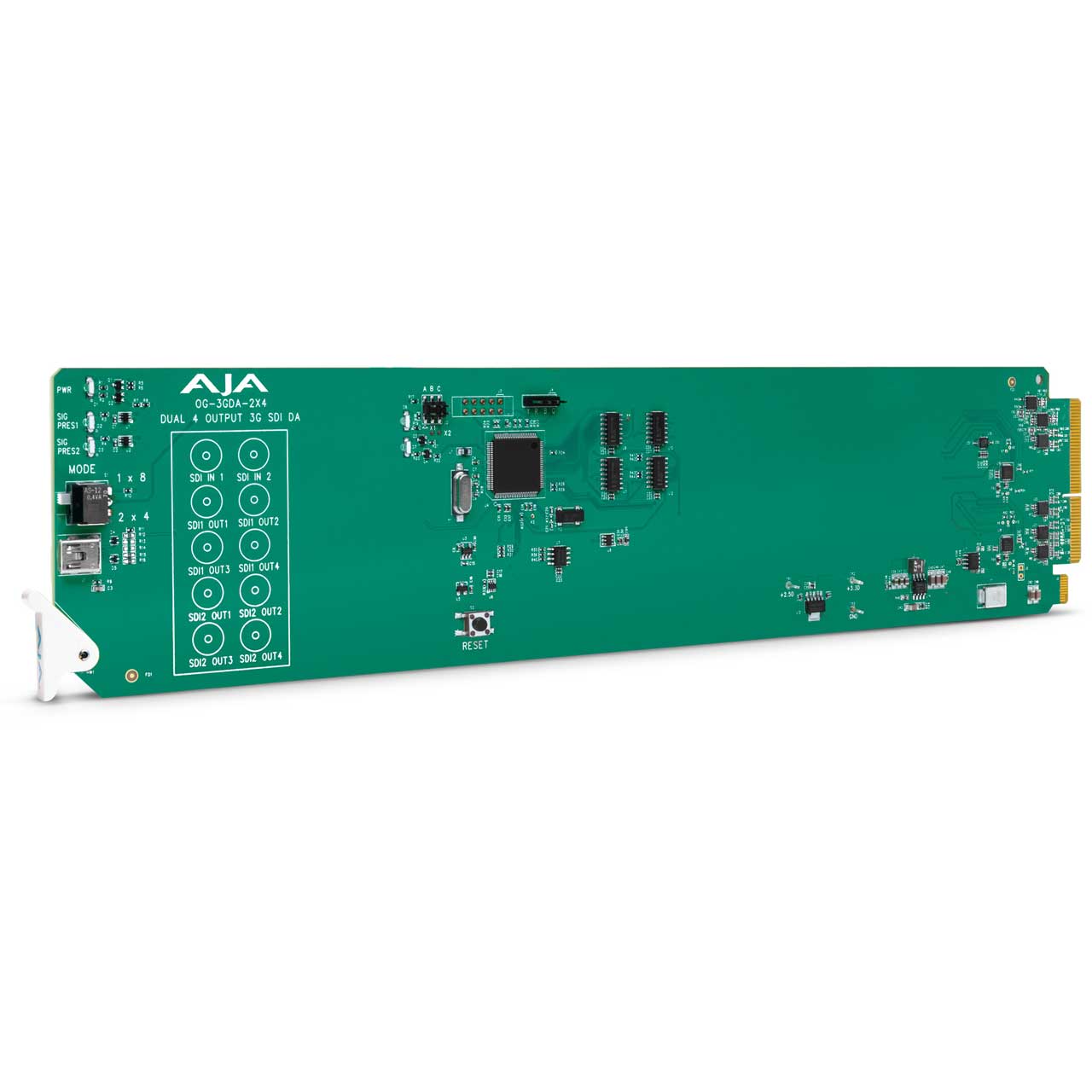

    The AJA OG-3GDA-2x4 is an openGear compatible, state of the art 3G-SDI distribution amplifier with a 10x BNC rear connector module included. The 3G-SDI signals on the input channels are automatically equalized and the outputs are automatically reclocked with jitter tolerance to four 3G-SDI outputs each. Alternatively the OG-3GDA-2x4 can function as a 1x 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability basically doubles the number of DAs in limited frame space. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported.

    Designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

    The 3G-SDI inputs are automatically equalized and the output(s) is automatically reclocked with best in class input jitter tolerance.. Two SDIs inputs and eight SDI outputs are provided. A 10x BNC rear openGear connector module is included.

    • Features:

      • Video Formats: 150 Mbps - 3 Gbps, format agnostic
      • Input: 1x 3G-SDI BNC (1x8 mode); 2x 3G-SDI BNC (2x4 mode)
      • Outputs: 8x 3G-SDI BNC
      • 4 outputs noninverting (1x8 mode)
      • 2 outputs noninverting (2x4 mode)
      • Support for HDR - High Dynamic Range video
      • Monitor via openGear DashBoard
      • Passes embedded audio, all ancillary data including closed caption and time code
      • Input Present and Input SMPTE Lock LEDs
      • Automatic input equalization and output reclocking
      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
      • Power: 2.6 watts max per card
      • Hot swappable
      • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
    • Specifications:

      • Video Formats
      • 150 Mbps - 3 Gbps, format agnostic

        Video Input Digital
      • 1x 3G-SDI BNC (1x8 mode), SMPTE-259/292/424
      • 2x 3G-SDI BNC (2x4 mode), SMPTE-259/292/424

        Video Output Digital
      • 8x 3G-SDI BNC, SMPTE-259/292/424
      • 4x outputs noninverting (1x8 mode)
      • 2x outputs noninverting for each DA (2x4 mode)

        Cable Equalization
      • (Belden 1694A coax)
      • 270 Mbps, 350m
      • 1.5 Gbps, 200m
      • 3 Gbps, 120m

      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        User Controls
      • openGear DashBoard network control software via Windows, macOS or Linux

        Size (WxDxH)
      • openGear standard form-factor, front slot and rear card
      • Slots: Two slots required for each card

      • 0.5Lbs (0.3kg)

      • openGear frame compatible, 2.6 watts max per card

      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <3,000 meters (<10,000 feet)
