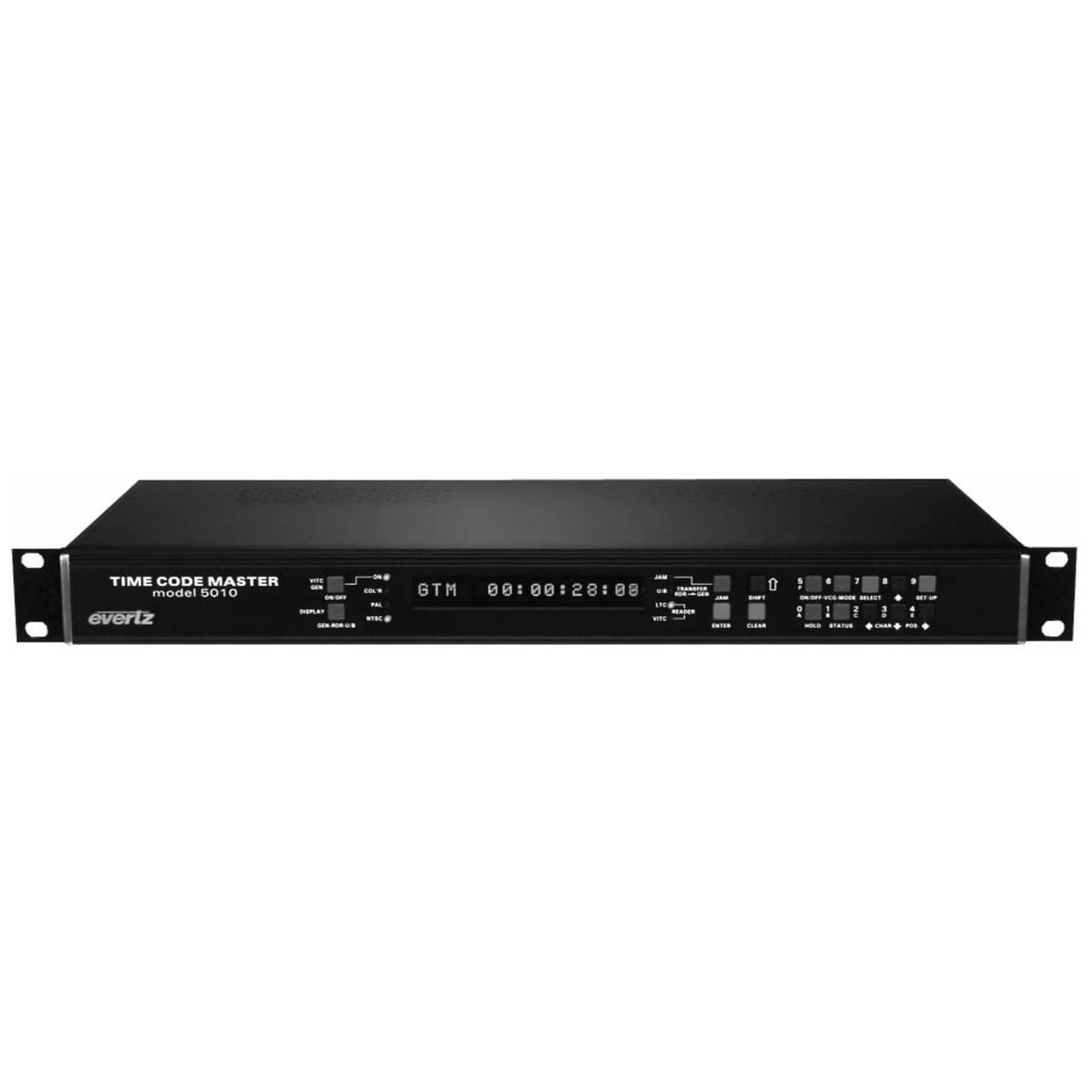

Evertz 5010-VITC Time Code Generator/Reader w/ Video Character Generator for Longitudinal / Vertical Interval Time Code

5010-VITC - Overview

• Features:

  • Generates Time code in accordance with SMPTE ST 12-1 locked to NTSC or PAL video or free run on internal crystal oscillator
  • High resolution Character Inserter, with three Character sizes: 8,16 and 32 lines, time and user bits separately positionable on raster
  • Reads LTC from 1/30th to 70x play speed
  • Well proven input circuitry design permits reliable recovery of even severely distorted code
  • Momentary or continuous Jam-sync modes
  • Time and user bits are presettable from the front panel
  • RS-232 serial port permits interfacing to computers
  • 25Fps - 29.97Fps drop frame time code translator mode
  • Parallel control of commonly used functions
  • User bit Transfer from Reader Time or User bits
  • On-screen programming menu
  • Date/Time Zone may be encoded into user bits according to SMPTE ST 309
  • Generates and reads universal coordinated time (UTC) or local time in time/date mode
  • Automatic daylight saving time adjustment in time/date mode
  • 2 General purpose outputs can be assigned to several output modes
  • Vertical Interval Time code Generator and Reader
  • Separate genlock and PGM video inputs
  • Set VITC Generator Line numbers from the front panel
  • Translates LTC to VITC or VITC to LTC
  • Reads VITC over the full shuttle range of most VTR's
  • Selectable reader line range
  • Optional Bypass relay on VITC Generator


• Specifications:

  LTC Generator
  • Standard: SMPTE ST 12-1: NTSC 2/4 field; PAL 4/8 field menu selectable
  • Connector: 3-pin male XLR type
  • Level: Adjustable, 0.5Vp-p - 2Vp-p
  • Rise Time: 40 ±10µs
  • Jitter: < 2µs

    LTC Reader
  • Standard: SMPTE ST 12 Time code
  • Connector: 3-pin female XLR type
  • Level: 0.2Vp-p - 4Vp-p, balanced or unbalanced
  • Speed: 1/30th to 70x play speed, fwd and rev, machine dependent

    VITC Generator
  • Input: Comp. Video 1V p-p, 75Ω terminated
  • Output: 2 Comp. Video + keyed VITC (1 Output bypass relay protected when +BP option installed)
  • Differential Gain: < 0.5%
  • Differential Phase: < 0.5°

    VITC Reader
  • Input: Comp. Video 1V p-p, High Z, BNC Loop
  • Speed: Still frame to > 40x play

    Character Generator
  • Input: Comp. video 1Vp-p, 75Ω terminated
  • Output: Com. video 1Vp-p + keyed high resolution characters, selectable background and sizes

    Serial Remote Control
  • Type: RS-232/422 interface, 9-pin "D" connector Computer control of all functions, selectable baud rate

    Electrical
  • Power: Auto ranging 100V - 230V AC, 50/60Hz 25W
  • Safety: TuV Listed, Complies with EU Safety Directive
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive

    Physical
  • Dimensions (HxWxD): 1.75" x 19" x 7.75" (45mm x 483mm x 196mm)
  • Weight: 7lbs (3.5kg)


• Warranty:

  • 1 Year Warranty
