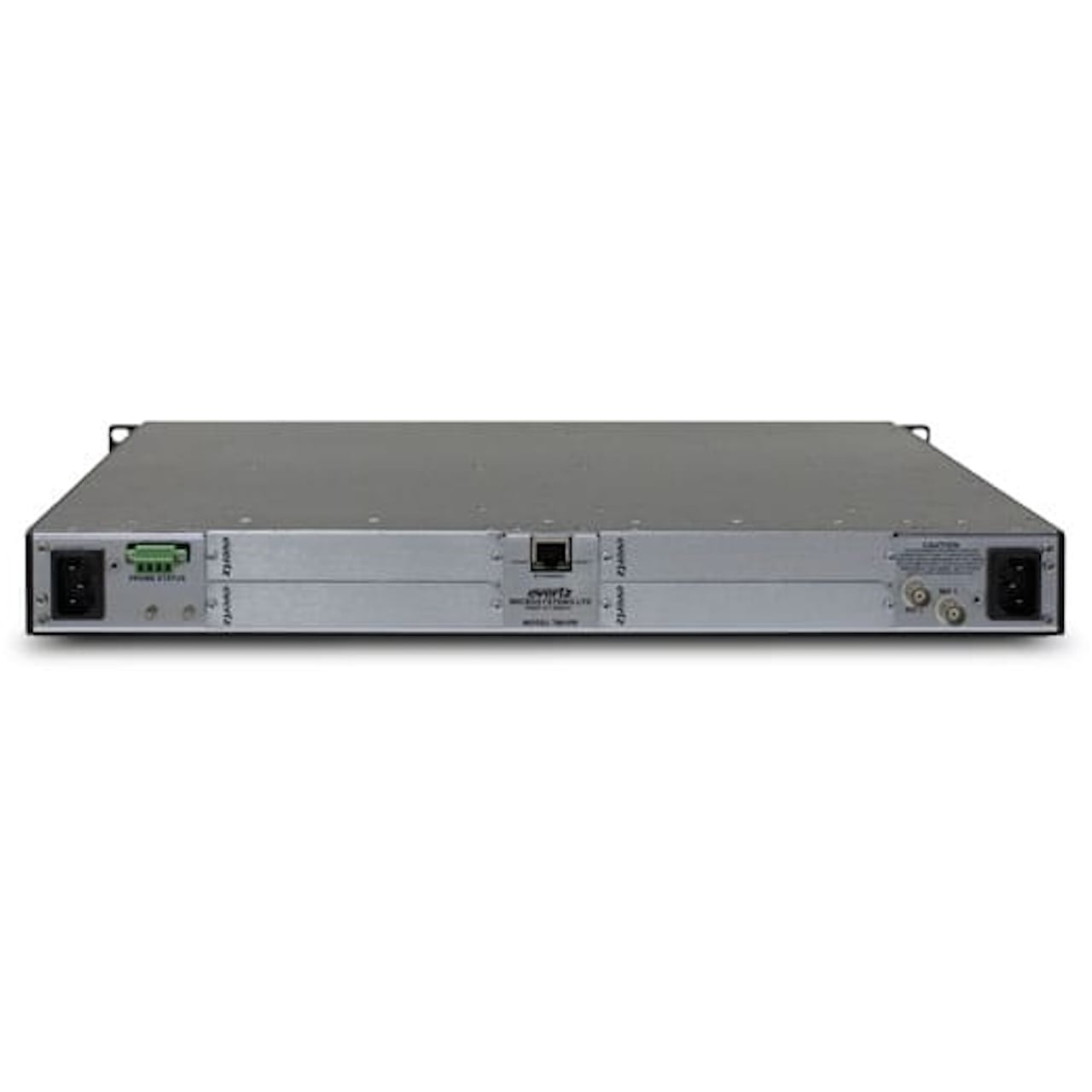

Evertz 7801FC VistaLINK MultiFrame Controller for 7801FR Frame

Name: Evertz 7801FC VistaLINK MultiFrame Controller for 7801FR Frame
Brand: Evertz
SKU: EVZ-7801FC
Price: 1185.00 USD
Availability: Backorder

ITEM #: EVZ-7801FC MFG #: 7801FC

Evertz

Our Price:

$1,185.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

7801FC - Overview

The Evertz 7801FC VistaLINK™ Frame Controller card provides a single point of access to communicate with VistaLINK™-capable modules in the 7801FR frame. The 7801FC VistaLINK. Frame Controller provides a 10Base-T/100Base-TX/1000Base-T Ethernet port, and communication is facilitated through the use of Simple Network Management Protocol (SNMP).

The 7801FC VistaLINKe Frame Controller handles all SNMP communications between the frame (7801FR) and the network manager (NMS), and serves as a gateway to individual cards in the frame.

Features:
- Complies with IEEE 802.3 1000Base-T, 100Base-TX and 10Base-T Ethernet standards
- 1000Mb/s, 100Mb/s or 10Mb/s Ethernet data transfer, selected by auto-negotiation
- Full-duplex or half-duplex operation, selected by auto-negotiation
- RJ-45 connector for network cable connection
- Card edge LEDs indicate module fault, microprocessor state, activity and link status
- Rear panel LEDs indicate Ethernet link, activity and speed
- Supports "ftp" upgrades for frame-wide firmware upgrades (product specific)
- Includes VistaLINK™PRO (VLPRO-C) module software configuration tool
- Provides frame/chassis status information through VistaLINK. including power supply status, frame status, card insertion/removal counters and version information
Specifications:
- Network Type:
  - Gigabit Ethernet 1000 Base-T IEEE 802.3ab standard for 1000Mb/s baseband CSMA/CD local area network
  - Fast Ethernet 100 Base-TX IEEE 802.3u standard for 100Mb/s baseband CSMA/CD local area network
  - Ethernet 10 Base-T IEEE 802.3 standard for 10Mb/s baseband CSMA/CD local area network
- Connector: RJ-45
- Voltage: +12V DC
- Power: 8W
- EMI/RFI: Complies with FCC Part 15, Class A EU EMC directive
- Dimensions (LxWxH): 23.1" x 21.7" x 5.7"
- Weight: 16.65lbs
