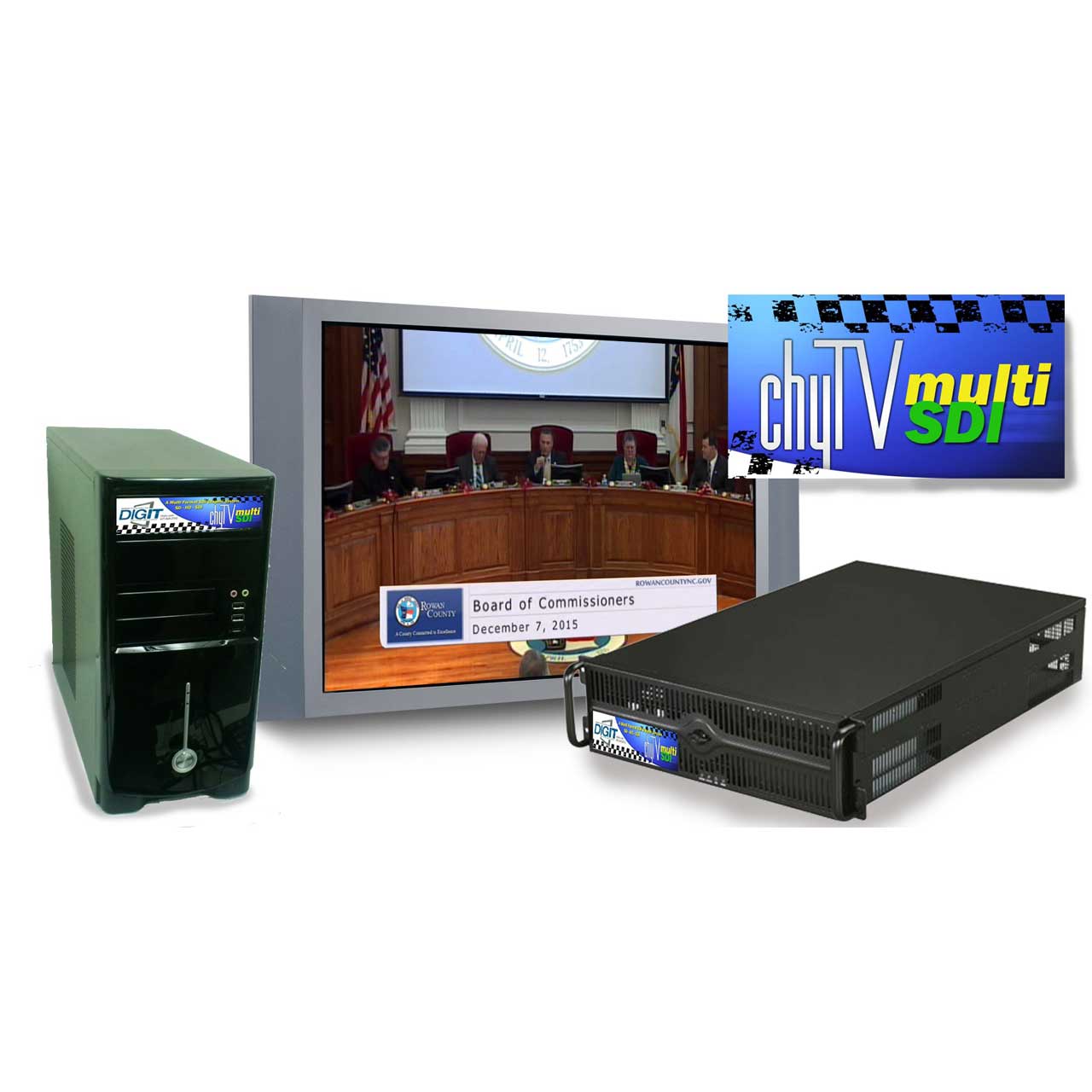

ChyTV Multi SDI Rack Chassis Video Graphics Display SD-SDI HD-SDI

Manufacturer: ChyTV

Item #: CHYTV-7A00348RK   •   MFG #: 7A0-0348-RK


List Price:$3,995.00
Our Price:$3,595.49

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    Affordable SDI Graphics System
    The ChyTV multi SDI system is designed to be a cost-effective but high-end graphics system for local cable channels, communities, municipalities, PEG and other budget conscious television and video distribution networks. In addition to SD-SDI in and out, ChyTV multi SDI supports HD-SDI in and out with graphic overlay on top of live video, giving facilities an upgrade path to transition from SD to HD with no added cost. Additionally, full screen graphics can be displayed with dynamic text, logos and animations. A versatile play-list scheduler allows for dynamic programming. The supplied ChyTV Tools user interface allows for direct control of a single or multiple ChyTV multi SDI systems.

    Broadcast Quality Text and Graphics
    The ChyTV multi SDI features an internal MPEG clip player and has the ability to manipulate the video clip either in a window that is surrounded by graphics and text or to superimpose the message over the video background. Professional Crawl overlays are broadcast quality, smooth and easily modified. Multiple Crawls can display simultaneously and can include graphics and logos.

    Future-Proof Hardware To Suit You Needs

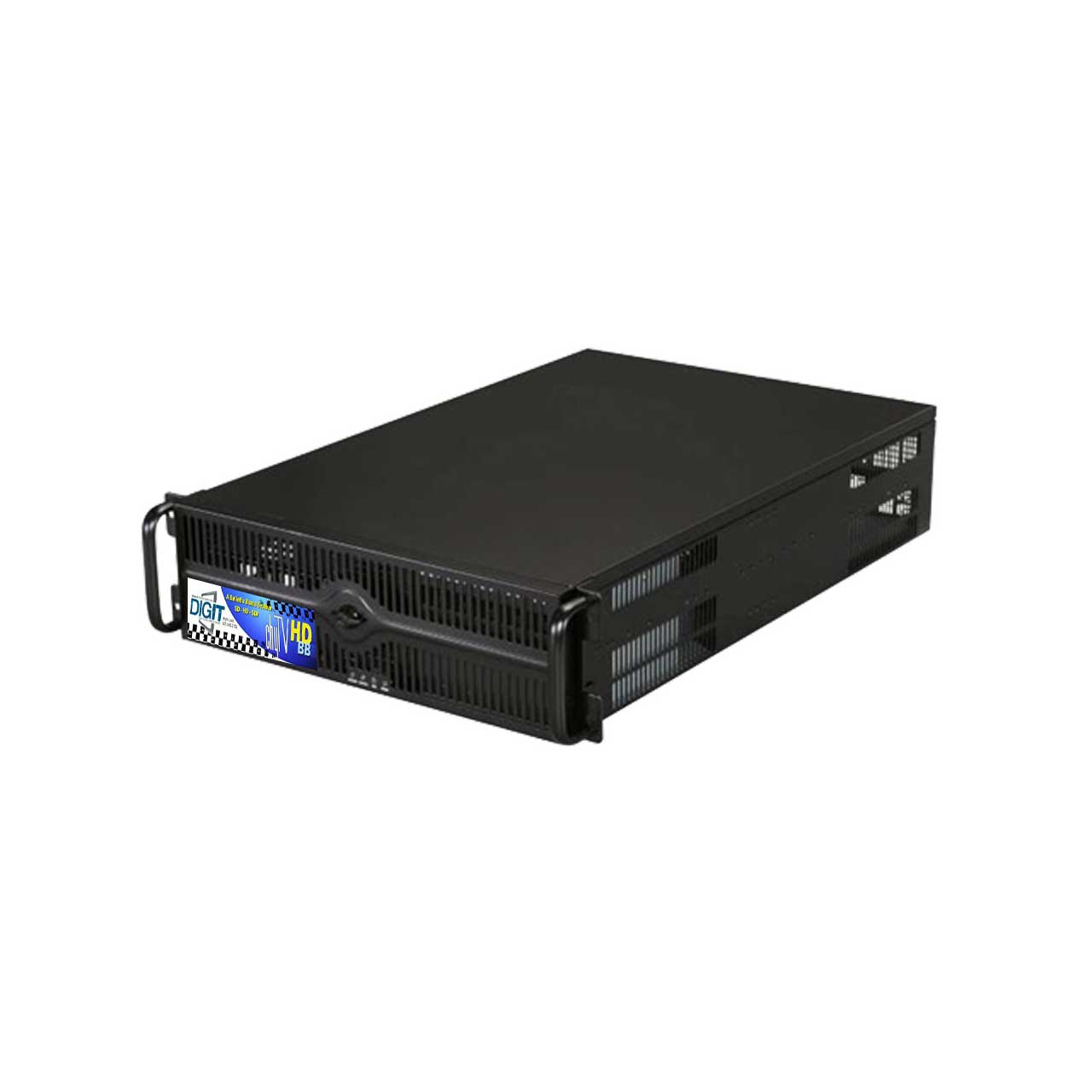

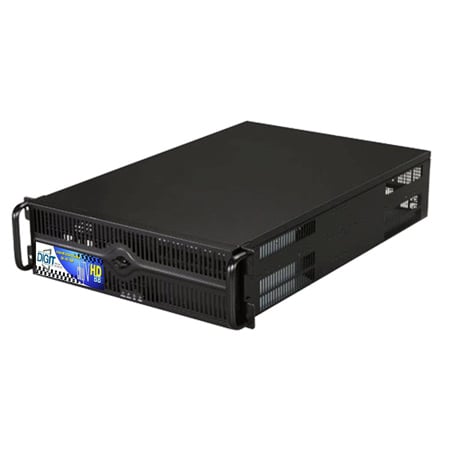

    The ChyTV multi SDI system can be ordered in a Desktop tower chassis as well as a more industrial 3 RU rack-mount chassis with redundant power supplies.

    Flexible and Reliable
    Standard format animations can be imported from various file types such as MPEG clips, GIF, AVI, TGA sequences, etc. All graphic pages can then be scheduled from a simple, intuitive scheduling interface for either automatic looping or date/time playout. This self-contained device is virtually virus-proof, requires no external computer connection and ensures utmost reliability and ease of use.

    Extensible To Many Purposes
    Some of the many uses include Local Community Announcements, Local Weather, Lower-Third Titling, Community Advertising, Town Meeting Announcements, Agendas and Minutes, Public Service Announcements and Emergency Alerts.

    • Features

      • Live full-screen SD-SDI / HD-SDI Input with text and graphic overlay
      • Flexible scheduling.
      • Layered page elements include live video, clips, text, graphics and backgrounds
      • Full-screen SD / HD clips as ani-mated backgrounds overlaid with dynamic text and graphics.
      • Dynamic real-time 3D Text and Graphics
      • Squeeze and position clip player windows, including dynamic transitions
      • Dynamic broadcast quality ef-fects such as text pushes, fades and crawls
      • Animated Text, Graphics and Logos using GIF, TGA, MPEG and more
      • Multiple text and graphic zones may be independently sized and positioned
      • Page scheduling, including loop-ing durations or specific day, date and time control
      • External data interfaces for real-time data updates such as news, sports, stock and weather
      • Interfaces with a variety of peripheral devices including RFID, touch screen, contact closure switches, serial control and more.
    • Specifications

      • Video Outputs
      • Outputs not available simultaneously.
      • Digital: HD HDMI; HD/SD SDI (BNC)
      • Analog: None

        Video Inputs
      • Digital: HD HDMI; HD/SD SDI (BNC)
      • Analog: None
      • Video Formats
      • 525, 625, 720p, 1080i

        Audio Outputs
      • Number of Outputs 1 HDMI In; 1 Line-out
      • Number of Inputs 1 HDMI In; 1 Line-in

      • USB USB 2.0, 3.0
      • Ethernet 10/100/1000 BaseT (RJ-45)

        Rack Chassis
      • Weight 43 lbs
      • Dimensions H x W x D
      • 127 x 406 x 419 (mm)
      • 5" x 16" x 16.5"
      • Power Supply: 80 PLUS EPS-12V 550W Mini Redundant Power Supply

        Models Part #
      • ChyTV multi SDI Tower Chassis 7A00348
      • ChyTV multi SDI Rack Chassis 7A00348-RK
    • Warranty

      • 1 Year
