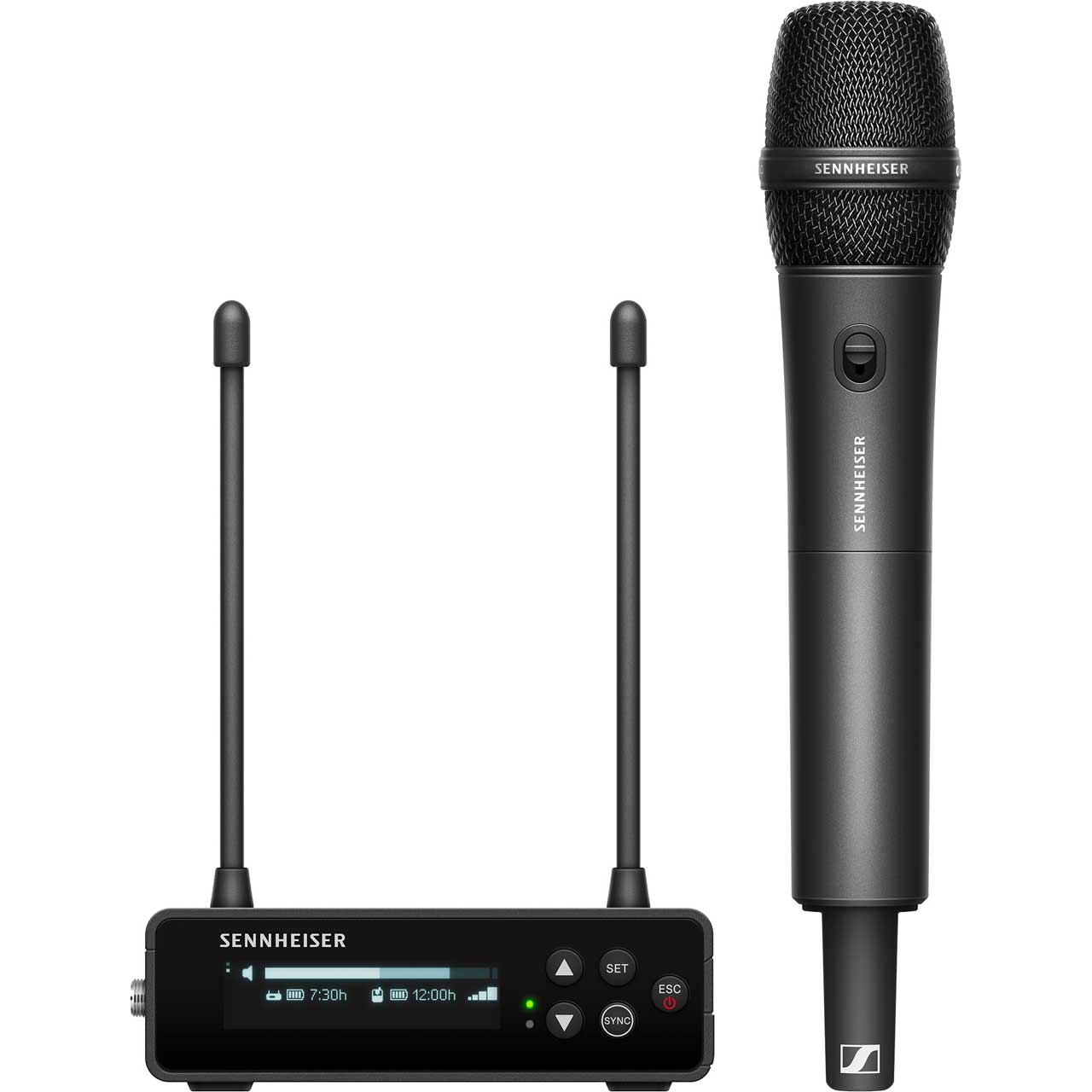

Sennheiser EW-DP 835 SET Evolution Wireless Digital Handheld Mic System - 552-607.8MHz

ITEM #: EW-DP835SET-R4-9 MFG #: 700032

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$829.00

Our Price:

$699.00

After Savings:

$599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Save BIG for NAB 2024!Get huge savings on tons of Sennheiser solutions. Celebrate one of the biggest shows of the year with these limited instant savings!


    700032 - Overview

    Sennheiser EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

    At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

    The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments.

    • Features:

      • Fully digital UHF wireless microphone system for video applications
      • Integrated Bluetooth for synchronization and control
      • Smart Notifications for troubleshooting and system guidance
      • Intelligent battery management provides operating time (hours:minutes)
      • Extended battery life: up to 12h on transmitter, 7h on receiver
      • Magnetically stackable components for versatile mounting
      • Industry leading 134 dB dynamic range for distortion free transmission
      • Up to 56 MHz bandwidth for flexibility in any RF environment
      • Exceptionally low latency (1.9 ms)
      • External charging and powering via USB-C (receiver only)
      • Smart Assist app for monitor & control
      • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

    • Specifications:

      • System
      • Audio link frequency ranges: R4-9 552 - 607.8 MHz
      • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
      • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
      • Audio THD: ≤ -60 dB for 1 kHz@ -3 dBfs input level
      • Dynamic range: 134 dB
      • System latency: 1.9 ms
      • Operating temperature: 14 °F - 131 °F
      • Relative humidity: 5 - 95 % (non-condensing)

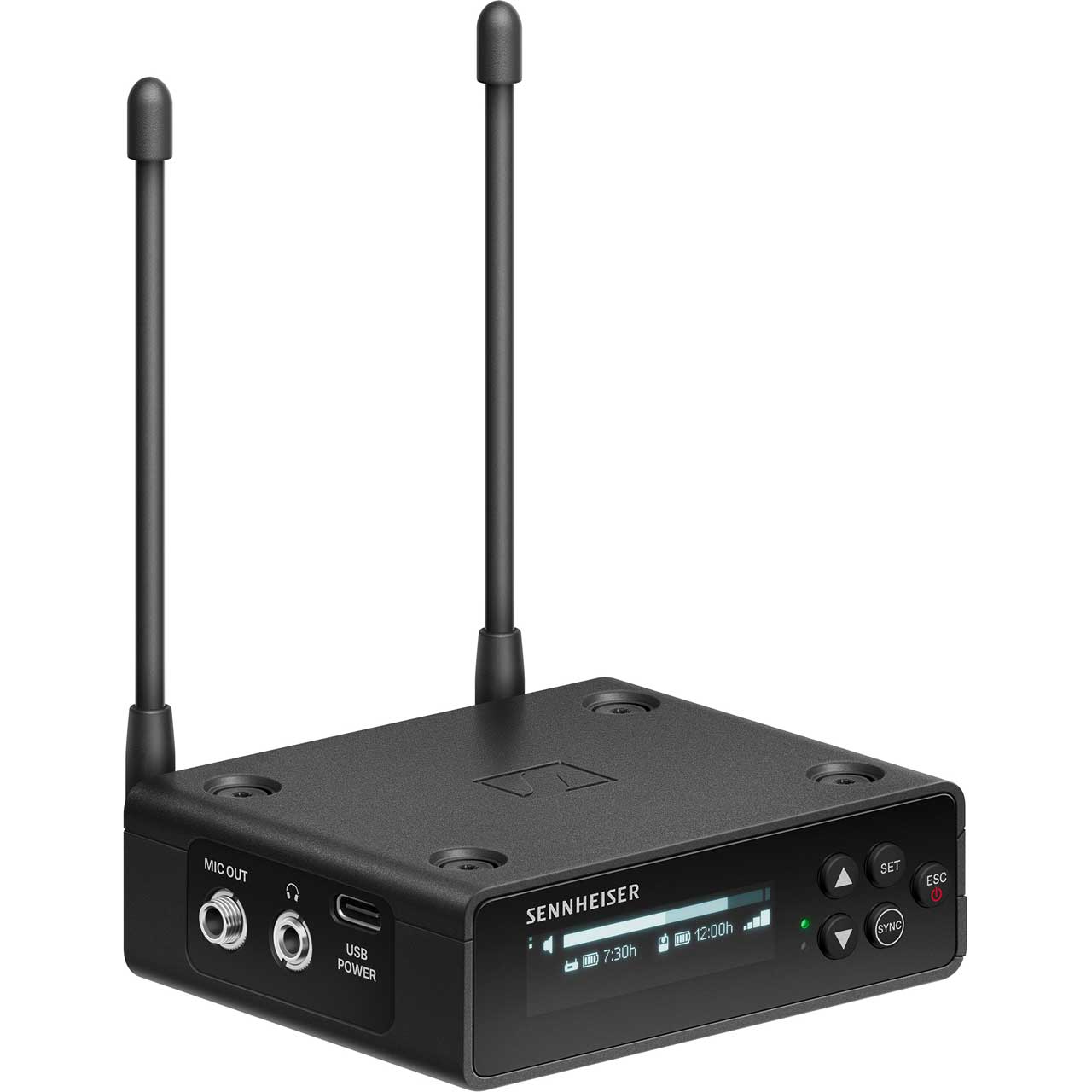

        EW-DP EK Portable Receiver
      • Input voltage ~ 1.8 - 4.35 V
      • Input current: Typ. < 250 mA / Max < 400, mA (BA 70), Typ. < 400 mA, Max < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone)
      • Power Supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA, 9V / 900mA, 12V / 700mA
      • Transmit power (radiated): BLE: max. 10 mW EIRP
      • Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
      • Headphone Output: < 50 mW into 16 Ohms
      • Dimensions: 3.39" x 2.64" x 1.1"
      • Weight (without antennas and power supply): 0.31 lbs)

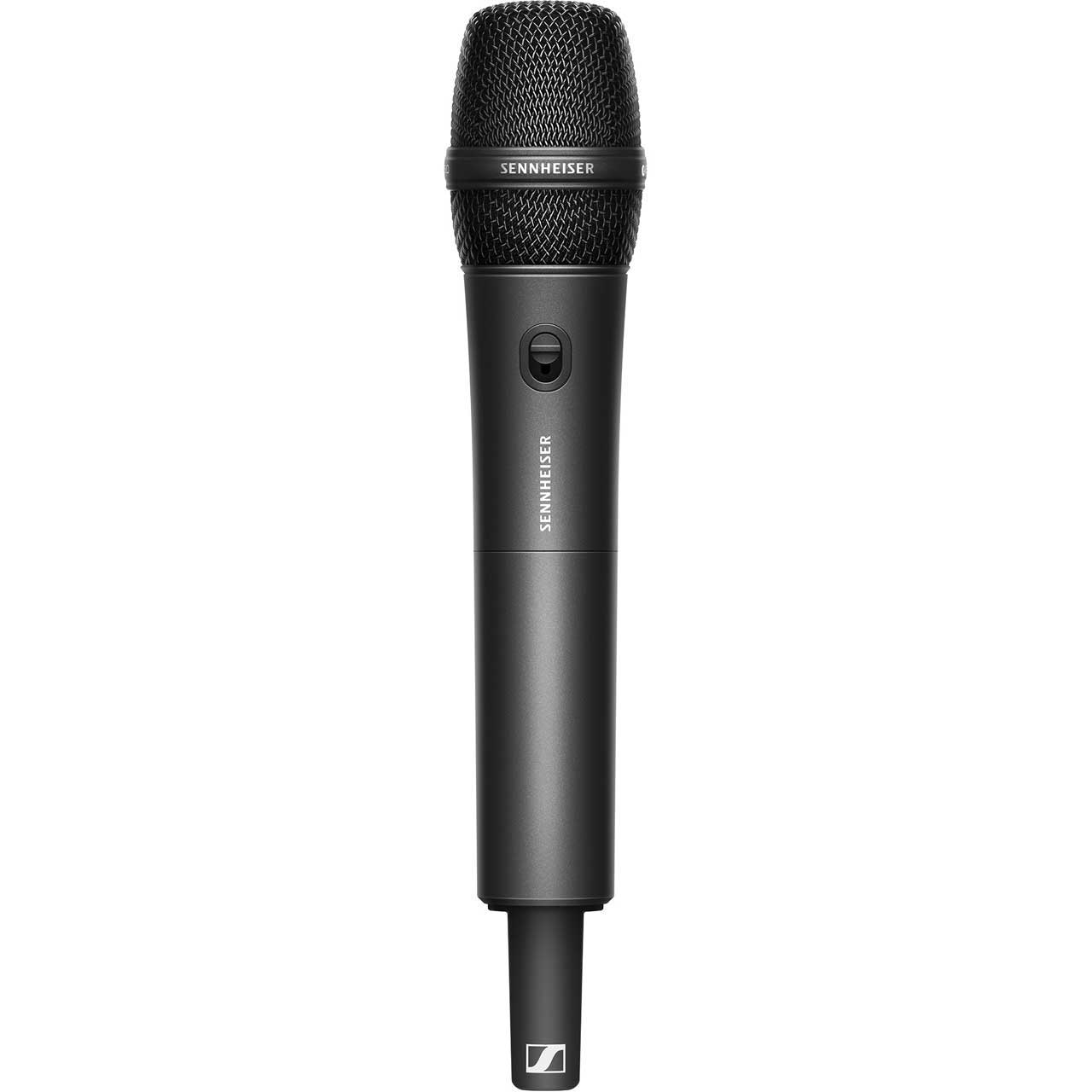

        EW-D SKM-S (Handheld Transmitter)
      • Input voltage: 2.0 - 4.35 V
      • Input current: < 300 mA
      • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
      • Occupied bandwidth: 200 kHz
      • Transmit power (radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP), BLE: max. 10 mW EIRP
      • Dimensions (° x l) (incl. MMD 835 microphone module): 1.97" x 10.55" (without microphone module): 1.57" x 7.87"
      • Weight (without batteries) (incl. MMD 835 microphone module): 0.67 lbs), (without microphone module): 7.14 lbs

        MMD 835 (Microphone Module)
      • Transducer principle: dynamic
      • Sensitivity: 2.1 mV/Pa
      • Sound pressure level: 154 dB SPL
      • Pick-up pattern: cardioid

    • Item Includes:

      • 1x EW-DP EK digital portable single channel receiver
      • 1x EW-D SKM-S digital handheld transmitter
      • 1x MMD 835 dynamic cardioid microphone module
      • 1x Mounting kit (cheese plate, cold shoe, belt clip & screws)
      • 1x BA 70 li-ion battery & (2) AA battery
      • 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
      • 1x Locking 3.5 mm TRS plug to XLR plug cable
      • 1x USB-C charging cable

    • GTIN:

      0615104376137
