Extech MA-120 200 Amp AC/DC Mini Clamp Meter and Voltage Detector with Flashlight

ITEM #: EXT-MA-120 MFG #: MA-120

free ship

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MA-120 - Overview

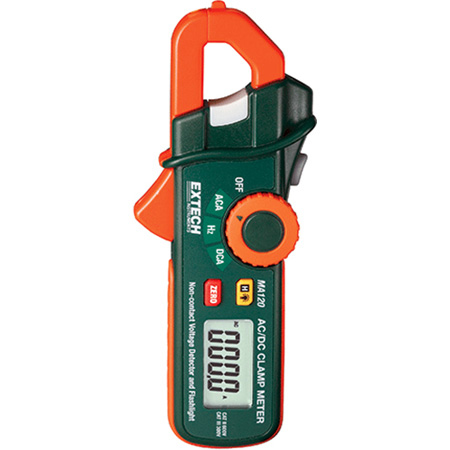

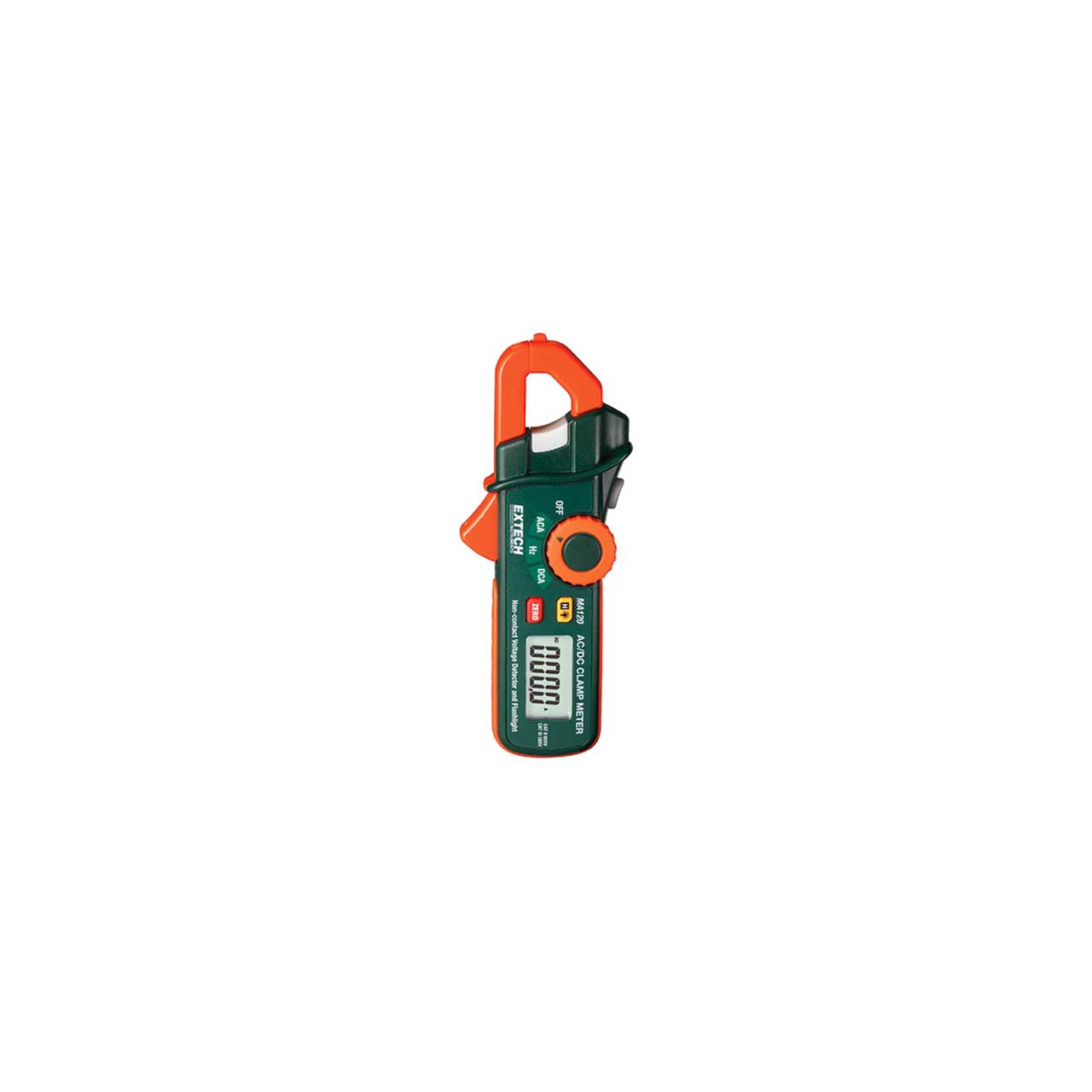

The Extech MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions and has a CAT II 600 Volt safety rating.

  • Features:

    • Measures 200A AC Current up to 100mA resolution
    • 3% basic ACA accuracy
    • 0.7" (18mm) jaw opening; 300MCM cable size
    • 2000 count LCD display
    • Non-contact AC Voltage detector (120/240VAC, 50/60Hz) via clamp tip
    • Built-in white LED flashlight
    • Measures Frequency up to 1kHz with 0.01Hz resolution
    • Autoranging with Auto Power Off and Data hold function

  • Specifications:

    • AC Current: 200A
    • Max resoluation: 100mA
    • Accuracy: ±3.0%
    • DC current: 200A
    • Max resolution: 0.1A
    • Accuracy: ±3%
    • AC voltage: Non-contact
    • Frequency: 1kHz
    • Max resolution: 0.01Hz
    • Dimensions: 7 inch x 2.5 inch x 3 inch (178 x 65 x 32 mm)
    • Weight: 6 oz (170g)

  • Item Includes:

    • 1 - A Year Warranty
    • 2 - AAA Batteries
    • 1 - Soft Case

  • Warranty:

    • A Year Warranty

  • GTIN:

    0793950371206
