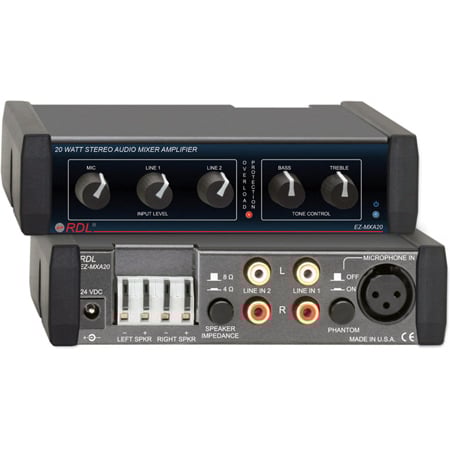

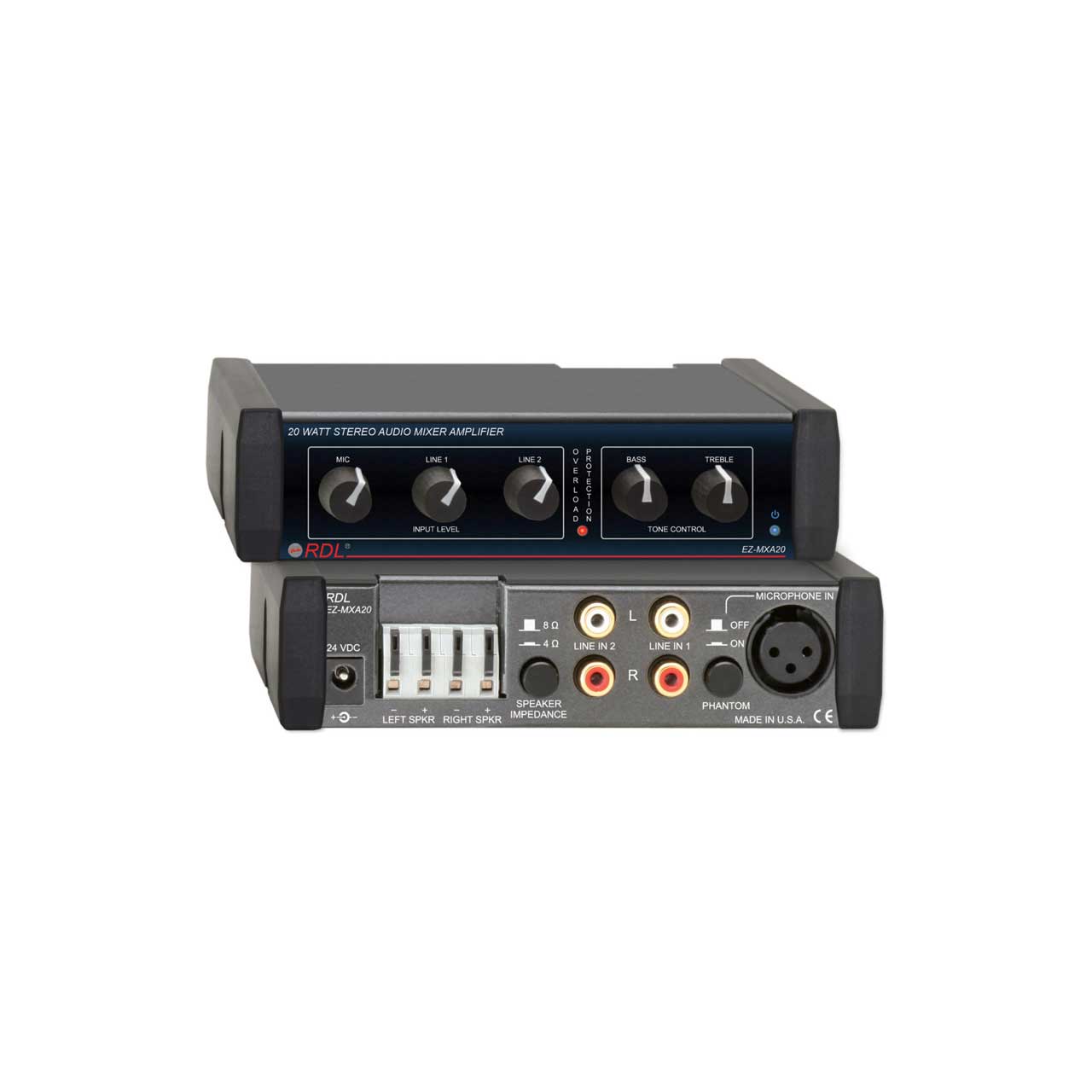

RDL EZ-MXA20 20 Watt Stereo Audio Mixer Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL EZ-MXA20 20 Watt Stereo Audio Mixer Amplifier

    Manufacturer: Radio Design Labs

    Item #: EZ-MXA20   •   MFG #: EZ-MXA20




    Share!





    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.


    • Features

      • Audio Amplifier with Mic and Line Input Mixer
      • 10 Watts RMS Per Channel into 8 Ohm
      • 8 Watts RMS Per Channel into 4 Ohm
      • Switch-Selectable Load Impedance on Rear Panel
      • Balanced Microphone Input on XLR
      • Unbalanced Line Inputs on RCA Jacks
      • Switch-Selectable Phantom on Mic Input
      • Bass and Treble Tone Control Equalization
      • Integral Overload Limiter with LED Indicator
      • Limiter Controls Overloads from Clipping

    • Specifications

      • Inputs (3): 1.2 k Ohm balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max.(1)
      • > 10 k Ohm, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. (2)
      • Gain: Off to 74 dB (mic), Off to 32 dB (line)
      • Outputs (2): Left and Right, 10 Watts RMS into 8 Ohm per channel or 8 Watts RMS into 4 Ohm per channel, switch-selectable output impedance
      • Equalization: ±10 dB @ 10 kHz, ±9 dB @ 80 Hz
      • Frequency Response: 50 Hz to 20 kHz (±1.5 dB, mic input, 10 Watts), 35 Hz to 20 kHz (±1.5 dB, line input, 10 Watts)
      • THD+N: < 0.25%
      • CMRR: > -55 dB (mic)
      • Crosstalk: < -68 dB (1 kHz, line input)
      • Phantom: Switch-selectable 24 V (IEC 1938: 1996-12)
      • Noise: < -70 dB (below 10 Watts, -10 dBV line input), < -65 dB (below 10 Watts, -50 dBu mic input)
      • 24 Vdc power supply current: 170 mA (idle), 1000 mA (max.)
      • Case dimensions: 5.75" (14.6 cm)W x 5" (12.7 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included
