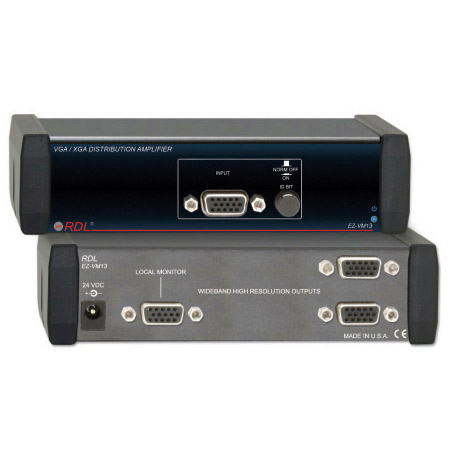

RDL EZ-VM13 VGA/XGA Distribution Amplifier - 1x3

ITEM #: EZ-VM13 MFG #: EZ-VM13

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EZ-VM13

EZ-VM13 - Overview

The EZ-VM13 is a high-resolution computer video distribution amplifier with three outputs. The input has an associated front-panel BIT ID switch to assure compatibility with various computers. The two outputs are driven by video line amplifiers that provide flat,wide band response. The EZ-VM13 is used in houses of worship, restaurants, clubs, meeting rooms, class rooms, conference rooms, stores and in commercial A/V systems.

  • Features:

    • Input and Three Outputs on HD15 Female Connectors
    • Wide RGB Bandwidth > 360 MHz Loaded
    • High Resolution Compatibility VGA through QXGA
    • Reliable Full-Size Front-Panel Switch for ID Bit Selection
    • NORM ID BIT Connects LOCAL MONITOR and INPUT ID
    • DC RGB Coupling, Output Polarity & Offset Follow Input
    • HD15 Input Cable Included - 36", 91.44 cm long

  • Specifications:

    • Input: VGA - QXGA RGBHV or RGB with combined sync
    • Outputs (3): LOCAL MONITOR (1, ID bit pass-thru to INPUT), MONITORGain: Unity
    • Video bandwidth: > 360 MHz
    • Video impedance: 75 U (Input and output)
    • Sync (HV) input: 500 U TTL 0.7 V to 5 V p-p
    • Sync (HV) output: 5V TTL
    • Sync (HV) Propogation delay: < 4 nS typ.
    • Sync (HV) Rise time: < 4 nS typ.
    • Sync (combined): Output follows input
    • Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
    • 24 Vdc power supply current: 50 mA (idle), 60 mA (max.)
    • Power supply input voltage: 100 to 240 VAC
    • Warranty: 3 Years; contact RDL technical support department for assistance
    • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
    • Mounting size: 1/3 rack width

  • GTIN:

    0813721010575
