Atlas FA138 8 Inch Strategy Series Coaxial Loudspeaker

ITEM #: FA138-T167 MFG #: FA138-T167

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

FA138-T167 - Overview

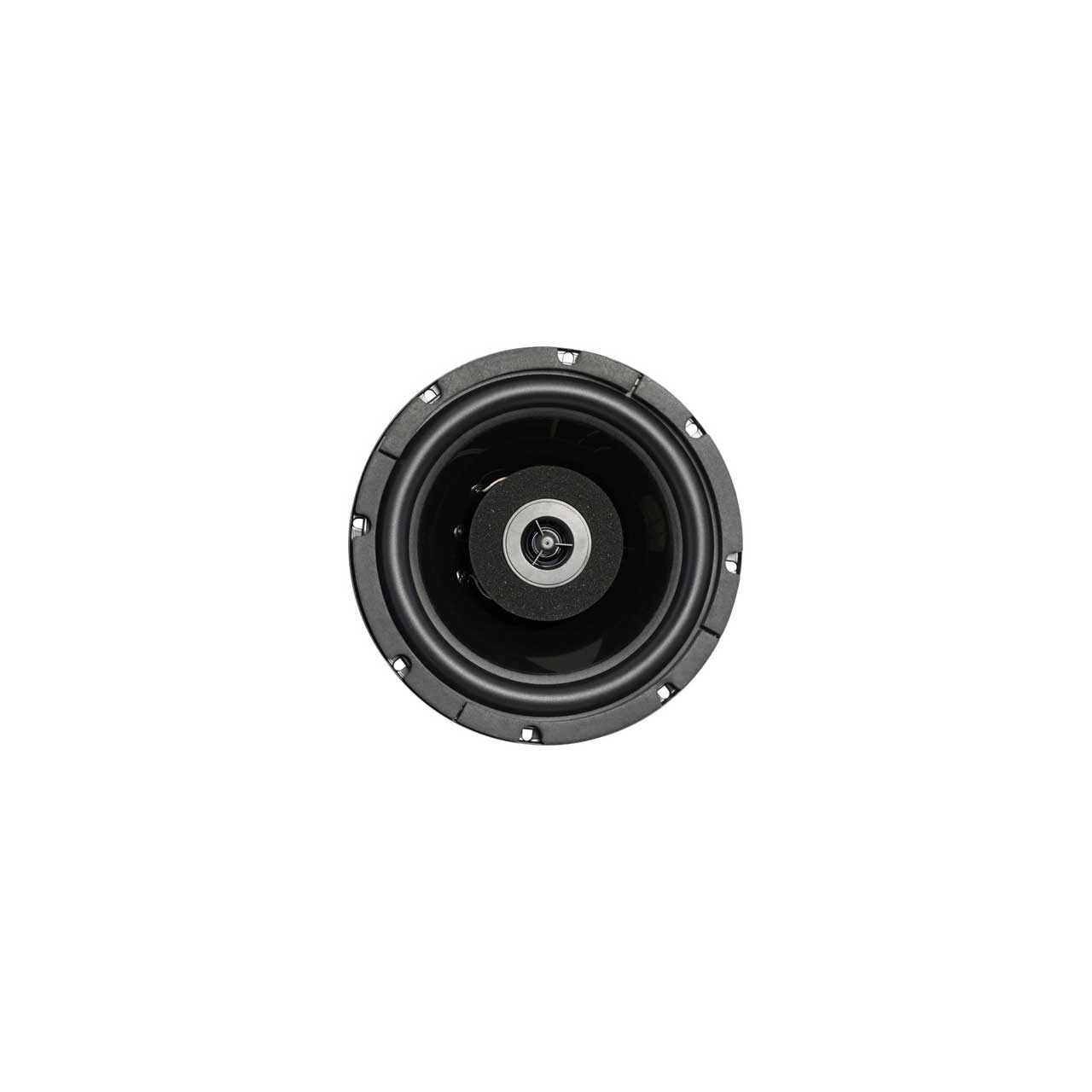

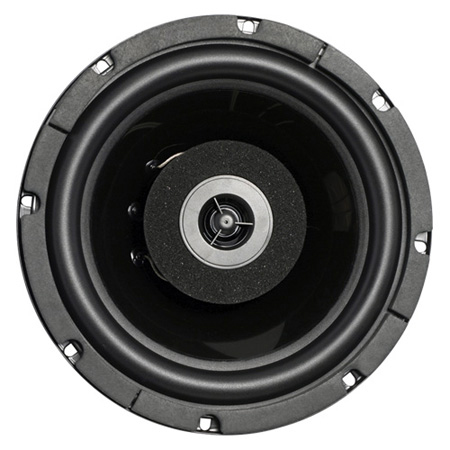

Model FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality.

Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 11/2" vented Kapton voice coil, a 21 oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New constuction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.

  • Features:

    • Top-of-the-Line 8" Coaxial Loudspeaker
    • Delivers Full-Frequency
    • Response with Superior Fidelity
    • 100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
    • Patented System Design Provides Easy Installation
    • Conveniently Front Loads into
    • Acoustically-Matched System
    • Enclosures or Mounting Ring
    • Choice of System Components Including: Six Transformers,
    • Acoustic Enclosure, Tile Bridge, Mounting Ring, Trim Ring, and Four Hardware-Free Grilles
  • GTIN:


FA138-T167 - Required Accessories
