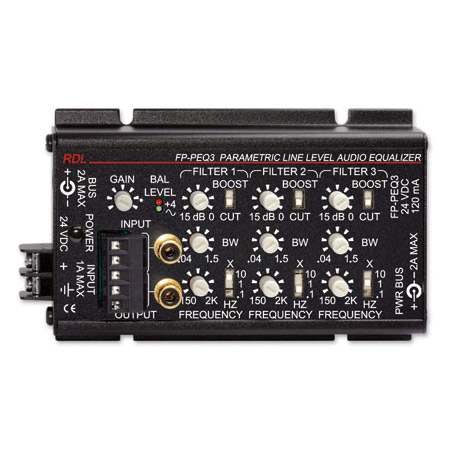

RDL FP-PEQ3 3 Band Parametric Equalizer - Terminal Blocks & RCA Jacks

ITEM #: FP-PEQ3 MFG #: FP-PEQ3

free ship

List Price:

$478.41

Our Price:

$329.65

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    FP-PEQ3 - Overview

    The FP-PEQ3 is the ideal choice in many applications where parametric equalization or acoustic notch filtering is needed. The FP-PEQ3 is a single-channel module featuring three identical independent filters. Each filter has separately adjustable FREQUENCY, BOOST/CUT amplitude, and bandwidth (BW) parameters. The FREQUENCY has three fully overlapping switch-selectable ranges: 15 Hz to 200 Hz, 150 Hz to 2 kHz, 1.5 kHz to 20 kHz. The BOOST/CUT provides a ±15 dB range, switch-selectable to produce either cut or boost, making acoustic adjustment easier than with other parametric equalizers. Setting a given filter's BOOST/CUT to minimum completely removes that filter from the circuit. The bandwidth (BW) allows adjustment from 0.04 octave to 1.5 octave.

    Please note: RDL PS24V Sold Separately.

    • Features:

      • Highly Versatile Parametric Equalizer
      • Independent Adjustment Controls
      • Adjustable Bandwidth .04 to 1.5 Octave
      • Adjustable Frequency 15 Hz to 20 kHz
      • Cut or Boost Adjustable +/- 15 dB
      • Overlapping Frequency Bands
      • Output Level Metering
      • Studio Quality, Low-Noise Performance
      • Convenience of RDL FLAT-PAKs

    • GTIN:

      0813721012517


    FP-PEQ3 - Required Accessories
