FSR DR-H2.1-SR 8K 48Gbps Steel Reinforced HDMI Male to HDMI Male Ribbon Cable with CoilGuard - Black AOC - 100 Foot

ITEM #: FSR-DR-H21SR-100 MFG #: DR-H2.1-SR-30M

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DR-H2.1-SR-30M - Overview

    The FSR 8K Next Generation Digital Ribbon Cables with CoilGuard&trade utilize a proprietary technology to allow high-speed and high-definition HDMI® signal transmission over distances of up to 100 ft. The CoilGuardT is suitable for rough service and a short-term load limit of 2000N/100mm (450lbs./4"). This durable cable is fitted with a stainless steel reinforced inner jacket and a discreet outer black jacket that allows the cable to withstand rough service and blend in after installation.

    The hybrid fiber/copper cables deliver a speed of 48 Gbps video bandwidth when directly connected or 18 Gbps when 6' copper cables are added to ends. They can easily handle up to 8k 60Hz 4:4:4 HDR uncompressed HDMI® video and are eARC compatible.

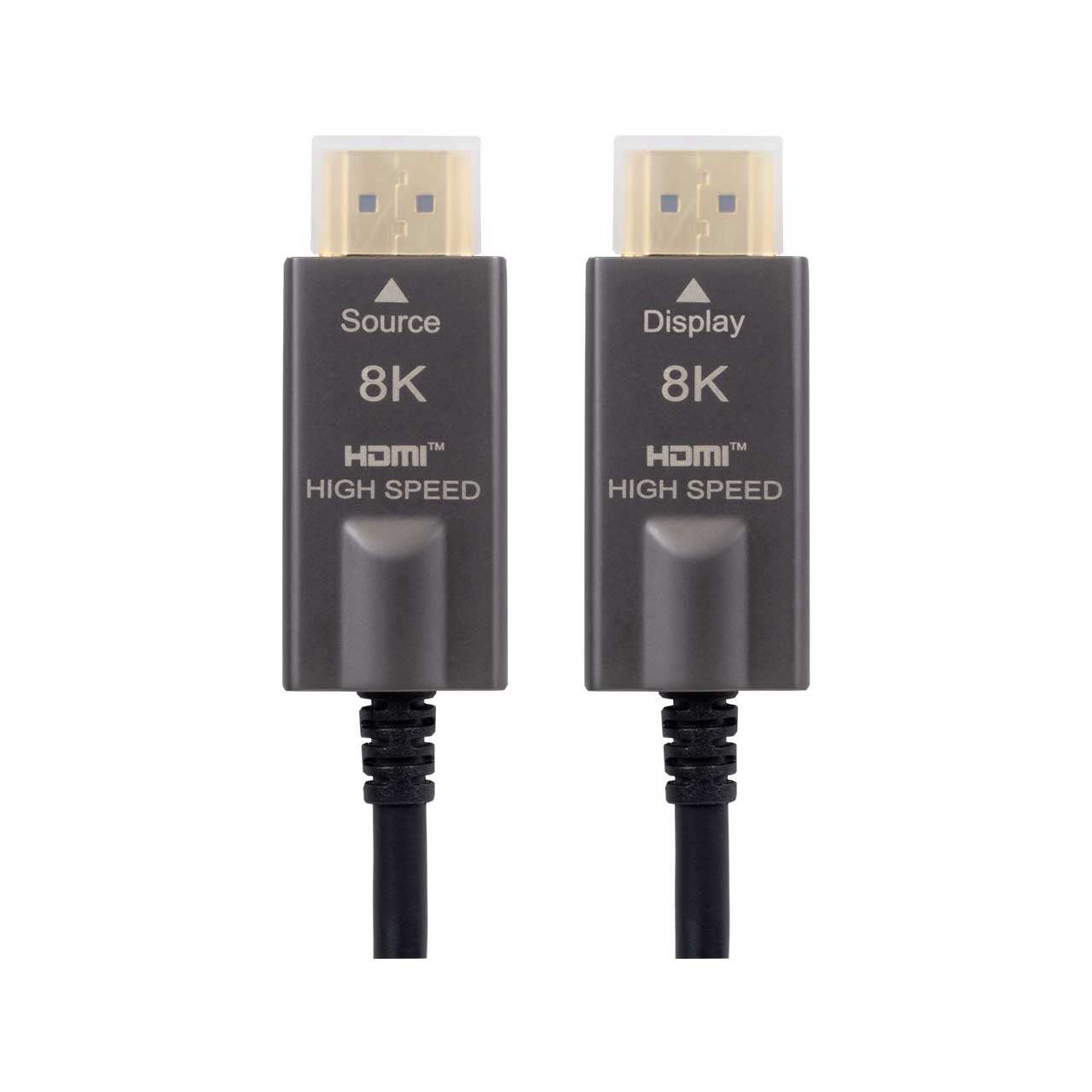

    The advanced technology inside the cables use four glass fibers, seven copper wires, and supply the necessary power to the embedded circuitry at both ends of the cable. They also meet the HDMI® and HDCP testing standards. The connector shells are labeled "source" and "display" to aid in proper connections.

    • Features:

      • Video resolution up to 8K 60Hz 4:4:4 uncompressed HDMI® video and supports all HDCP versions
      • Supports a bandwidth of 48 Gbps
      • Discreet stainless steel reinforced inner jacket
      • Enhanced Pull Strength of 100 lbs
      • Suitable for Rough Service. Short term load limit of 450lbs./4" (2000N/100mm)
      • Supports DDC for HDCP, EDID, PCM, Dolby, DTSHD and True HD audio
      • Overcomes distance limitations of conventional HDMIr cables
      • UL Listed
      • eARC Compatible
    • Specifications:

      • Video Connectors: Male HDMI®
      • Maximum Length: 100' (30 meters)
      • Cable Dimensions: See dimension drawings below
      • Compliance: RoHS, UL444, CSA C22.2 No. 214, UL 746A
      • HDMI Cable Type: High-Speed HDMI®
      • Total Power Consumption: 0.25 Watts
      • Endurance at Bend Radius: Over 10k cycles at 2" (50 mm) Radius
      • Minimum Bend Radius: 0.5" (12.7mm)
      • Maximum Tensile Load: 100 lbs.
      • Operating Temperature Range: +32° to +122°F (0° to +50°C)
      • Maximum Operating Humidity: 85%
      • Storage Temperature Range: -22° to +122°F (-30° to +50°C)
    • Item Includes:

      • 1x 8K 48Gbps Steel Reinforced HDMI Male to HDMI Male Ribbon Cable - 100 Ft (30m)
