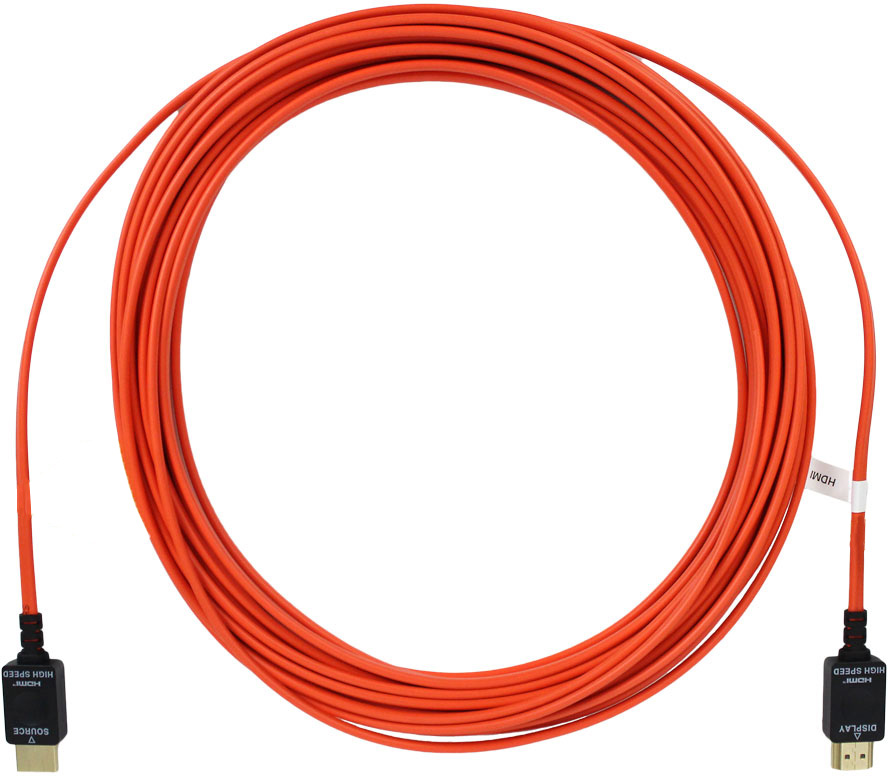

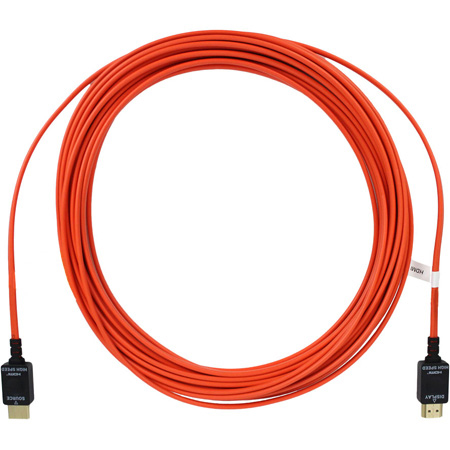

FSR DR-PCB-H23M Male to Male Plenum HDMI Cable - 75 Foot

ITEM #: FSR-DR-PCB-H23M MFG #: DR-PCB-H23M

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    DR-PCB-H23M - Overview

    FSR's DR-PCB-H23M DIGITAL RIBBON CABLES utilize a proprietary technology to allow high speed, high definition HDMI signal transmission over distances of up to 328 ft. Active circuitry embedded in the connector shells provide all the active signal buffering needed, and eliminate additional bulky electronics. The cables hybrid polymer/copper structure delivers a speed of 10.2 Gb/sec video bandwidth and can easily handle 1080p Full HD, 3D, Deep color, HDMICEC, HDCP and most newer hi-res formats. The small ribbon shaped jacket is 5mm x 2.5mm and is currently available in six lengths, ranging from 33 to 328 feet. The cables are UL listed, plenum rated and provide optical performance at the price and simplicity of copper.

    With optical-to-electronic conversion contained inside the connectors, this cable uses the same standard HDMI ports as copper cables. The cables require no bulky external power connectors or extenders, instead drawing power entirely from the HDMI port without exceeding HDMI maximum power output standards. Optical communications provide immunity to electromagnetic and radio-frequency interference and offer high reliability in challenging environments such as outdoor displays, convention centers, stadiums, airports shopping malls, hospitals, factories, and other potentially high noise environments. The optical component within the ribbon cable bundle is plastic fiber rather than glass and can be installed in areas that require tight cable bends that were prohibitive with a conventional fiber bundle.

    At the same time, they are cost competitive with copper-based alternatives. All cables carry a 3 year warranty excluding damage from abusive wear and tear.

    • Features:

      • Overcomes distance limitations of conventional HDMI cables
      • Competitive in cost to older cable types
      • Signal integrity is uncompromised
      • Multi format compatibility
      • No external power or special tooling required

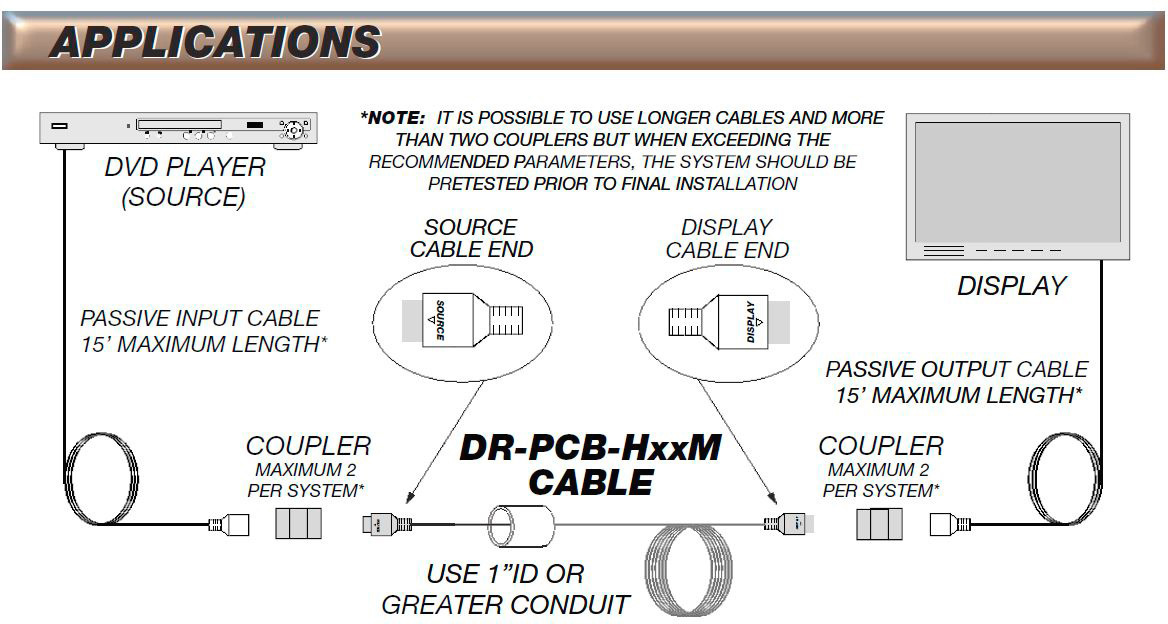

      • Cable and connectors easily fit within a 1" conduit
      • Plenum Rated - Type CMP, CMR
      • UL Listed

    • Specifications:

      • Performance Characteristics

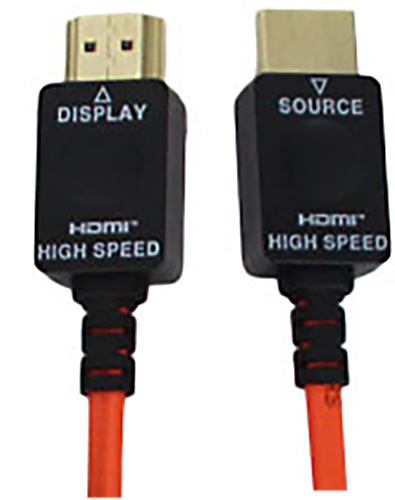

      • Video Connectors: Male HDMI
      • Maximum Length: 328' (100m)
      • Dimensions: 0.2 x 0.11" (5 x 2.8mm)
      • UL Listing: CMP-OF
      • Compliance: RoHS, NFPA 262
      • HDMI Cable Type: High-Speed HDMI
      • Total Power Consumption: 0.07 Watts
      • Endurance at Bend Radius: Over 10k cycles at 2" (50 mm) Radius
      • Minimum Bend Radius: 0.2" (5 mm)
      • Maximum Tensile Load: 100 N (10 kg)
      • Pull Strength: 40 lbs.

        Environmental Performance
      • Operating Temp: 32° to 122°F (0°- 50°C)
      • Storage Temp: -22° to 122°F (-30° to 50°C)
      • Maximum Operating Humidity: 85%

        Product Specifications
      • 1080p Full HD
      • Dolby TrueHD/DTS-HD Master Audio
      • 3D
      • HDMI-CEC
      • Deep Color
      • HDCP
      • 10.2 Gb/sec video bandwidth
      • No ARC (Audio Return Channel)
