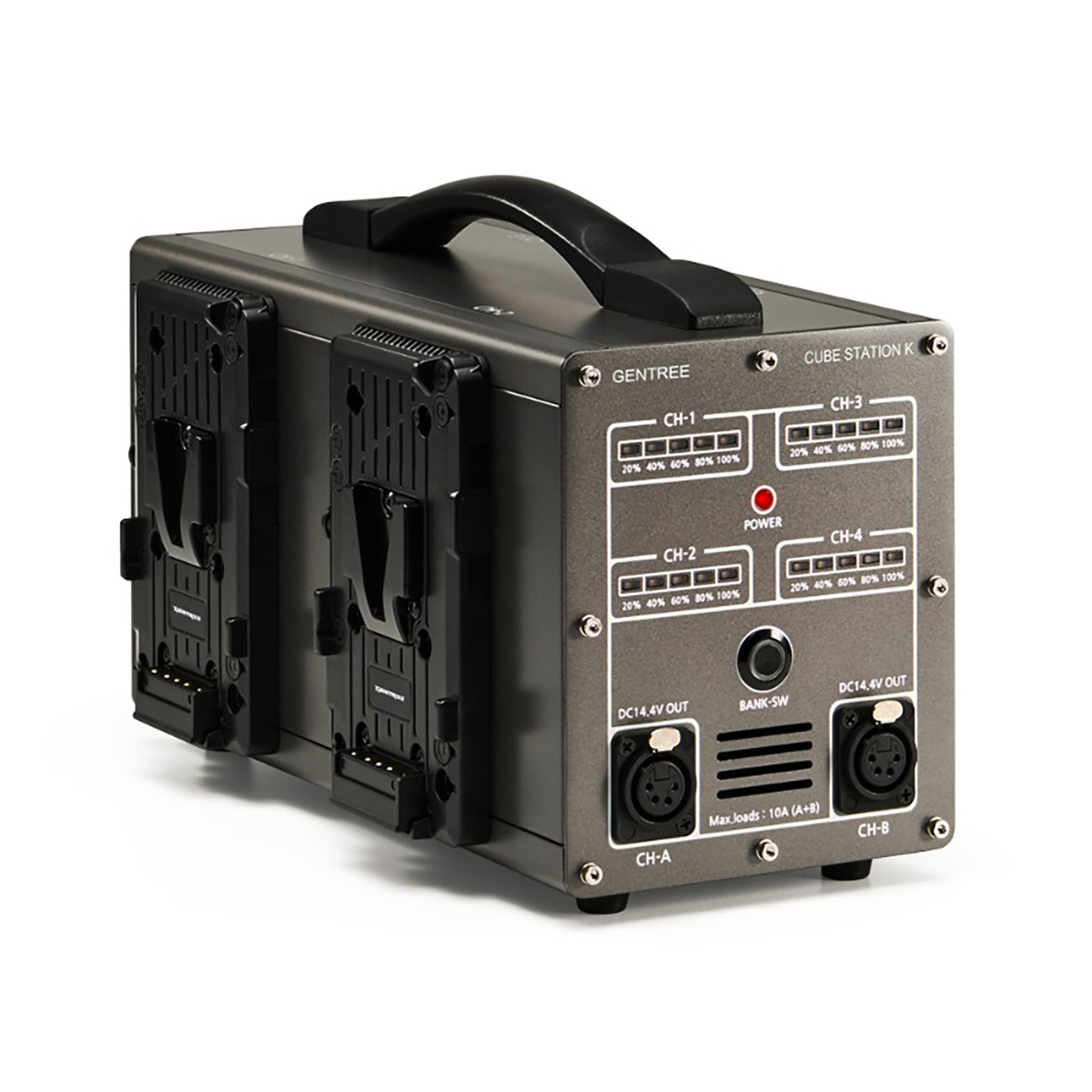

Gentree G-CB100 Quad V-Mount Charger for Gentree Batteries

G-CB100 - Overview

• Specifications:

  • Mount Type: V-Mount
  • Channel: Simultaneous max performance of charge in all channels
  • Performance:
    - E/N CUBE, MONSTER Models: Max 6A Charge
    - G CUBE, Bumblebee and 3rd Party Battery Models: Max 3A Charge
  • Rated AC: Voltage 90V - 260V/Current Max. 8A/Frequency 47Hz - 63Hz
  • Power Consumption: Max 480W
  • Weight: 8.8lbs (4kg)

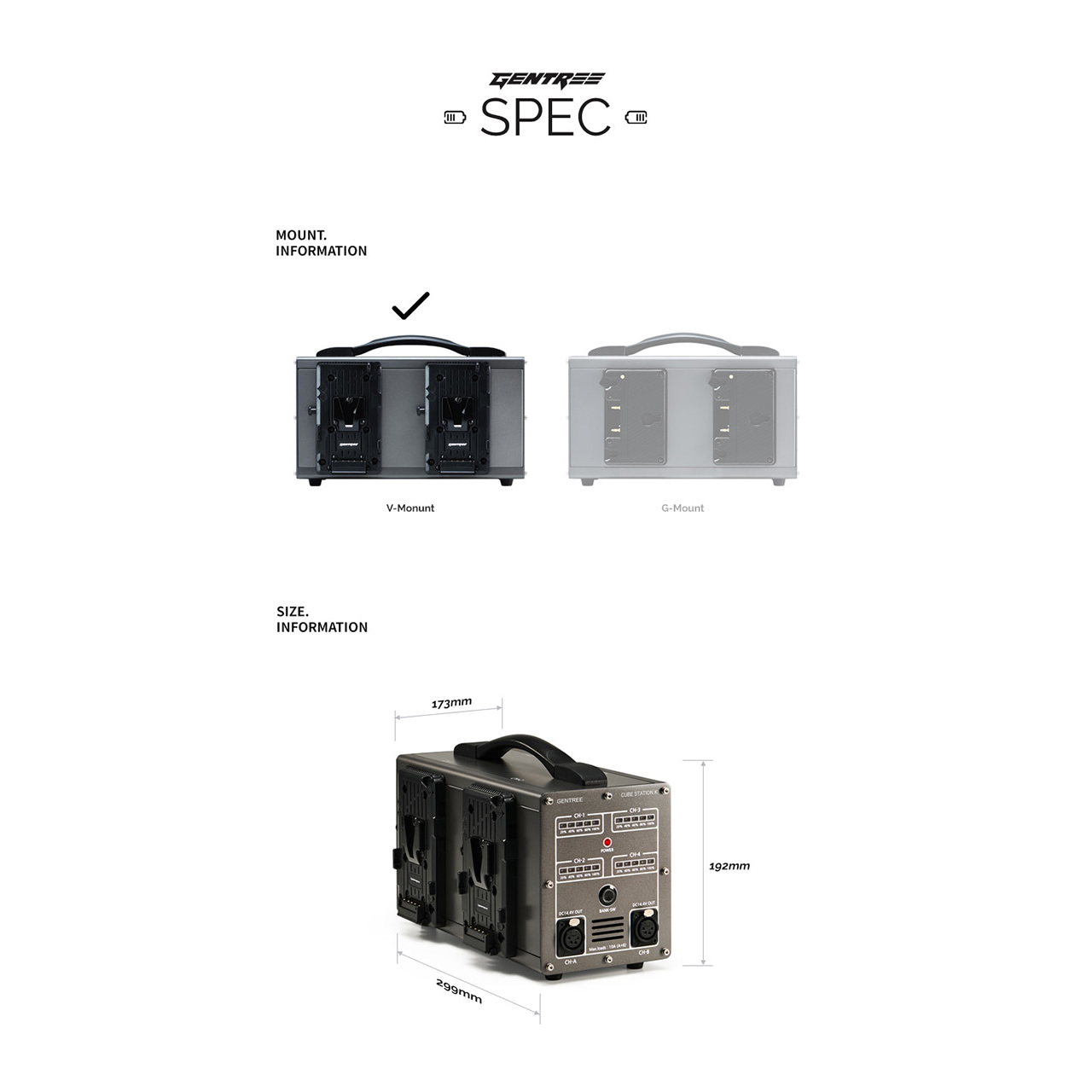

  • Dimensions (WxHxD): 6.81" x 7.56" x 11.77" (173mm x 192mm x 299mm)
  • Environment: 14°F - 104°F (-10°C - 40°C)
  • Charge Battery: 4 Pack of batteries
  • Charging Time:
    - 390W: Approx. 6H 30m
    - 290W: Approx. 4H 50m
    - 195W: Approx. 3H 50m
    - 160W: Approx. 3H 20m
    - 98W: Approx. 3H 20m
  • Adaptor Function: DC 14.4A - 10A. Sum of CH-A and CH-B
  • Power Bank Function: 16.8V - 12V, 10A. Sum of CH-A and CH-B
  • DC Output Port: 4-pin XLR (2pcs)
