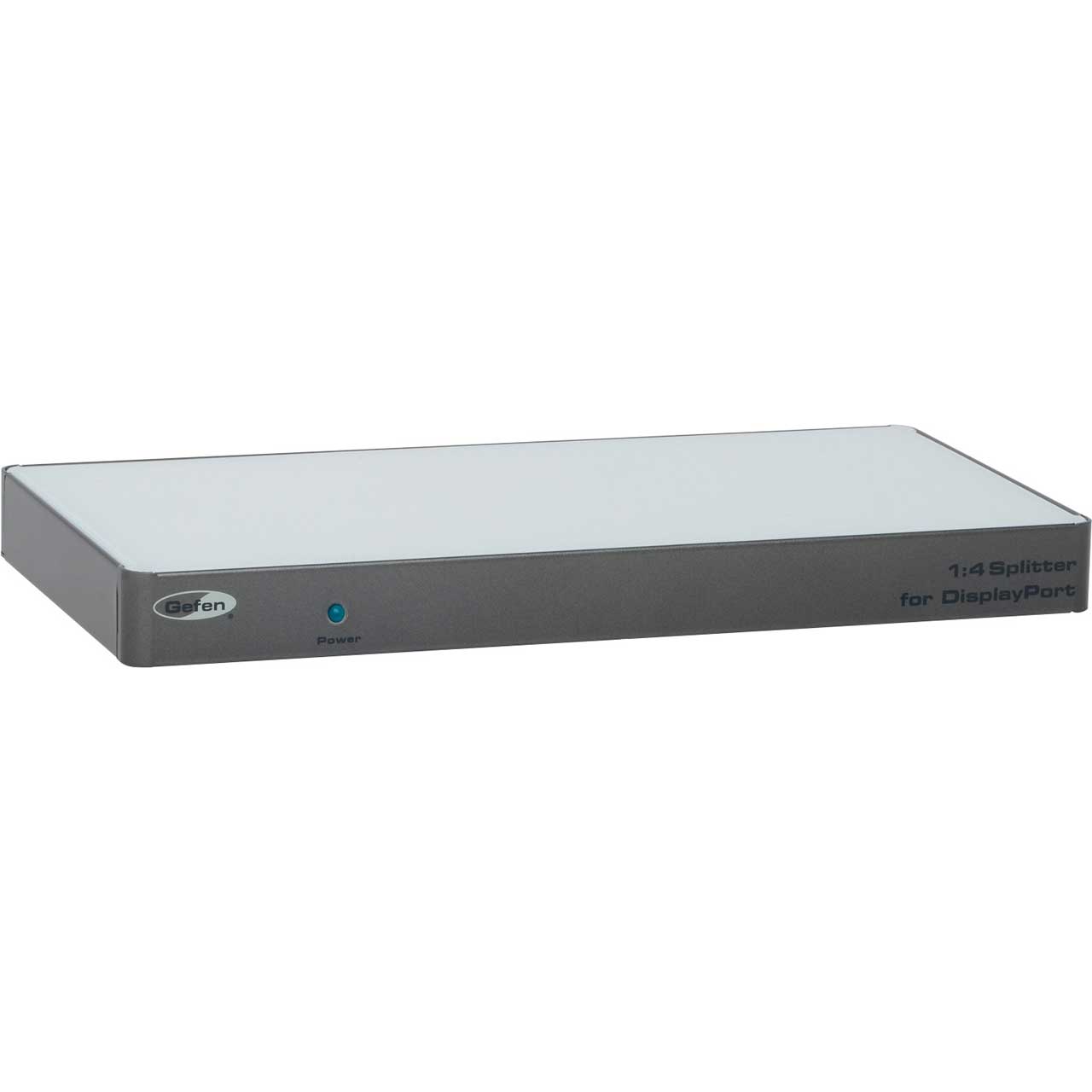

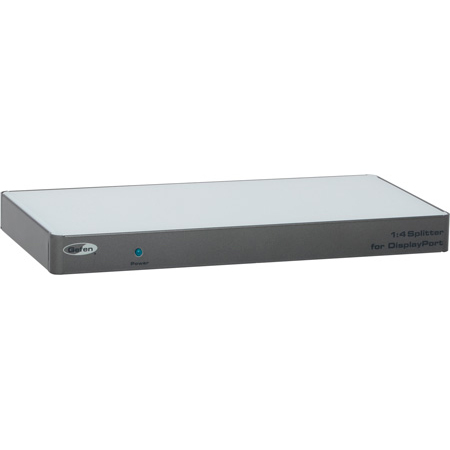

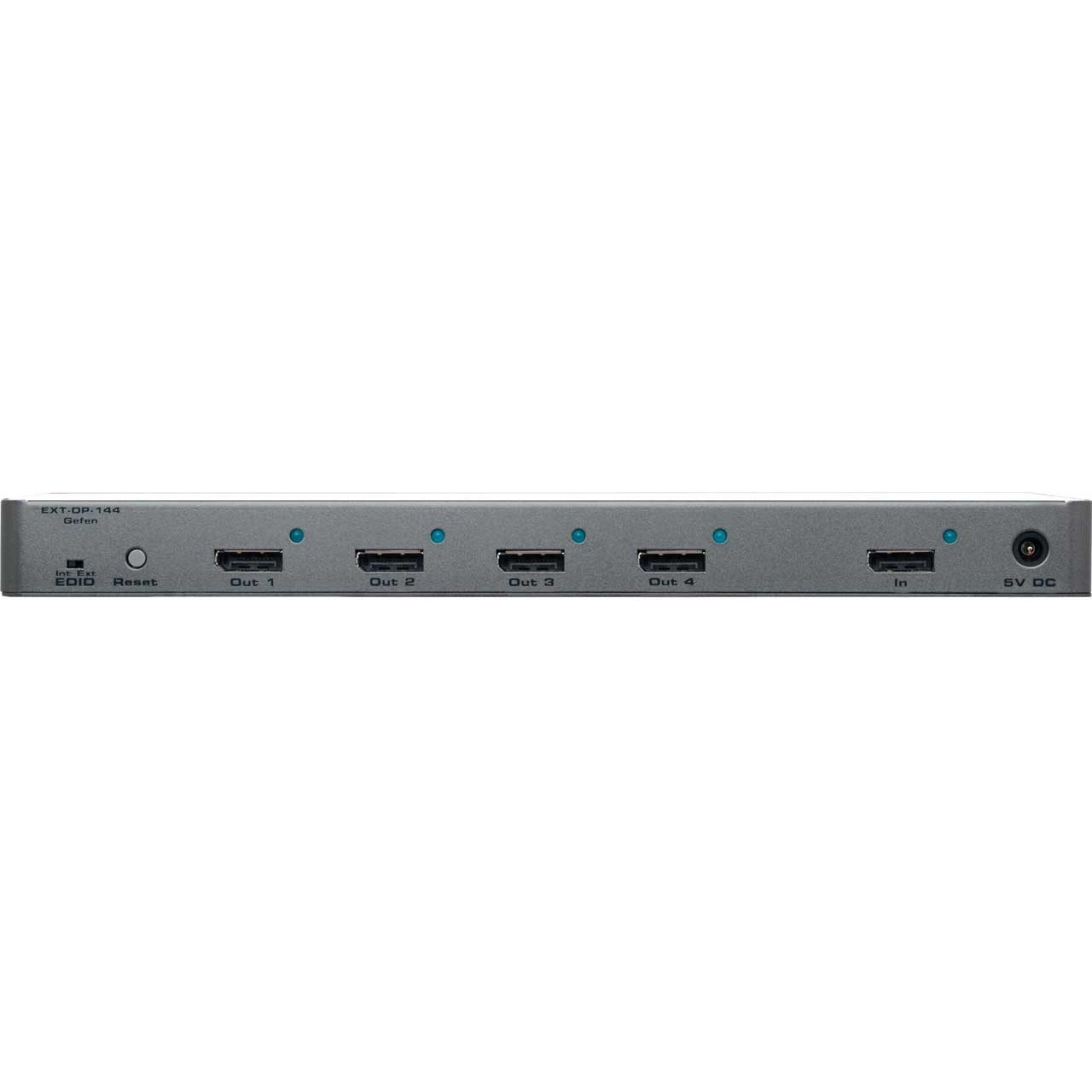

Gefen EXT-DP-144 1:4 DisplayPort Splitter

ITEM #: GEF-EXT-DP-144 MFG #: EXT-DP-144

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GEF-EXT-DP-144

EXT-DP-144 - Overview

The Gefen 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to be connected to four DisplayPort displays. EDID management provides rapid integration of source and displays. Two or more of these splitters can be connected together to create larger video distribution networks.

  • Features:

    • EDID Management for rapid integration of source and displays
    • EDID Reset button
    • Maintains sharp resolutions up to 2560 x 1600
    • Simultaneously displays one DisplayPort source on up to four displays
    • Supports DisplayPort 1.1a
    • Supports up to 7.1 cha


  • Specifications:

    • Dimensions: 17.1" W x 4.25" D x 1.75" H (434mm x 44mm x 108mm)
    • IR Extender Connector: (1) 3.5mm mini-stereo jack
    • Maximum Pixel Clock: 360 MHz
    • Power Consumption: 10W (max.)
    • Power Supply: 5V DC, Locking
    • Rack size: 1U (rack ears


  • Item Includes:

    • CAB-DP-LISTING


  • GTIN:

    0845344047645
