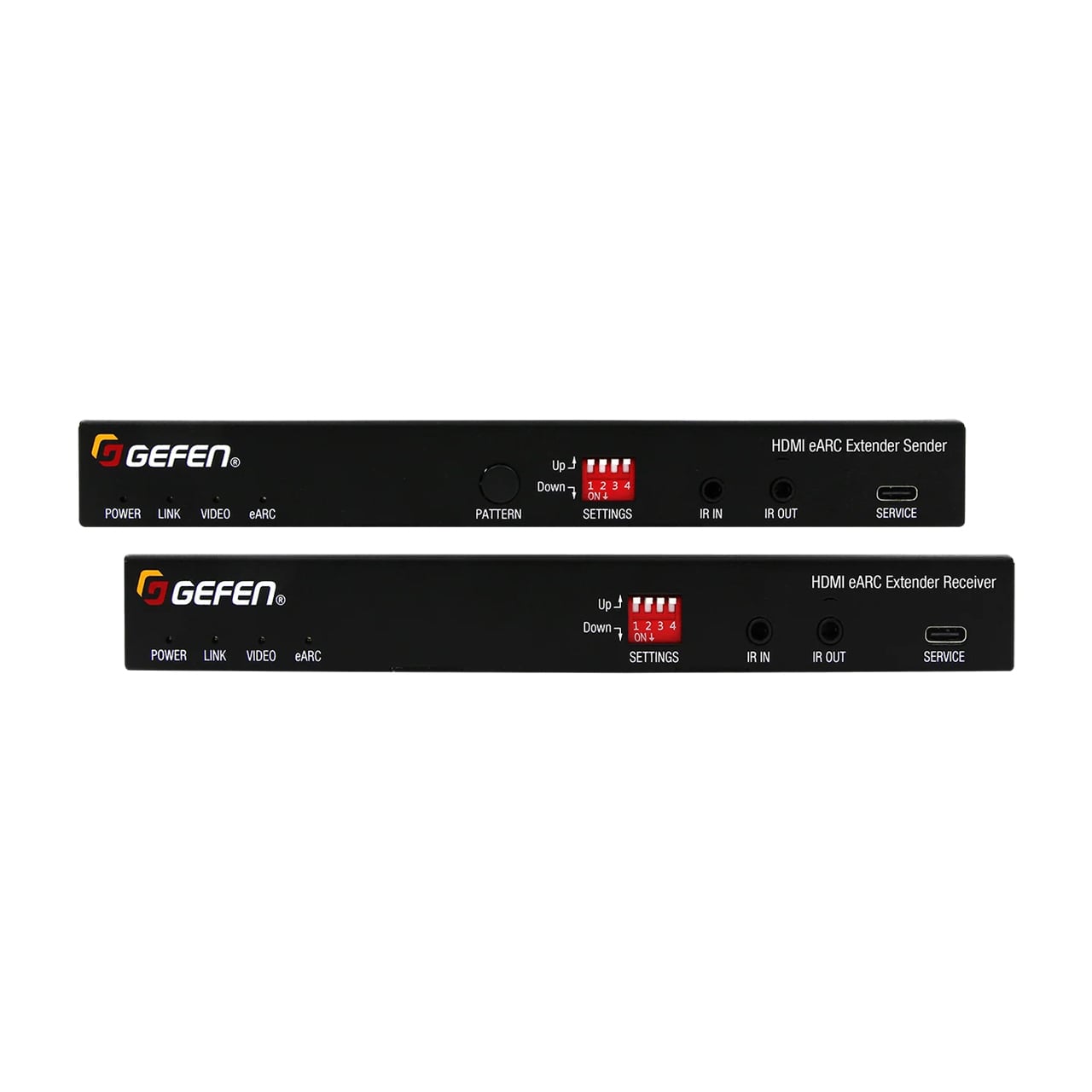

The Gefen GF-EXT-HDe-HBT3 delivers uncompromised clarity and control across long runs. Powered by HDBaseT 3.0 technology, it extends HDMI 2.0b 4K @ 60 Hz 4:4:4 8-bit video, eARC/ARC audio, optical audio, Ethernet, IR, and RS-232 up to 100 meters (328 feet) over a single CAT6a cable. With full support for HDR10, HDR10+, Dolby Vision, and HLG, plus intelligent audio management with flexible return paths - eARC, ARC, Optical Audio Return, and Optical Audio De-embedding (PCM 2CH) - it preserves studio-quality color and sound from source to display. An integrated HDMI Loop-Out with 4K-to-1080p downscaler at the transmitter, DIP-switch selectable audio routing modes, EDID management, and a built-in pattern generator streamline setup and troubleshooting for integrators. Whether in a home theater, boardroom, or broadcast suite, the GF-EXT-HDe-HBT3 is built to perform with precision - preserving every detail, frame, and frequency along the way.
How It Works

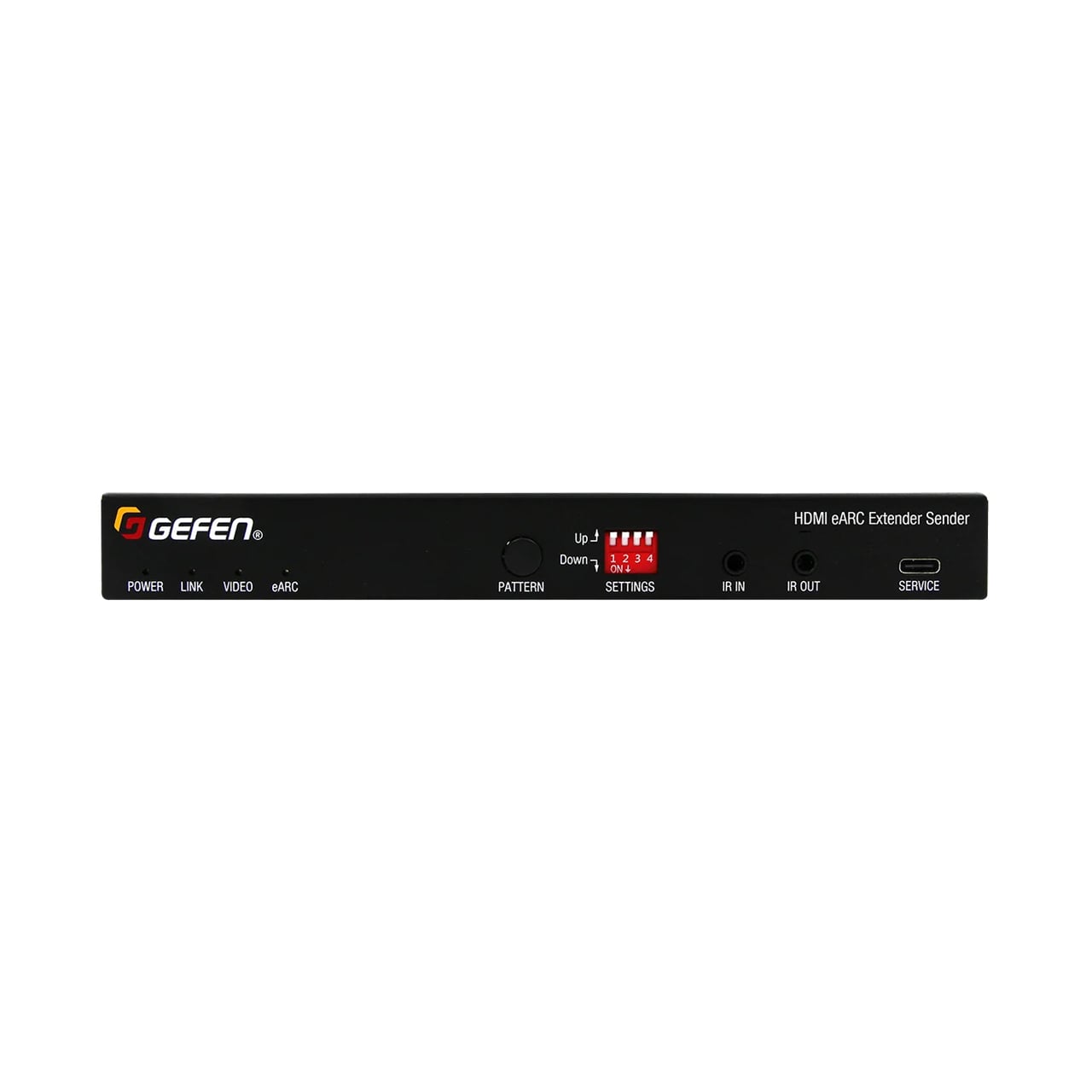

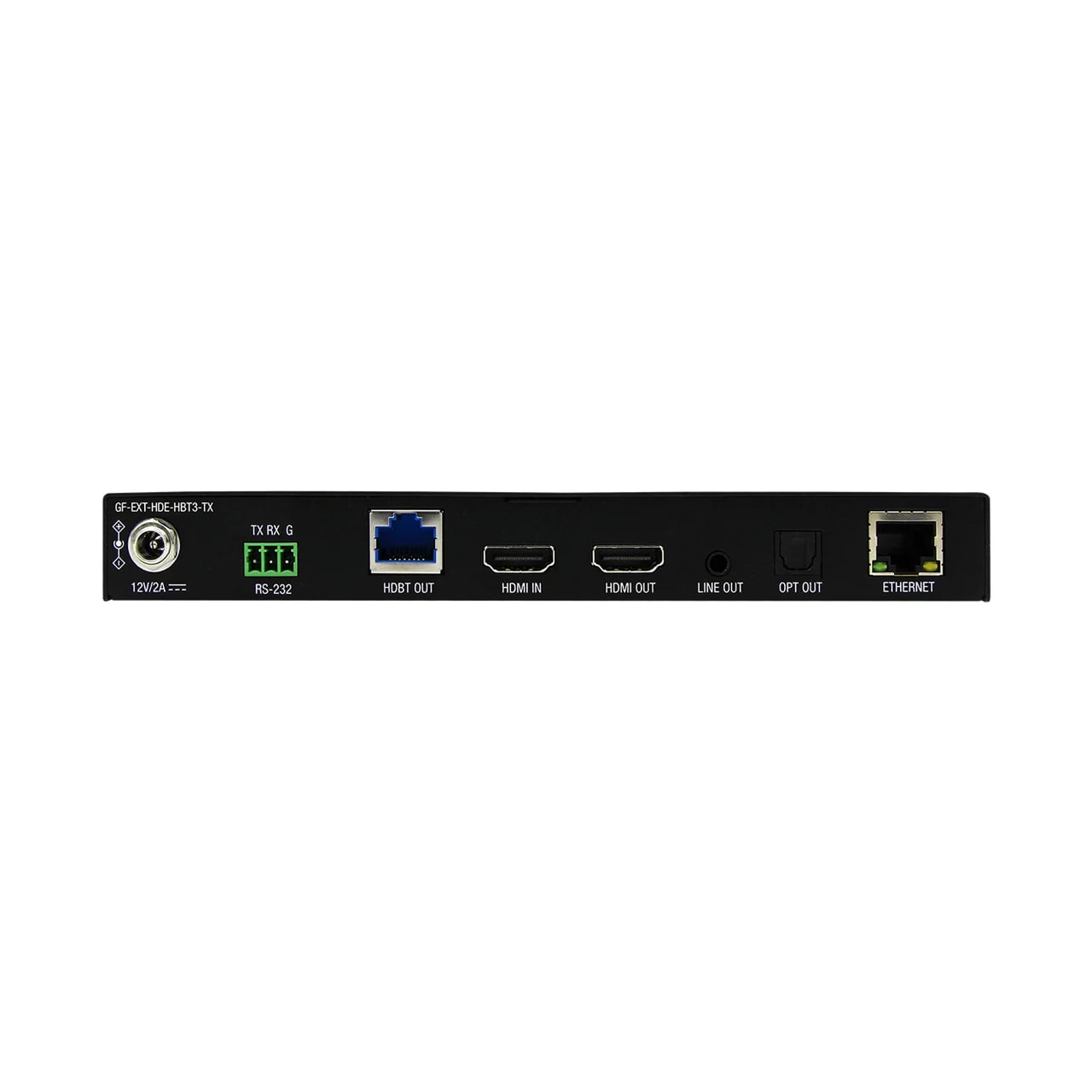

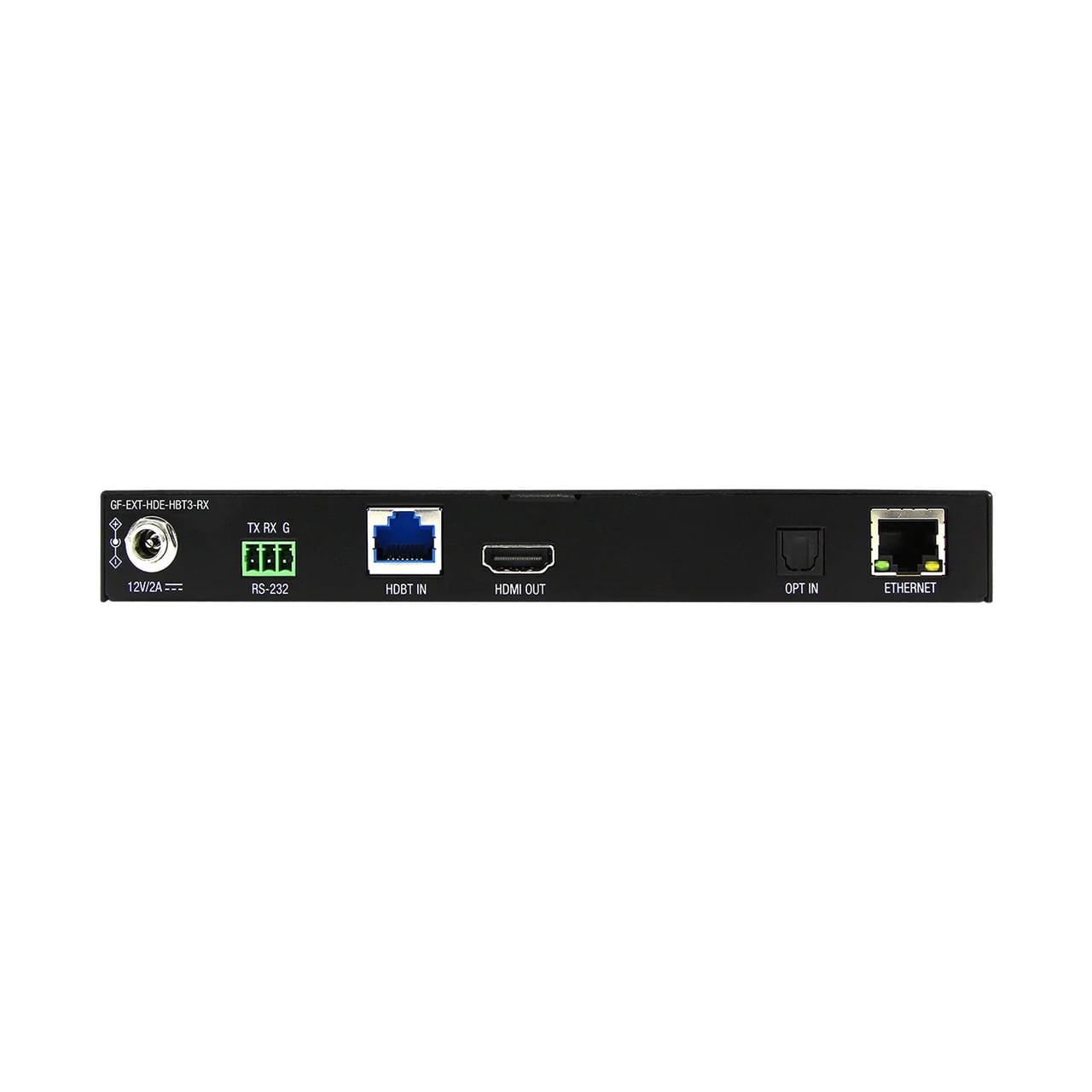

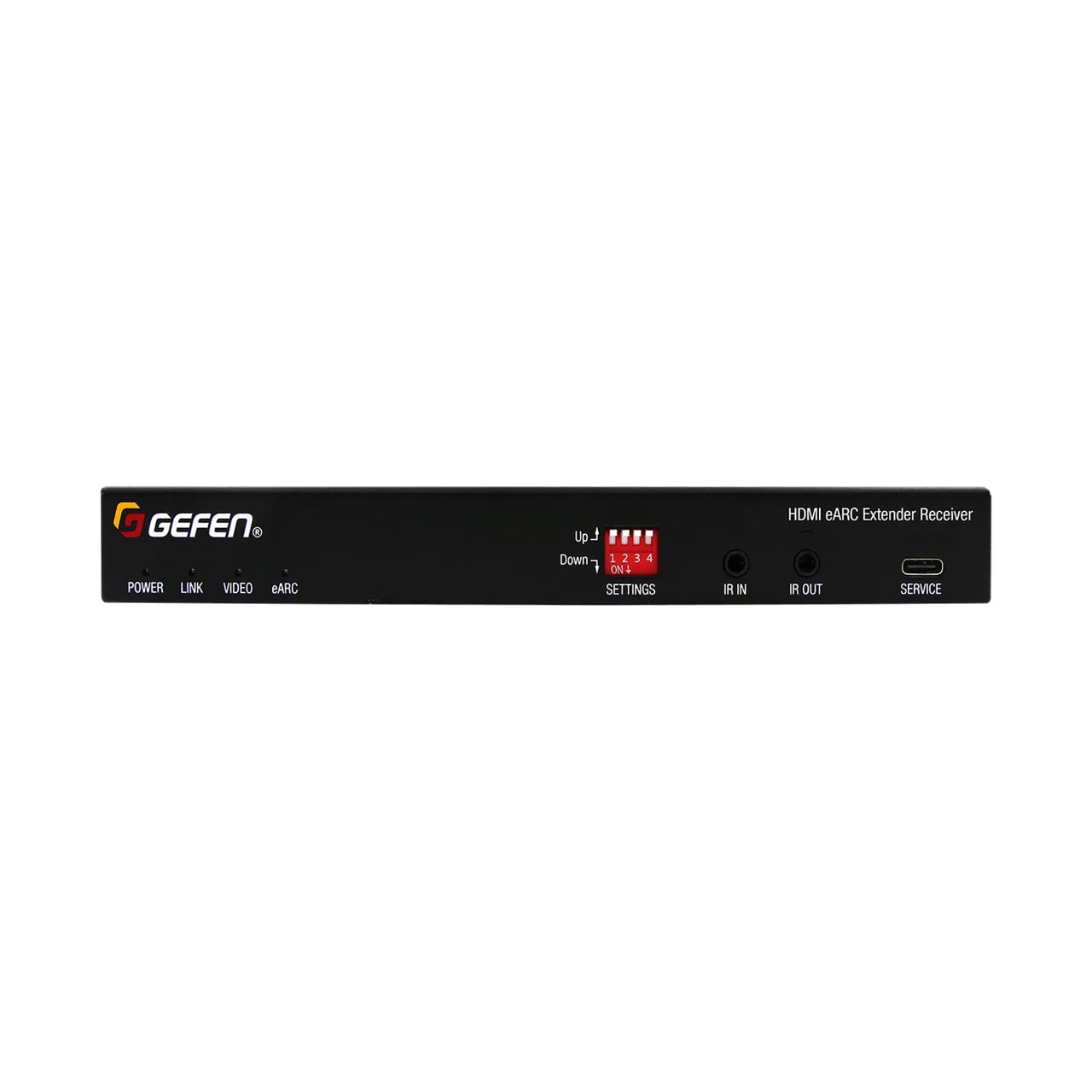

The Gefen GF-EXT-HDe-HBT3 uses HDBaseT 3.0 technology to transmit uncompressed 4K60 4:4:4 video and multi-channel audio over a single CAT6a cable up to 328 feet (100 meters). Connect your HDMI source to the Transmitter (TX) unit, which encodes the 18Gbps signal and transmits it to the Receiver (RX) at your display location. Use the HDMI Loop-Out on the TX for local monitoring - with a built-in 4K-to-1080p downscaler if your local display doesn't support 4K.
Supports Flexible Audio Return
Uses eARC, ARC, or Optical (S/PDIF up to 5.1ch) to send audio back from the display to the source, or de-embed PCM 2CH audio via the optical output on the transmitter. DIP switches let you select the preferred audio routing mode. Bi-directional Power over Cable (PoC) means you only need to power one unit - it supplies power to the other through the CAT6a cable. Bi-directional IR and RS-232 pass-through provide full control integration, and the Ethernet port enables network connectivity at the remote endpoint.
LED Indicators Provide Real-Time Status
Power (Blue), Link (Green), Video (Multicolor: Green/Red/Blue), and eARC (Green). An integrated pattern generator and HDCP toggle simplify testing and signal verification without external equipment.
