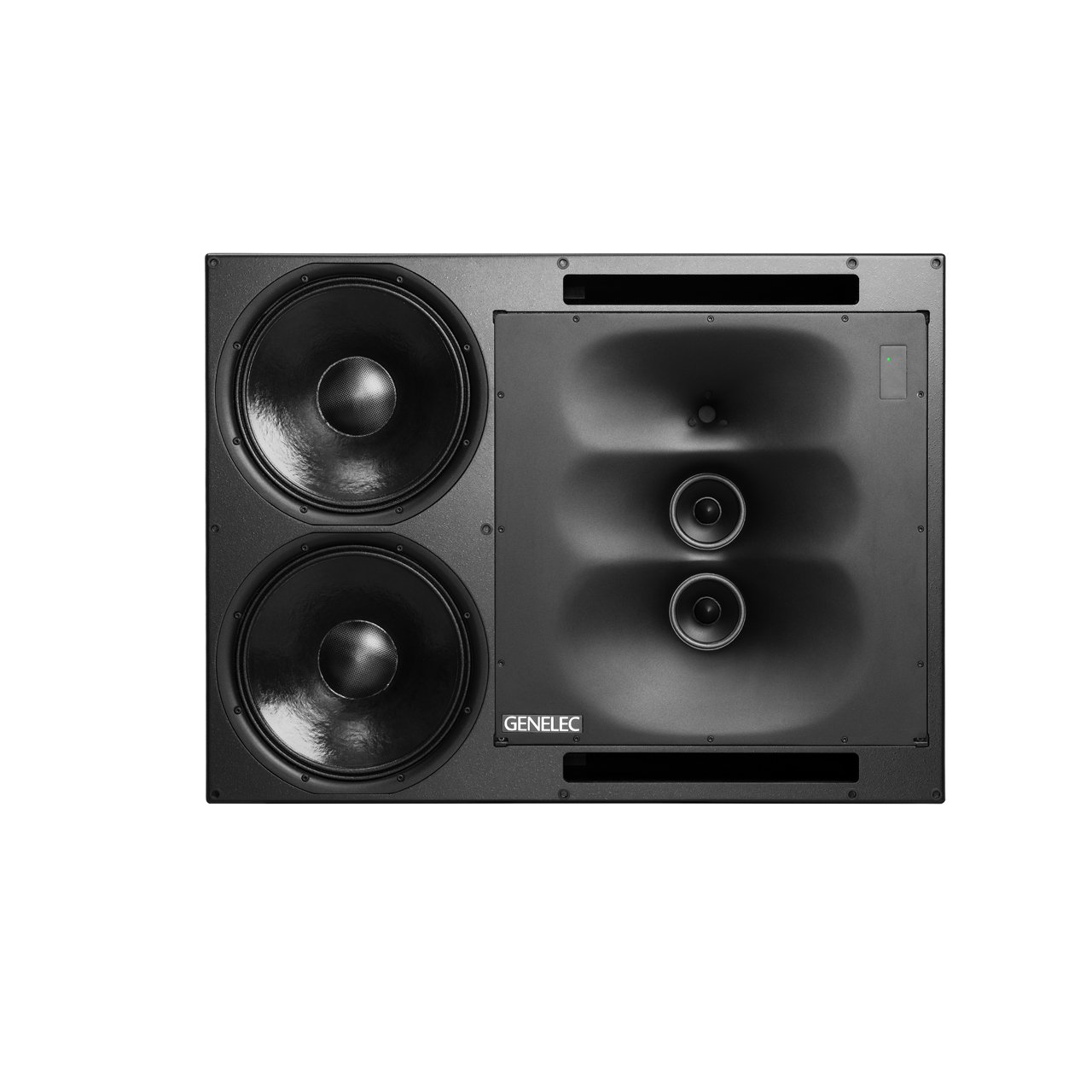

Genelec 1235A SAM Active Studio Monitor with 2400 Watt Full Output and High SPL Capability

ITEM #: GNC-1235AP MFG #: 1235AP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Shipped truck freight.


1235AP - Overview

The Genelec 1235A SAM Active Studio Monitor brings the sound and heritage of the iconic 1035 into the modern recording age. High SPL capability and precise imaging come together in a main monitor that adapts to your room.

Classic Heritage
The original 1035 became the hallmark of prestigious studios around the world who demanded a wall-mountable full-range monitor that could deliver true reference performance at high SPLs and over long listening distances. Now, with 96kHz processing and all the power of our Smart Active Monitoring technology.

Cutting Edge Performance

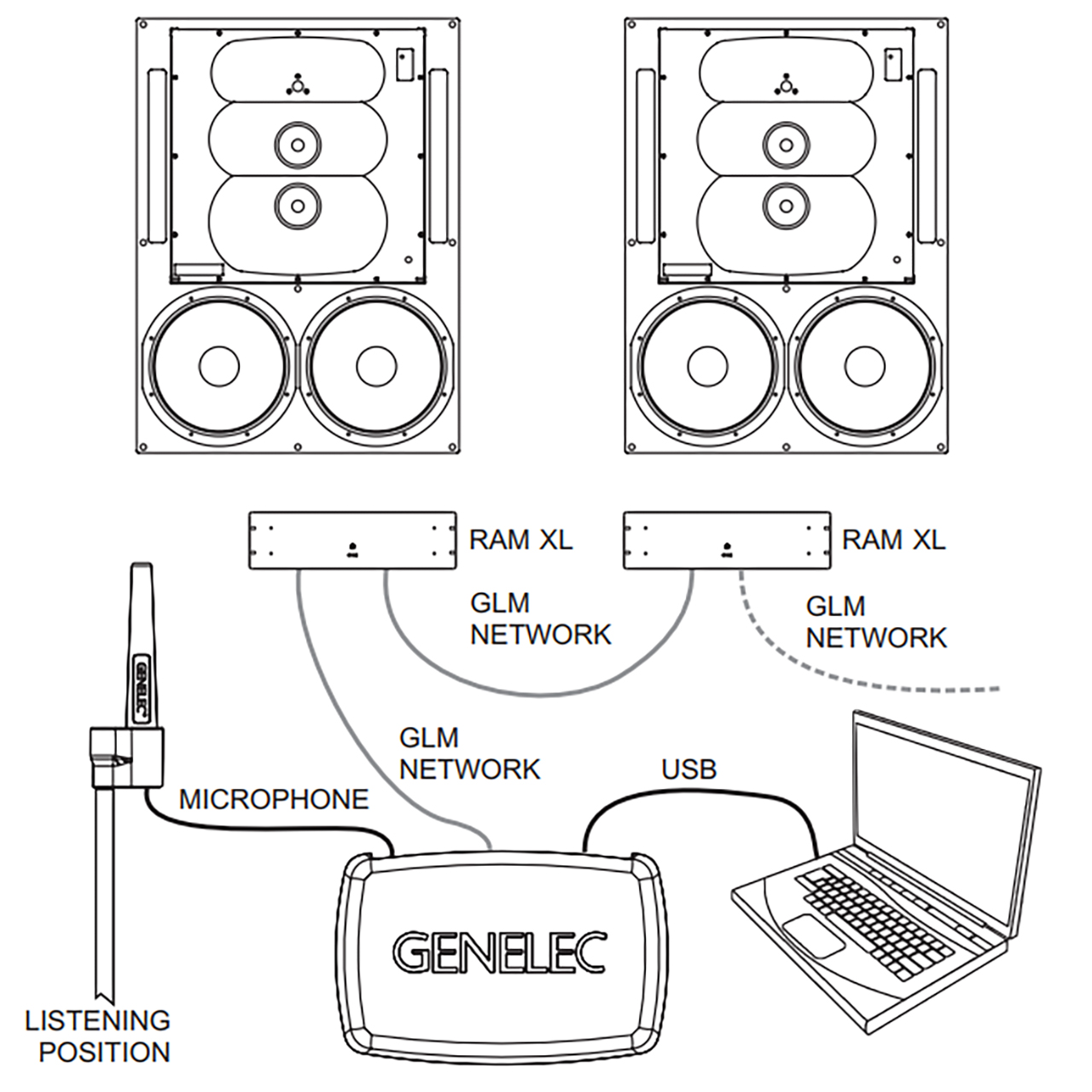

With outstanding on and off-axis response and superb directivity, the 1235A delivers a very wide and stable sweet spot that can be trusted by multiple listeners within a room. And through its integration with GLM software, the 1235A can be configured, controlled and calibrated for any type of acoustic environment, providing a truly optimized listening experience - and mixes that translate perfectly to other rooms and systems.

  • Features:

    • Active Crossovers
    • Directivity Control Waveguide (DCW) Technology
    • Protection Circuitry
    • Smart Active Monitor (SAM) Systems
    • Intelligent Signal Sensing (ISS) Technology
    • Optimized Amplifiers
    • Room Response Compensation

  • Specifications:

    • Dimensions: 43.5" x 25.56" x 32.2" (110.5cm x 65cm x 82cm)
    • Weight: 361.6lbs (164kg)
    • SPL: 130dB
    • Amplifier Power:
      - 2x 1000W Bass (Class D)
      - 2x 400W Midrange (Class D)
      - 250W Treble (Class D)
    • Frequency Response: 29Hz - 26kHz ("-6dB")
    • Accuracy of Frequency Response: ±2dB (31Hz - 20kHz)
    • Active or Passive: Active
    • Monitor Application: Far-Field
    • Speaker Configuration: Three-Way

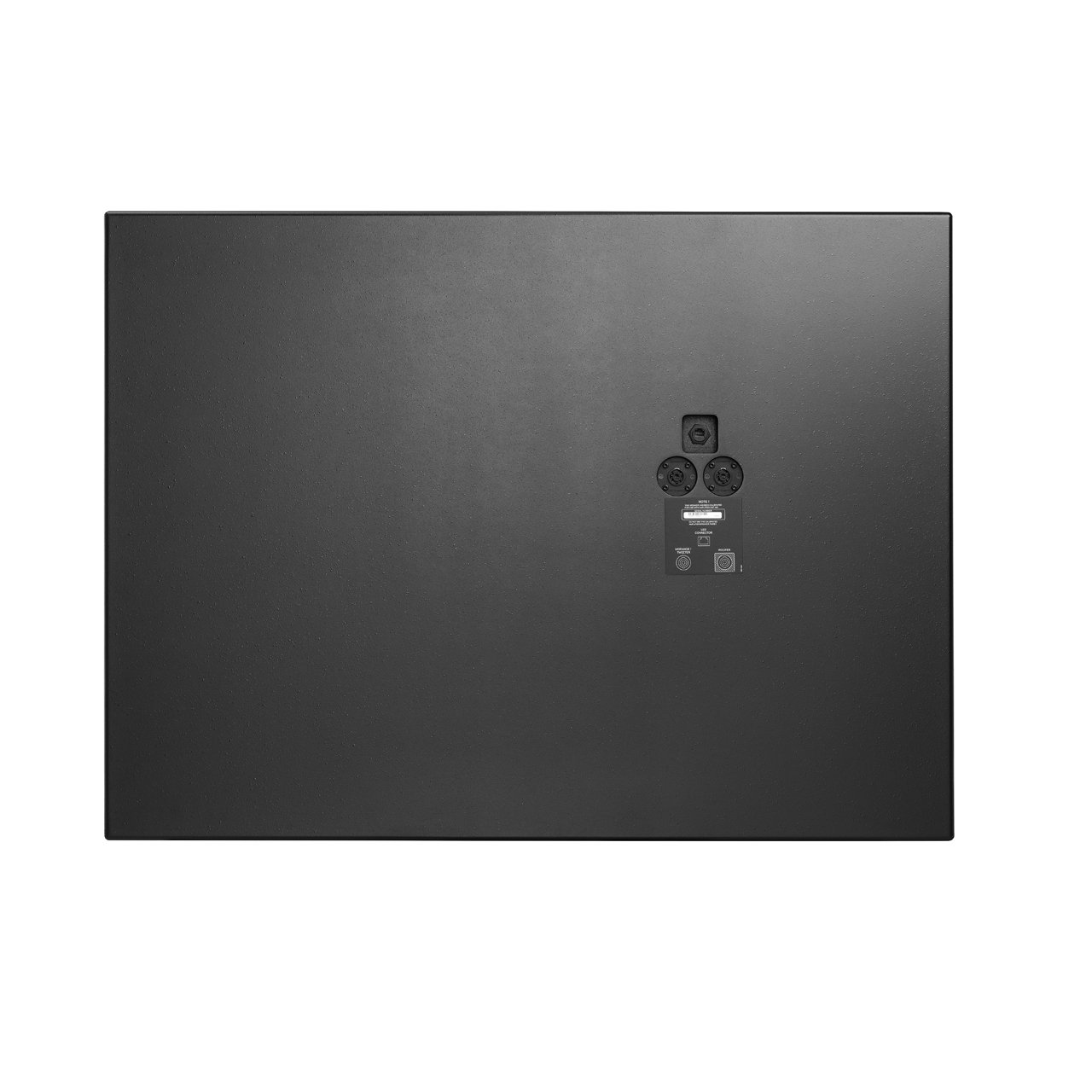

    • Connectors:
      - 1x Analog signal input connector XLR female - Balanced 10kOhm
      - 1x Digital signal input connector XLR female - 110 Ohm
      - 1x Digital signal output/Thru connector XLR male - 110 Ohm
      - 2x CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software
    • Power Consumption:
      - Full Output: 2400W
      - ISS Active: ≤ 6W
      - Idle: ≤ 40W

  • Item Includes:

    • 1x 1235A SAM Monitor

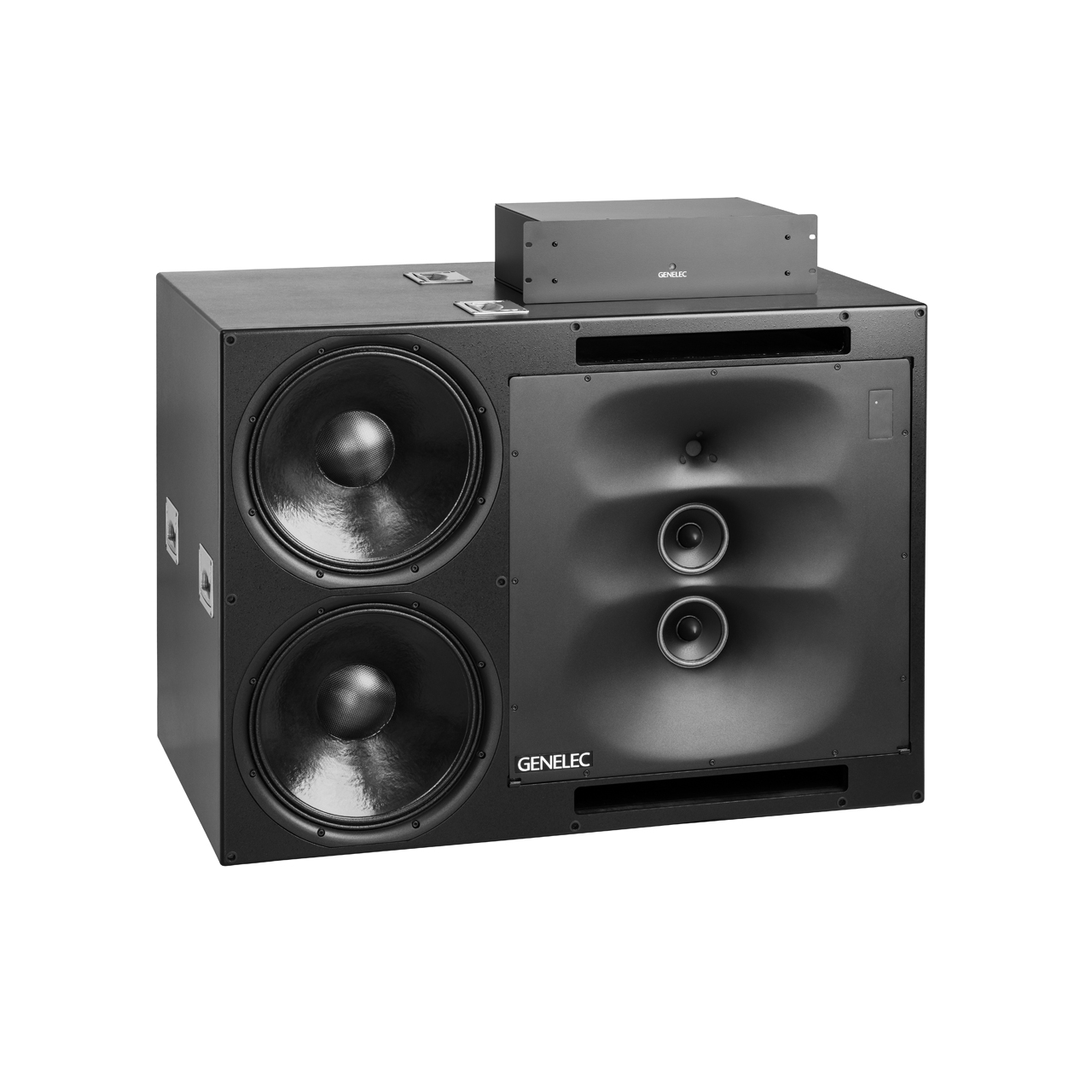

    • 1x Individually Calibrated RAM-XL Amplifier Unit
    • 1x Mains Cable
    • 1x RJ45 Cable 16 Foot
    • 1x RJ45 Cable 32.7 Foot
    • 2x 4-Pole Speakon Cable 32.8 Foot
    • 1x Operating Manual

  • Warranty:

    • 2-Year Limited Warranty
