Tempo 701K-G Professional Tone & Probe Tracing Kit

ITEM #: GRL-701K-G MFG #: 701K-G

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$90.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    701K-G - Overview

    Professional Tone & Probe Tracing Kit

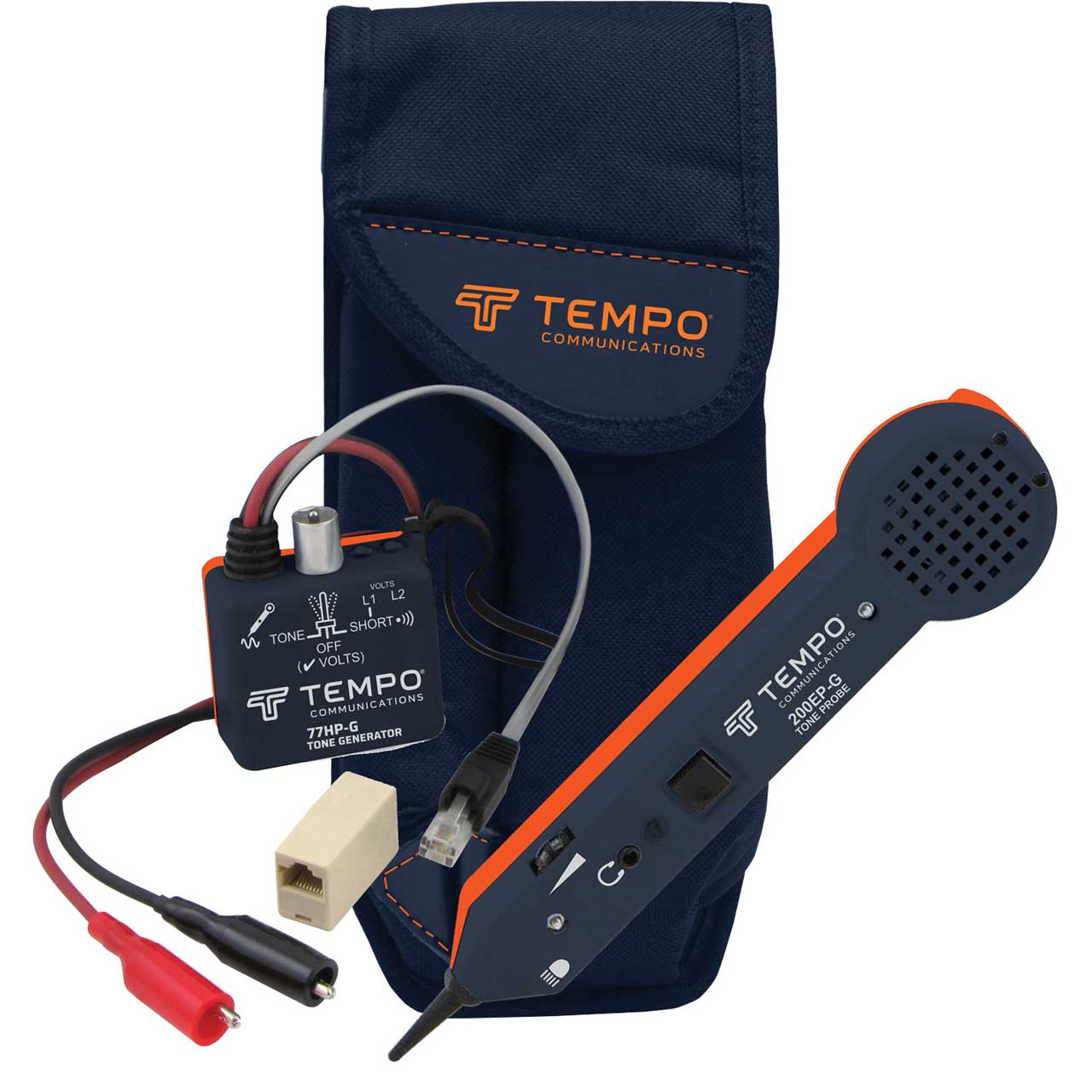

    The Tempo 701K-G is a Professional Tone and Probe Tracing kit that includes the Paladin 77HP-G High Power Tone generator and the 200EP Tone Probe Amplifier in a rugged woven nylon carry case. Trace wire paths and identify cables in all common wiring systems. Diagnose common problems in telephone, data, and security wiring. Check for open or shorted wire pairs and confirm the presence of telephone service. Simple operation with audible and visual tone signal indication; provides two distinct tone signatures and LED tone proximity indicator illumination. Includes tracing probe, tone generator, modular plug, alligator test leads, RJ11 & RJ45, socket adapter, and nylon carrying pouch

    • Features:

      • Tone Probe
      • Adjustable volume control
      • Replaceable tip
      • LED Signal Indicator
      • Test Telephone Port
      • Headset Jack
      • LED Flashlight
        Tone Generator
      • Continuity & Polarity LED
      • External warble select
      • RJ11 & RJ45 Socket
      • Short Circuit LED/Beeper
      • Dual line modular LED
      • Alligator Connector Clips

    • Specifications:

      • Probe
      • Gain (nominal): 30 db
      • Input Impedance (nominal): 100 M Ohms
      • Metal tip resistance: 0 Ohms
      • Plastic tip resistance: 300 Ohms
      • Headset: 3.5 mm stereo plug: 8ohms mimimum
      • Battery: 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61)
      • Battery Life (Nominal): >50 hours
      • Length: 231 mm (9.0")
      • Width: 55mm (2.2")
      • Depth: 28 mm (1.1")
      • Weight: 145 g (5.2oz)
      • Operating/Storage Temperature: 0Ý C to 50Ý C (32Ý F to 122Ý F)
        Generator
      • Talk Battery (into 600 Ohms): 4.6VDC
      • Output Power (into 600 Ohms): + 10dBm
      • Resistive Short Visual Indication: <10k Ohms
      • Resistive Short Audio Indication: <200 Ohms
      • Output Frequency: Alternating-890/960 Hz, Warbling-Slow 1.3 Hz/Fast: 6Hz
      • Voltage Protection (into 600 Ohms): 150 VDC
      • Battery: 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61)
      • Battery Life: >50 hours
      • Height: 57 mm (2.25")

    • Item Includes:

      • 77HP-G High Power Tone Generator
      • 200EP Tone Probe Amplifier
      • A rugged, woven nylon carrying case

    • GTIN:

      0783310499909
