Netgear AV Line GSM4212P-111NAS 12-Port / 8x PoE+ 125W / 2x 1G / 2x SFP Fully Managed Switch

GSM4212P-111NAS - Overview

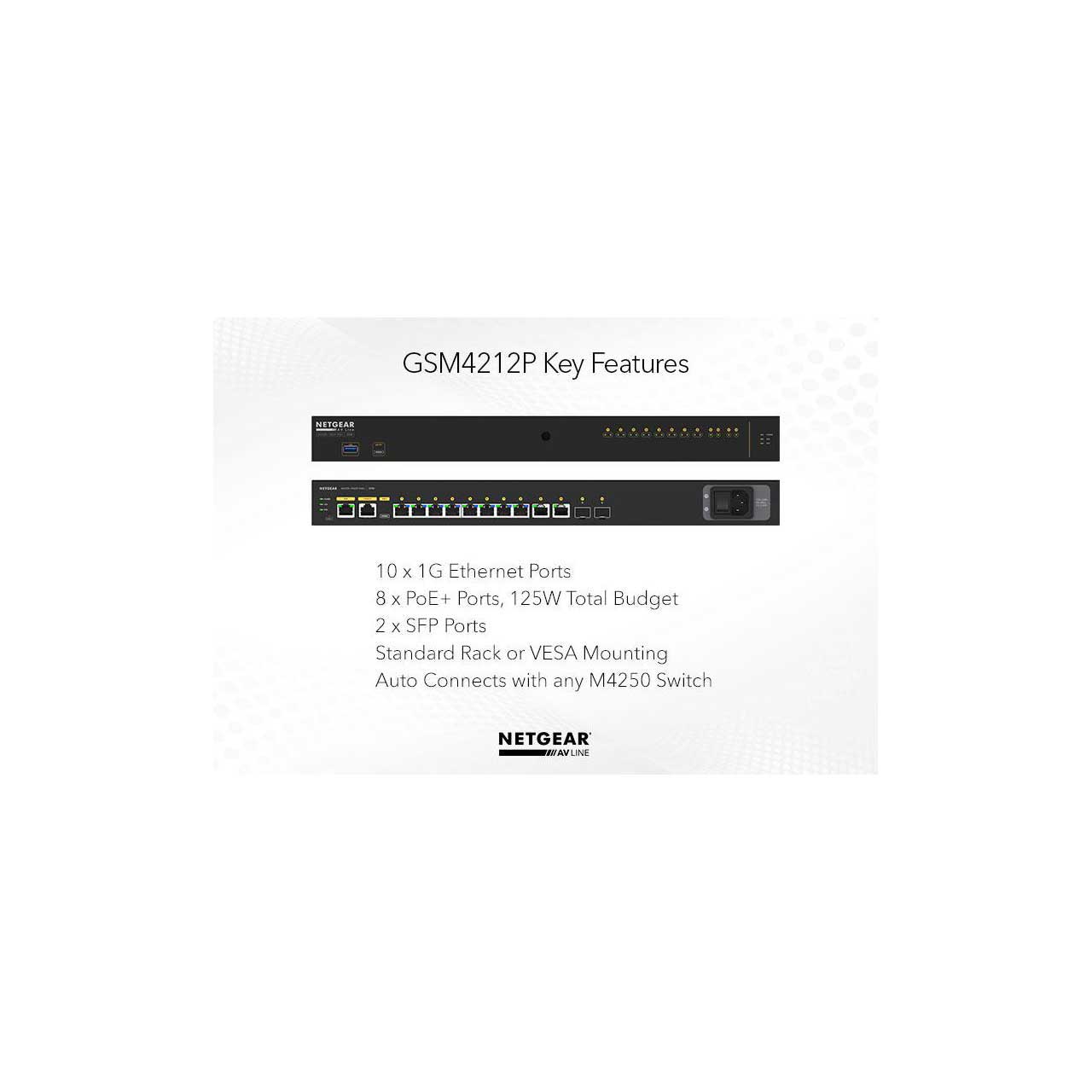

• Features:

  • 8-port 10/100/1000BASE-T (RJ45) PoE+ with 125W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000BASE-X (SFP)
  • 24 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port

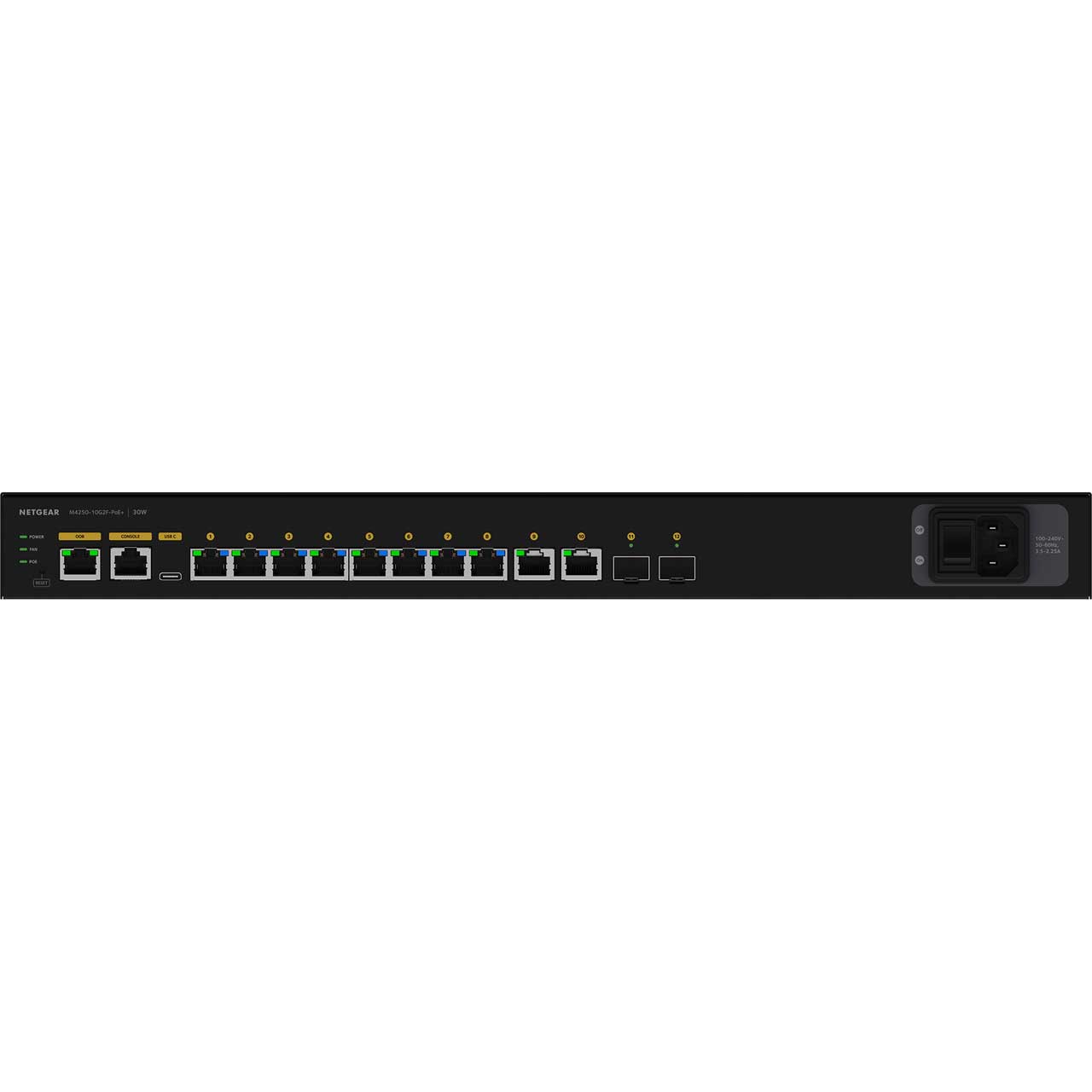

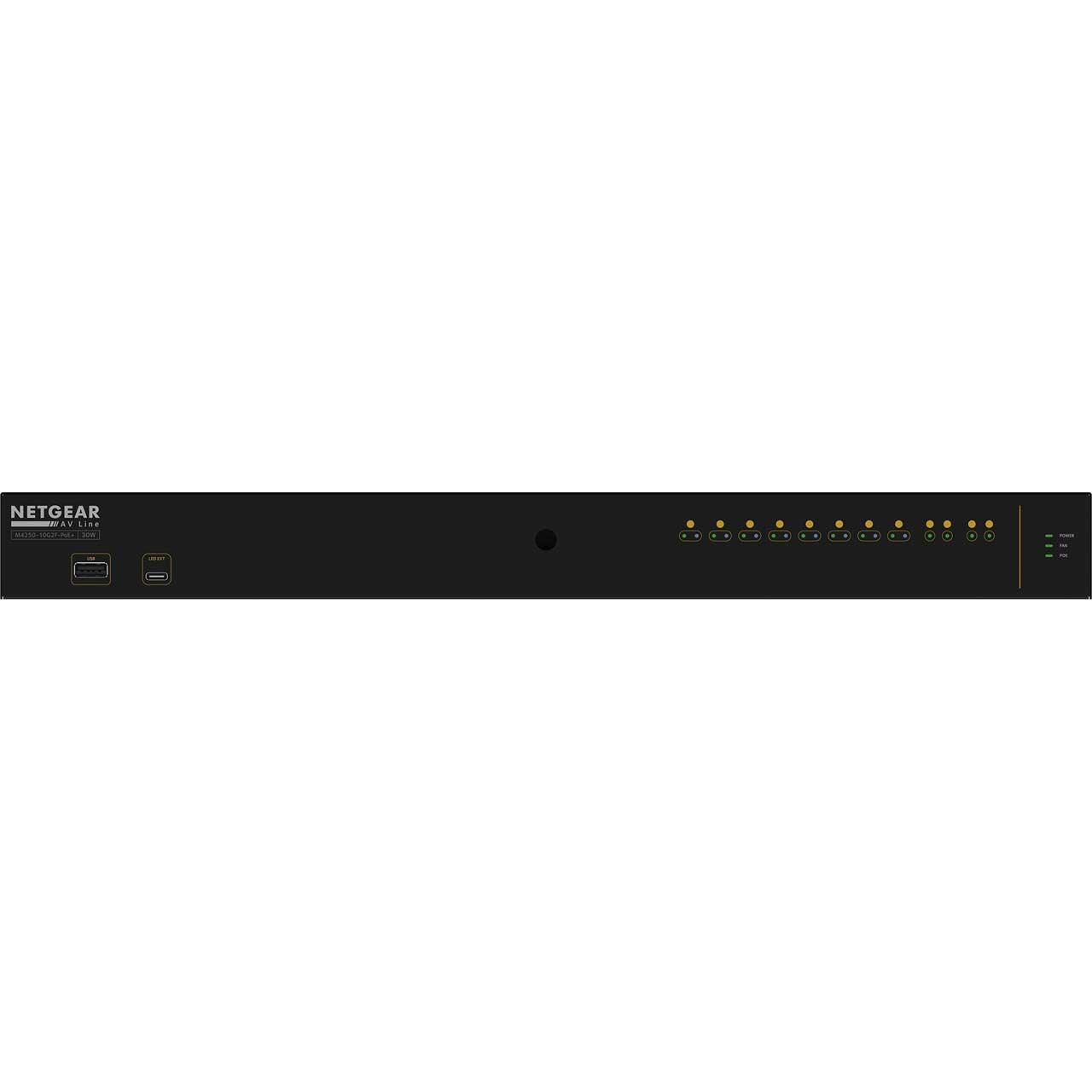

  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation


• Specifications:

  • Primary Port Speed: 1 Gigabit
  • Number of Ports: 12 (10x 1G, 2x SFP)
  • PoE Ports / Budget: 8 PoE+ (30W/port), 125W Budget
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • Acoustics: Fanless or 30dB@25°C
  • Power Consumption:
    With PoE: 163.9W/559.555Btu/hr;
    Without PoE: 17.32W/59.13Btu/hr;
    Standby without any port connection: 8.53W/29.121Btu/hr
  • AVB Support: Yes. Electronic license required, activation key sent via email (AVB4212P-10000S)
  • Third party support: Domotz


• Item Includes:

  • M4250-10G2F-PoE+ (GSM4212P)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide


• Warranty:

  • Limited Lifetime Warranty
