Datavideo HS-4000 4K 8-Ch Portable Video Streaming Studio - 17.3in UHD LCD Monitor - H.265 Streaming Encoder & Recorder

ITEM #: DV-HS-4000 MFG #: HS-4000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$10,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HS-4000 - Overview

    Elevate Your Multimedia Production with a Lightweight 4K Mobile Studio Powerhouse
    The Datavideo HS-4000 is a compact, portable mobile studio ideal for broadcasting, conferences, live events, and hybrid activities. It supports up to 4K 60FPS video, accepting inputs from HDMI 2.0 devices and 12G-SDI cameras. It features a 5-inch touchscreen with customizable icons, transition animations, chroma key, and various functions.

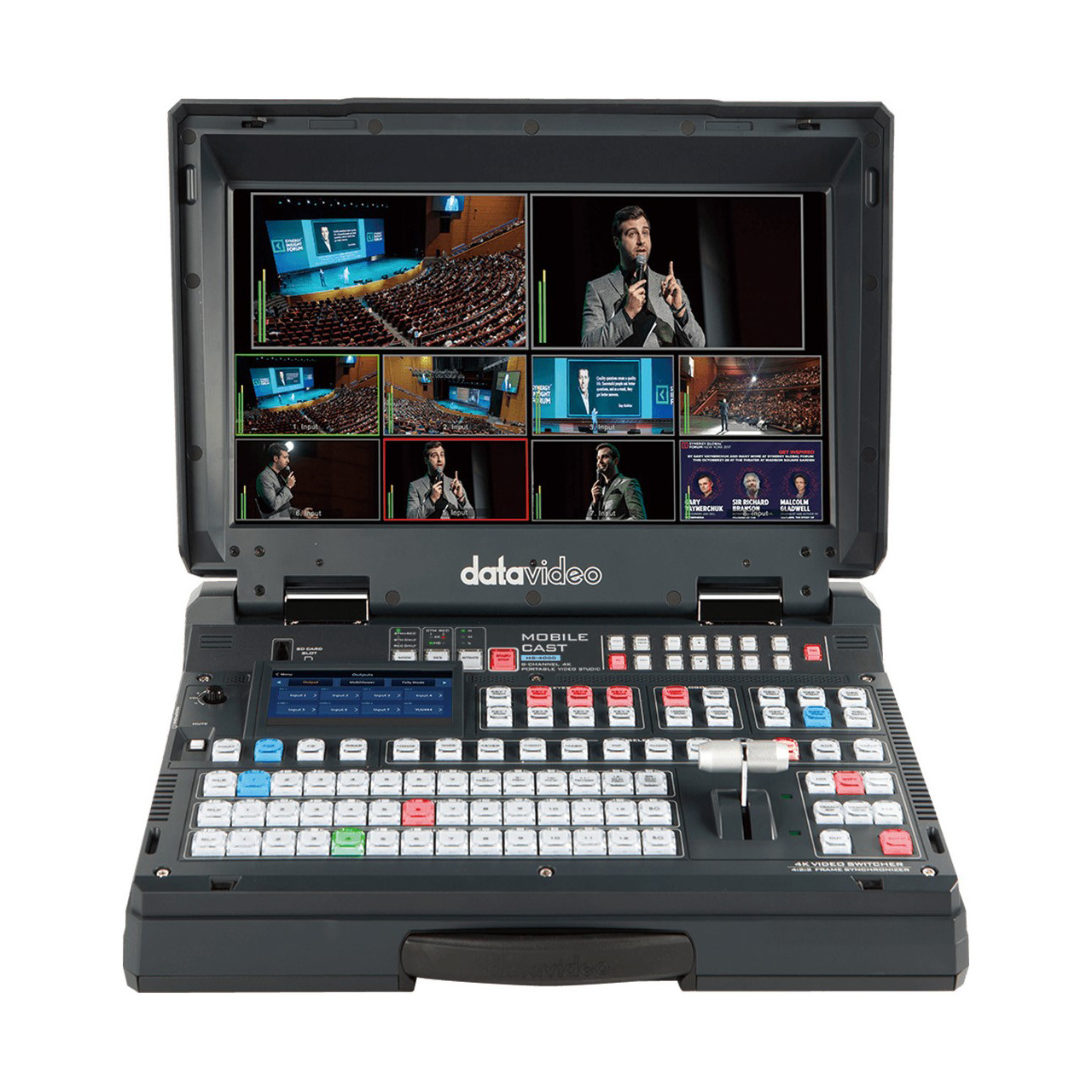

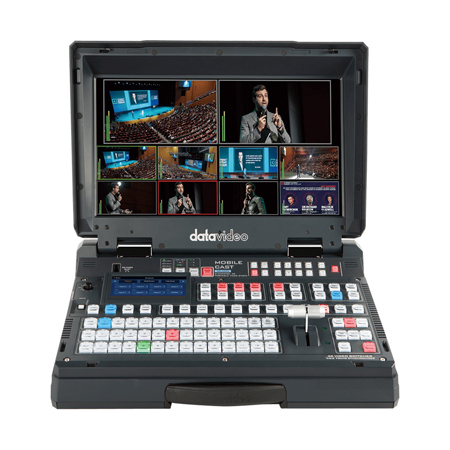

    With a 17.3-inch UHD 2160p monitor, it offers a multiview display. The HS-4000 includes easy recording and live streaming encoders for simultaneous broadcasting and high-quality MP4 recording with synced audio-video.

    This mobile studio blends advanced tech and convenience to fulfill modern multimedia production needs.

    All-in-One 4K Production Studio
    Datavideo HS-4000 is an all-in-one 4K production studio, it's designed to provide users with a comprehensive solution for producing and broadcasting content in 4K resolution.

    The HS-4000 combines features such as video switchers, audio mixers, monitor, recorder, and streaming encoder into a single integrated unit, making it easier for users to create high-quality content without needing to assemble a complex setup from various individual production devices.

    Recording and Live Streaming
    The HS-4000 features easy-to-use recording and live streaming encoders. This functionality enables simultaneous live broadcasting and recording of high-quality MP4 files with audio-video synchronization. This dual capability is ideal for archiving and post-event editing.

    High-Quality Video Support
    The mobile studio supports video resolutions of up to 4K at 60 frames per second (FPS). This high-resolution capability ensures that the output video quality is crisp and detailed, suitable for professional-level productions.

    Intuitive Touchscreen and Physical Buttons
    In addition to traditional physical buttons, the mobile studio features a 5-inch touchscreen with customizable icons. This touchscreen interface provides intuitive control over various functions and settings, enhancing user experience and ease of operation.

    Versatile Video Inputs
    The HS-4000 can accept video inputs from various sources, including PCs, multimedia players with HDMI 2.0 output, and 12G-SDI cameras. This versatility allows for seamless integration of different devices and sources into the production workflow.

    The HS-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

    True 12G 4K 50/60 Video Production Switcher
    Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.

    Multiple Interfaces for All Video Types
    Fully equipped with various I/O's that accept UHD 4K 50/60p videos from sources such as PCs with an HDMI 2.0 output port, multimedia players, and 12G-SDI ENG style cameras. Upon connection, the 10-bit broadcast quality video will be displayed instantaneously at no expense of resolution, speed and frame rate.

    • Features:

      • UHD 4K60/50p signals on input and output
      • 8 live channels: 8x 12G-SDI + 4x HDMI (select 8 from 12)
      • 7 outputs: 4x 12G-SDI + 3x HDMI
      • Variety of video and audio input/output
      • Supports 4K60/50P with scaling on each available input
      • 4x XLR Analog Audio Inputs
      • 2x XLR Analog Audio Outputs
      • Integrated 5" Touchscreen Display, easy to operate.
      • 4x Upstream Keyers and 2x Downstream Keyers
      • 2x Picture-in-Picture (supported resolutions are 4K, 1080p and 1080i)
      • Crosspoint assignment (XPT)
      • Wipe, Mix, Cut Transitions
      • CG Title Creator
      • Tally output

    • Specifications:

      • Video Standard: 4K & HD
      • Video Format: 3840x2160p: 60/59.94/50/30/29.97/25, 1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50
      • Input Routable / Crosspoint: Yes
      • Video Input: Total 8 live inputs (select 8 from 12), 8x 12G-SDI, 4x HDMI
      • Computer Graphic Interface: 4 via HDMI
      • Down-converted Output: Yes
      • Video Output: 4x 12G-SDI / 1x HDMI - all assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12: 2x HDMI PGM only, 1x HDMI Multiview
      • Analog Audio Input: 4x Balanced XLR
      • Analog Audio Output: 2x Balanced XLR
      • Digital Embedded Audio Support: Input 4 channels, Output 4 channels
      • Audio Delay Calibration: Up to 16 frames
      • A+V Switching: Yes
      • USK: 4
      • DSK: 2, support Lumakey & Linear key (Key/Fill)
      • Picture in Picture: 2
      • Logo Insertion: 2
      • Title Creator: Yes (Coming soon by firmware update)
      • Built-in Audio Mixer: Yes
      • Built-in Monitor Display: 17.3" 4K TFT LED backlit, 3840x2160 pix

        Streaming
      • Streaming: H.264: MAX RES: 4K@30 420 8bit codec, H.265: MAX RES: 4K@60 420 8bit codec
      • Streaming Audio Encode: AAC 2CH, 16bit 48KHz 192Kbps
      • Streaming Protocol: RTSP, RTMP, SRT
      • Streaming Control: Web browser UI for configuration and control Socket commands
      • Recording File System: FAT32, exFAT
      • Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
      • Streaming & Recording Setting Control: Web UI for system configuration and control

        Others
      • Special Features: 5" Touch Panel, 17.3" 4K Monitor, 4 Chroma-Key Virtual Studio, Streaming encoder and recorder
      • Dimension (LxWxH): 18 x 14.57 x 5.27"
      • Weight: 20.3lb, Reinforce Plastic Case
      • Power: DC 56V, 4.46A
      • Operating Temp. Range: 0~40 °C

    • Item Includes:

      • 1x HS-4000 Unit
      • 1x AD Switch DC 48~56V with AC Cord
