Galaxy Audio AS-1200TD 210 Channel Stereo Wireless Personal In-Ear Monitor Transmitter - 584-607 MHz

ITEM #: GXY-AS-1200TD MFG #: AS-1200TD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$349.99

Our Price:

$249.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AS-1200TD - Overview

    Reduce stage volume, avoid cumbersome stage monitors, and eliminate needless wire clutter with Galaxy Audio's new AS-1200 Wireless Personal In-ear monitors. The AS-1200 lets you enjoy freedom of movement with a range of up to 300ft. The 210 selectable UHF frequencies offer stereo monitoring and dependable performance even in challenging RF environments. The Galaxy Audio AS-1200 Wireless Personal In-ear monitors sends your mix directly to your ears while isolating stage noise, resulting in a more accurate and precise representation of your music regardless of your position on stage. The AS-1200 is built on the same trusted and reliable wireless in-ear platform Galaxy Audio has been providing musicians for decades.

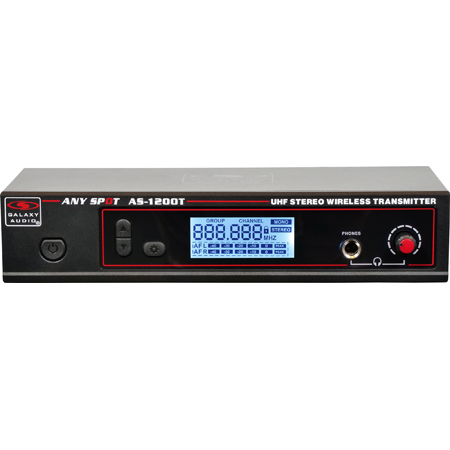

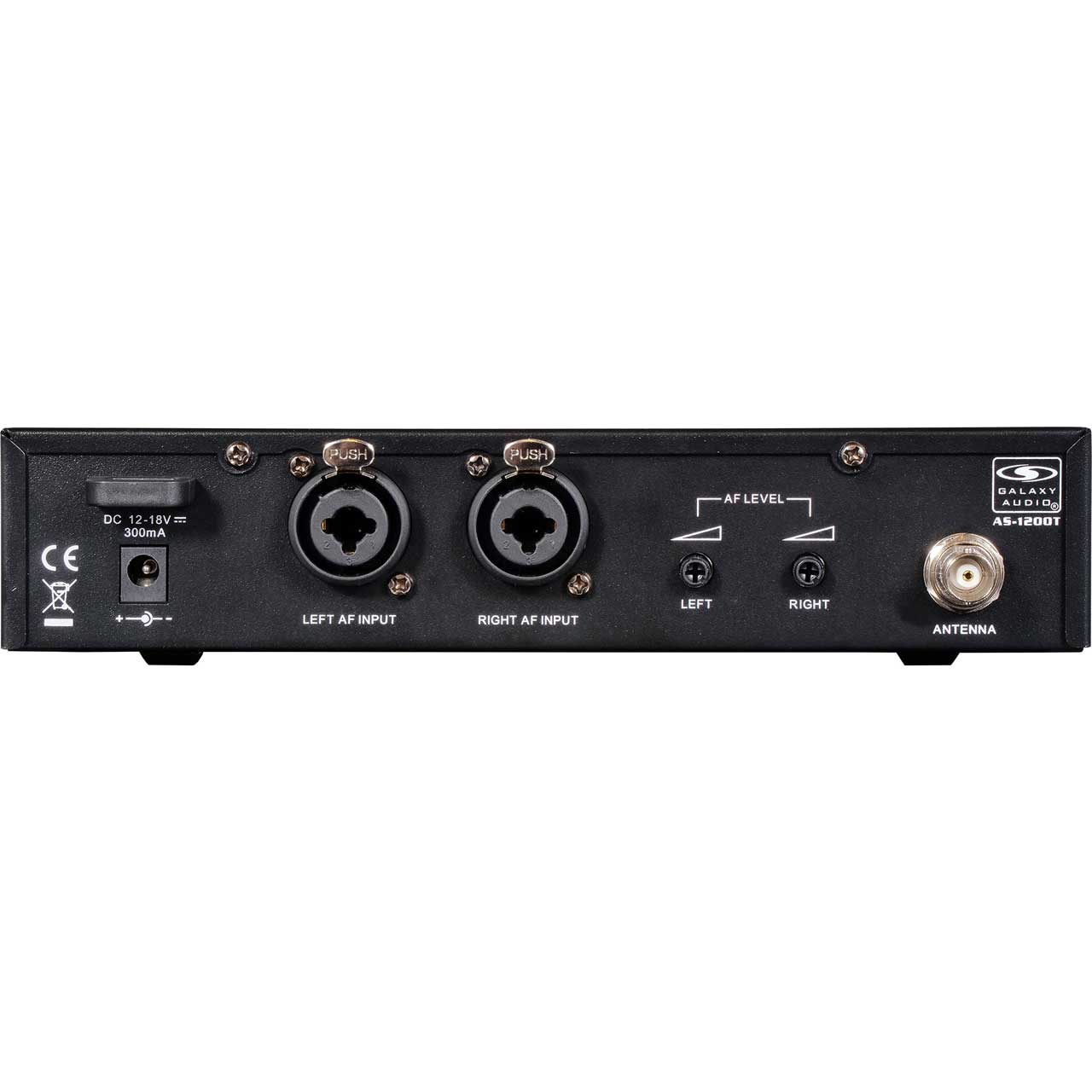

    The Galaxy Audio AS-1200T transmitter incorporates a backlit LCD that displays lock on/off, L/R AF levels, group/channel, frequency number, and mono/stereo mode. AS-1200T front controls include a settings button, up/down select buttons, and volume control for the front facing headphone output. The back panel features line level right and left XLR/1/4" combo inputs and right/left AF level controls. A Single/Dual Rack mount kit and a BNC antenna is included.

    • Features:

      • 210 Selectable UHF Frequencies
      • Backlit LCD (Displays Group, Channel Number, Stereo, Mono, Frequency and Right, Left AF Level, Lock)
      • Multiple Receivers can be used with 1 Transmitter
      • Stereo or Mono Transmission

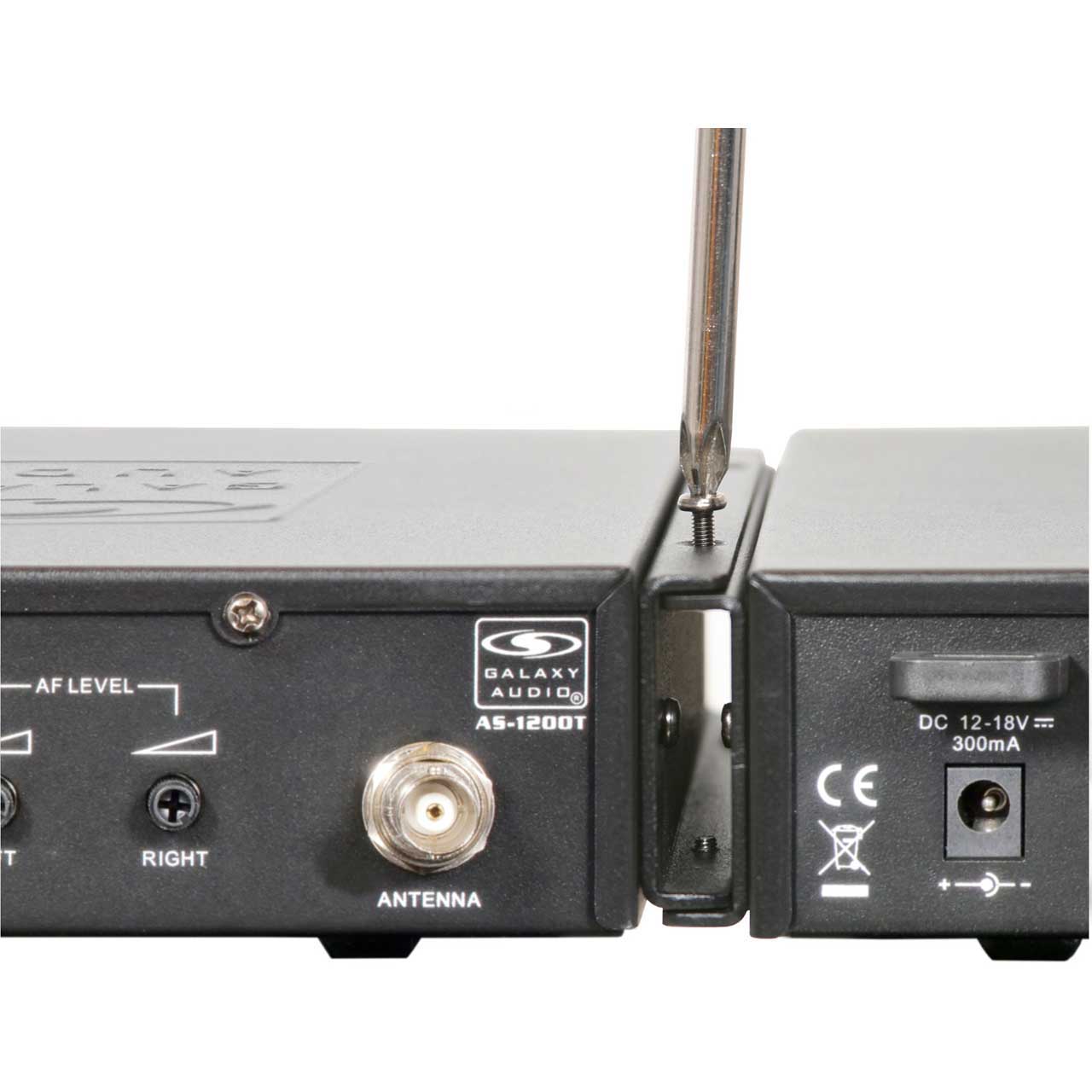

      • Single/Dual Rack Mount Kit Included
      • 300' Range
      • An unlimited number of receivers may be added at any time.
      • 210 Selectable UHF Frequencies
      • Transmits in Stereo or Mono
      • Line Level x 2-XLR/1/4" Combo Jacks
      • AF L/R Indicator
      • RF Output 10 mW
      • Detachable BNC Antenna Included

    • Specifications:

      • AS-1200 System
      • Band: UHF
      • Frequency Range: CODE D 584 MHz - 607 MHz, CODE N 518 MHz - 542 MHz
      • Frequencies: 210
      • Transmitter Output Level: 10 mW
      • Operating Range: Under Typical Conditions 300' (92m)
      • Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
      • Audio Frequency Response: 70Hz - 13.5Khz (±3db)
      • Total Harmonic Distortion: <1% @ 1kHz
      • Signal to Noise: >80dBA
      • Maximum Deviation Range: ±15kHz
      • Dynamic Range: >88dB A-weighted
      • Operating Temperature: Range 14° F to 122° F (-10° C to 50° C)
      • Note: battery characteristics may limit this range

        AS-1200T Transmitter
      • Main Frame Size: EIA STANDARD 1/2 U
      • Modulation Mode: FM Stereo Modulation
      • RF Output: 10 mW
      • Max Audio Input Level: +6dBV
      • Gain Adjustment Range: 40dB
      • Input Impedance: 100kΩ
      • Controls: Headphone Volume, Up/Down, Settings, and Power Button
      • Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
      • Audio Output: 1/4" Headphone Out
      • XLR Input: Impedance balanced, Pin 1: Ground (cable shield), Pin 2: Audio +, Pin 3: No Audio
      • Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
      • Dimensions: 1.5" x 8.3" x 3.78" (38 x 212 x 96 mm) (HxWxD)
      • Weight: 22 oz. (635 g)
      • Power Requirements: 12-18 V dc at 300mA supplied by external power supply

    • Item Includes:

      • 1x Galaxy Audio AS-1200TD 210 Channel Wireless Personal In-Ear Monitor Transmitter - 584-607 MHz
      • 1x Power supply
      • 1x Rack kit (short ear, long ear, 1 coupler, 4 rack ear screws, 2 coupler screws)
      • 1x Detachable BNC Antenna Included

    • GTIN:

      0691281013591
