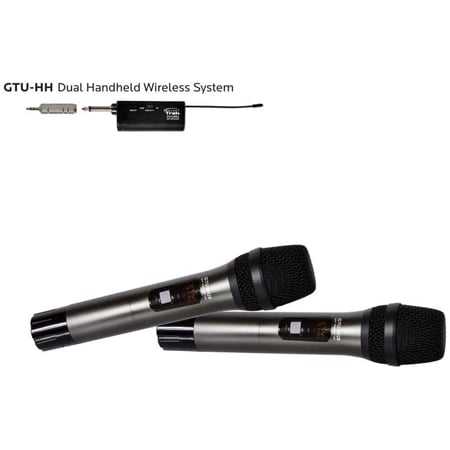

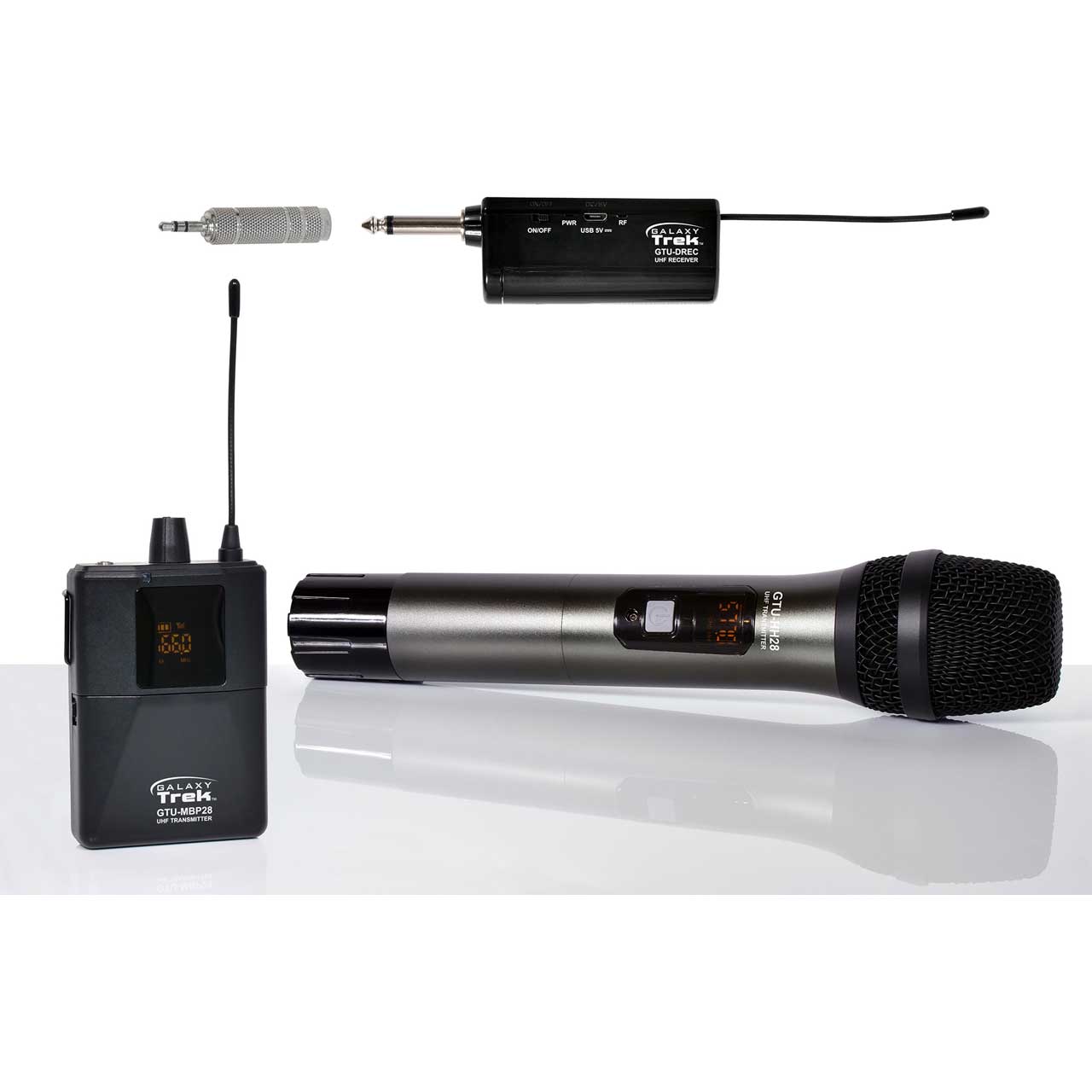

Galaxy Audio GTU-HHP5AB TREK UHF Dual Handheld Body Pack Headset - Wireless/UHF Mini Handheld System

ITEM #: GXY-GTU-HHP5AB MFG #: GTU-HHP5AB

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$130.49

Our Price:

$89.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    GTU-HHP5AB - Overview

    Galaxy Trek GTU GTU-HHP5AB Wireless Portable Microphone system features a 160-foot range and UHF frequency wireless transmitter options with a choice of handheld, headset, or lavalier mics. Additionally, the user-friendly compact dual-mic receiver enables the use of any two of the microphone transmitter options simultaneously.

    The Galaxy Trek GTU incorporates Auto Match Pairing to connect transmitters to an open channel. Simply turn on the Receiver and 1 or 2 Transmitters to seamlessly sync. Each transmitter has its own 30 selectable channels Plug the Galaxy Trek Receiver into the 1/4" input of active speakers, mixers, cameras, and more for instant wireless connectivity. The Galaxy Trek GTU system also includes a 1/4" to 1/8" adapter. Dual Mic systems are available in a variety of configurations, from handheld, headset, or lavalier microphones. Mix and match your system.

    Combine the Trek GTU with a powered loudspeaker to create a versatile wireless PA system for classroom instruction, sports coaches, corporate and trade-show presenters, aerobics instructors, auctioneers, religious ceremonies, weddings, and more.

    • Features:

      • Easy Set-Up
      • Compact Light-Weight Design
      • 160 ft Operating Range
      • Dual Microphone Wireless Receiver (Works with 2 Wireless Transmitters Simultaneously)
      • Rechargeable Receiver
      • UHF Wireless Transmission
      • Full Range Microphone
      • Volume Control On Transmitters
      • 60 Selectable Channels 30 per transmitter
      • 6 Hours Battery Life

    • Specifications:

      • GTU System
      • Pairing: Auto-Match Pairing - Simply turn on the Receiver and 1 or 2 Transmitters and they will automatically sync. Plug the Receiver into a powered speaker and you're ready to be heard.
      • Frequency Response: 80Hz-15KHz
      • Frequency Range: 30 channels in Handheld, 30 channels in Body Pack
      • S/N Ratio: >60dB
      • THD: 0.5% (1khz)
      • Sensitivity: -70dbM
      • Operating Range: 160ft (50 meters)*
      • RF power: 20mW
      • Bandwidth: 60 MHz
      • Frequency Range: 524.500 MHz - 594.500 MHz, 30 channels in Handheld, 30 channels in Body Pack

        Dual Channel Receiver GTU-DREC
      • Controls: On-Off Power Switch
      • Audio Output 1/4" Output
      • Indicators: Power and Pairing LEDs
      • Receiving Sensitivity: < 2uV
      • Spurious Rejection: > 40dB
      • Audio output Impedance: 600 Ohm
      • Audio output Level: 0-0.5V
      • Power Supplied By: Lithium Ion Battery (Included) Mini USB Charging Input
      • Input Power: 5V DC USB
      • Dimensions(H x W x D): 4.5 x 1.4 x 1" (114.3 x 35.5 x 25.4 mm)
      • Weight: 2.8oz (79 g) with battery
      • Transmitters: GTU-HH28 Handheld, GTU-MBP28 Body Pack
      • Controls: On-Off Power Switch / Volume Control / Channel Select
      • GTU-HH28 Handheld Mic Element: Dynamic Cardioid Capsule
      • GTU-MBP28 Body Pack Mic Input: TRS 3.5mm
      • Indicators: Backlit Display Shows Battery Level, Frequency, Channel, & RF
      • Frequency Stability: +- 0.005%
      • RF power: <30mW
      • Spurious Rejection: > 40dB
      • Peak Deviation: ± 75Khz
      • Modulation: UHF
      • Power Supplied By: (2) AA Alkaline or Rechargeable Batteries (Not Included)
      • Handheld Dimensions(H x W x D): 9.75 x 2.06 x 2.06" (248 x 52 x 52 mm)
      • Handheld Weight: 9.2 oz (261 g) (Without Batteries)
      • Body Pack Dimensions(HxWxD): 4.25 x 2.7 x 1.17" (108 x 68.5 x 30 mm)
      • Body Pack Weight: 2.4 oz (68 g) (Without Batteries)
      • Included Accessories1/4 inch to 1/8 inch Adapter, USB Charging Cable
      • *Actual range depends on RF signal absorption, reflection, interference, and battery characteristics.

    • Item Includes:

      • 1x GTU-DREC Dual Mic Receiver
      • 1x GTU-HH28 Handheld Microphone Transmitter (Channel A)
      • 1x GTU-HH28 Handheld Microphone Transmitter (Channel B)
      • 1x 1/4 to 1/8" Adapter
      • 1x USB Charging Cable
