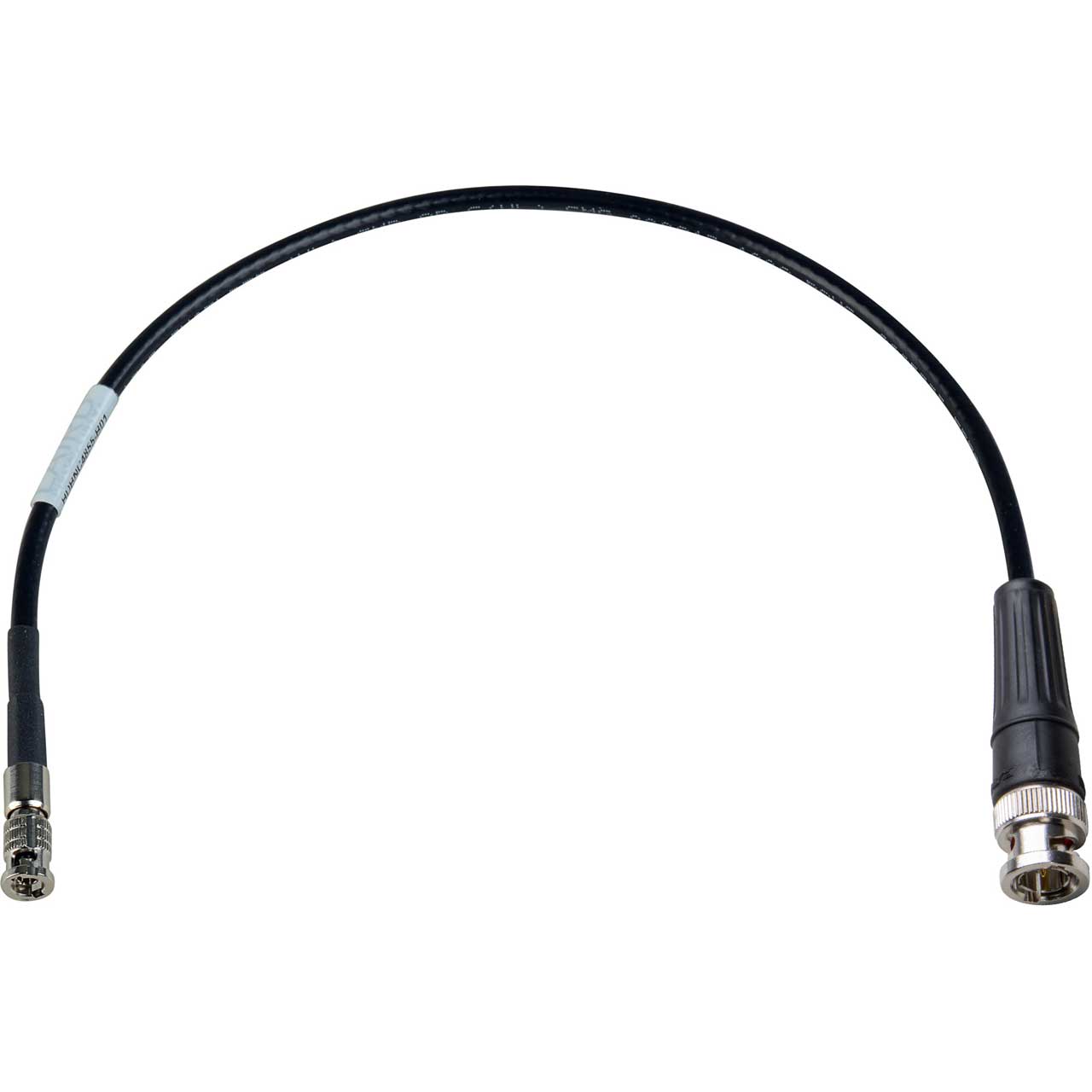

Laird Belden 4855R HD-BNC Male to Standard BNC Male 12G-SDI Cable - 3 Foot

ITEM #: HDBNC4855-B03 MFG #: HDBNC4855-B03

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$37.49

Our Price:

$32.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in October.


HDBNC4855-B03 - Overview

The Laird HDBNC4855 Series of low profile coax HD-BNC to BNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HD-BNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4855R coax rated for 12G-SDI runs up to 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

  • Features:

    • Designed for UHD and 4K Video Transport
    • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
    • HD BNC Straight Crimp Connectors Simplify Installations
    • Optimized Transmission Distance for UHDTV
    • Transmits up to 149 ft/45m
    • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
    • Meets SMPTE ST-2082-1 and ST-2081-1 Standards

  • Specifications:

    • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
    • Compatible with 12GSDI Single Link Format Devices
    • Nominal Impedance: 75Ω
    • Conductor: Silver Plated Copper
    • Insulation: Gas Injected Foam HDPE
    • Outer Shield: Duofoil Bonded to the Core + Tinned Copper Braid Shield Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
    • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
    • Nominal Inductance: .107 ΜH/ft
    • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
    • Transmission Distance: 12G Signals up to 149 feet, 6G up to 215 Feet, and 3G up to 310 Feet
    • Amphenol Connectors
    • Meet SMPTE Standards for 12G-SDI
    • Durability: 500 Cycles

  • Warranty:

    • 1 Year
