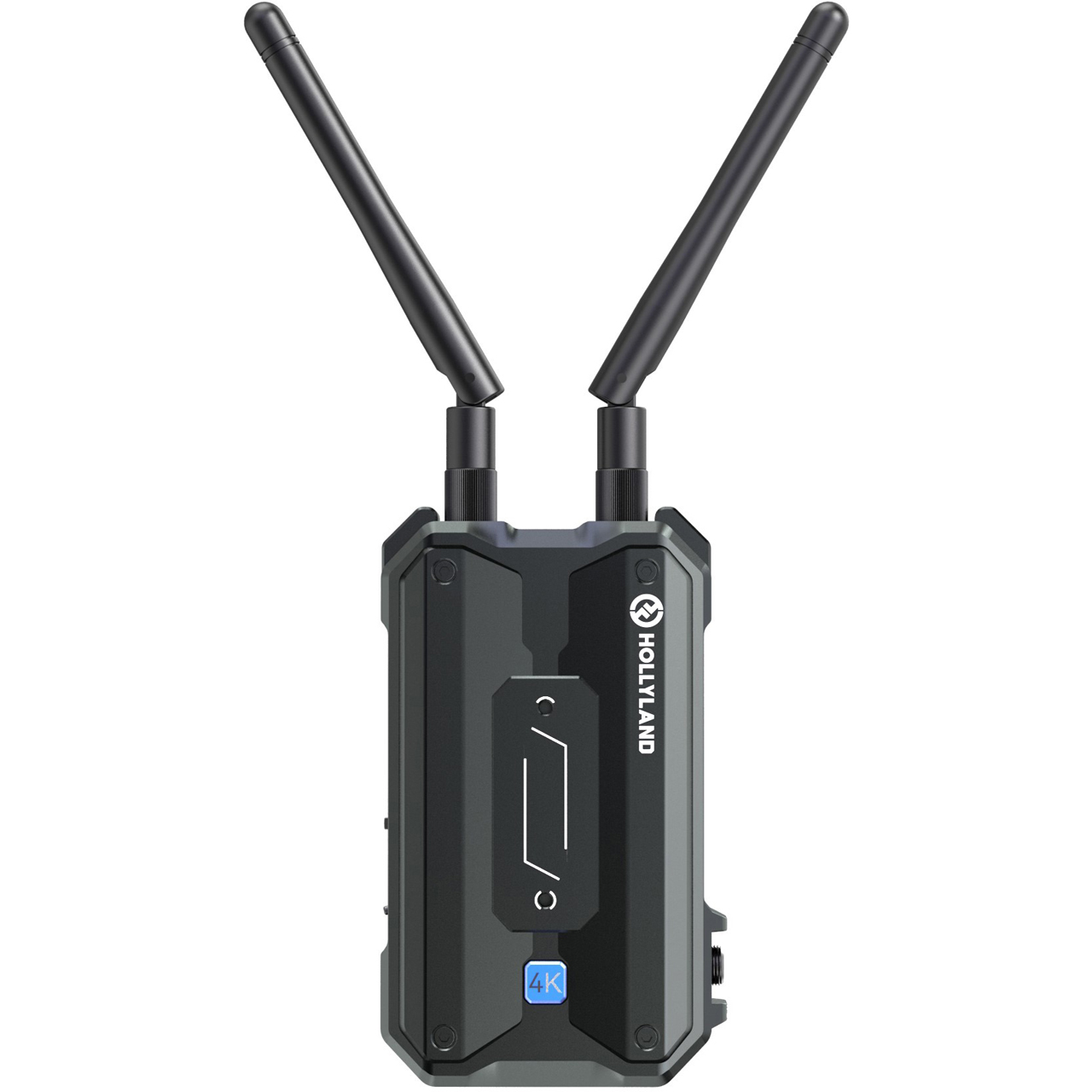

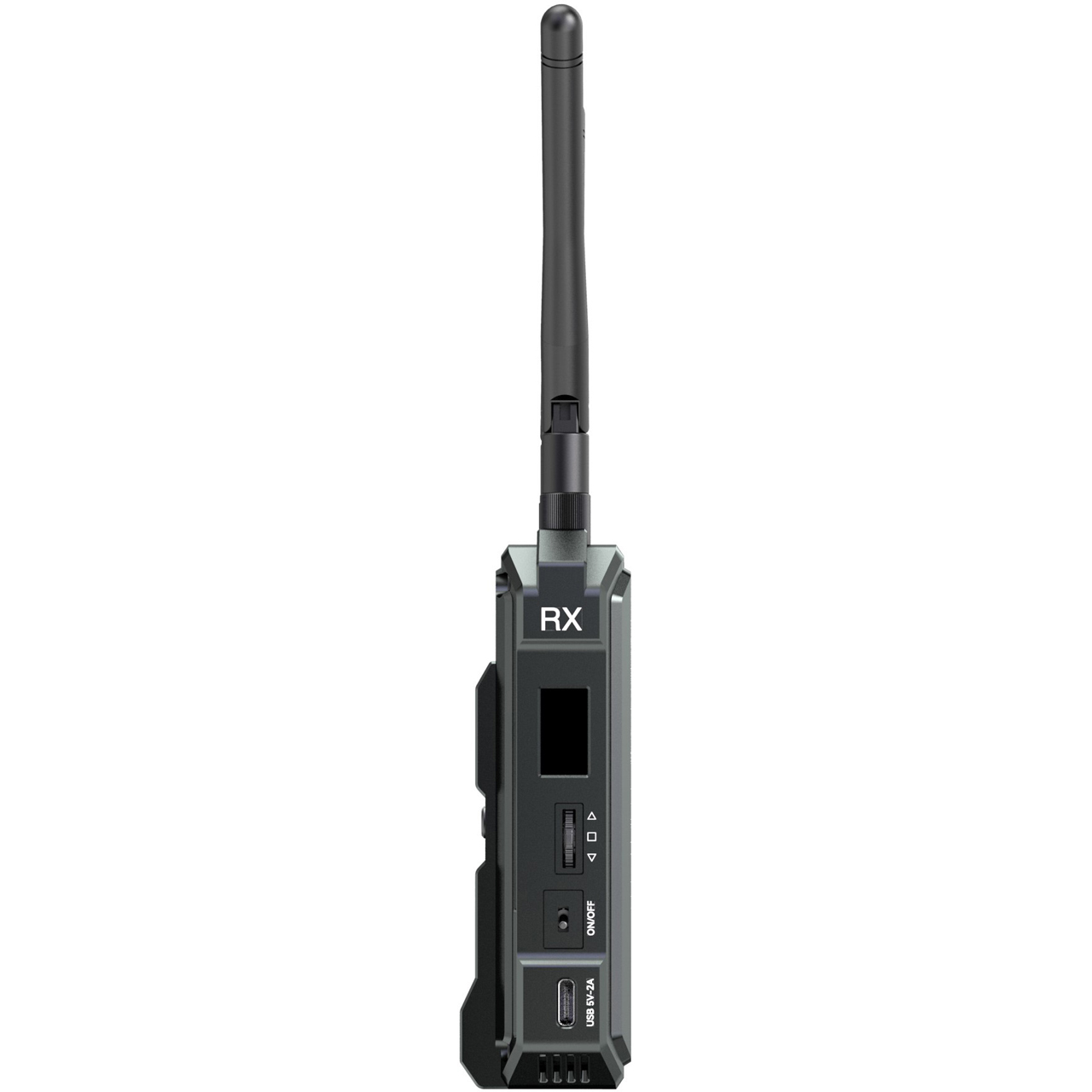

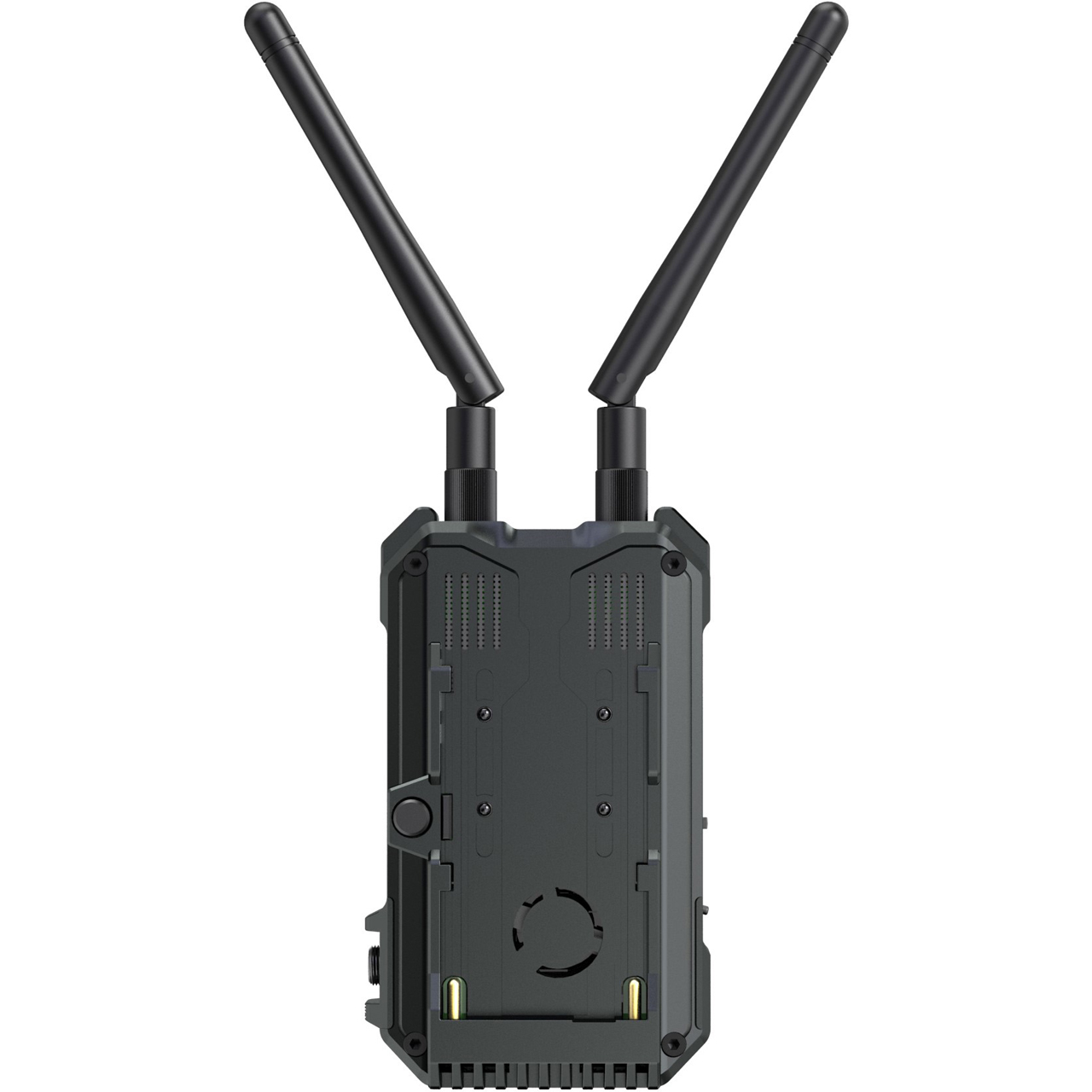

Hollyland Pyro H 4K30 Low Latency Wireless Video Receiver - 2.4 GHz & 5 GHz - HDMI/USB-C/DC/NP-F - Up to 1300 Feet

ITEM #: HL-PYRO-H-RX MFG #: PYRO H RX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$239.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PYRO H RX - Overview

    Hollyland Pryo H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland's pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.

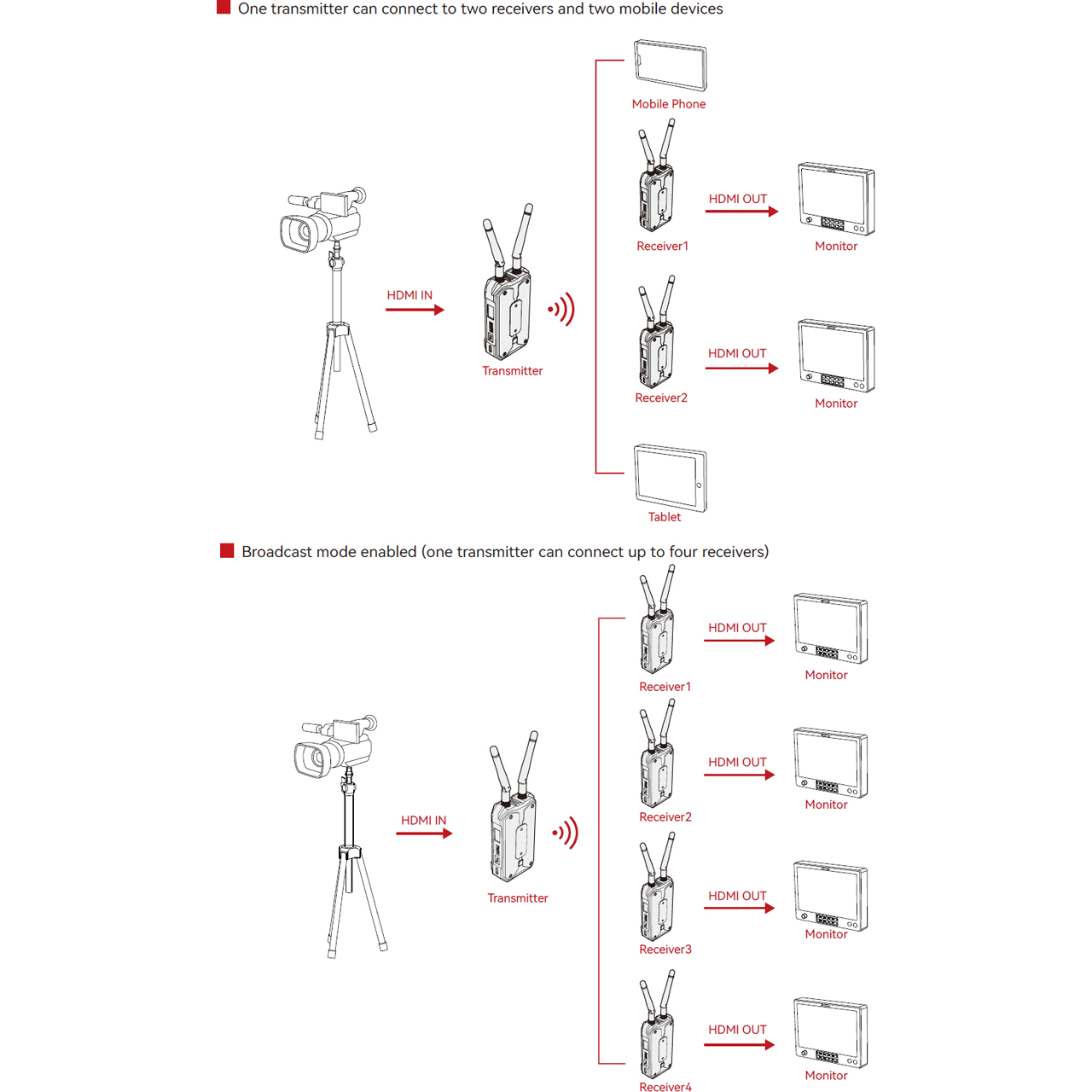

    Pyro H's Wifi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

    4K. Crisp and Sharp.
    With 4k/30fps transmission capabilities, Pyro H presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.

    HDMI Loopout Support.

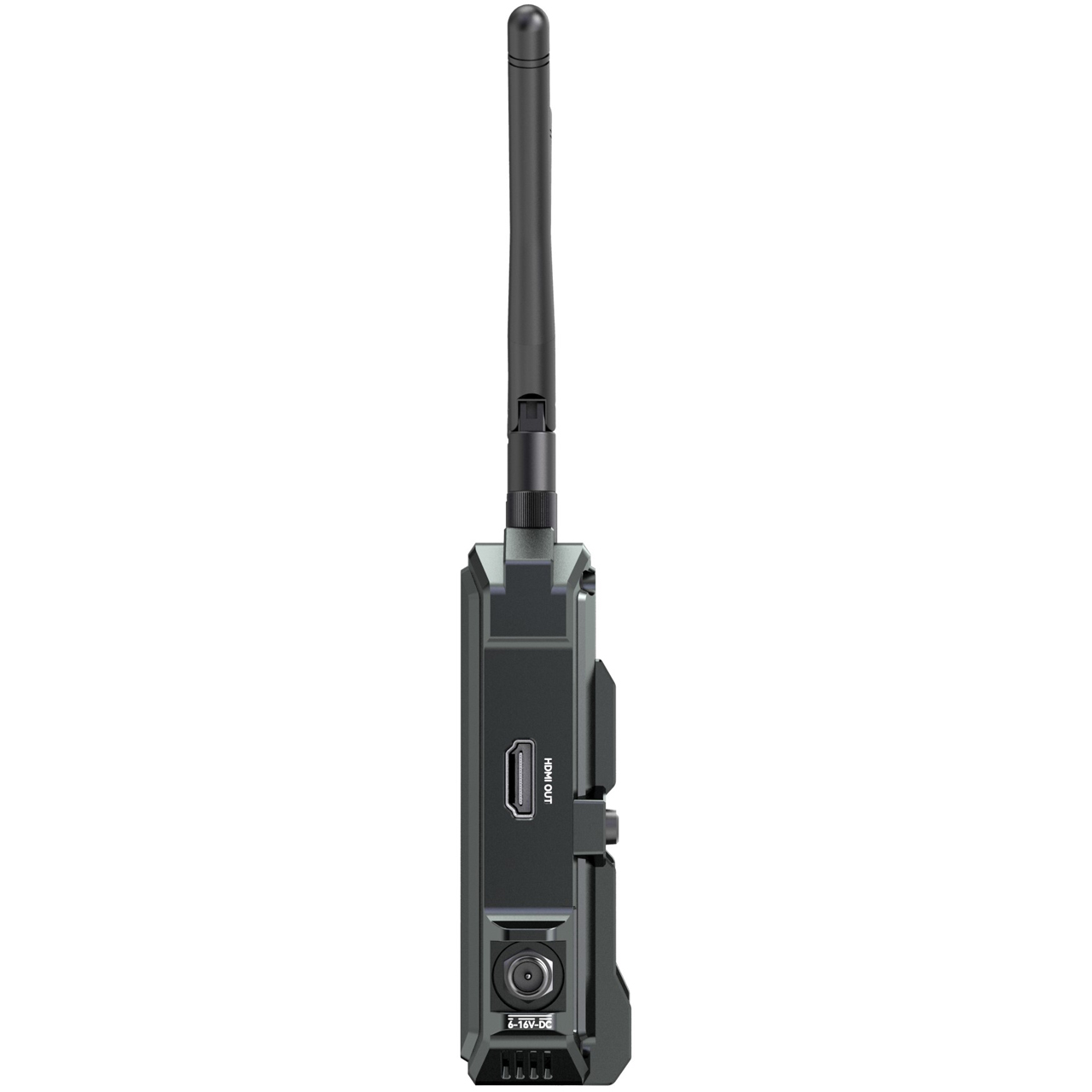

    HDMI Loopout port allows the output of signals to another display device, such as a monitor, without compromising the quality of the transmitted signal, which enables users to conveniently monitor the transmitted content, and make adjustments as necessary.

    USB Video Class.
    UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios such as live streaming and video conferencing.

    Smart Channel Scan.
    Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

    Easy Setup. Ready to Go.
    Pyro H supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time matters to content creators. What matters to you matters to Hollyland.

    Please Note!
    *In Broadcast mode, USB-C charging is not supported.
    *Charging cables and NP-F batteries are not included.

    • Features:

      • Minimum latency of 60ms in an interference-free environment (1080p60).
      • 1300ft (400m) LOS range* (Connection to the app may affect the transmission range).
      • 650ft (200m) LOS range* (Broadcast mode).
      • Multiple power supply options, including DC (locking), NP-F battery, and USB-C (Charging via USB-C at a minimum of 5V/2A will restart the device; this power supply option is not supported in Broadcast mode).
      • Receiver supports USB Video Class (UVC).
      • Upon startup, a quality frequency channel will be automatically chosen. Intelligent frequency scan function on receiver can display the current frequency status, allowing you to choose a desired channel. (When in Broadcast mode, the frequency scan function can only detect interference caused by equipment not in Broadcast mode. Equipment in Broadcast mode need to choose different frequency channels to avoid inteference.)

    • Specifications:

      • Port:
        DC Input: 2.0mm Core Socket
        HDMI Loopout: HDMI 1.4b
        USB-C: USB 2.0 OTG
      • Antenna: SMA Male
      • Power Supply:
        USB-C: 5V/2A (not supported in Broadcast mode)
        Battery Voltage Range: 6.8 - 8.4V
        DC Voltage Range: 6 - 16V
      • Power Consumption: < 4W
      • Net Weight: 192g
      • Dimensions: L x W x H: 4.3 x 2.45 x 1.3in
      • Input/Output Format:
      • HDMI:
        720p50/60
        1080i50/60
        1080p24/25/30
        1080p50/60
        4K30/25/24
      • Operating Frequency:
      • 5 GHz Frequency Band:
        5.150 - 5.250 GHz
        5.250 - 5.350 GHz
        5.470 - 5.725 GHz
        5.725 - 5.850 GHz
      • 2.4 GHz Frequency Band:
        2.412 - 2.484 GHz
      • Receiver Sensitivity: -85 dBm (Broadcast: -80 dBm)
      • Latency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
      • Range: 1,300ft (400m)(test data in an open, interference-free environment)
      • Bandwidth: 20 MHz (Broadcast: 40 MHz)

    • Item Includes:

      • 1x Pyro H Wireless Video Receiver
      • 2x Cylindrical Antenna (2.4GHz & 5GHz)
      • 1x USB-C OTG Adapter
      • 1x Quick Guide
      • 1x WarrantyCard
      • 1x Packing List Card
      • 1x Compliance Information

    • GTIN:

      0191460006043
