    12G-CROSS - Overview

    The MD-CROSS supports 294 VESA formats via the HDMI input!

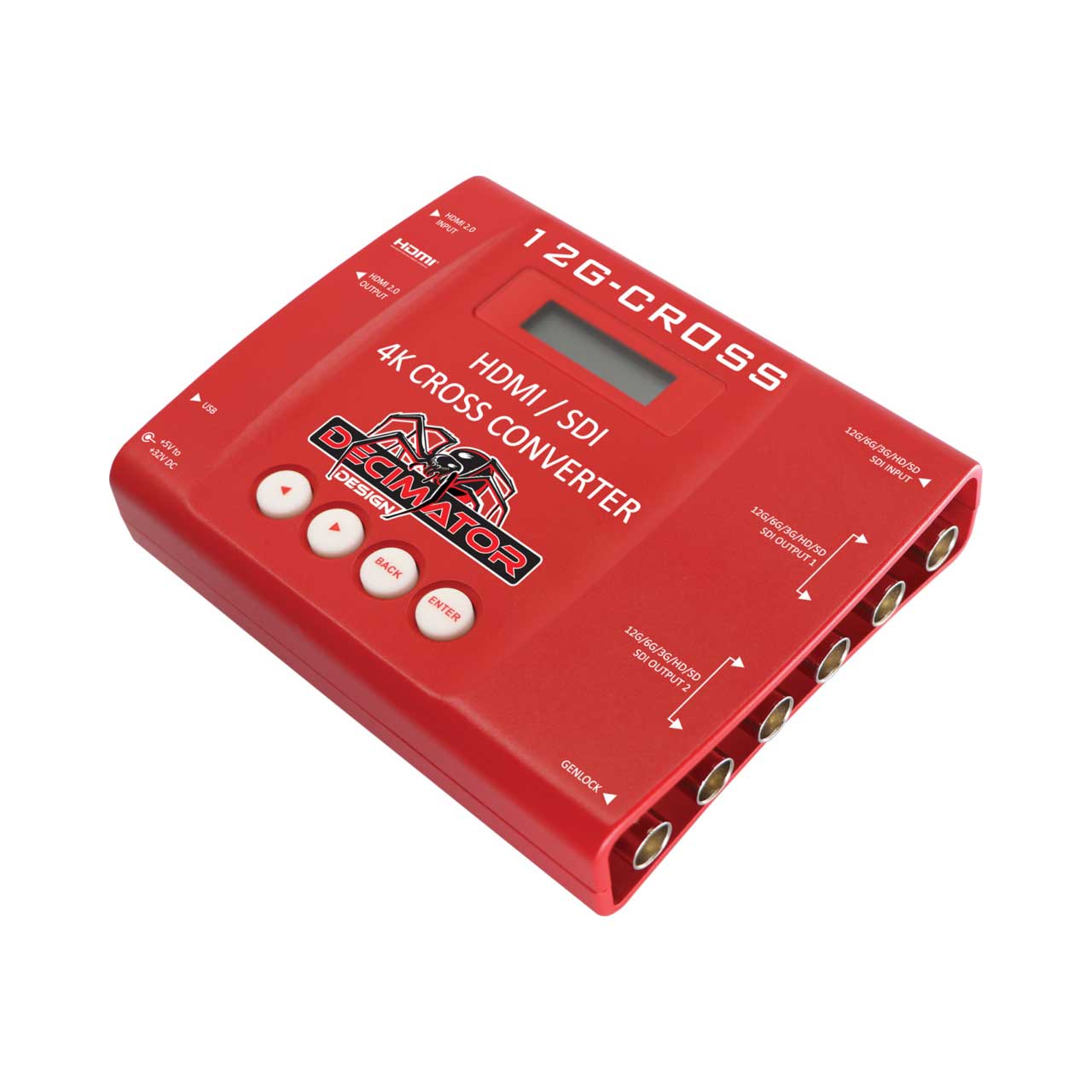

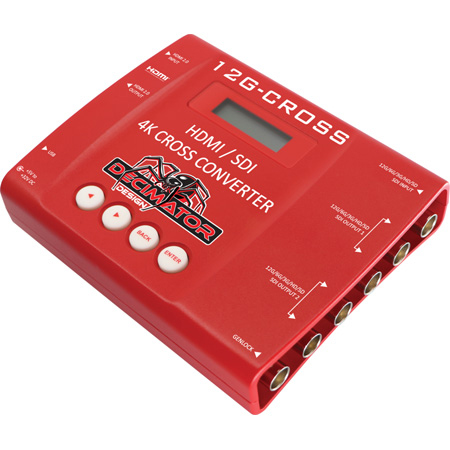

    The Decimator Design 12G-CROSS is a HDMI/SDI 4K Ultra HD Cross Converter with Scaling and Frame Rate Conversion. Designed to be used in almost any environment, the 12G-CROSS is a small, just 4.2 inches x 5.1 inches x 1.2 inches, low power, low noise, and fully portable 4K Cross Converter in a solid aluminum case.

    The 12G-CROSS allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine. The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input. The 12G-CROSS is road ready with an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

    • Features:

      • The 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats. The supported formats are:
      • 294 VESA formats in via HDMI input
      • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
      • (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
      • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
      • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
      • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
      • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
      • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
      • 1280 x 720p24/23.98 via HD-SDI
      • 720 x 480p59.94 or 720 x 576p50 via HDMI
      • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
        That is an amazing 20,007 possible format conversions!
    • Specifications:

      • Inputs:
        1x HDMI Type A
        1x 12G/6G/3G/HD/SD-SDI
        1x Genlock
      • Outputs:
        1x HDMI Type A
        2x 12G/6G/3G/HD/SD-SDI Re-clocked Loop-through
        2x 12G/6G/3G/HD/SD-SDI
      • SDI Formats:
      • 12G: SMPTE 2048-1/[email protected] and 11.868Gb/s
        (3840 or 4096) x 2160p@60/59.94/50Hz
      • 6G: SMPTE 2048-1/[email protected] and 5.934Gb/s
        (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
      • 3G-A or 3G-B: SMPTE [email protected] and 2.967Gb/s
        (1920 or 2048) x 1080p@60/59.94/50Hz
      • HD: SMPTE 292M/274M/[email protected] and 1.435Gb/s
        1920 x 1080i@60/59.94/50Hz
        (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
        1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
      • SD: SMPTE 259M@270Mb/s
        720 x 576 (PAL)
        720 x 480i59.94 (NTSC)
      • HDMI Formats:
        (4096 or 3840)x2160p @ 60/59.94/50/30/29.97/25/24/23.98Hz
        1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98Hz
        1920x1080i @ 60/59.94/50Hz
        1280x720p @ 60/59.94/50/30/29.97/25
        720x480p59.94 or 720x576p50
        720x480i59.94 (NTSC) or 720x576 (PAL)

      • Power: 5V - 32V DC
      • Dimensions: 4.2" x 5.1" x 1.2" (106mm x 130mm x 31mm)
    • Item Includes:

      • 1xUSB port for control and firmware updates
      • 1xMetal Thread Locking DC Power Socket
      • 1xPower Supply and USB Cable
