    HIVE-NODE-RELAY - Overview

    The Hall Technologies Hive-Node-Relay is a dynamic, robust addition to our innovative Hive Node Kits lineup. Expertly designed, it offers precise control over a variety of devices, including motorized screens, projector lifts, removable walls, and sensors.

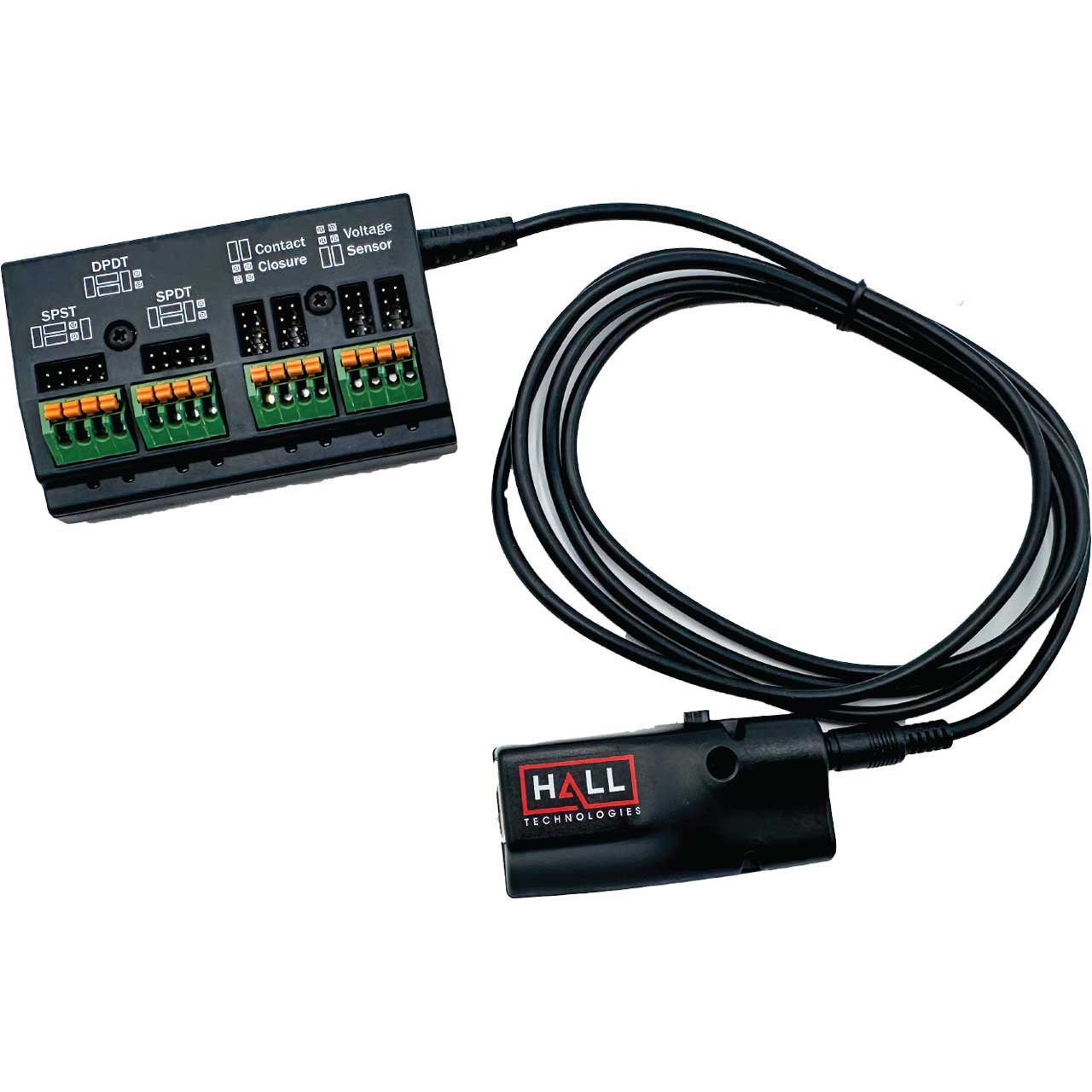

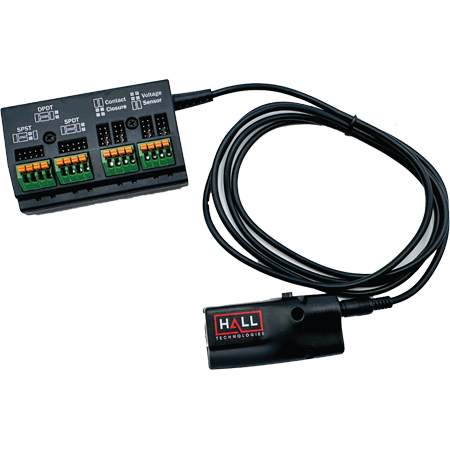

    Included in the kit is a PoE-powered Hive-Node-Mini, which effortlessly connects to the adapter through a 3.5mm cable connector. The adapter is equipped with four relay outputs and four sensor inputs, all accompanied by LED indicators for real-time status monitoring.

    The Hive-Node-Relay simplifies the installation process with its easy-to-use push and release terminals. Its four relays can function standalone or in parallel configurations, further enhancing its adaptability. Additionally, the sensors can be set in either voltage or contact closure sense modes, showcasing its versatility.

    Designed to natively integrate with the Hive Touch control panel and Hive KP8 control keypad, the Hive-Node-Relay doesn't require an additional power supply. It can also pair with the Hive-Node-RS-232 and/or Hive-Node-IR for a comprehensive solution to controlling projectors, lifts, and motorized screens.

    Its compact form factor ensures easy concealment, whether it's mounted in a rack or installed near a screen. The relay control utilizes TCP commands, and sensor states are broadcast via UDP, providing a streamlined, efficient solution for automation, data collection, and control applications.

    No matter the scale of your project, the Hive-Node-Relay stands as a versatile and scalable solution, a testament to our commitment to user-friendly, innovative design.

    • Features:

      • 4 Relay outputs and 4 sensor inputs with LED indicators
      • POE powered and easy installation with push/release terminals
      • Flexible relay combinations and adaptable sensor modes
      • Native compatibility with Hive Touch and Hive KP8
      • Enhances the Hive-Node-RS-232 and/or Hive-Node-IR as part of a complete control solution
      • Intuitive setup and configuration via web page
      • Relay control via TCP and sensor updates via UDP
      • Voltage or contact closure sense modes for sensors
      • Compact form factor - easily concealable and mounts onto any surface via a convenient mounting dock
      • Easy setup and configuration via the device Web Page
      • Relay control via TCP commands and sensor state broadcast via UDP
      • Made for a wide range of applications and scalable to suit diverse needs
    • Specifications:

      • Relay Outputs:
        - 4 Integrated SPST relays with transient voltage suppression and easy push release terminal blocks
        - 24V AC/DC or 500mA N.O. contact relays
      • Relay Configurations:
        - Single Pole Single Throw (SPSP)
        - Single Pole Double Throw (SPDT)
        - Double Pole Double Throw (DPDT)
      • Sensor Inputs:
        - 4 configurable inputs
        - Voltage or contact closure sense modes
      • Voltage Sense Mode: Sense AC/DC voltages ±3V (RMS) to ±24V (RMS)
      • Contact Closure Mode: Sense contact closure from input from devices or feedback from external relays
      • Cable/Connector:
        - 3.5mm four conductor jack to HIVE-NODE-MINI
        - 4 easy push four terminal blocks for relay and sensor connections
        - 16 hardware jumpers included
        - 4.5 ft (1.5m) cable
      • Dimensions (L x W x H): 82.3mm x 50.8mm x 22.86mm (3.24" x 2" x 0.9")
    • Item Includes:

      • 1x HIVE-NODE-MINI main controller
      • 1x Relay Sensor
    • Warranty:

      • 3 Year Warranty
