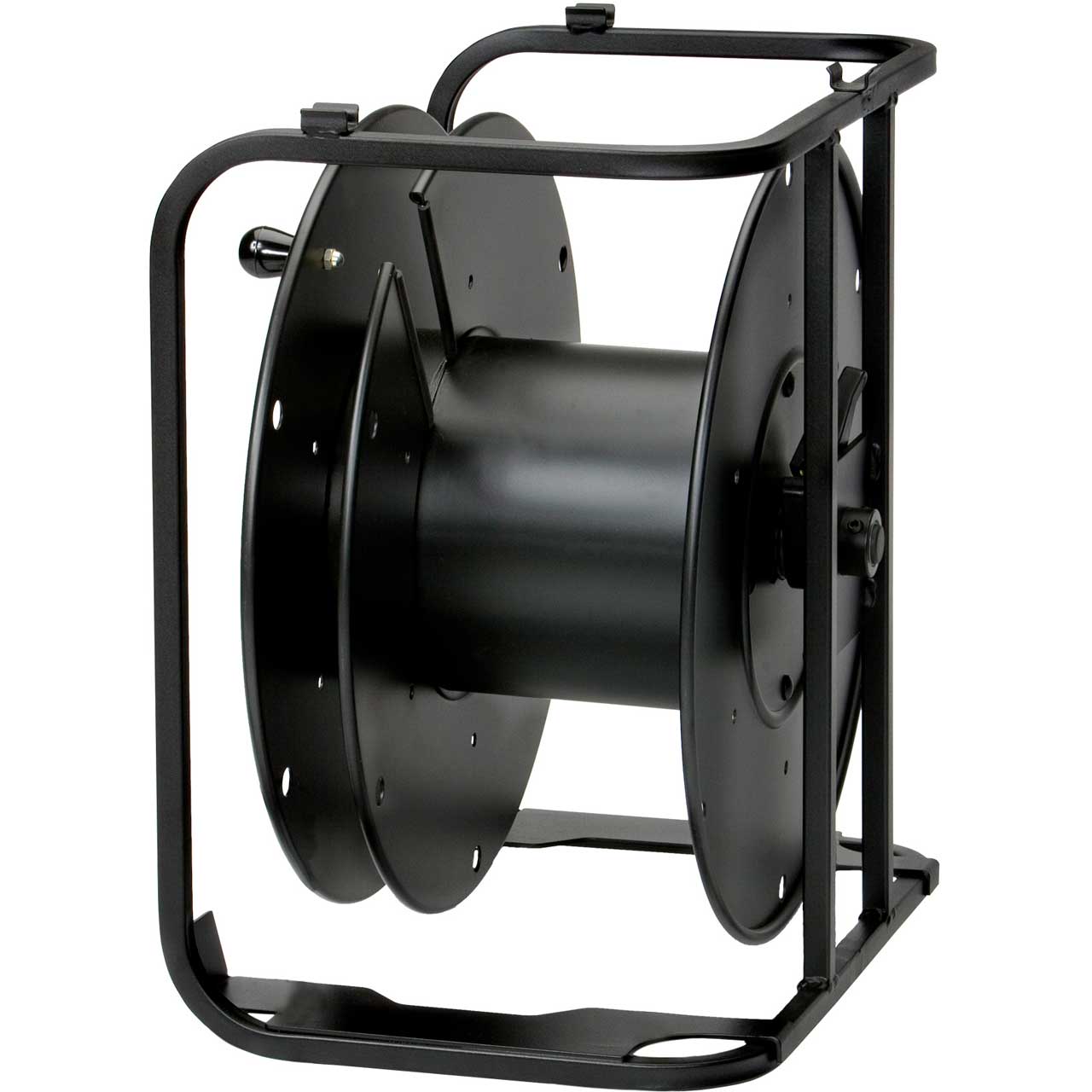

Hannay AVD-2 Cable Reel with slotted divider disc for up to 425 Feet of 0.5 inch OD Cable

ITEM #: HY-AVD-2 MFG #: AVD-2

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$635.00

Our Price:

$569.42

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AVD-2 - Overview

These Hannay Reels (AVD-2) are portable, stack-able reels are similar in construction to the AV series, but have a slotted divider disc within the reel spool. This divider disc provides a convenient way for the user to have unobstructed access to both cable connector ends.

With this feature, it is easy to pull off any length of cable and still have access to both connectors. There is no need to pull the entire length of cable off the reel before using it.

The AVD series reel includes the AVD-2 reel (shown here with optional casters) and the smaller AVD-1. The AVD-3 has all the features of the other reels, while adding a side-mounted connector panel. These portable, stackable reels are similar in construction to the AV series, but have a slotted divider disc within the reel spool. This divider disc provides a convenient way for the user to have unobstructed access to both cable connector ends. With this feature, it is easy to pull off any length of cable and still have access to both connectors. There is no need to pull the entire length of cable off the reel before using it.

  • Features:

    • Communication, broadcast, and pro-audio applications
    • Rugged steel frame and aluminum spool construction
    • Black, non-reflective matte finish
    • Slotted divider disc provides 2" wide space for storage of short cable, click here for more information
    • Unobstructed access to both cable connector ends with slotted divider disc
    • Frame clips allow stacking of reels
    • Ergonomic carrying handle
    • Adjustable cam-lock drag brake locks cable in place
    • Equipped with two durable rubber twist ties for cable ends
    • Optional heavy-duty, locking caster wheels available on AVD-2 reel (P/N 9949.0072)

  • Specifications:

    • AVD-2 Cable Capacity of Reel
    • 600' with Cable O.D. of .41"
    • 500' with Cable O.D. of .45"
    • 425' with Cable O.D. of .49"
    • 250' with Cable O.D. of .58"
    • 200' with Cable O.D. of .67"


AVD-2 - Required Accessories
