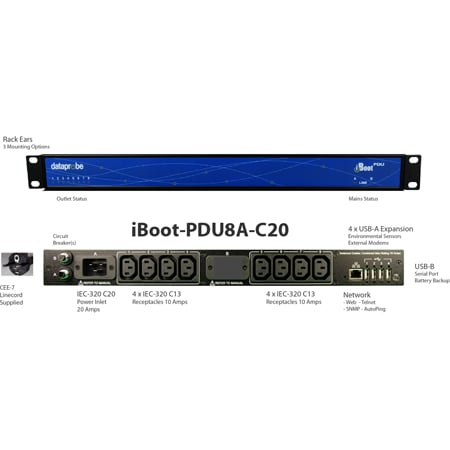

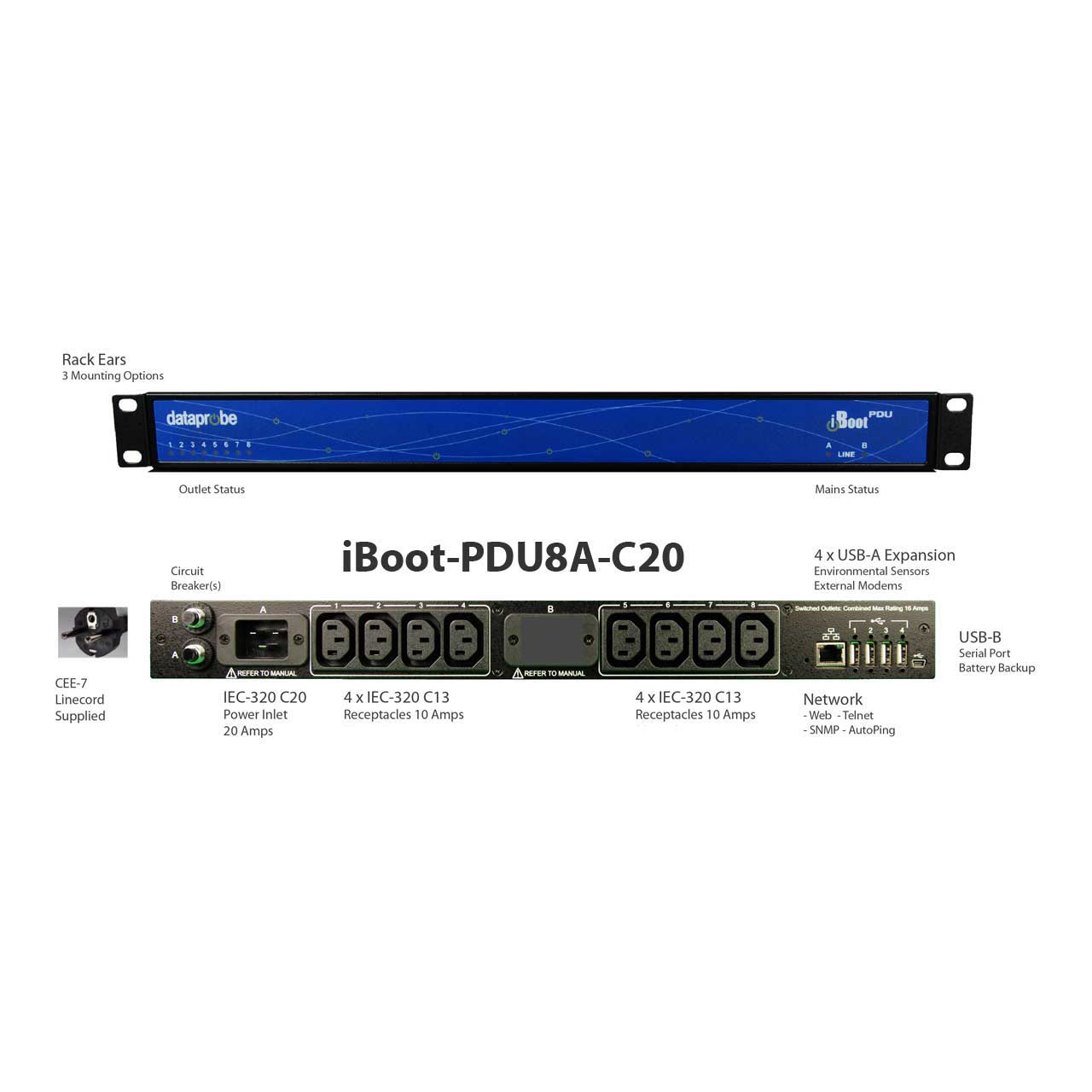

Dataprobe iBoot-PDU8A-C20 Intelligent Power Distribution 8 Outlet IEC 20A Switched PDU


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IBOOT-PDU8A-C20 - Overview

    The iBoot-PDU series is designed to provide power distribution and remote power control. Each iBoot-PDU allows four or eight outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU has many features to make the management of power distribution simple and cost effective: Simplify network wiring and reduce home runs to the router. This two port passive switch makes it easy to add remote power management to existing installations. Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to.Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously. Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security.

    Setup and Control functions can be linked to any SNMP v2c compatible manager. The iBoot-PDU MIB is downloadable from the website. Reports to syslog server.Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups. The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only)

    • Features:

      • Independently Controllable Outlets
      • Integrated 1Gig Ethernet Switch
      • Multiple Users
      • Multiple iBoot-PDU Cluster Configuration
      • Real-Time Event Control
      • Network Management
      • Web Browser Control
      • Telnet/Serial CLI Control
      • Grouping of Outlets for Simultaneous Management
      • Landline Modem Option
    • Specifications:

      • Input: 1 x IEC C20. Supplied with IEC320 C19 to CEE7 Linecord
      • Output: 8 x IEC C13. 20 Amps Total
      • Network: Single or Dual (S Models) 1G Ethernet Web, Telnet, SNMP, SMTP Port Assignable for Web and Telnet. SSL Security on Web control.
      • Temperature Module Option: USB Dual Temperature Sensors. Sensor 2 on 1m cable.
      • Switched Outlet: 4 or 8 IEC 320 C13 Receptacle, 10 Amps Max per Receptacle -C10 Models: 15 Amps Max per Linecord, -C20 Models: 20 Amps Max per Linecord.
      • Compliance - Emmissions: FCC Part 15 A, ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B, ICES-003:2016 Issue 6, Class B .
      • USB Ports: 4 x USB A ports for accessories, modem, temperature probe, etc, 1 x USB B port for serial port and external battery.
      • Landline Modem Option: 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control.
      • Compliance - Safety: Complies with UL62638-1, 2nd Edition, 2014-12-01 (US), IEC62638-1:2014 EN 62368-1:2014 + A11:2017, Complies with CAN/CSA C22.2 No. 62638-1-14, 2nd Edition, 2014-12-01 (Canada).
      • Compliance - Environmental: RoHS 3 Directive (EU) 2015/863 - Compliant, Rated Pollution Degree 2 (PD 2) for use in business/laboratory environments with only Non-Conductive pollution present.
