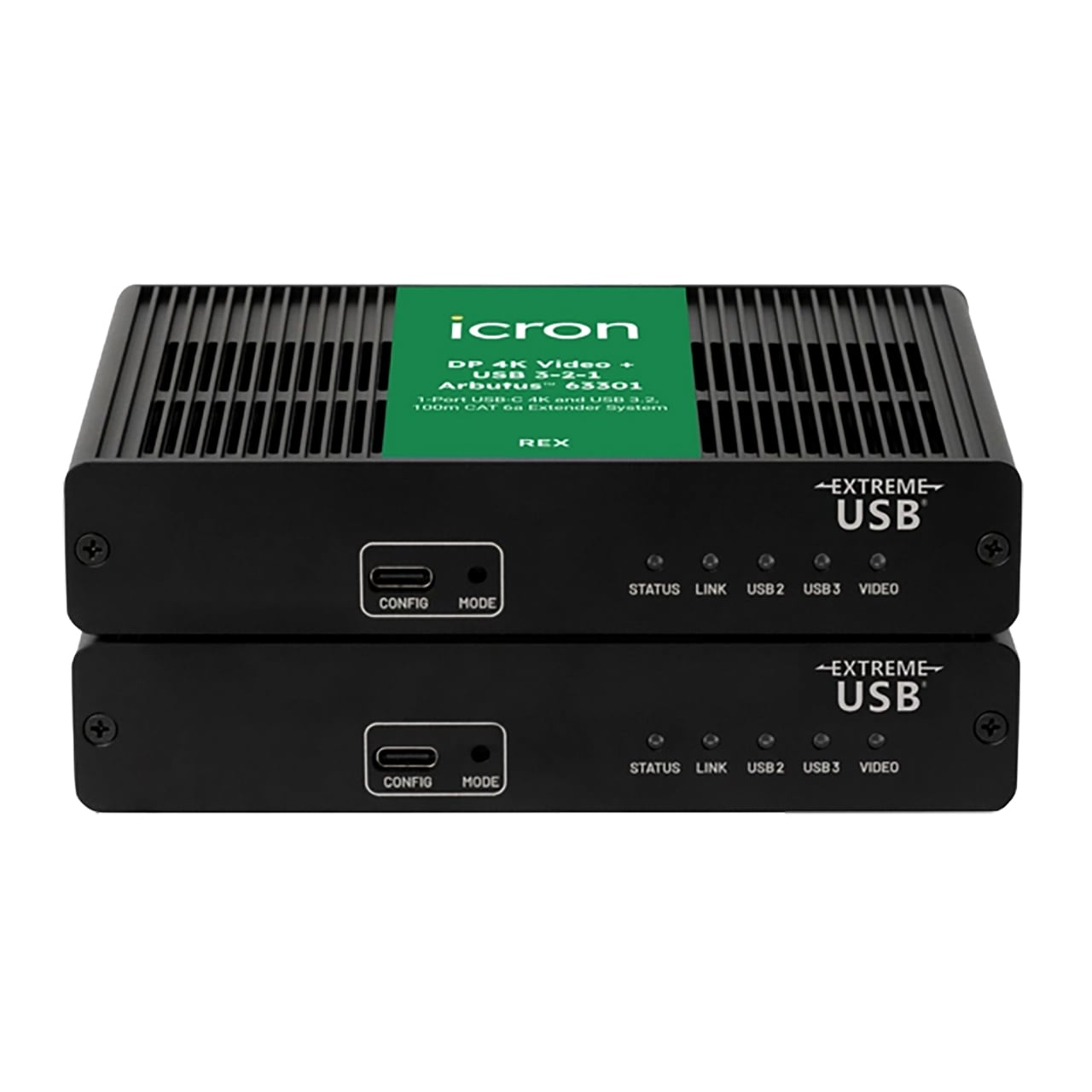

Icron Arbutus 63301 USB-C/USB 3.2 4K Video Cat 6A Point-Point Extension System with DisplayPort Alt Mode - 328ft Range

Name: Icron Arbutus 63301 USB-C/USB 3.2 4K Video Cat 6A Point-Point Extension System with DisplayPort Alt Mode - 328ft Range
Brand: Icron
SKU: ICR-ARBUTUS63301
Price: 1550.00 USD
Availability: Backorder

ITEM #: ICR-ARBUTUS63301 MFG #: ARBUTUS 63301

Icron

Our Price:

$1,550.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

ARBUTUS 63301 - Overview

A True One Cable Extension Solution!

The Icron DP 4K Video + USB 3-2-1 Arbutus 63301 is an all-in-one video and USB extension system. Utilizing a single USB-C port, the 63301 can extend 4K video (DP Alt mode) and USB 3-2-1 over a CAT6a cable.

Unique to this model is the ability to enable DP Alt mode video on a USB-C connection supporting up to 4Kp60 4:4:4 simultaneously with USB 3.2 Gen 1. All USB transaction types are supported with no hub tiers consumed, and up to 328ft (100m) point-to-point extension distance.

Applications:
• Conference Rooms
• Control Rooms
• KVM
• Medical Imaging
• Video Matrix Systems.

Features:
- DP Alt mode up to 4Kp60 4:4:4 at 2 lanes HBR3
- HDCP 2.2 support
- Extends all USB 3.2 Gen 1, 2.0 and 1.1 devices simultaneously with 4K video up to 330ft (100m) over CAT6a or better cabling
- The REX(Remote Extender) can power a single USB-C device up to 15W
- Supports all USB transaction types (Control, Bulk, Interrupt, ISO)
- No USB hub tiers consumed (hubless)
- TAA Compliant
- ExtremeUSB® Suite of Features:
  - Transparent USB and Video Extension
  - True plug and play, no software drivers required
  - Works with all major operating systems: Windows®, macOS™, Linux® and ChromeOS™
Specifications:
- USB Connector: 1x USB-C Receptacle
- Link Connector: 1x RJ45 Ethernet Link
- Power Input: 5V DC 3A Barrel Jack
- Dimensions (LxWxH): 3.9" x 5.4" x 1" (100mm x 137mm x 26mm)
- Weight: 3.1lbs (1.4kg)
- Enclosure Material: Black Anodized Aluminum
- Point-to-Point: 330ft (100m) over CAT6a UTP Cable or better

  Video Support
- Maximum Resolution: 4196x2160
- Color: RGB 8/10, YCbCr 4:4:4, 4:2:2
- Lane Count/Rate: 4, 2 or 1 Lane operation up to HBR3 8.1Gbps
- Control: DisplayPort MCCS
- EDID: EDID override supported
- HDCP Version: 2.2

  USB Support
- USB Standards: USB 3.2 Gen 1, 2.0 and 1.1 up to 5Gbps
- USB Transactions: All(Control, Interrupt, Bulk, Isochronous)
- Device Compatibility: All USB Device types and classes
- Host Compatibility: OHCI, UHCI, EHCI, xHCI
- Maximum Devices: Up to 31 (downstream)

  Environmental
- Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
- Storage Temperature Range: -4°F - 158°F (-20°C - 70°C)
- Relative Humidity:
  - Operating: 20% - 80%
  - Storage: 10% - 90% (non-condensing)

  Compliance
- Certifications: FCC (Class A), CE, RCM, UKCA, IEC/UL/cUL, ICES-003 Issue 7
- Country of Origin: Taiwan (TAA Compliant)
Item Includes:
- 1x Arbutus 63301 LEX
- 1x Arbutus 63301 REX
- 2x Power Cords
- 1x Compliance and Warranty Insert
Warranty:
- 3 Year Limited Warranty
