RAVEN-3301 KIT - Overview

Provides seamless USB 3-2-1 Extension up to 328ft using cost-effective CAT5e!

Following Icron's transition to an independent brand, many customers have been waiting for confirmation on availability and where to buy the Raven 3301. Icron is excited to confirm that the product is officially back, in stock, and fully supported - so projects can move forward without delay!

Below are the full specifications and features of the Icron Raven 3301 USB-C over CAT5e Extender, designed for Pro AV, unified communications, and mission-critical USB extension applications.

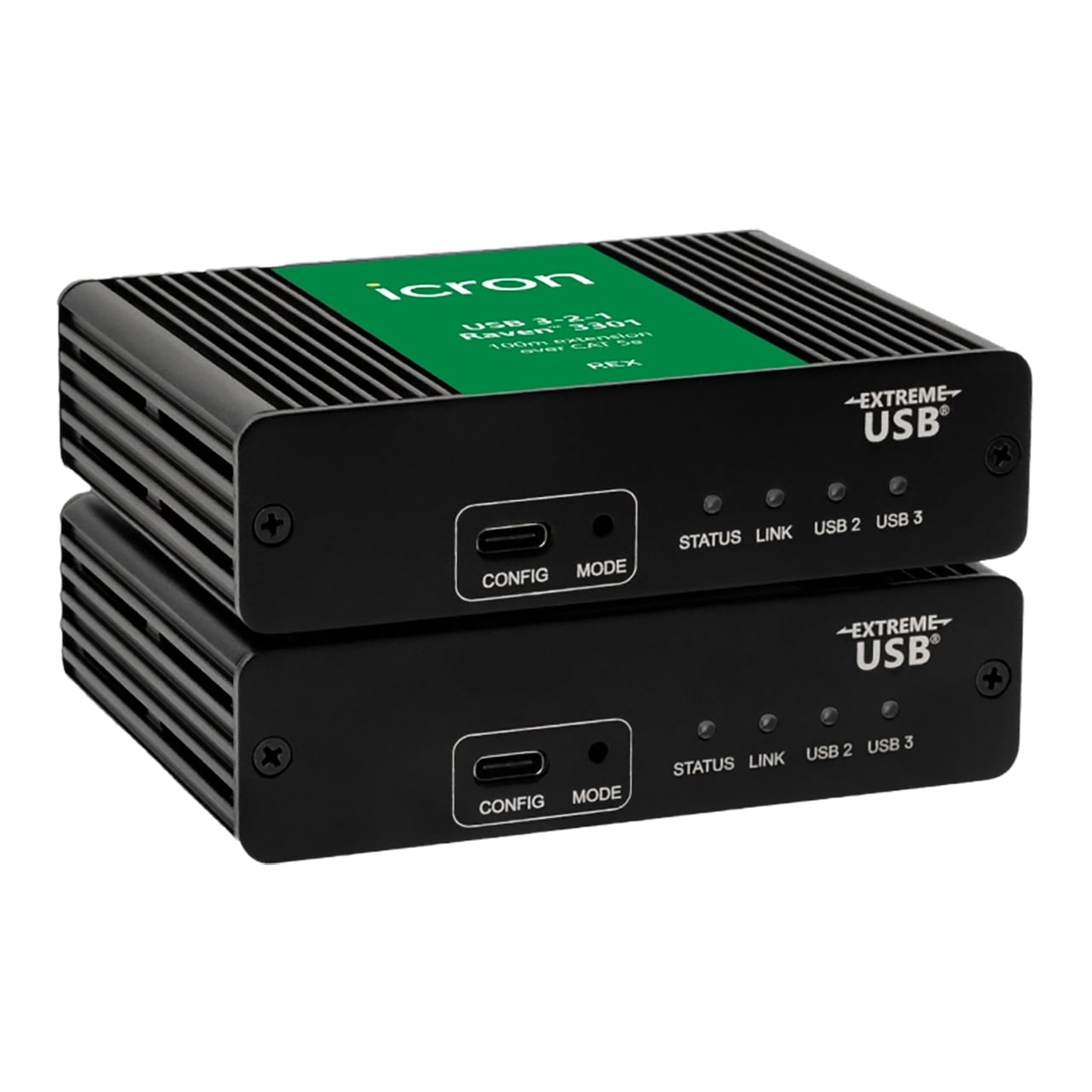

The Icron Raven 3301 is a low power and simple system for extending USB 3. Featuring a single USB-C port, support for CAT5e or better cabling, and no built-in USB hubs, it's ideal for extending remote USB 3 devices such as conference cameras, touch controllers, all-in-one devices and more.

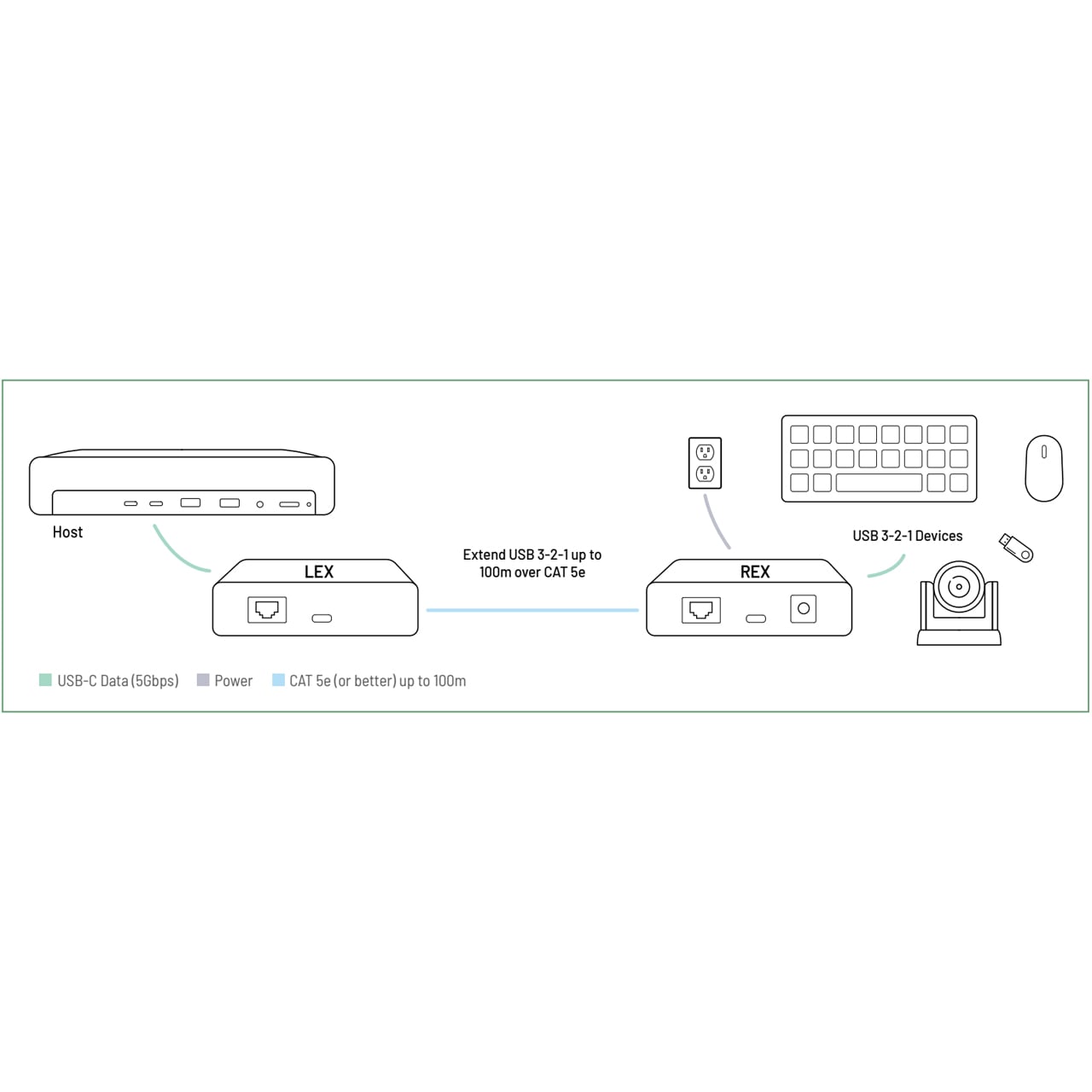

The Raven 3301 supports all USB transaction types including ISO, all previous USB specifications like USB 2, and can extend up to 328ft (100m) point-to-point with DC power applied at the remote end.

Applications:
• Conference Rooms
• Securtiy and Meetng
• Video Matrix Systems
• Remote Storage

Features:
- USB 3 Extension over Standard Cabling: Extends USB 3.2 Gen 1 devices up to 328ft (100m) using cost-effective CAT5e or better cabling.
- Broad USB Compatibility: Supports all USB 3.2, USB 2.0, and USB 1.1 devices and transaction types, including isochronous transfers.
- Single-Port USB-C Simplicity: One USB-C port at each end supports high-speed peripherals like conference cameras, touch panels, and more.
- Hubless Architecture: Direct USB extension without consuming hub tiers-ensures seamless device interoperability.
- Remote Power Support: Delivers up to 15W (5V 3A) at the remote end-ideal for powering high-demand USB devices.
- ExtremeUSB® Technology: Delivers transparent USB extension with no drivers required, just plug and play across all major operating systems.
- Platform Agnostic: Works out of the box with Windows®, macOS™, Linux®, and ChromeOS™.
- Compact and Efficient Design: 70% smaller than previous generation and ultra-low power, perfect for installations where space and energy matter.
- Pro AV Ready: A reliable choice for conference rooms, video walls, monitoring setups, and remote storage systems.
Specifications:
- USB Connector: 1x USB-C Receptacle
- Link Connector: 1x RJ45 Ethernet Link
- Power Input (Remote Extender): 5V DC 4A Barrel Jack
- USB Standards: USB 3.2 Gen 1, 2.0, and 1.1 up to 5Gbps
- USB Transactions: All (Control, Interrupt, Bulk, Isochronous)
- Device Compatibility: All USB Device types and classes
- Host Compatibility: OHCI, UHCI, EHCI, xHCI
- Available Current at REX: 3A (15W)
- Maximum Devices: Up to 31 (downstream)
- Point-to-Point Distance: 328ft (100m) CAT5e UTP Cable or Better
- Dimensions (WxDxH): 3.90" x 3.00" x 1.00" (100mm x76.0mm x 25.4mm)
- Weight: 0.46lbs (210g)
- Temperature Range:
  - Operating: 32°F - 104°F
  - Storage: -4°F - 158°F
- Relative Humidity:
  - 20% - 80% Operating
  - 10% - 90% Storage, non-condensing
Item Includes:

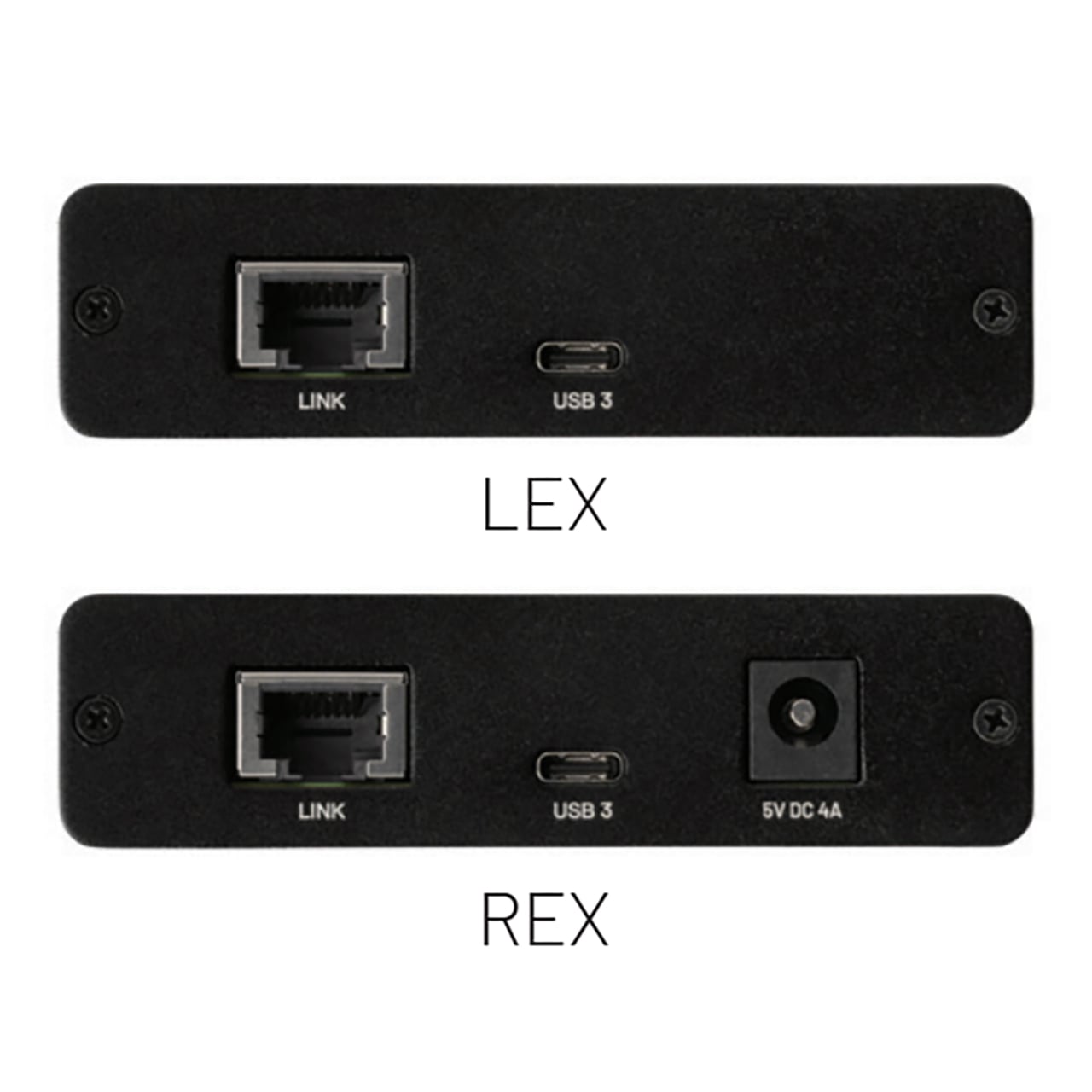

- 1x Raven 3301 LEX
- 1x Raven 3301 REX
- 1x International power adapter
- 1x Power cord
- 1x Compliance and warranty insert
