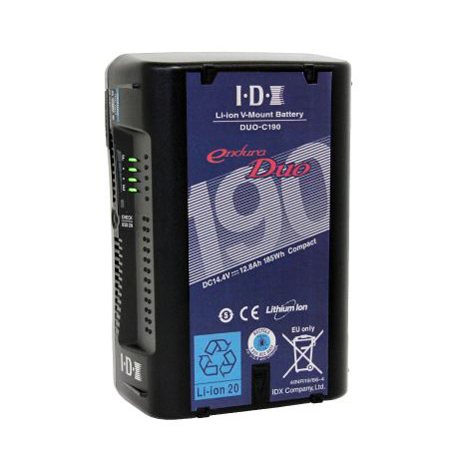

IDX DUO-C190 185 Wh Lithium Ion V-mount Battery

Manufacturer: IDX System Technology

Item #: IDX-DUO-C190   •   MFG #: DUO-C190



List Price:$500.00
Our Price:$349.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The DUO-C190 is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 185Wh capacity and compact 2.3lb design, the DUO-C190 can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C190 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones and more!

    This battery is restricted from PASSENGER aircraft travel.


    • Features

      • 185Wh capacity
      • The worlds most compact 185Wh Lithium Ion battery (2.3lbs in weight & 2.32 inches in depth)
      • Capable of handling up to 11A/120W loads

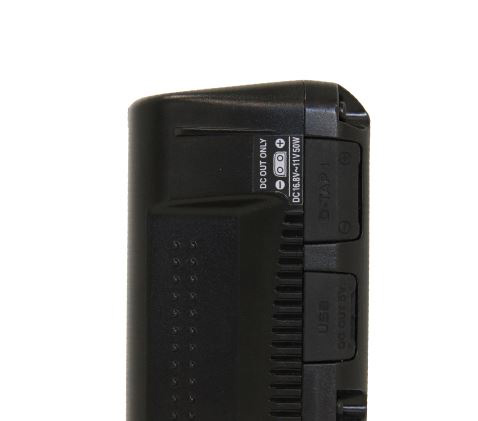

      • (1) 50W D-Tap Advanced Output (unregulated) - D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (coming soon from IDX)
      • (1) 50W D-Tap Output (unregulated)
      • (1) 5V USB output (auto shut off after 30 minutes of inactivity)

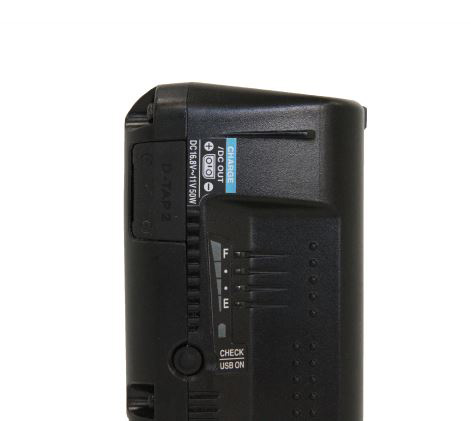

      • 4 Power Indicator LEDs
      • Battery circuit protection ensures the DUO-C190 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
      • The highest grade Lithium Ion cells are used to ensure the DUO-C190 is one of the most reliable batteries on the market
      • 12V auto cut-off prevents over-discharging (while load is applied)
      • Fully compatible with all ENDURA V-Mount Battery chargers and accessories
      • Environmentally friendly and recyclable

    • Specifications

      • Battery Capacity 14.4V, 12.8Ah, 185Wh*
      • Max. Output Voltage 16.8V DC
      • Nominal Voltage 14.8V DC
      • Maximum Discharge Current 11A / 120W (at 104°F or less)
      • 7.9A / 95W (at 104~113°F)
      • D-Tap 4.1A / 50W each
      • USB 2.3A / 11.5W
      • End Voltage 12V (Auto cut-off protection)

      • Battery Protection
      • Reverse charge
      • Over charge (reset)
      • Over discharge (reset)
      • Over current (reset)
      • Temperature protection

      • Ambient Temperature
      • To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
      • To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
      • To store: -4°F ~ 122°F (one month)

      • Dimensions 3.82(W) x 5.75(H) x 2.32(D) inches
      • Weight 2.31lbs approx.
      • *IDX measures capacity of lithium ion batteries as a minimum capacity
