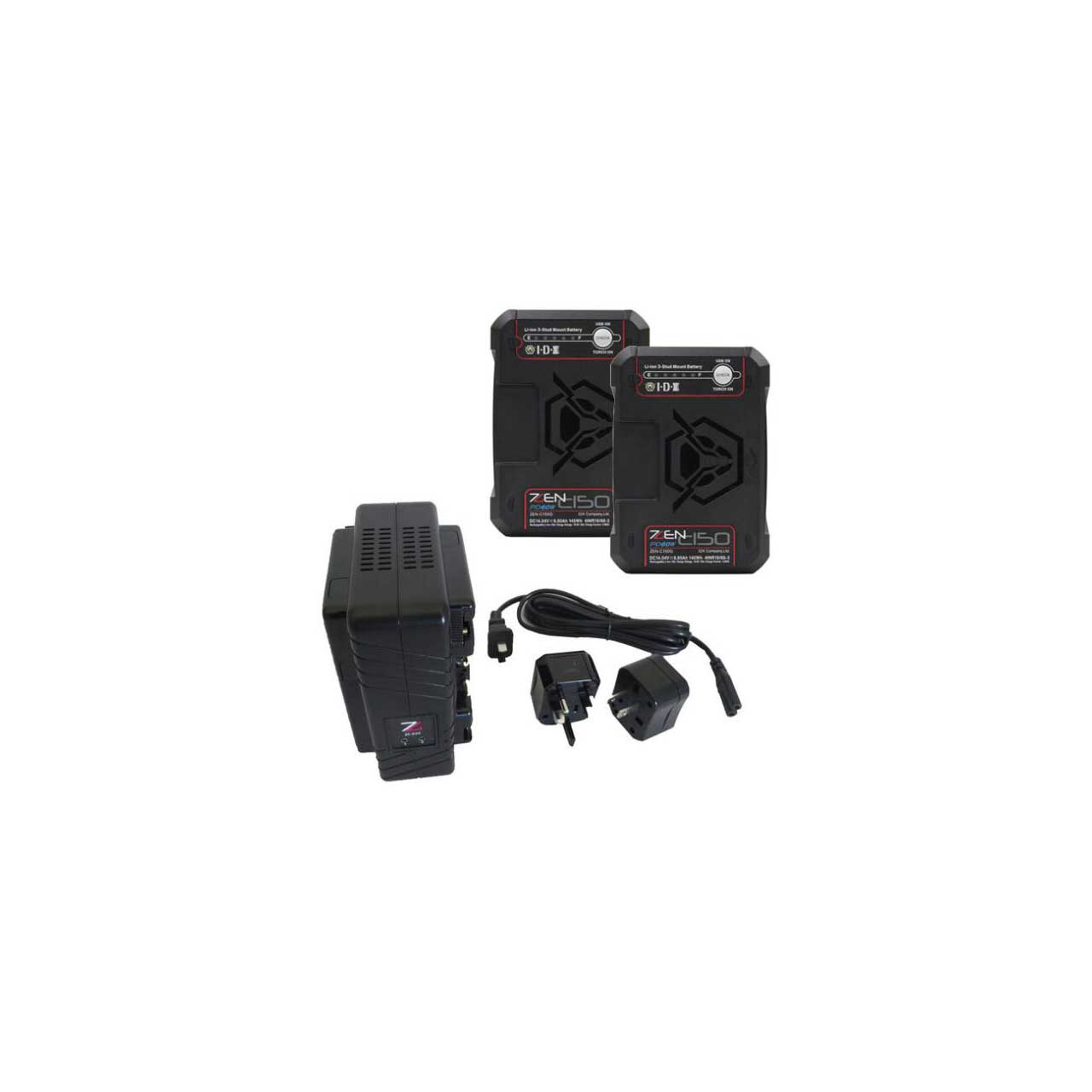

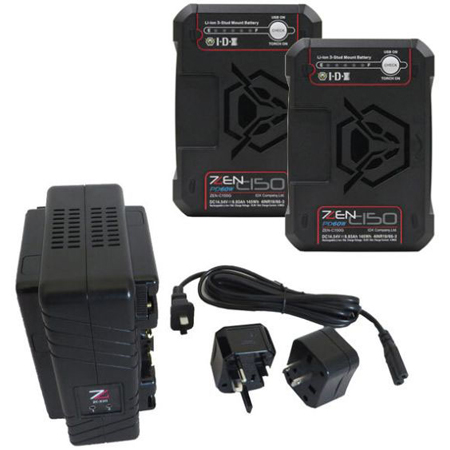

IDX ZC-2C150G Dual-Channel Li-Ion Battery Charger and 2 x ZEN-C150G Battery Kit

ITEM #: IDX-ZC-2C150G MFG #: ZC-2C150G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$848.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


ZC-2C150G - Overview

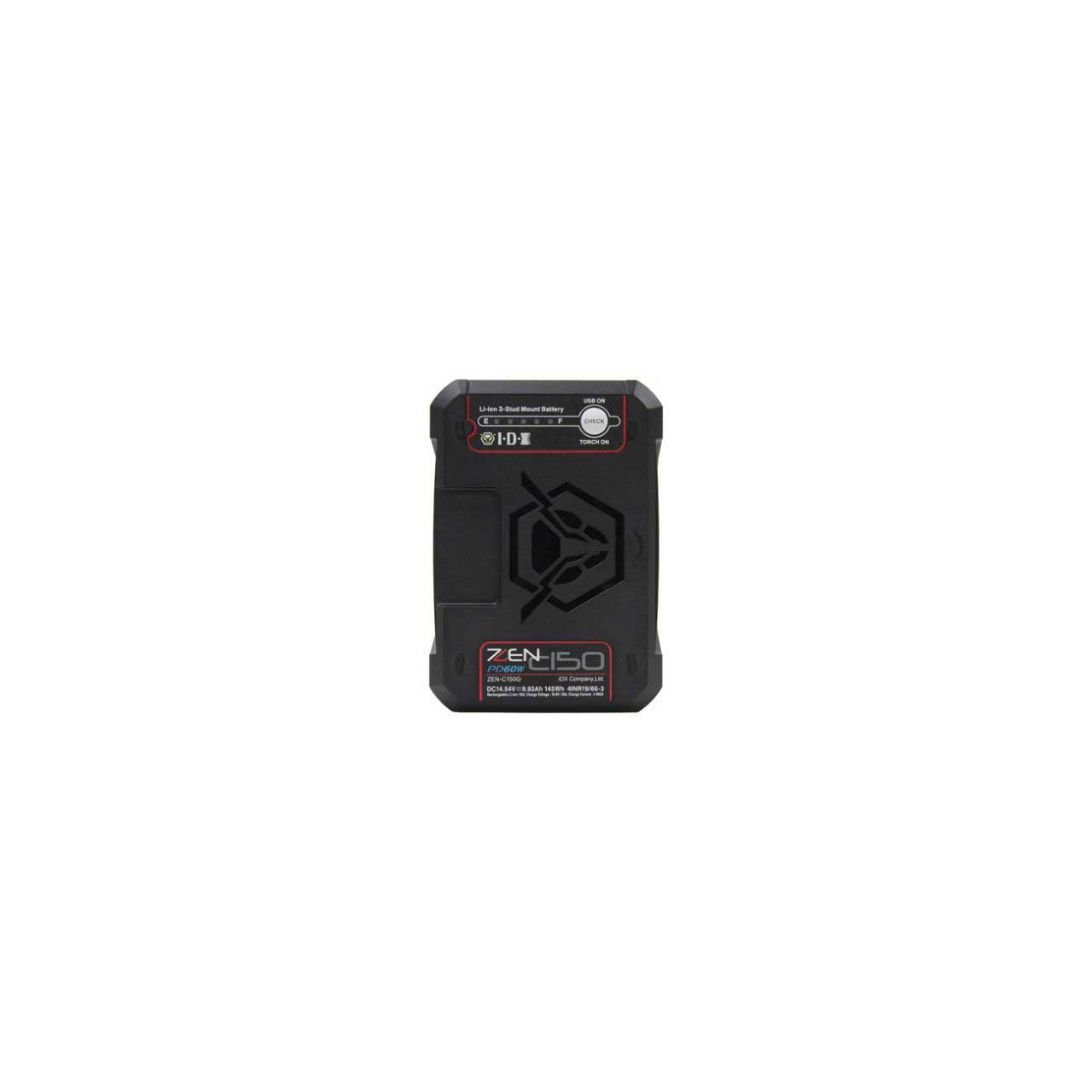

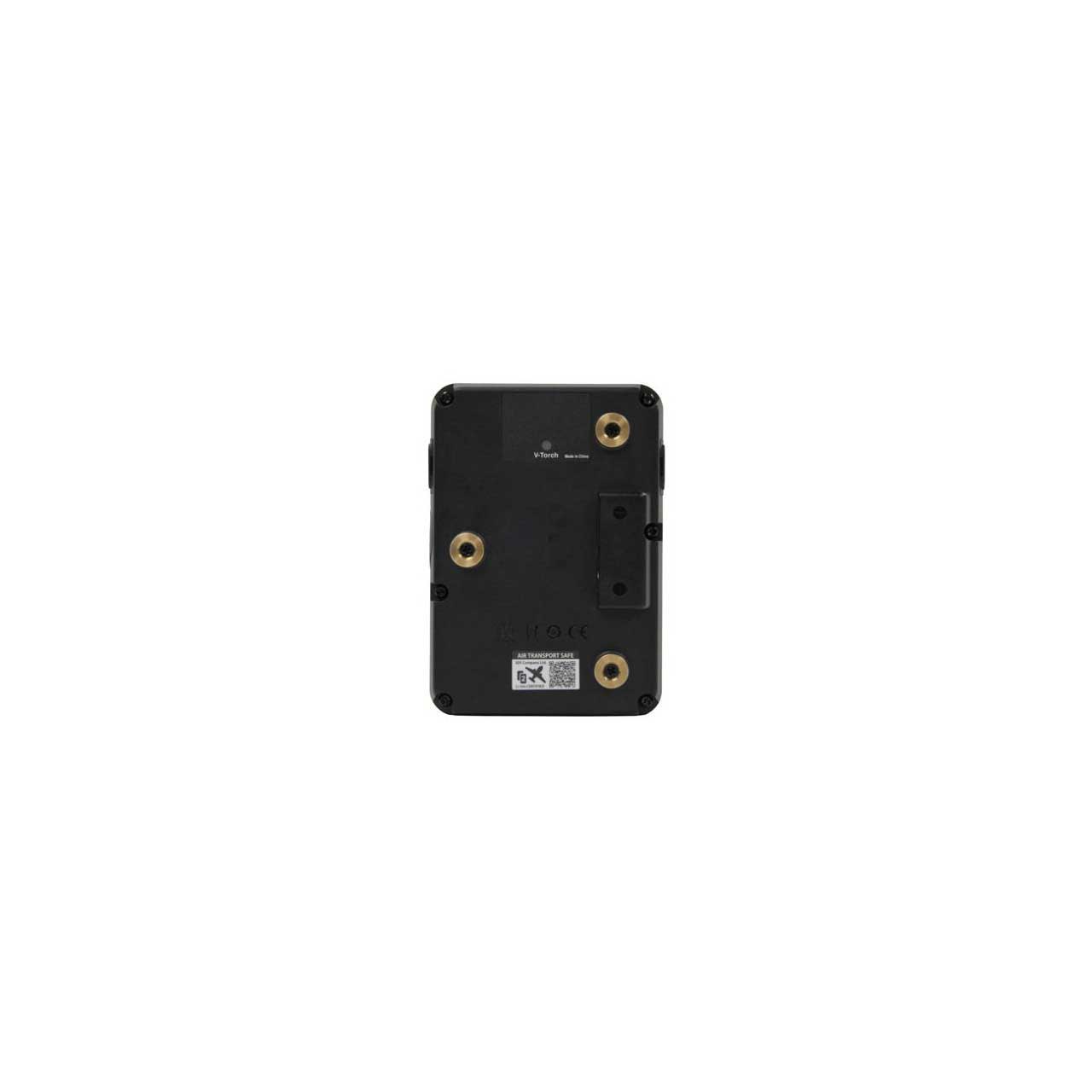

IDX ZC-2C150G is Dual-Channel Li-Ion Battery Charger and 2 x ZEN-C150G Battery Kit. The ZEN-C150G Three Stud Mount battery line, the ZENITH Series. The ZEN-C150G provides a robust 145Wh capacity with the ability to handle max. draw at 15.2A/168W loads, as well as two built-in D-Tap outputs capable of taking a 80W load for powering common on-board accessories. USB-C PD (Power Delivery) port for two way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. An antiviral and antimicrobial body for hygienic peace of mind.

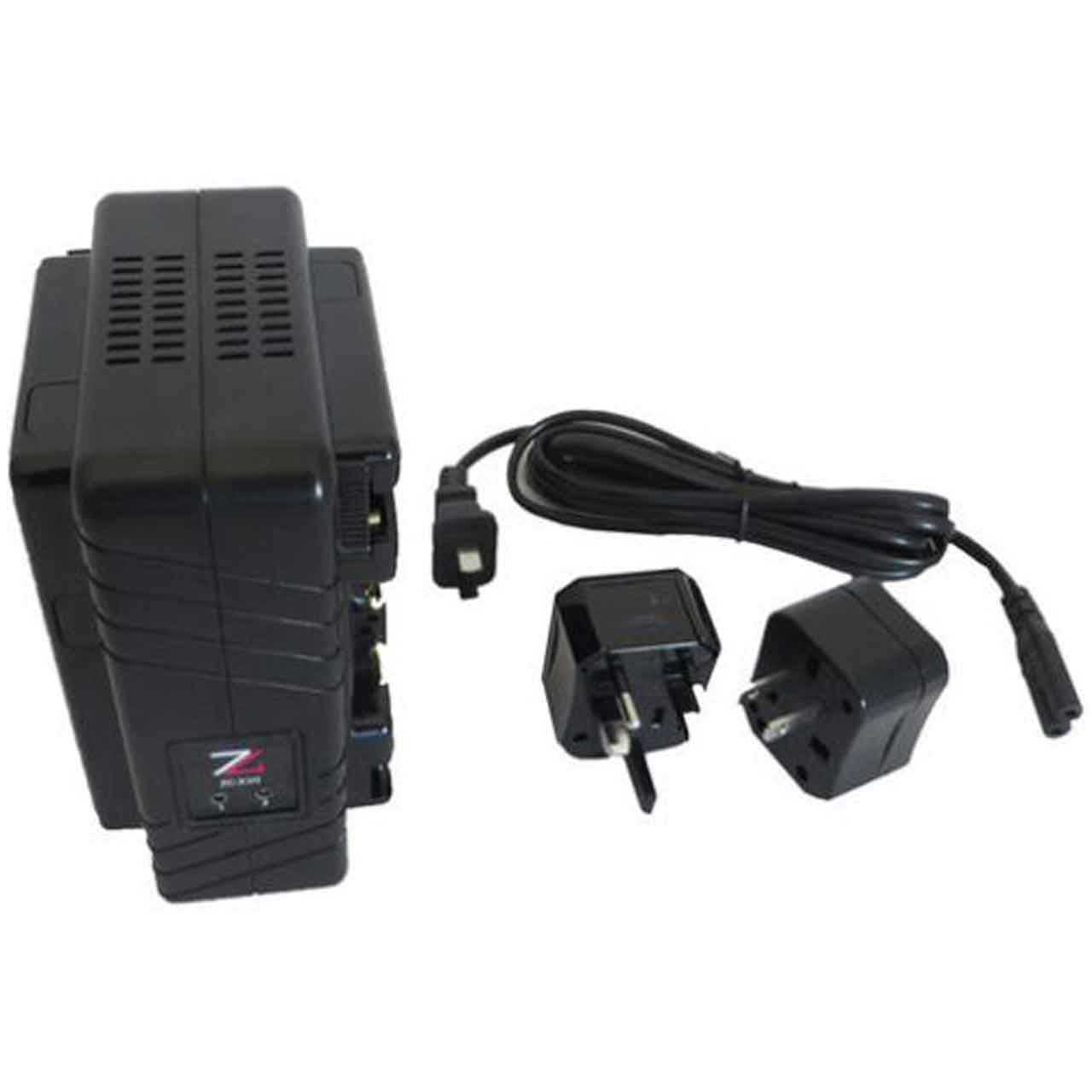

The ZC-X2G Dual channel Battery Charger is a compact and light weight that charge your 3-stud batteries. The charger is small at 3" thick and weights only 1 lb. and convenience for your travelling and shooting in the field. The charger can charge a single battery at a 3A rate or two batteries simultaneously at 1.5A. When only needing to charge one battery pack place it on the rapid charge channel for a 3A charge, so that 98wh pack can be charged in under 2.5hrs.

Please note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Specifications:

    • ZEN-C150G
    • Capacity: 145Wh (14.5V/ 9.9Ah)
    • Max Output Voltage: 16.8V DC
    • Nominal Voltage: 14.54V DC
    • Max Discharge Current: 15.2A‡
    • D-Tap: 80W each
    • USB-C PD: Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
    • End Voltage: 11V
    • Battery Protection: Over charge, Over discharge, Over current
    • Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended), To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended), To store: 32°F ~ 104°F (three months)
    • Dimensions: 3.46(W) x 4.96(H) x 3.29(D) inches
    • Weight: 2.05 lbs approx.

      ZC-X2G
    • AC Adapter Input Voltage: AC 100-240V 50/60Hz
    • Power Consumption: 140VA max
    • Charge Current: 1.5A x 2pcs / 3.0A x 1pc
    • Power Range: up to 48watt/hr.(one battery), 24watt/hr.(two batteries)
    • Operating Temperature: 32°F ~ 104°F
    • Dimensions: 4.5(W) x 5.5(H) x 3.0(D) inches
    • Weight (Charger): 1.0 lbs approx.
    • What's in the box: Charger x 1, AC cable x 1, AC plug adaptor x 2
