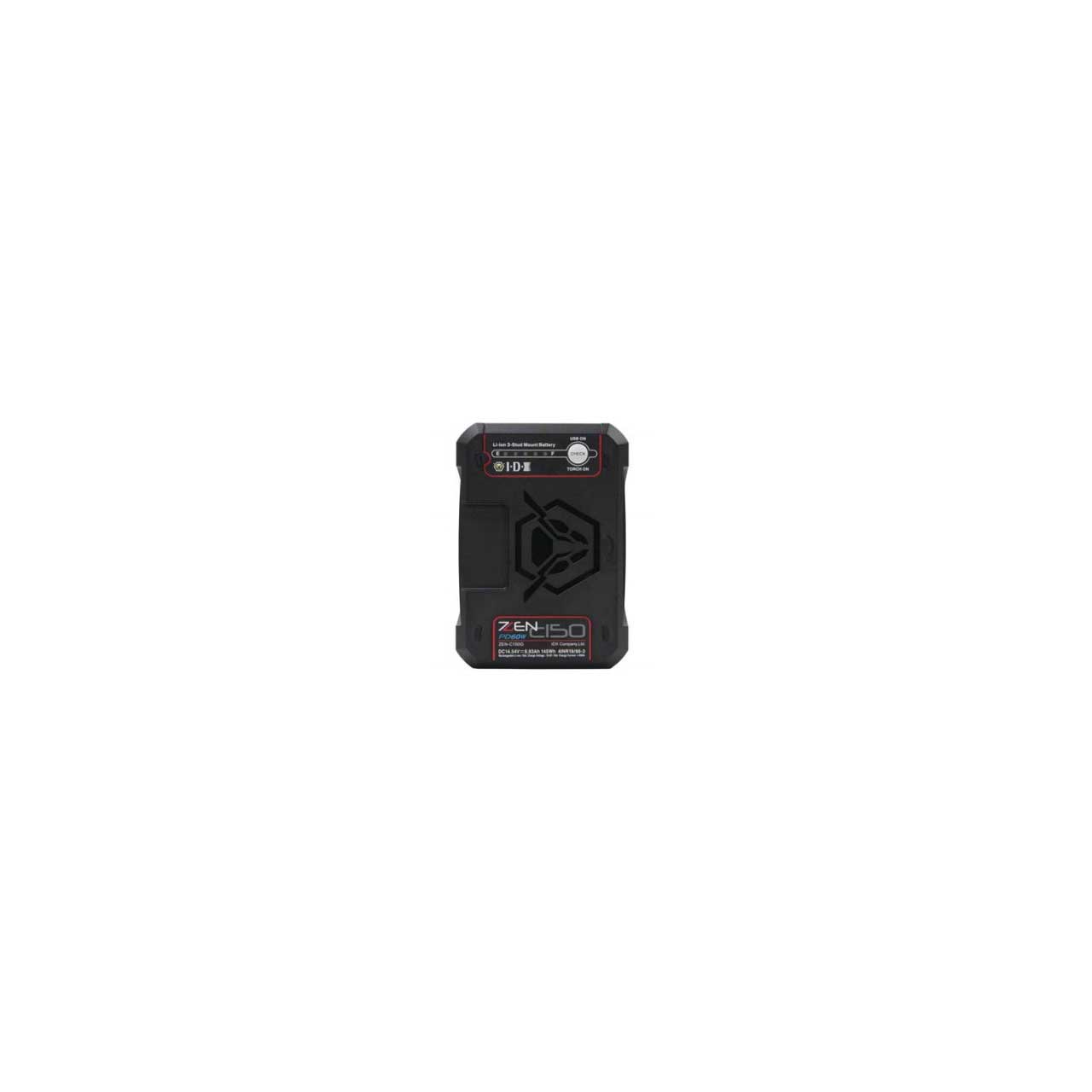

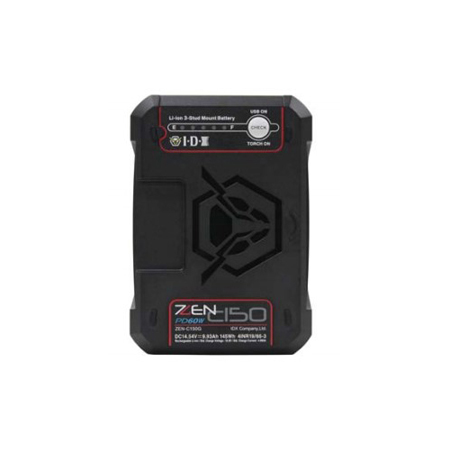

IDX ZEN-C150G Zenith Series 145Wh Three-Stud Mount Camera Battery with Dual D-Taps and 15.2 Amps Max Draw

Name: IDX ZEN-C150G Zenith Series 145Wh Three-Stud Mount Camera Battery with Dual D-Taps and 15.2 Amps Max Draw
Brand: IDX
SKU: IDX-ZEN-C150G
Price: 299.00 USD
Availability: InStock

ITEM #: IDX-ZEN-C150G MFG #: ZEN-C150G

IDX

Battery:

Battery

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$299.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

ZEN-C150G - Overview

IDX introduces the first IDX branded Three Stud Mount product line, the ZENITH Series. The ZEN-C150G addresses the market needs for a replacement three stud battery. High capacity 145Wh.

Power taps like those found in the DUO Series for powering accessories. Newly added USB-C PD port for two-way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. Realizing the world we live and work in today it features an antiviral and antimicrobial body for hygienic peace of mind.

Features:
- Three Stud Mount
- 145Wh Capacity
- 1x D-TAP / 1x D-TAP Advanced
- 60W USB-C PD to be mated with UC-PD1 compact pocket travel charger
- Cube style body for use with cinema cameras
- Antiviral and antimicrobial body for hygienic peace of mind
- Charging via D-Tap Advanced port with IDX VL-DT1 charger
- Compatible with most late model third party three stud chargers*
  *Excluding MOTIX MC-2SG
Specifications:
- Capacity: 145Wh 14.5V, 9.9Ah
- Max Draw: 15.2A (11V)/ 168W Ø
- Power Outputs: (1) D-Tap Advanced (80W), (2) D-Tap (80W),
- USB-C PD; Input/ Output: Max 60W (5V/3A,9V/3A,12V/3A,15V/3A,20V/3A)
- End Voltage: 11V
- Protection: Over-charge, Over-discharge, Over-current, Over-temperature
- Ambient Temperature: 32~104°F (Charge), -4~113°F (Discharge), -4~122°F (Storage)
- Dimensions: 3.46(w) x 4.96(H) x 3.29(D) inches
- Weight: 2.05 lbs
