Ikan PT419W-TM-TK-TRIPOD 19-inch High-Bright Widescreen Turnkey Teleprompter w/ Talent Monitor Tripod Dolly & Travel Kit

ITEM #: IKAN-419W-TMTKTP MFG #: PT419W-TM-TK-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,599.00

Our Price:

$9,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT419W-TM-TK-TRIPOD - Overview

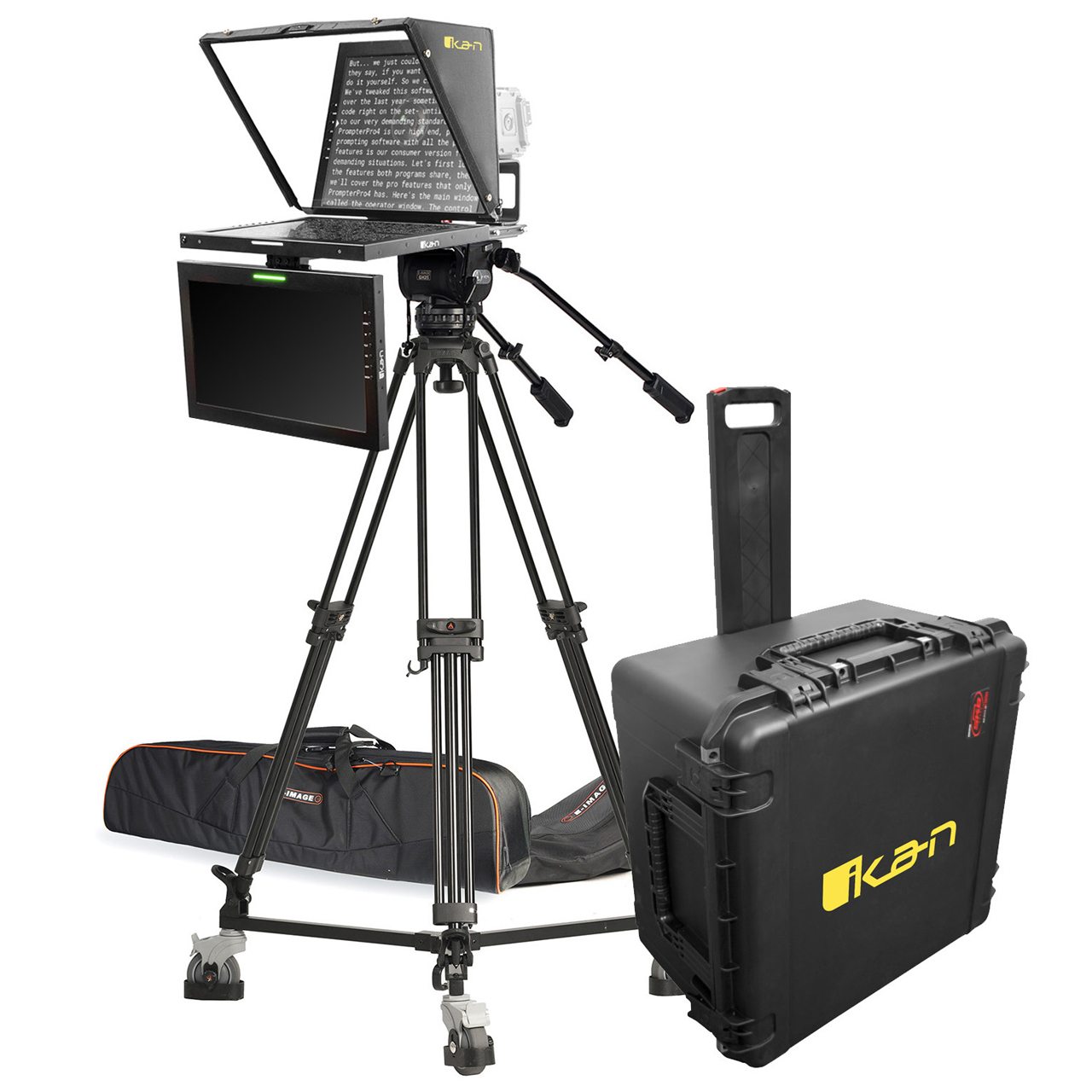

Turnkey Broadcast Solution
Ikan's PT419W Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" teleprompter, tripod, and dolly.

19" Teleprompter System
Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle.

Proprietary Glass and Coating Formula
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through.

Large Range of Camera Compatibility
Ikan's professional line teleprompters include three different camera mount bases to allow for a large range of different-sized cameras to work.

Versatile Teleprompter Monitor
The 19" widescreen monitor features SDI, HDMI, and VGA inputs. The native resolution is 1920 x 1080 and the max brightness is 1000 nits.

High Bright Screen
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions.

Widescreen Talent Monitor
The 19" Widescreen Talent Monitor is designed to conveniently attach below the teleprompter to enable on-screen talent see their presentations live. The monitor features 3G-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits.

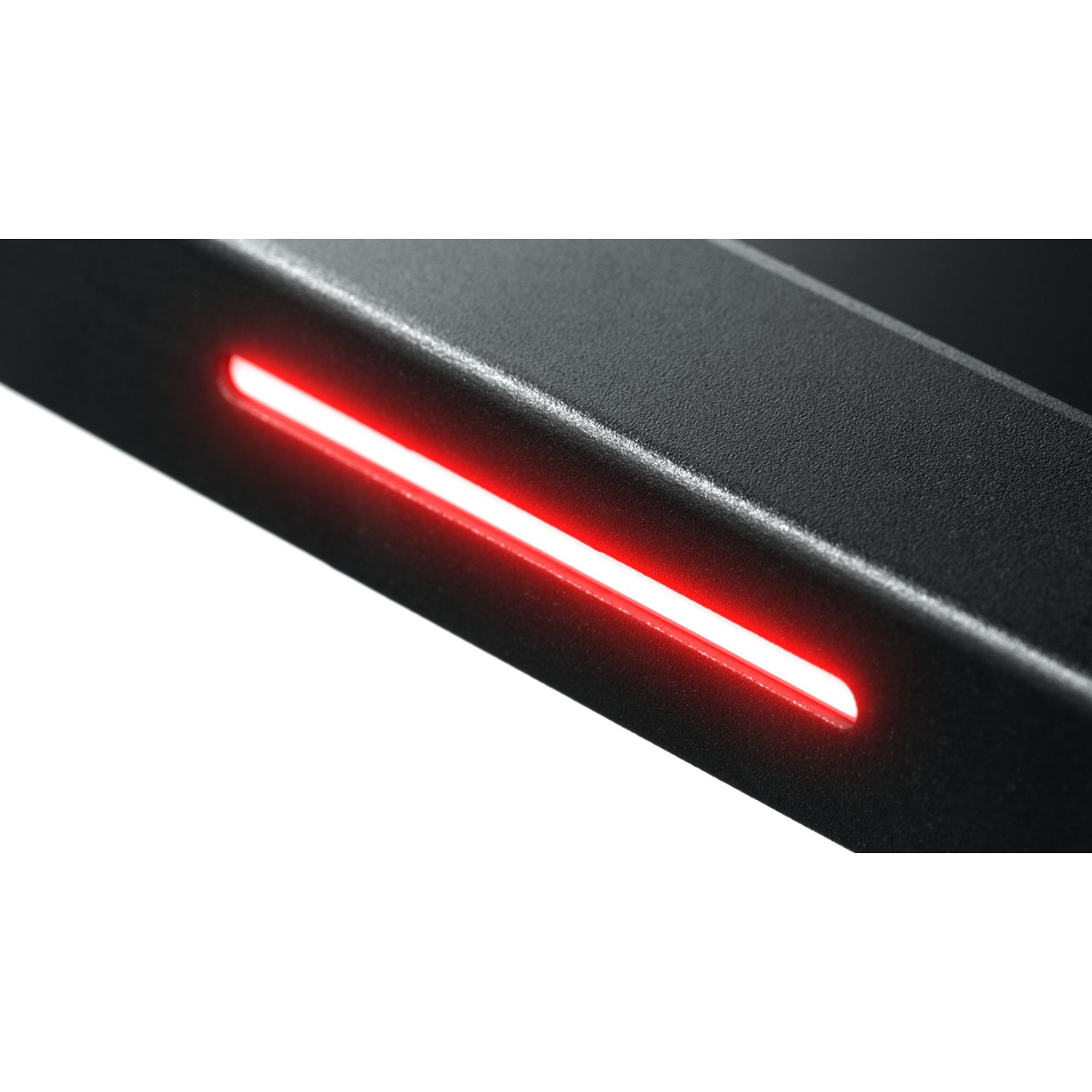

Built-in Tally Light for On Air Status
The widescreen teleprompter monitor features a tally light that illuminates red, green, and yellow.

Slide Range
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range.

Drag/Counterbalance
The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening.

  • Features:

    • Includes 19" widescreen SDI teleprompter, SDI widescreen talent monitor tripod, & dolly (w/ cable guards & wheels)
    • Aluminum chassis

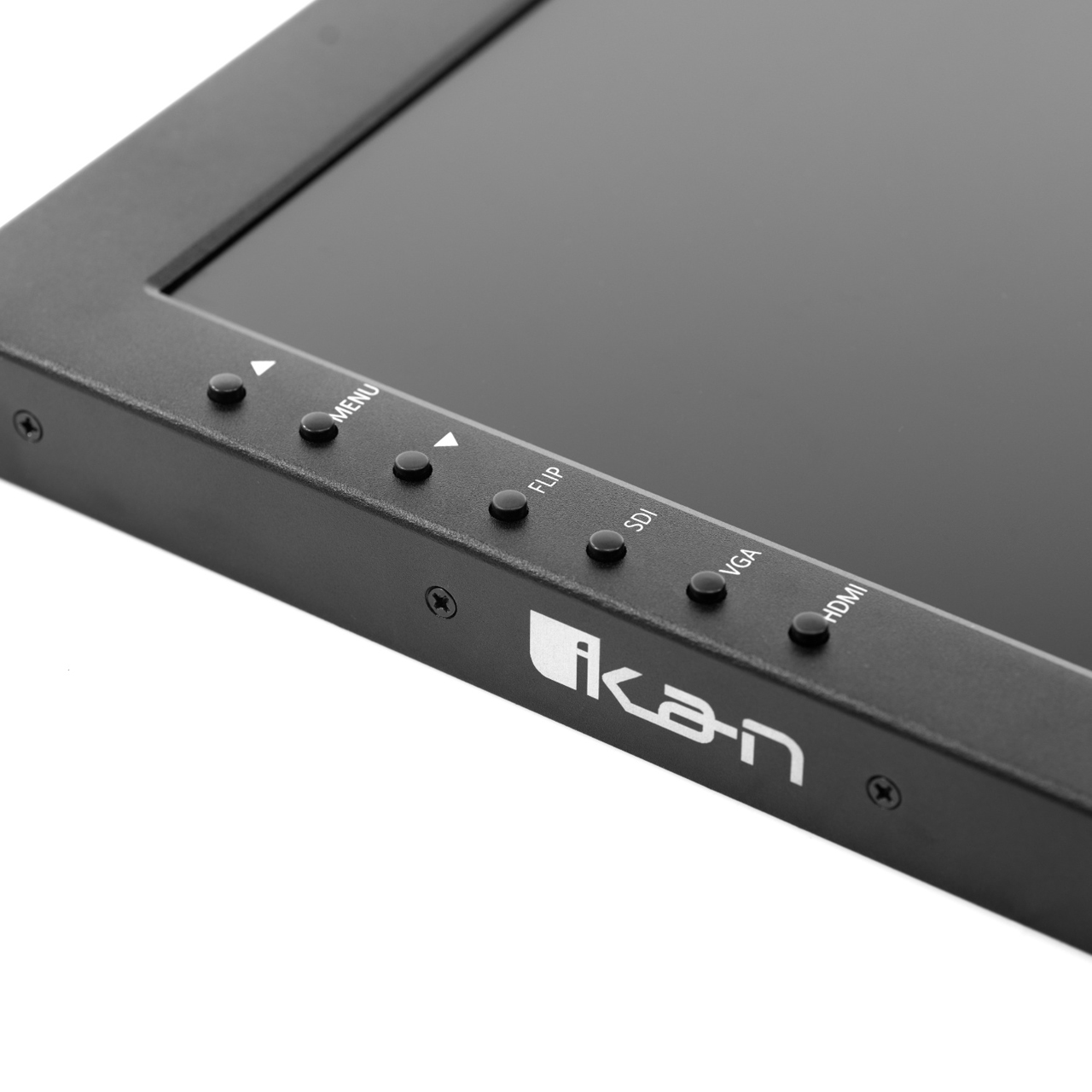

    • Image flip button on monitor
    • Fluid head comes with pan/tilt locks and 100mm bowl
    • Dual panhandles

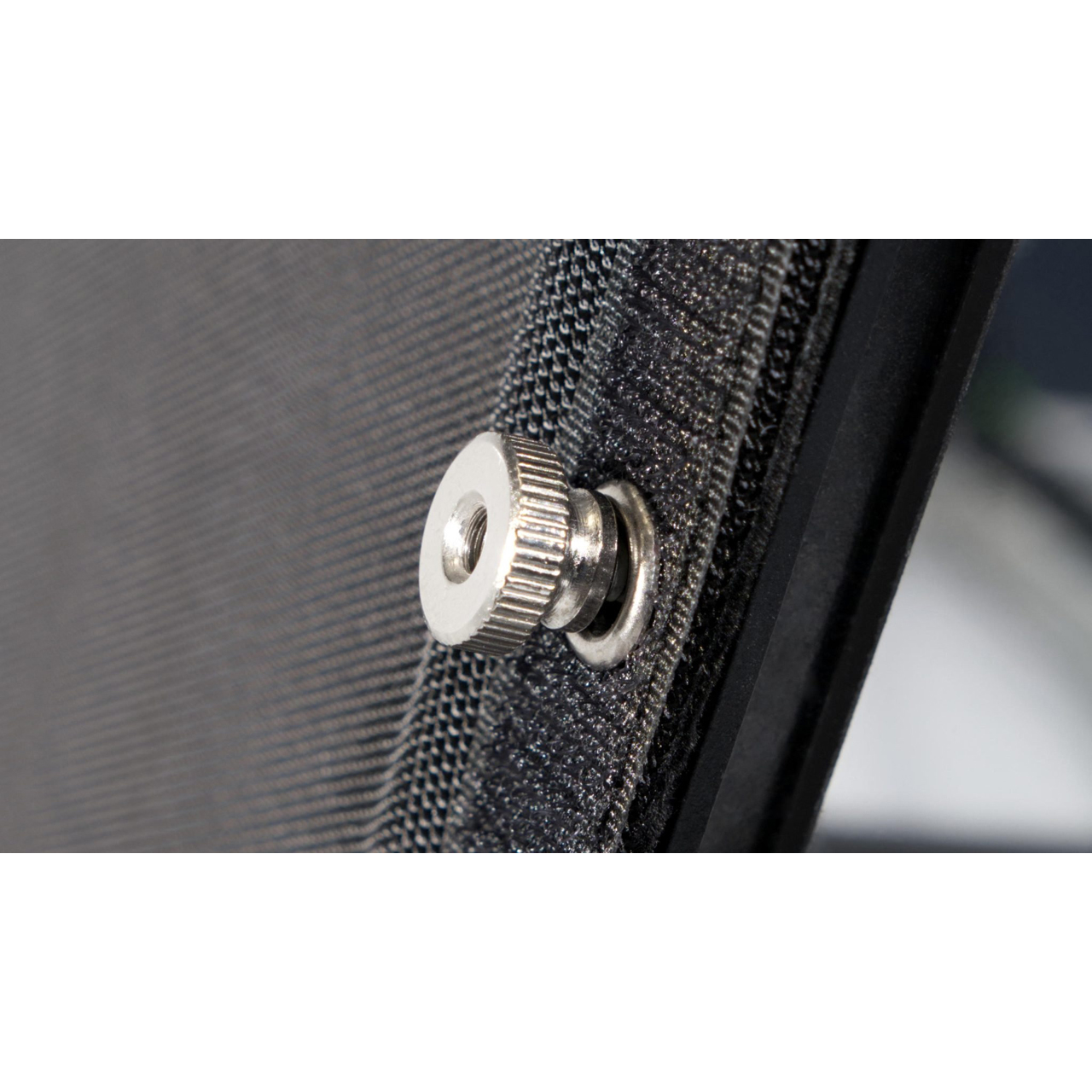

    • Hood secured with bolts and magnets
    • Accommodates camera payloads up to 20.3 lbs
    • For use in studios, live events, & virtual productions
    • Video Inputs: HDMI, VGA, 3G-SDI
    • 2 carrying bags for tripod & dolly
    • Hard case for teleprompter
    • Ships in reusable foam

  • Specifications:

    • Available Camera & Accessory Payload Capacity: 20.3lbs

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25' (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11 x 1/4" -20 Female
      - 9 x 3/8" -16 Female
    • Weight of Teleprompter Base: 24.5lbs
    • Weight of Low Plate: 5.1lbs
    • Weight of High Plate: 30.13lbs
    • Weight of DSLR Plate: 29.5lbs
    • Height: 16.1" (411mm)

      19" Widescreen Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm

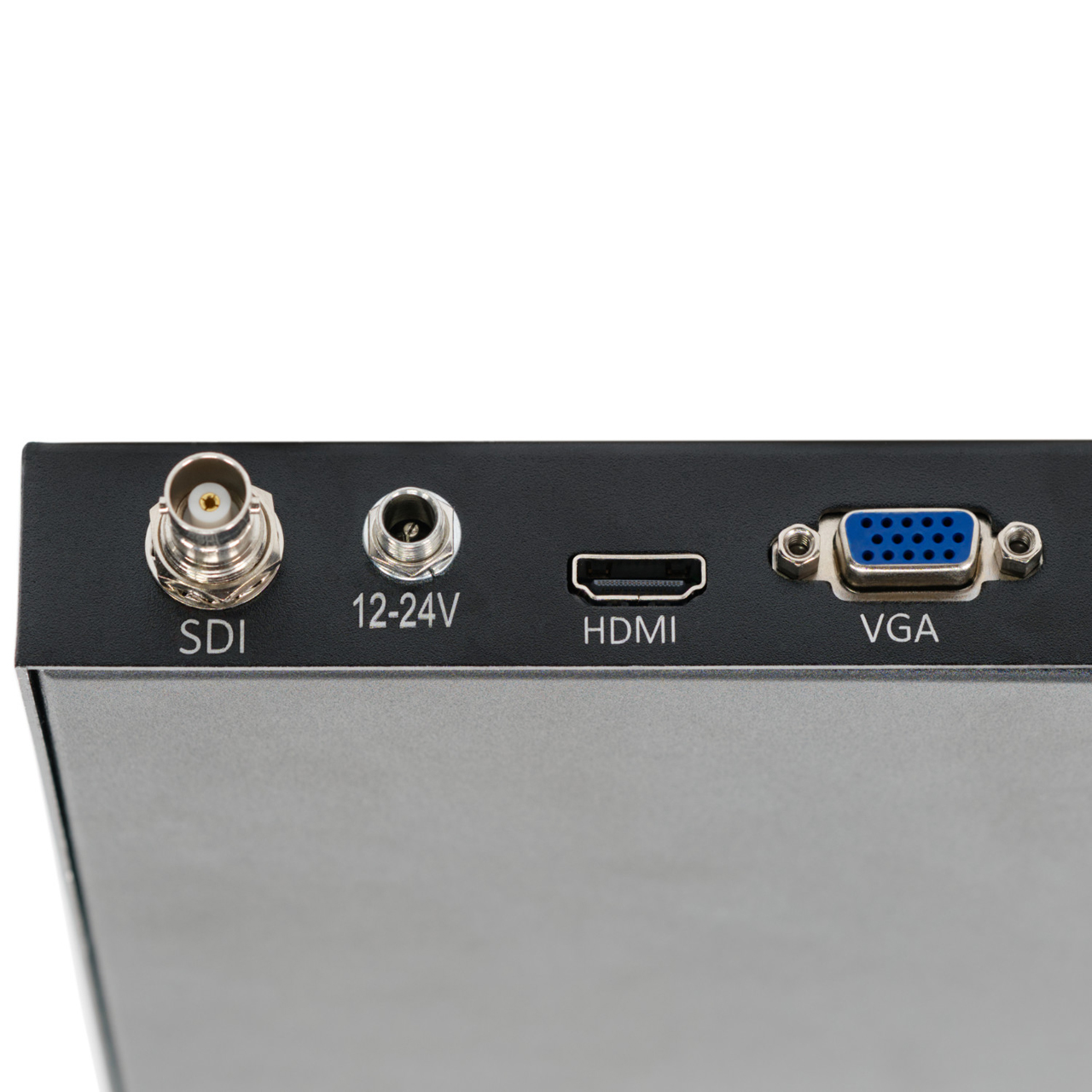

    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight: 5.73lbs
    • Dimensions: 18.3" x 12.3 x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      19" Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight: 5.73lbs
    • Dimensions: 18.3" x 12.3 x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      Travel Case
    • Exterior: Hard
    • Built In Wheels or Casters: Yes
    • Interior Length: 24" (60.96cm)
    • Interior Width: 24" (60.96cm)
    • Interior Lid Depth: 2" (5.08cm)
    • Interior Base Depth: 12" (30.48cm)
    • Interior Depth: 14" (35.56cm)
    • Product Weight: 25.39lbs (11.51kg)
    • Exterior Length: 26.75" (67.95cm)
    • Exterior Width: 26.5" (67.31cm)
    • Exterior Height: 15.625" (39.69cm)
    • Carton Length: 27.5" (69.85cm)
    • Carton Width: 27" (68.58cm)
    • Carton Height: 16.5" (41.91cm)
    • Shipping Weight: 28.72lbs (13.02kg)
    • Max Temp: 180deg;F (82.22deg;C)
    • Min Temp: -69°F (-56.11deg;C)

      Tripod
    • Payload Capacity: 61.7lbs (28kg)
    • Height Range: 37 - 75.5"

      Fluid Head
    • Head Payload Capacity: 61.7lbs (28kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-15
    • Pan Drag Settings: 0-7
    • Tilt Drag Settings: 0-7
    • Tilt Lock: Thumb Lock
    • Tilt Range: -80°/+90°
    • Bubble Level: Yes- Illuminated
    • Pan Handle Length Range: 16.7" - 24"
    • Weight: 9.2lbs (4.2kg)
    • Weight w/ Pan Handles: 11lbs (4.98kg)
    • Sliding Plate Range: 5.7" (145mm)
    • Temperature Range: -40°F - 194°F
    • Camera Plate Length: 6.3" (160mm)

      Dolly
    • Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Cable Guard Diameter: 4.92" (12cm)
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3lbs (60 kg.)

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 19 in. SDI Widescreen Teleprompter Monitor
    • 1x 19 in. SDI Widescreen Talent Monitor
    • 1x Hard Travel Case w/ Wheels
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 2x Power Supply
    • 1x Prompter Pro 4 Digital Download
    • 1x GH25 Head
    • 2x GB4 Pan Handles
    • 1x GP2 Tripod Plate
    • 1x GA102 Tripod
    • 1x T20 Carrying Bag
    • 1x DB-01 Dolly Carring Bag
    • 1x EI-7004B Dolly

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0847983036370
