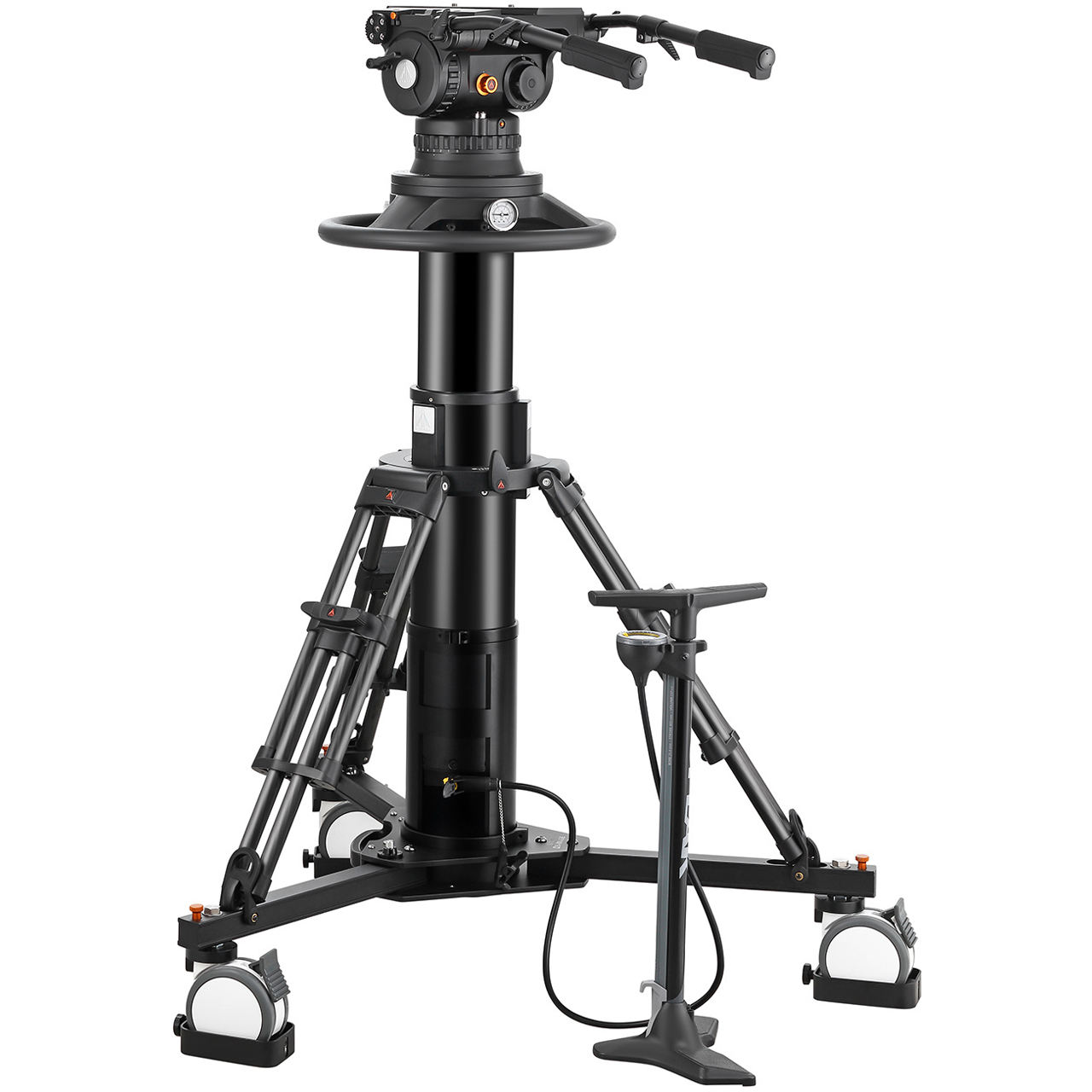

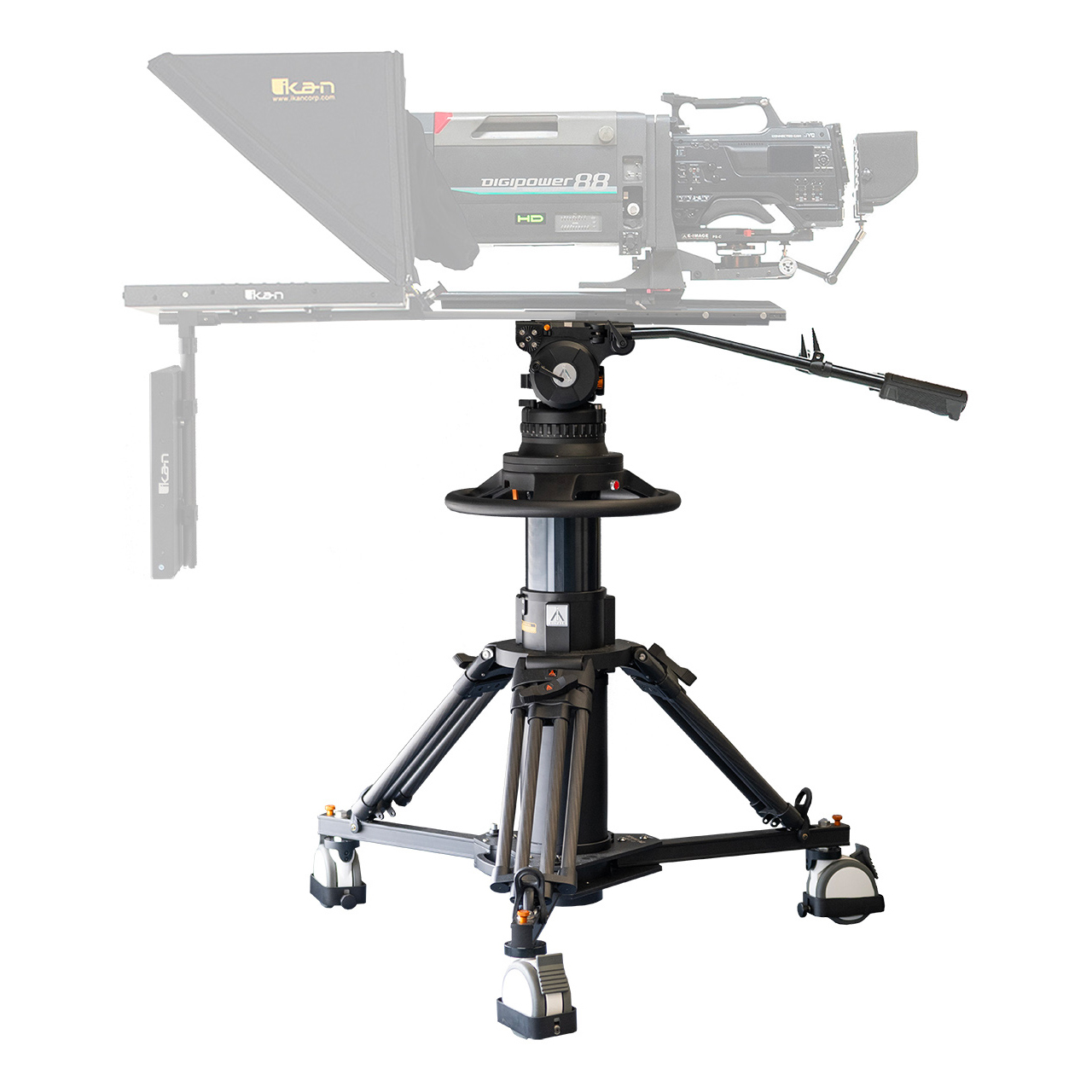

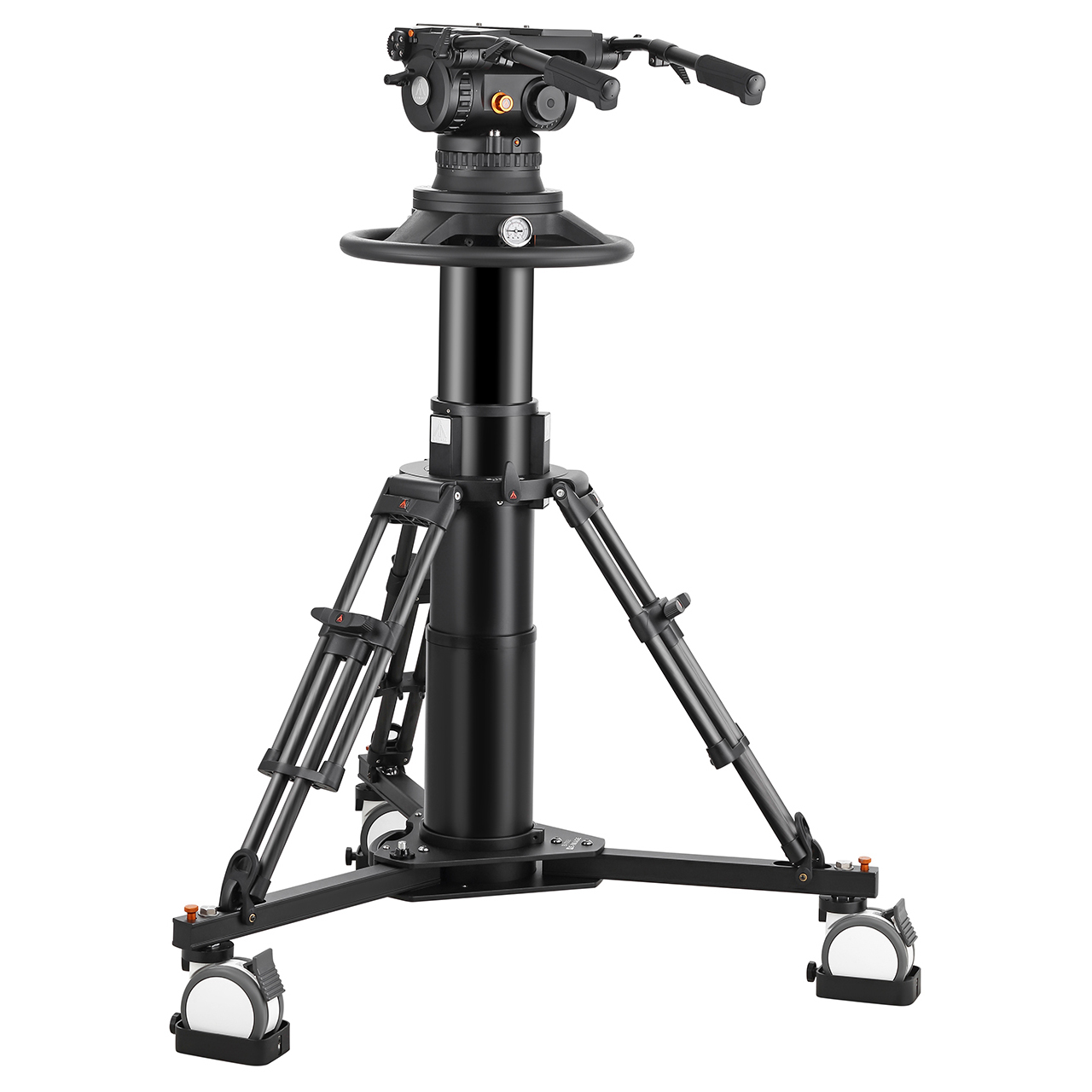

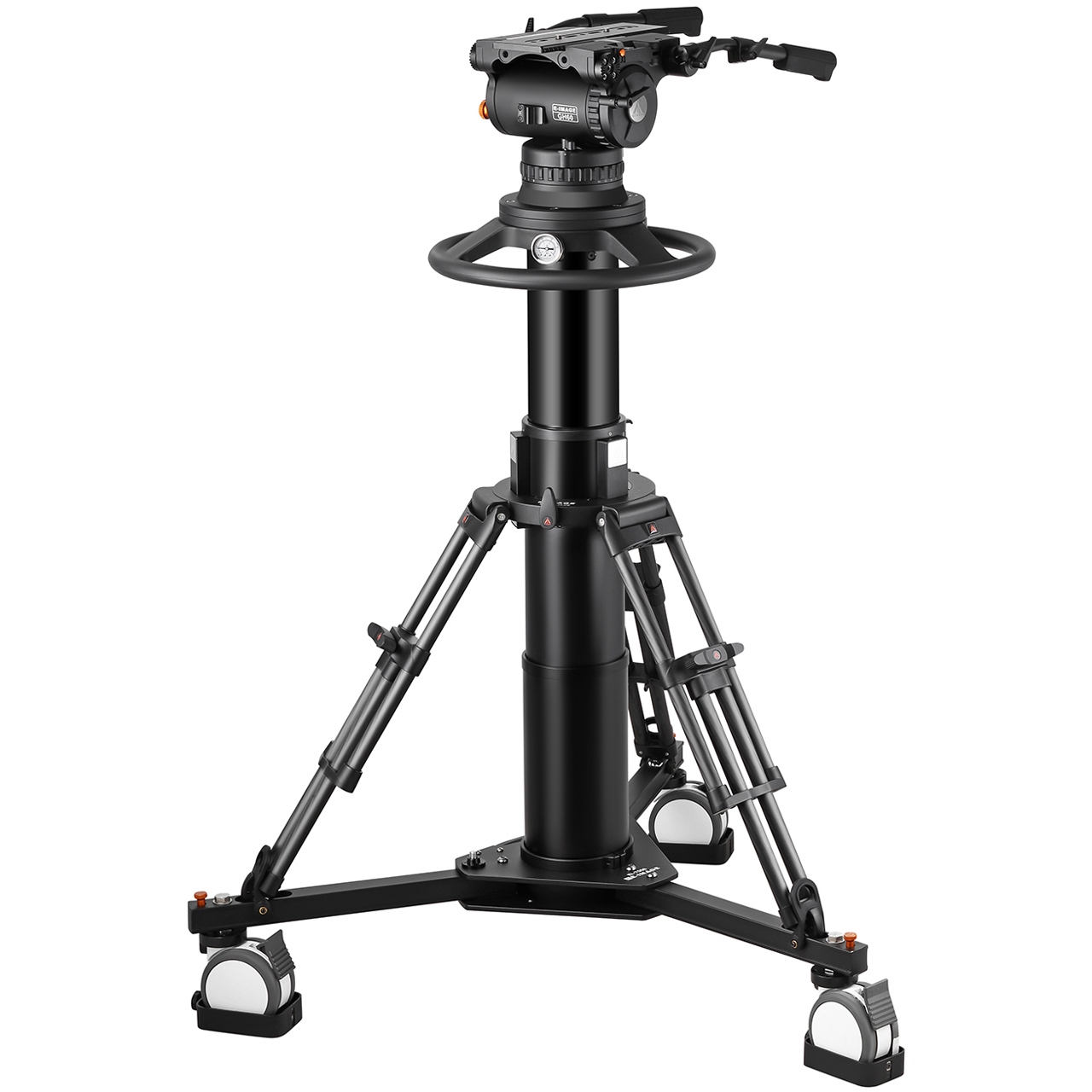

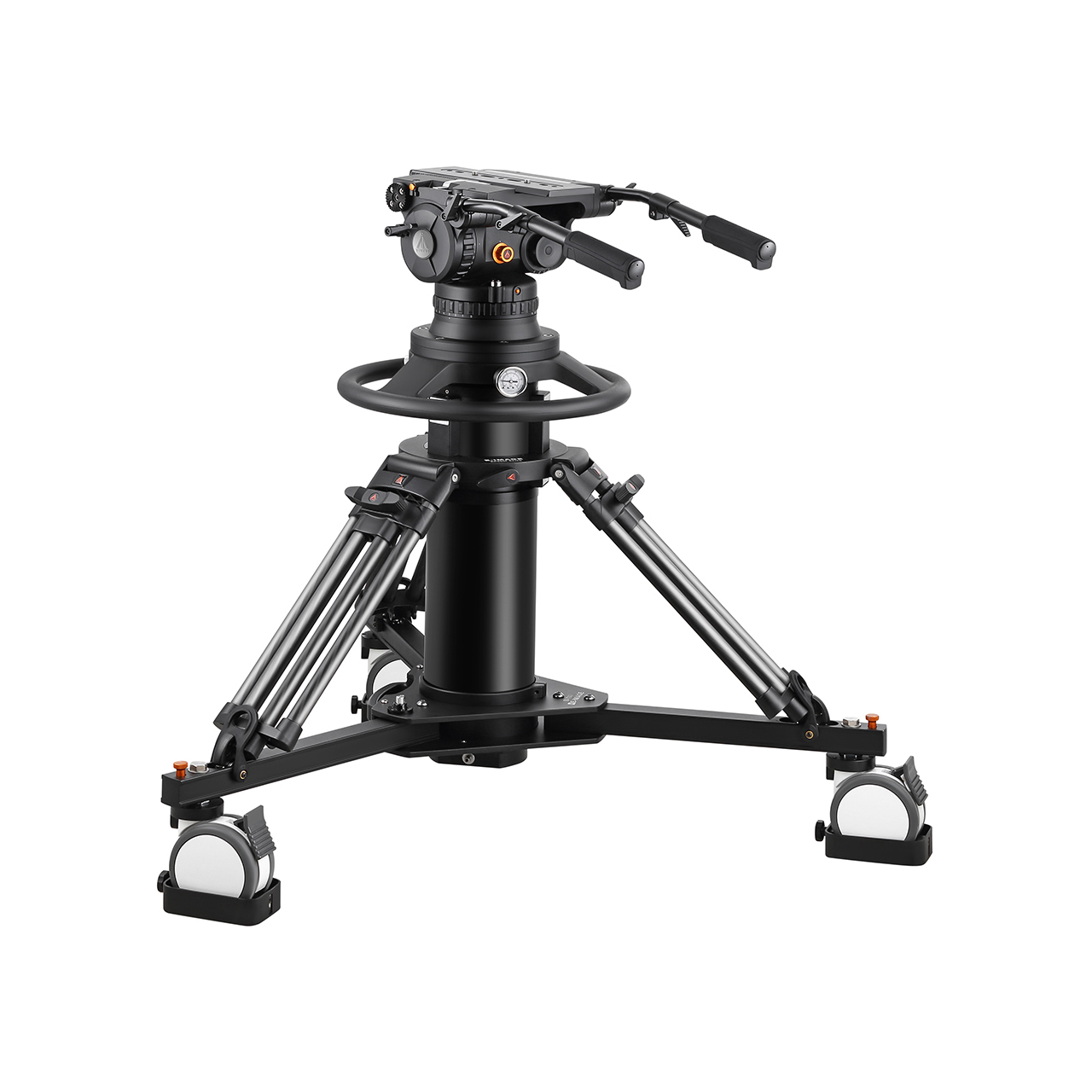

E-Image Pneumatic Carbon Fiber Pedestal with Flat-Base Fluid Head - 138.6lbs Payload w/ Adjustable Counterbalance & Drag

EP890XK - Overview

• Features:

  • Supports 138.6 lbs.(62.8kg) Camera Payload
  • 72 Steps of Counterbalance | 11 Steps of Pan & Tilt Drag
  • Easy Lock Base Plate
  • Pedestal Working Height Range 38.4 - 68.3"
  • Pneumatic Telescoping Center Column/ On-Shot Stroke: 15"
  • One-Stage Carbon Fiber Tripod Legs
  • Heavy Duty Telescoping Pan/Tilt Arms
  • Collapsible Dolly w/ Track Lock Wheels & Cable Guards


• Specifications:

  • Shipping Weight: 178.6lbs
  • Shipping Dimensions:
    - Box 1: 35" x 22" x 22"
    - Box 2: 23" x 20" x 20"
    - Box 3: 32" x 25" x 11"
  • Product Weight: 103.6lbs
  • Fluid Head: GH65 w/ 6-Bolt Flat Base
  • Tripod: EP880XF PLUS
  • Dolly: El-7008
  • Payload: 143.0lbs (65kg)
  • Bowl Size: 6-Bolt flat base
  • Height Range: 38.4" - 68.3" (97.5cm - 173.5cm)
  • On-Shot Stroke: 15.0in (38cm)
  • Net Weight: 103.6lbs (47.1kg)
  • Packing: Head (Hard Case), Pedestal (Aluminum Rolling Case), Dolly (Box)

    GH65
  • Payload Range: 6.6lbs - 143.0lbs (3kg - 65kg)
  • Safety Payload: 154.0lbs (70kg)
  • Net Weight: 26.4lbs (12kg)
  • Bowl Size: 6-Bolt flat base
  • Counterbalance: 1-12 grades of counterbalance with micro counterbalance, total 72 steps
  • Grades of Pan Drag: 0-11
  • Grades of Tilt Drag: 0-11
  • Camera Plate: GP6 sliding plate
  • Slide Length: 152mm
  • Panhandle | Quantity: GB6 | 2pcs
  • Illuminated Bubble Level: Yes

    EP880XF PLUS
  • Payload: 165lbs (75kg)
  • Material: Carbon fiber
  • Bowl Size: Flat base
  • Net Weight: 77.2lbs (35.1kg)
  • On-shot Stroke: 15" (38cm)
  • Height Range: 28.3" - 58.3" (72cm - 148cm)
  • Packing: Pedestal (Aluminum case), Dolly (Box packing)


• Item Includes:

  • 1x EP880XF PRO Pneumatic Pedestal Base
  • 1x GH65 Fluid Head
  • 1x EI-7008L Heavy Duty Dolly
  • 2x GB6 Panhandles
  • 1x Air Pump
  • 1x Rolling Hard Case for EP880X Pedestal
  • 1x Soft Carrying Case for EI-7008
  • 1x Allen Wrench Set


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0847983034765
