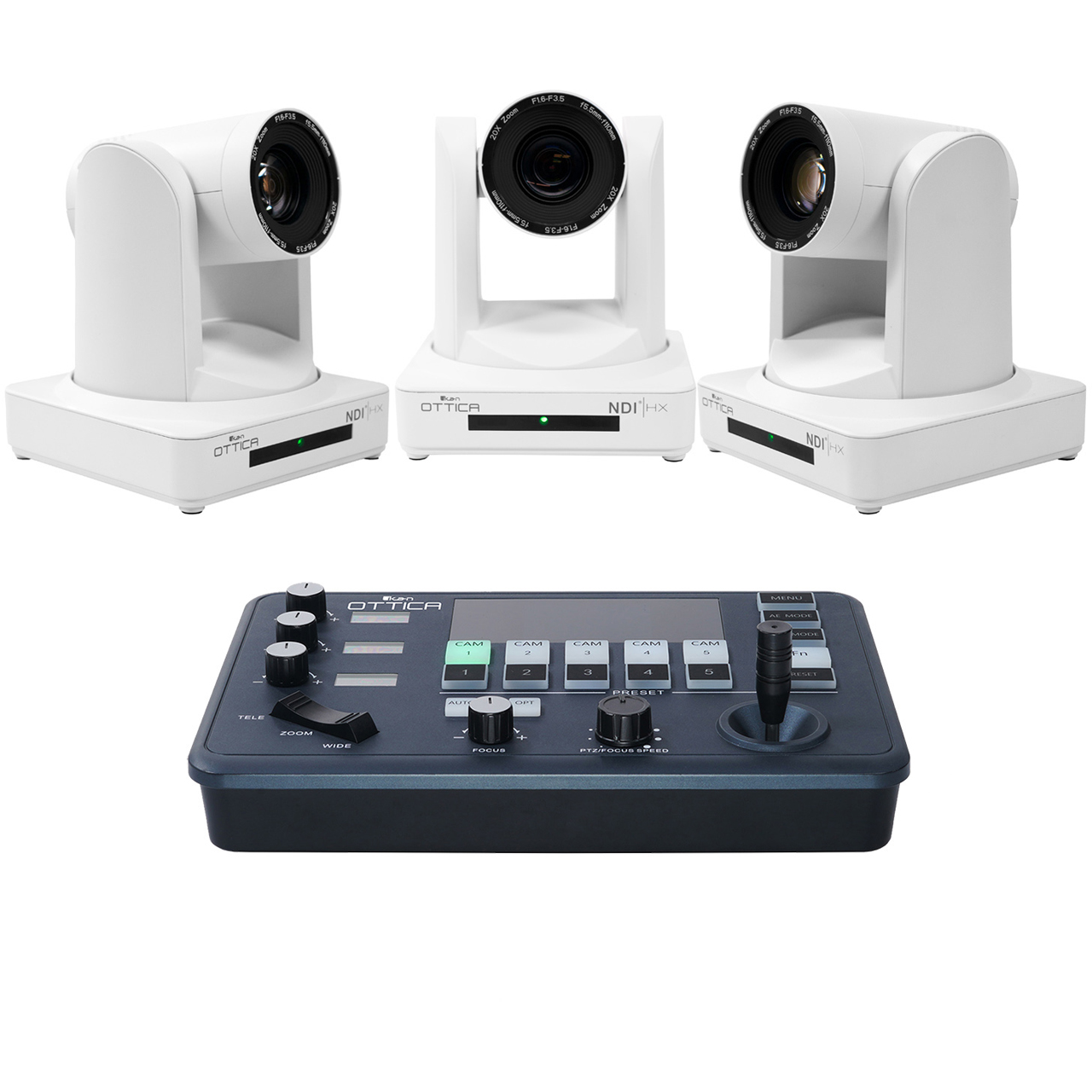

The Ikan OTTICA-WH-3PTZ-1C-V2 bundle includes 3 OTTICA NDI HX PTZ Video Cameras and the OTTICA PTZ Camera Controller and will allow you to install a streaming multi-camera video production. Switching between & controlling multiple OTTICA cameras with the IP Controller is an ideal solution for house of worship, broadcast, education, medical, sports, and live production applications.
OTTICA PTZ Camera

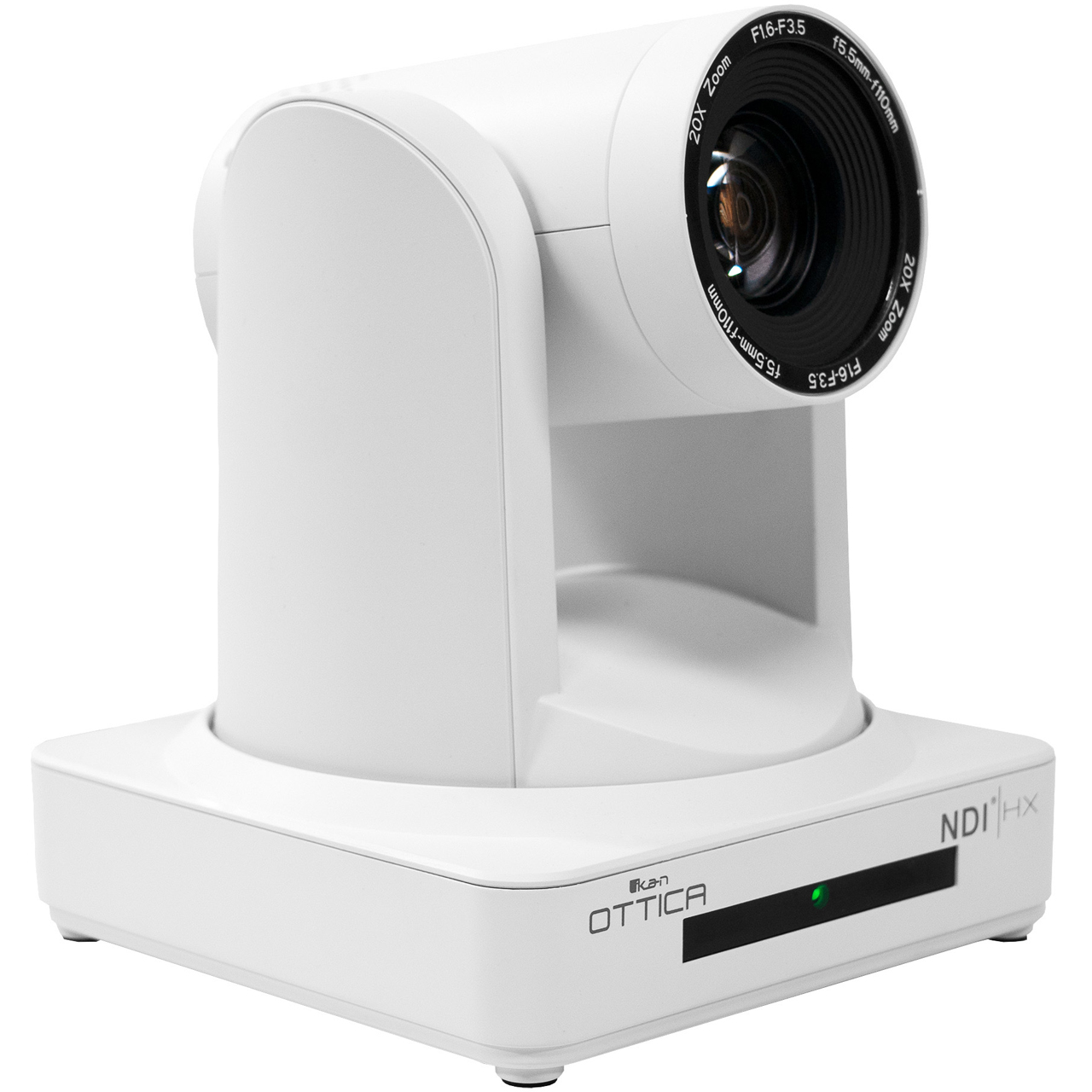

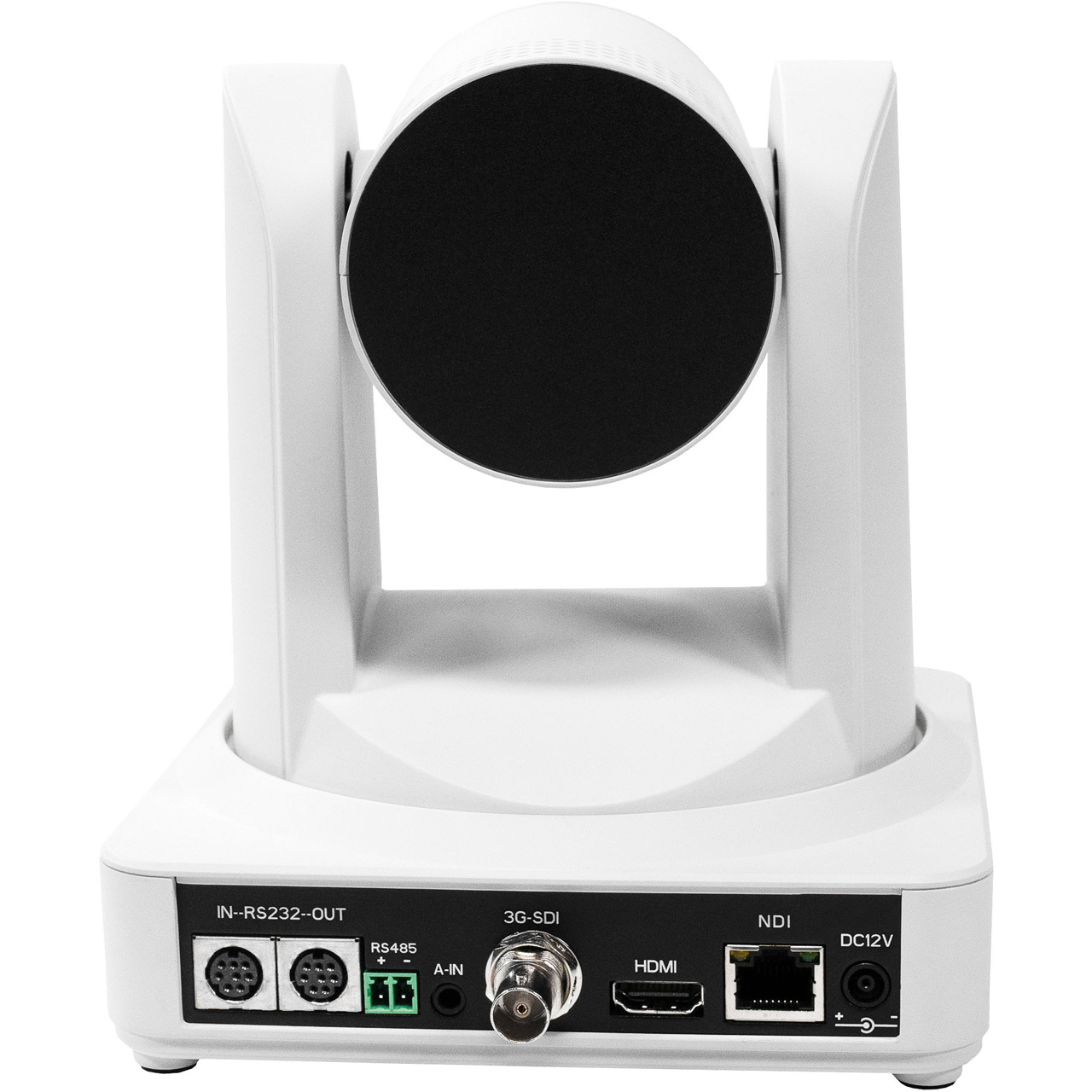

The OTTICA PTZ Video Camera from Ikan features a 1/2.8? CMOS sensor and 5.5-110mm varifocal lens with 20x zoom to capture videos at a maximum resolution of 1080p at 60fps. It supports POE (802.3af), HDMI, SDI, Ethernet (NDI HX), RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.
Controller Interface

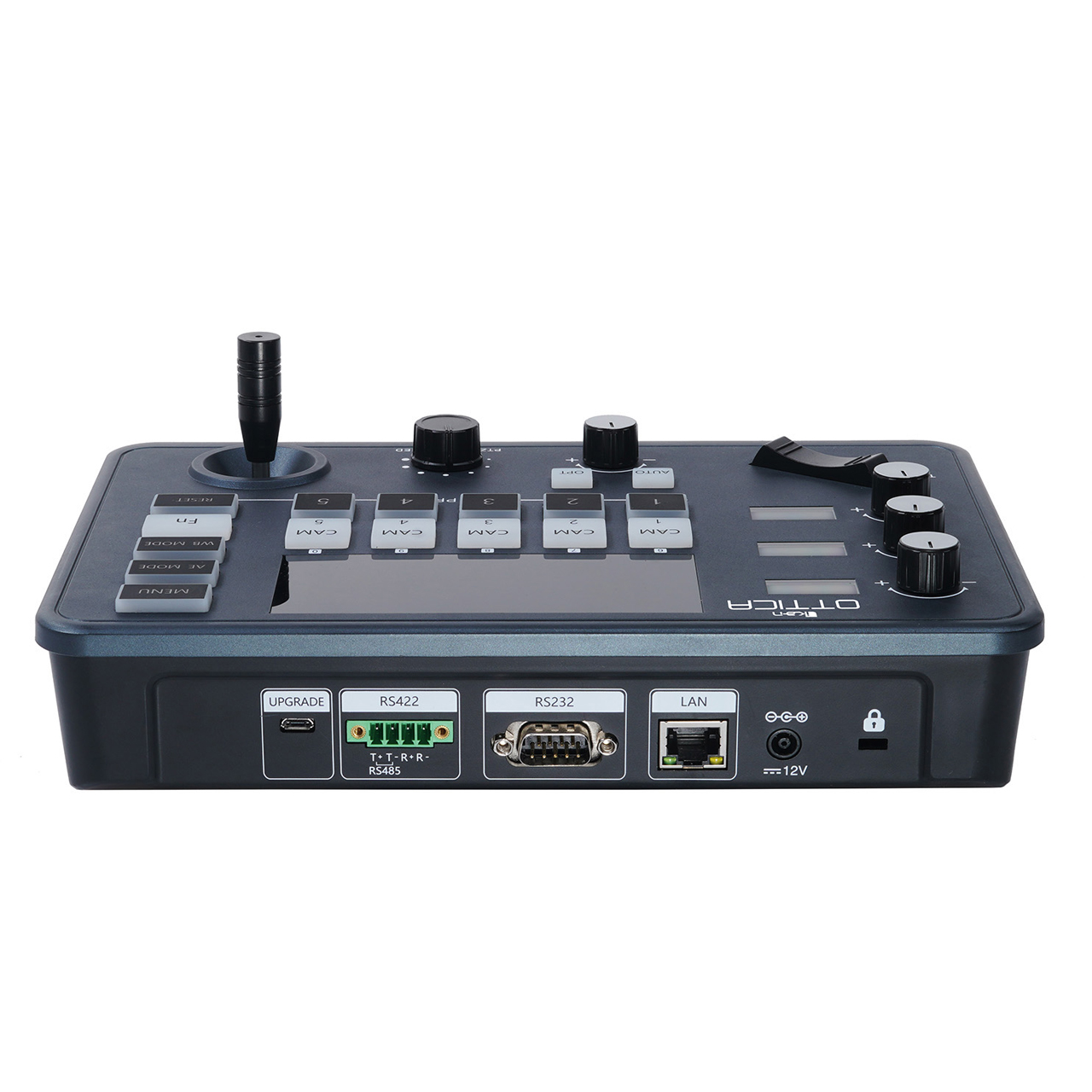

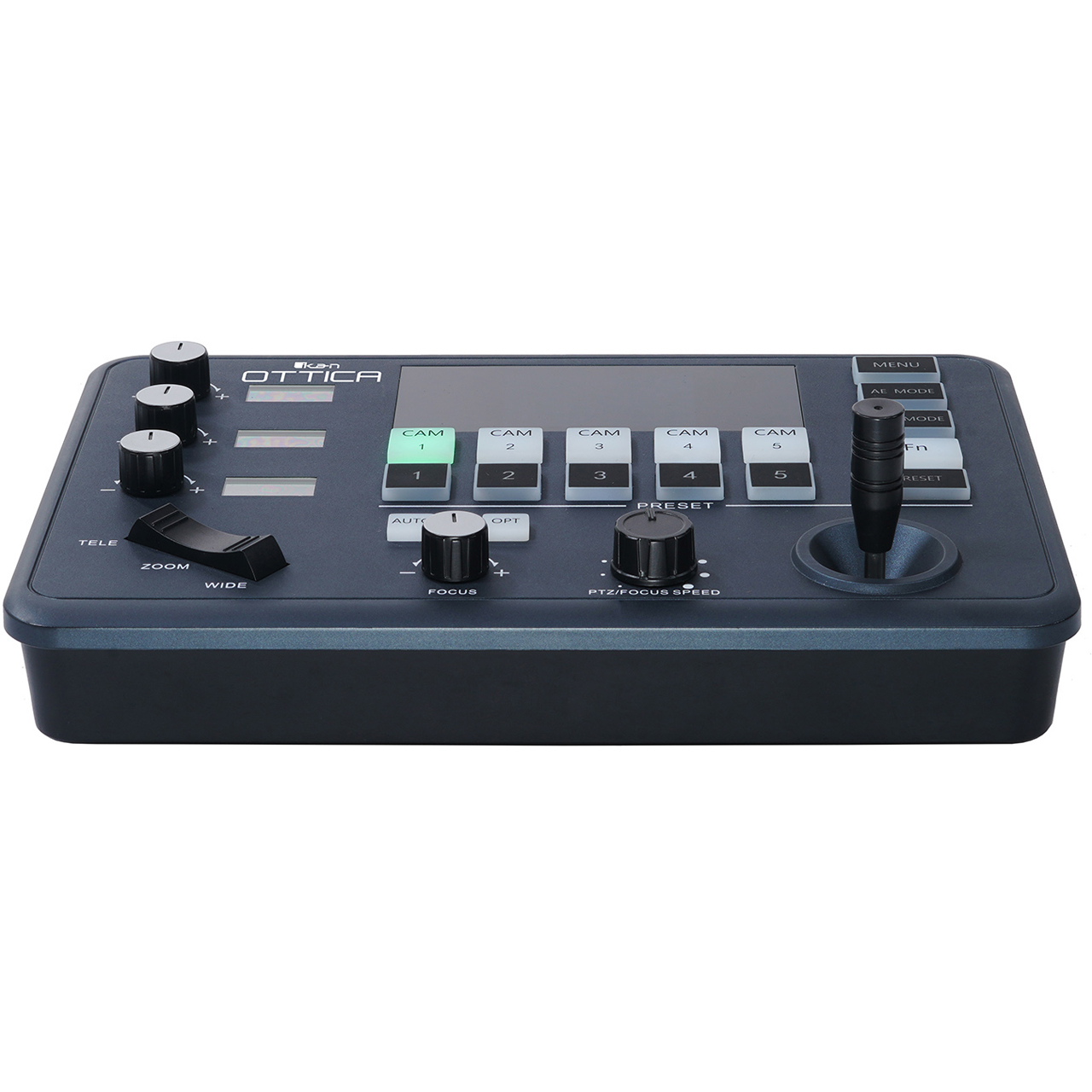

The Ikan OTT-CONTROLLER-V2 is a compact PTZ controller that allows you to control up to 5 cameras using either IP or analog control protocols. The controller has ports for RJ45, RS232 (DB9), RS422 & RS485 (Terminal Connector), 12v Barrel Connector, and USB micro (for firmware upgrade).
Please Note: Ikan's OTTICA cameras do not require the additional purchase of an NDI License to use and/or operate. Licensing is already included in the camera pricing.
The OTTICA camera is NOT compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps. It is, however, compatible with any other video switcher including Black Magic's other ATEM switchers such as the ATEM Mini & ATEM Mini Pro.
