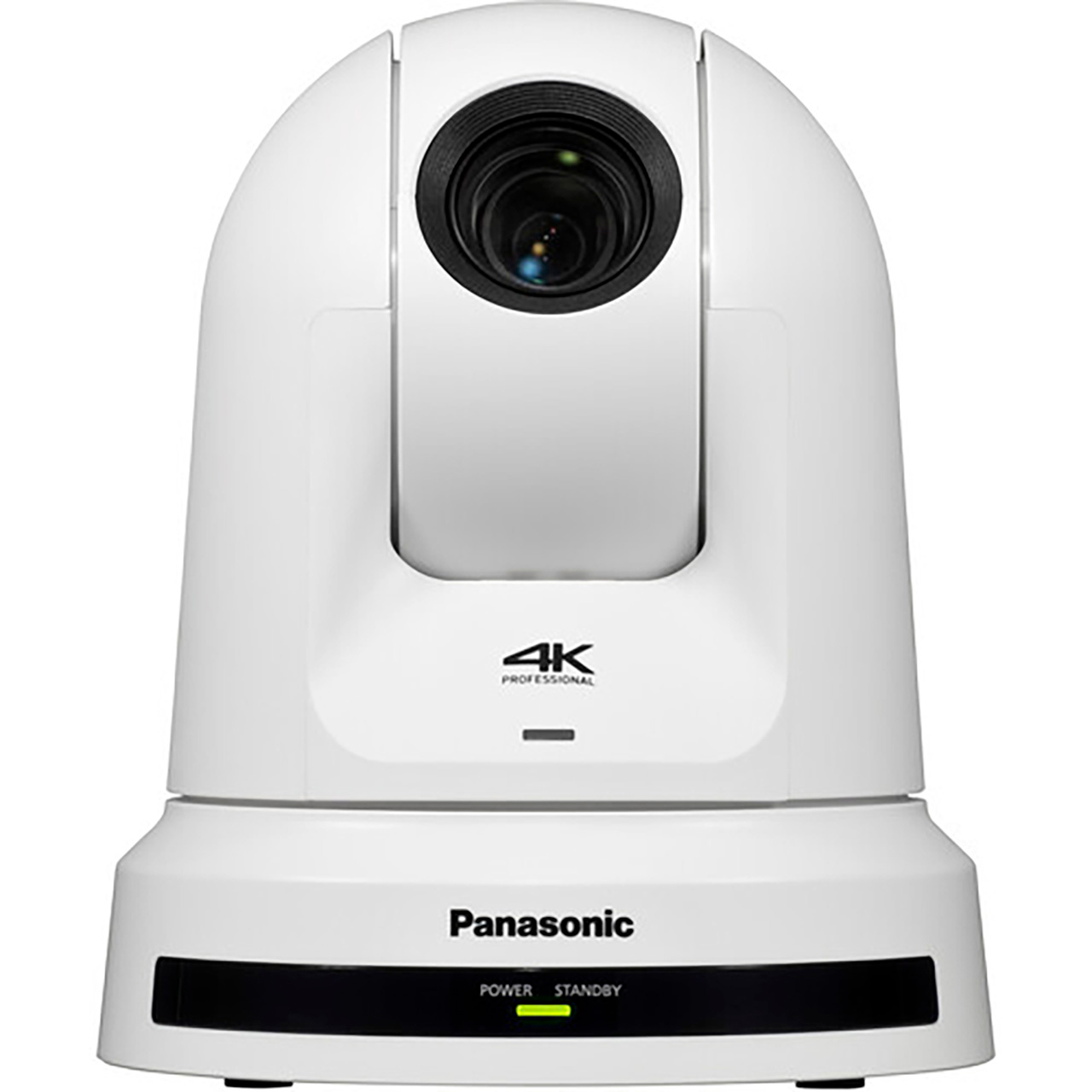

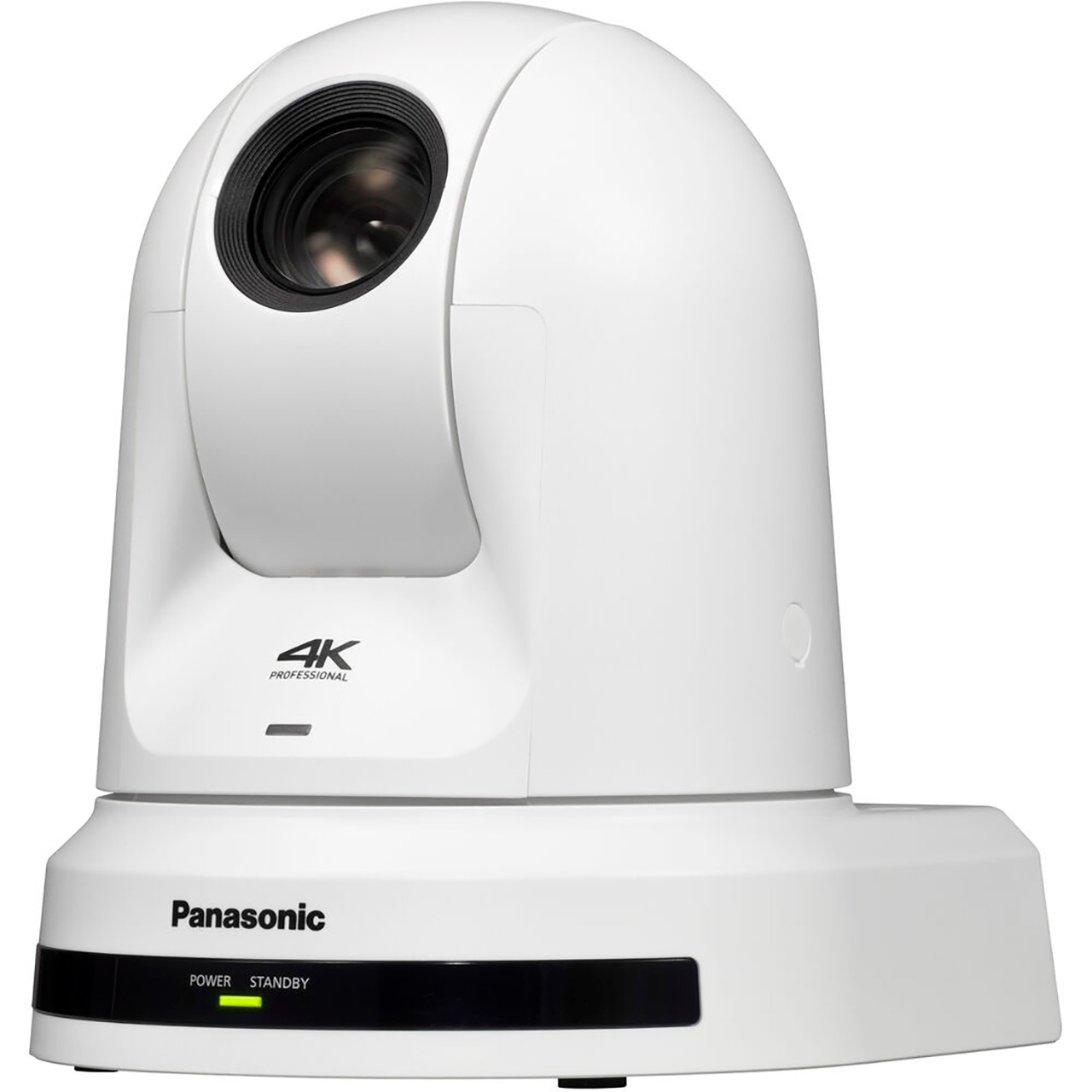

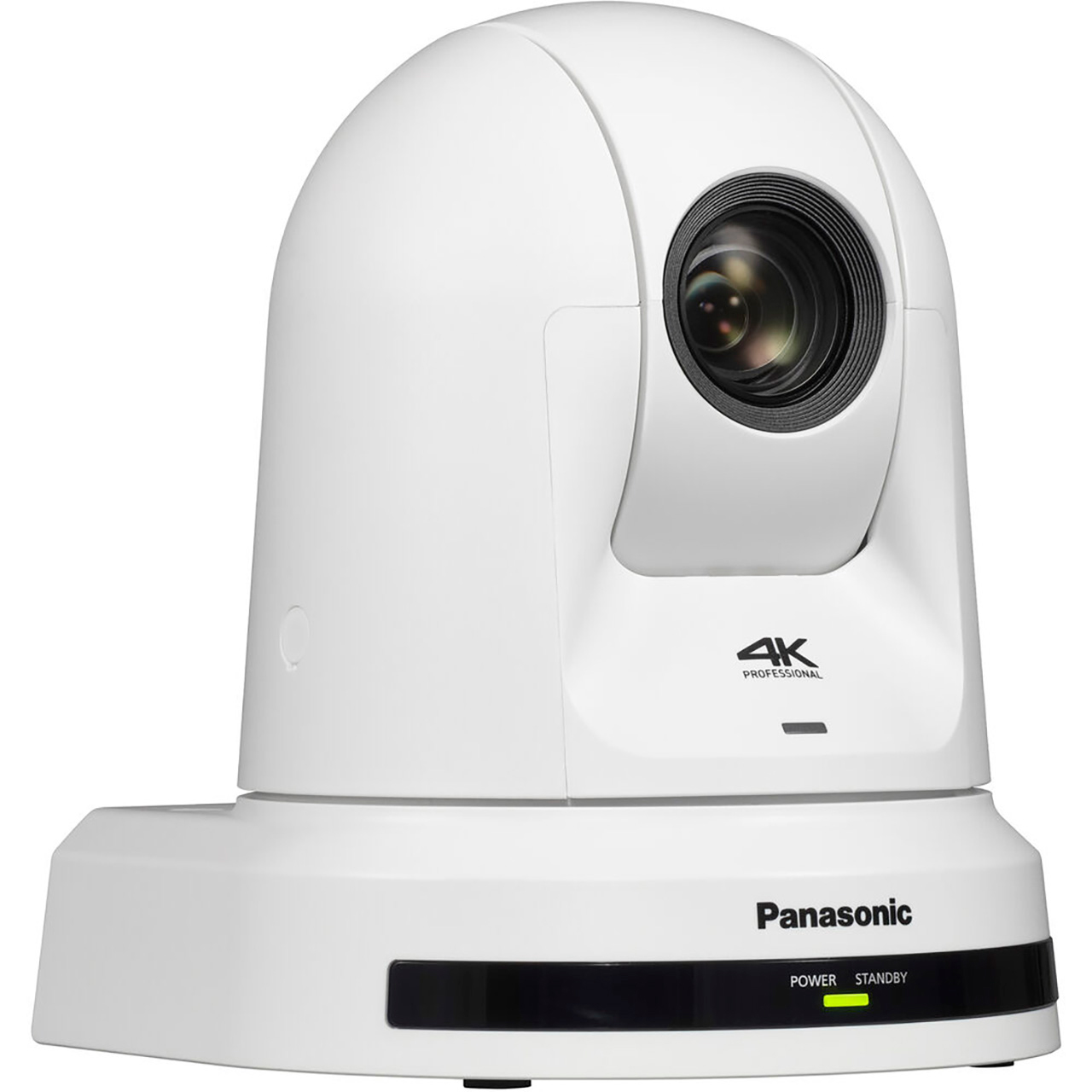

Panasonic AW-UE30 4K30 HDMI Ultra-Quiet PTZ Camera with 20x Motorized Optical Zoom and SRT Streaming Support - White

AW-UE30WPJ - Overview

• Features:

  • 20x Optical Zoom
  • Supports SRT to ensure stable video streaming
  • Ultra-Quiet
  • New Direct Drive System for improved responsiveness and quietness
  • Built-in auto tracking function
  • Excellent system flexibility to achieve smart wiring and smooth operation
  • Still image JPEG capability
  • Supports NDI HX


• Specifications:

  • Power Requirements: 12V DC (10.8V - 13.2V) (Supplied AC adapter)
  • PoE+: IEEE802.3at compliant: DC 42V - 57V
  • Current Consumption: 1.8A (Supplied AC adaptor), 0.6A (PoE+ power supply)
  • Ambient Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Ambient Operating Humidity: 20% - 90% (no condensation)
  • Storage Temperature: -4°F - 122°F (-20°C - 50°C)
  • Mass:
    - Excluding Ceiling Mounting Bracket: 3.97lbs (1.8kg)
    - Including Ceiling Mounting Bracket: 4.51lbs (2.05kg)
  • Dimensions (WxHxD): 6.29" x 7.56" x 6.53" (160.0mm x 192.1mm x 166.0mm)
  • Controller Supported: AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000, AK-HRP1005, AK-HRP1015, AK-HRP250
  • Imaging Sensors: 1/2.5-type 4K MOS
  • Lens: Motorized optical 24x zoom, F1.8 to F4.0
  • Zoom:
    - Optical Zoom: 24x
    - i.Zoom UHD 28x, FHD 36x
    - Digital extender zoom: 1.4 x , 2x
  • Conversion Lens: Not supported
  • Angle of View Range:
    - Horizontal Angle of View: 74.1° (wide) - 3.3° (tele)
    - Vertical Angle of View: 46.0° (wide) - 1.9° (tele)
    - Diagonal Angle of View: 81.8° (wide) - 3.8° (tele)
  • Focus: Switching between auto and manual
  • Focus Distance:
    - Entire Zooming Range: 3.9ft (1200mm)
    - Wide End: 0.33ft (100mm)
  • Color Separation Optical System: 1MOS
  • Minimum Illumination: 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
  • Horizontal Resolution:
    - UHD: 1,500 Typ (Center area)
    - FHD: 1,000 Typ (Center area)
  • Gain Selection: Auto, 0dB - 36dB (Super Gain function equipped: 37dB - 42dB)
  • Frame Mix: Auto, 0dB, 6dB, 12dB, 18dB, 24dB
  • Electronic Shutter Speed:
    - 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    - 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    - 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    - 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • Synchro Scan:
    - 59.94p/59.94i: 60.0Hz - 7200Hz
    - 23.98p/24p: 24.0Hz - 7200Hz
    - 50p/50i: 50.0Hz - 7200Hz
    - 25p: 25.0Hz - 7200Hz
  • Gamma: HD/Normal/Cinema1/Cinema2/Still Like
  • White Balance:
    - ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
    - AWB: AWB-A / AWB-B
    - VAR (selectable between 2000 K and 15000 K by designating a value)
  • Chroma Amount Variability: OFF, -99% to 99%
  • Output Format/HDMI/4K: 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
  • Output Format/HDMI/HD: 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
  • Input Connector: DC 12 V IN
  • Video Output:
    - HDMI 1.4 connector, 4:2:2/10bit
    - HDCP is not supported
    - Viera Link is not supported

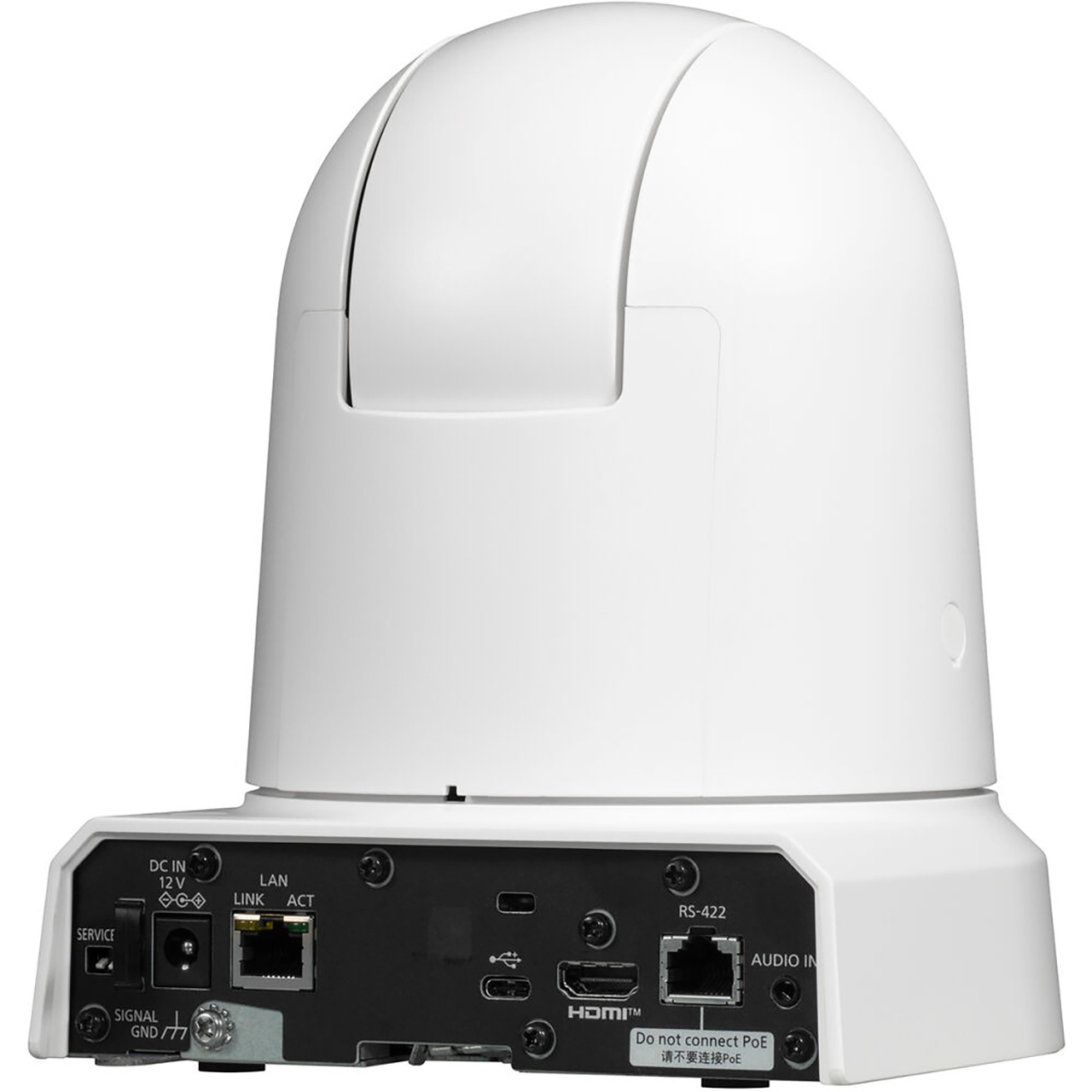

  • Input/Output Connector:
    - LAN: LAN terminal for IP control (RJ-45)
    - RS-422: CONTROL IN RS422A (RJ-45)
  • Pan/Tilt Operation Speed:
    - Speed range: 0.08°/s to 60°/s (Normal
    - 3 speed modes installed: Normal: 60°/s, Fast1: 90°/s, Fast2: 180°/s
  • Panning Range: ±175°
  • Tilting Range: -30°F - 90°F
  • Quietness: NC25 or less
  • Image Streaming Mode: JPEG (MJPEG), H.264, H.265, NDI|HX version (H.264)
  • Image Resolution: 1920x1080, 1280x720, 640x360, 320x180nt
  • Image Transmission Setting (JPEG):
    - Frame Rate: Maximum 30fps
    - Image quality (Fine/Normal)
  • Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
  • Supported Protocol/IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
  • Supported Protocol/IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT


• Item Includes:

  • 1x Panasonic AW-UE30 4K30 HDMI Ultra-Quiet PTZ Camera
