Ikan PT415-TRIPOD 15-Inch 4:3 Turnkey Teleprompter Kit with Tripod & Dolly - HDMI / VGA / 3G-SDI / Composite

ITEM #: IKAN-PT415TRIPOD MFG #: PT415-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,299.00

Our Price:

$4,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT415-TRIPOD - Overview

Broadcast Turnkey Solutions

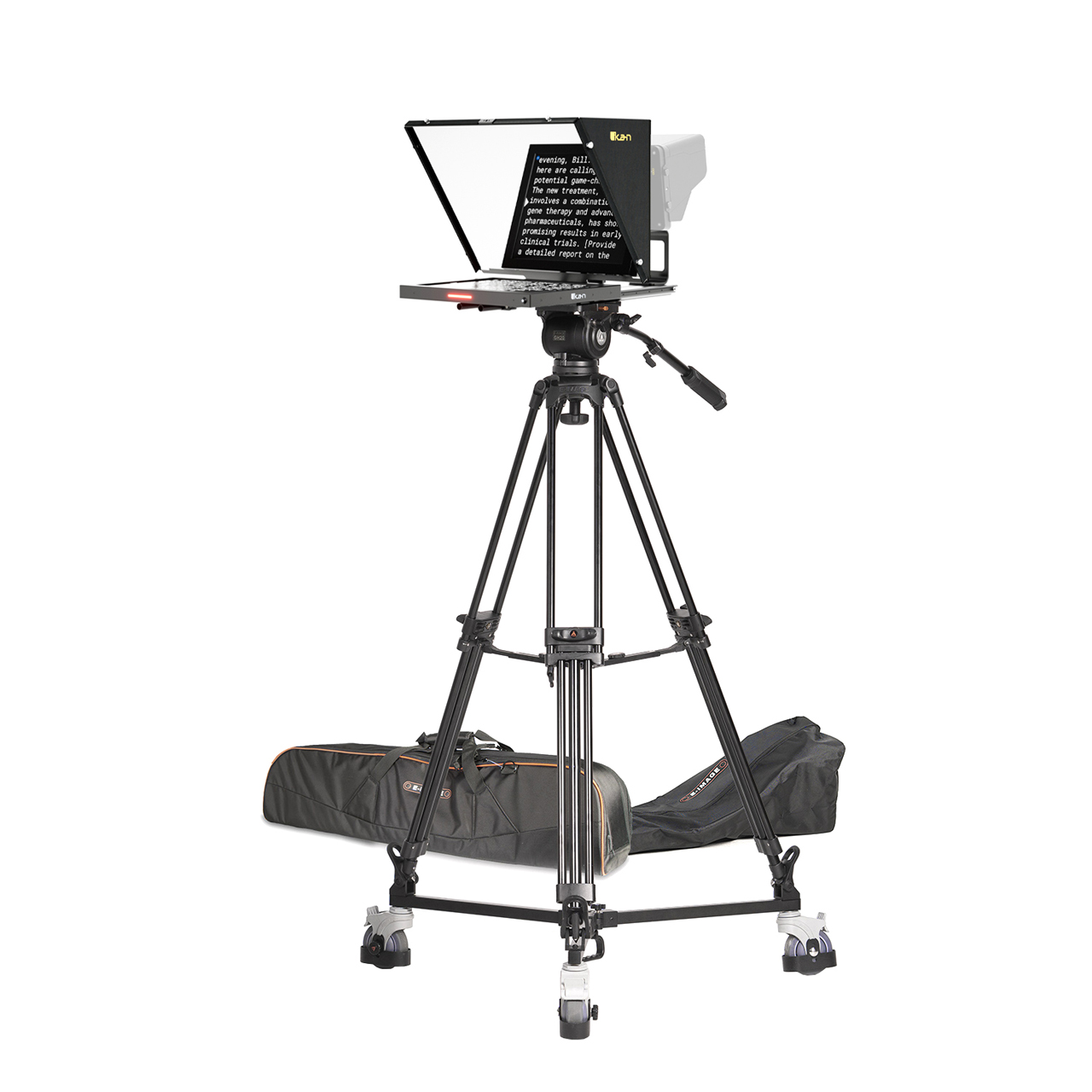

Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes the PT415-TRIPOD, a 15" 4:3 SDI teleprompter, tripod, and dolly. All of their systems have been tested internally for payload compatibility. The remaining payload capacity, after mounting the full 15" teleprompter, can accommodate camera setups up to 22lbs. This solution also includes two carrying bags for tripod & dolly.

Heavy-Duty Tripod

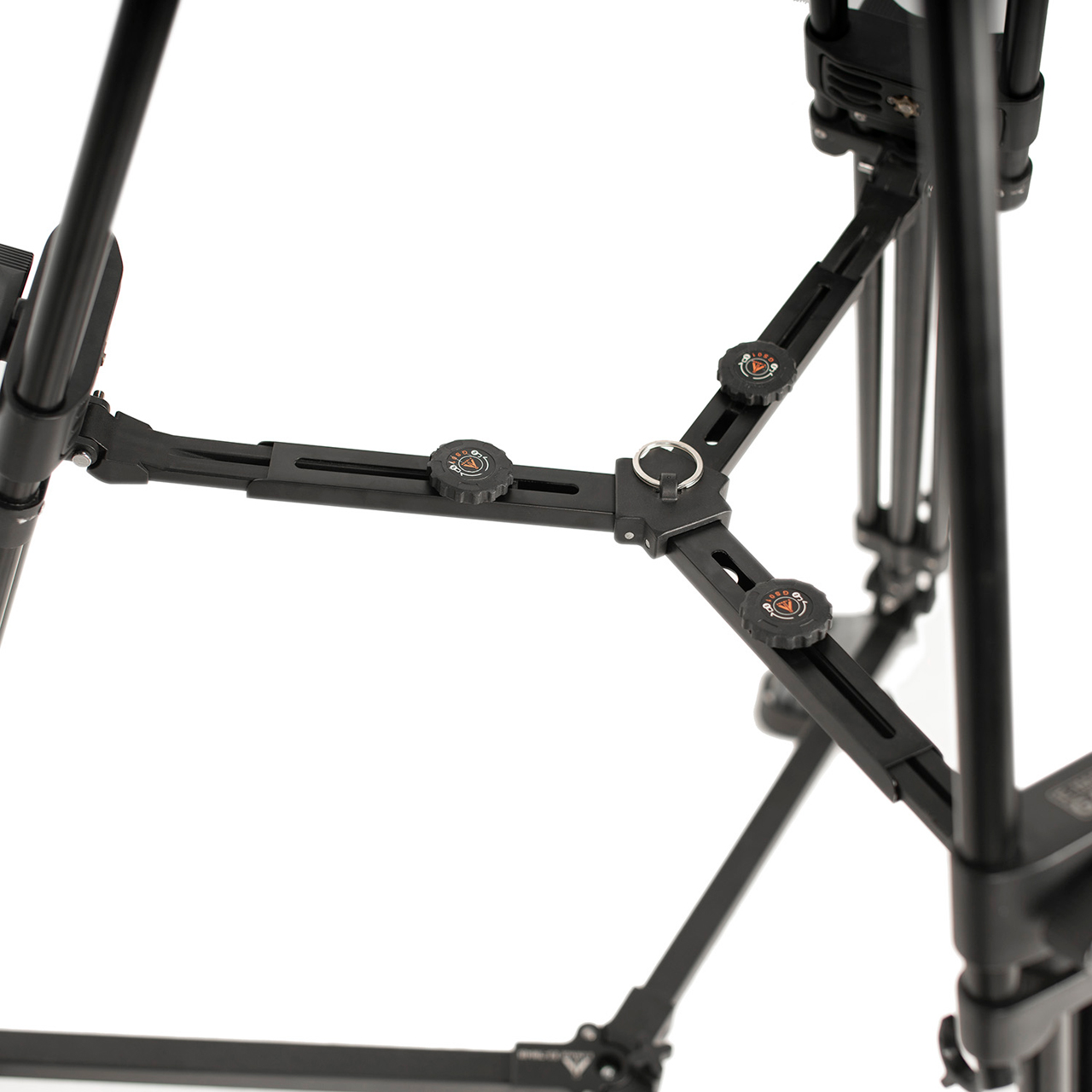

This 2-Stage Aluminum Tripod Kit with GH20 Fluid Head and Dolly is designed for professional video production, supporting payloads up to 44.1lbs. The GH20 fluid head offers 8-step counterbalance, fixed pan/tilt drag, and a tilt range of -60° to +90°, with dual panhandles extending from 16.7" to 24" for precise control. The GA102 aluminum tripod features a 100mm bowl, twin-tube legs with mono-locks, and adjustable height from 18.5" to 63". The included dolly has lockable rubber wheels and supports up to 132.3lbs, enhancing mobility. This kit also comes with a mid-level spreader, rubber feet, and carrying bags for both the tripod and dolly.

15" Teleprompter

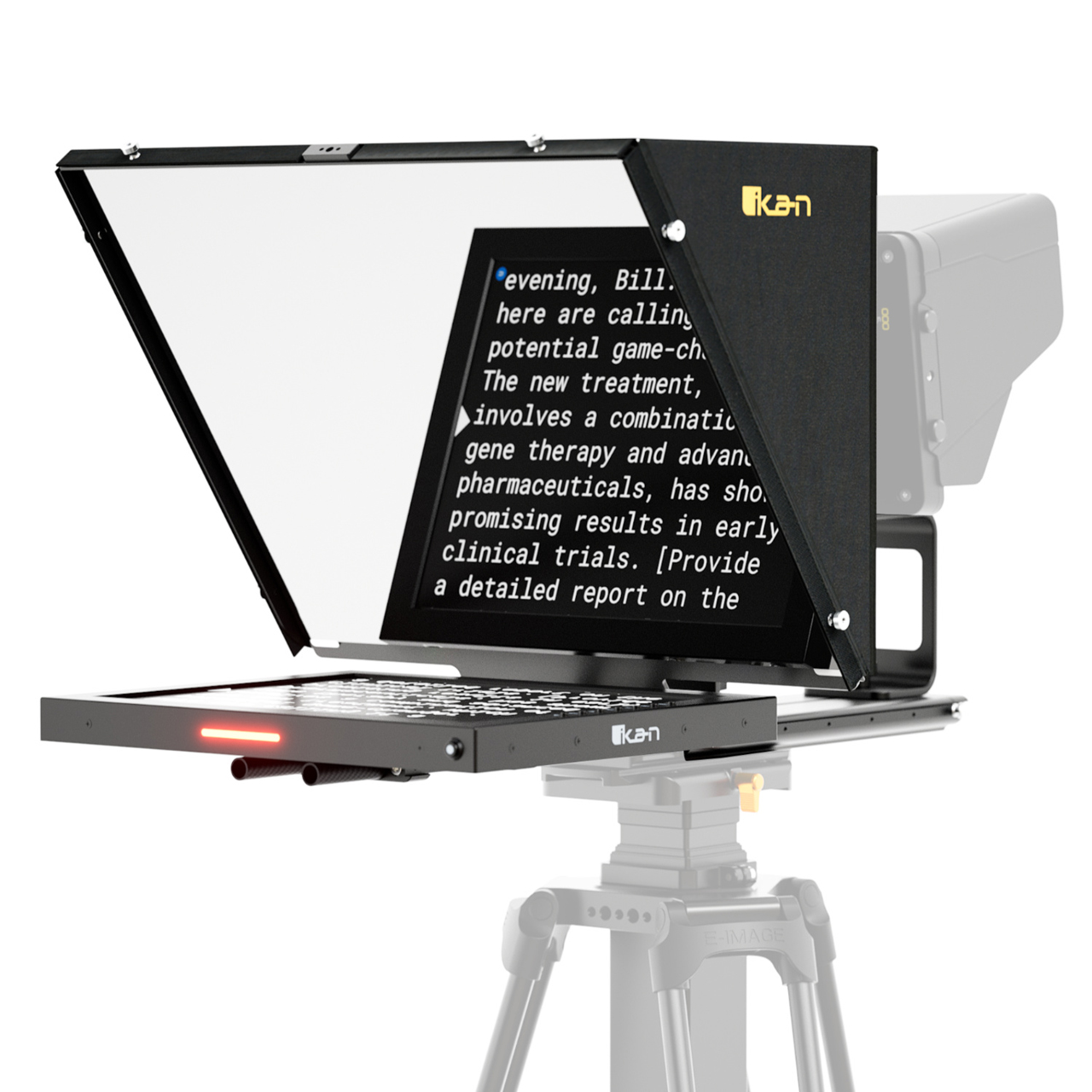

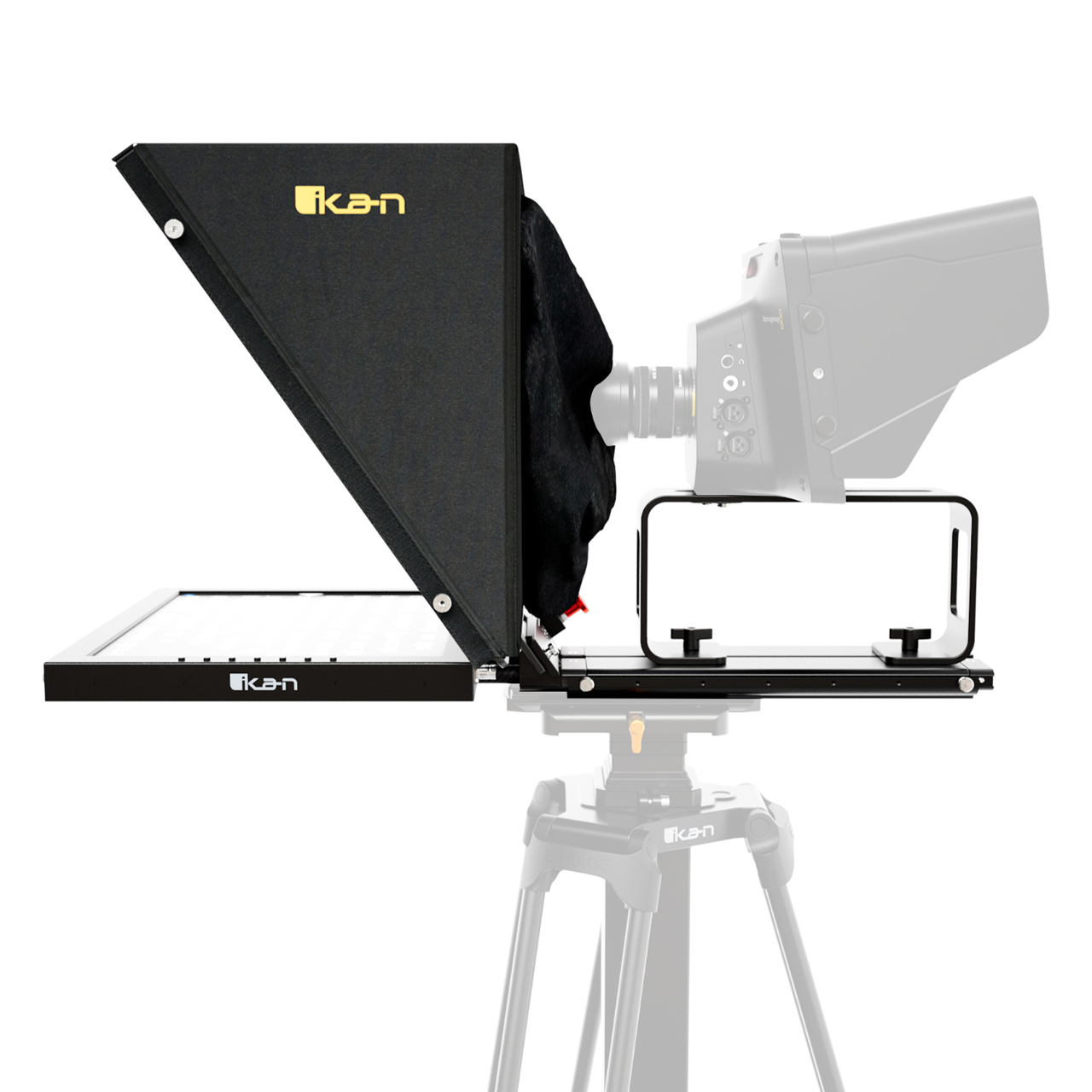

The Ikan 15" SDI Beam Splitter Teleprompter features a 65/35 rectangular glass beam splitter with a 25ft reading range, an anodized aluminum chassis with carbon fiber rods. Its 15" SDI script monitor offers a 4:3 aspect ratio, 1280x1024 resolution, 1000cd/m² brightness, and supports SDI, HDMI, VGA, and composite inputs with horizontal and vertical image flip. The teleprompter base includes versatile tripod mounts and is constructed for durability.

  • Features:

    • Includes 15" 4:3 Teleprompter, Tripod, & Dolly
    • Accommodates Camera Payloads up to 22lbs
    • For Use in Studios, Live Events, & Virtual Productions

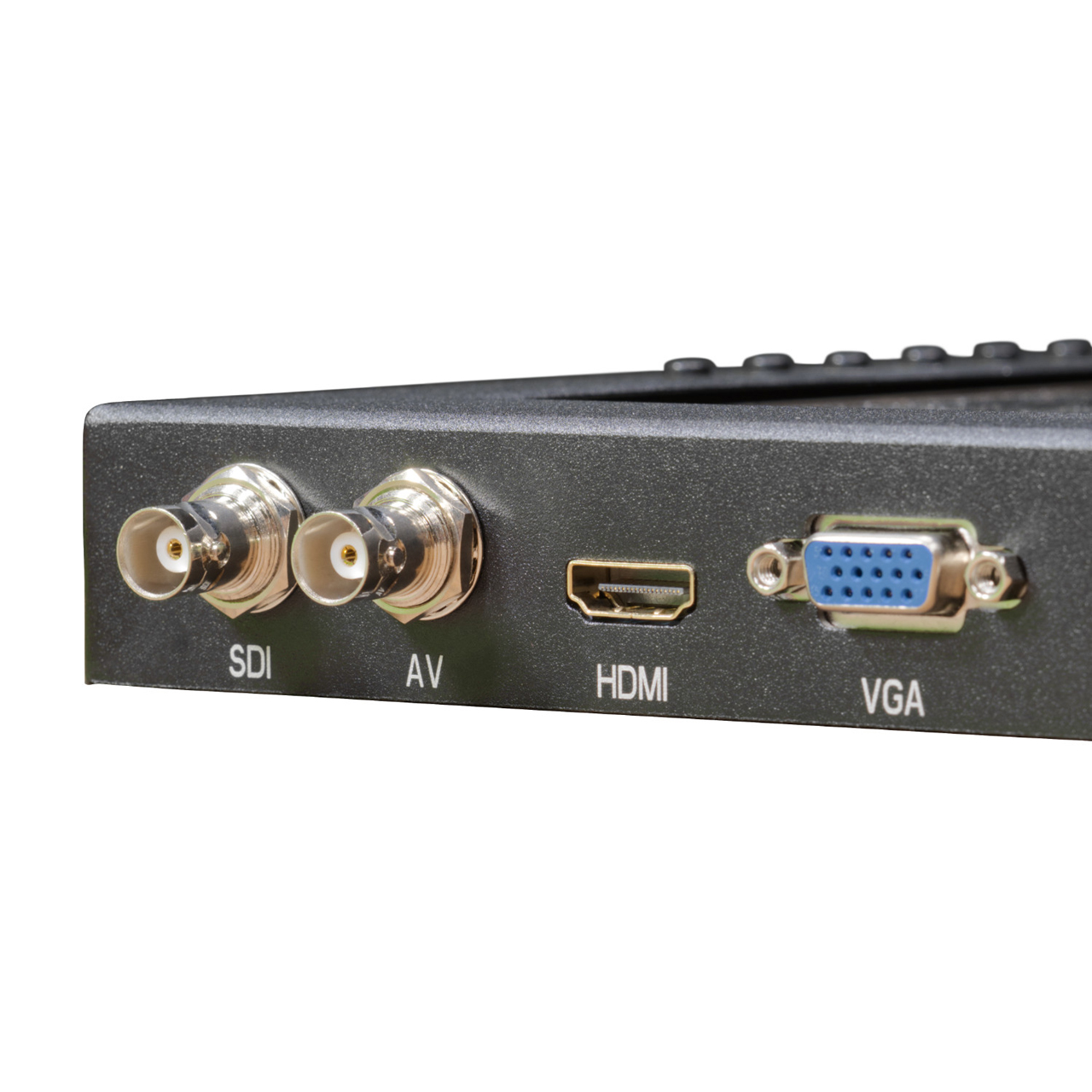

    • Video Inputs: HDMI, VGA, 3G-SDI, Composite (BNC)
    • Dolly with Cable Guards
    • 2 Carrying Bags for Tripod & Dolly

  • Specifications:

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11 x 1/4"-20 Female
      - 9 x 3/8"-16 Female
    • Weight of Teleprompter Base: 16lbs
    • Weight of Low Plate: 1lbs
    • Weight of High Plate: 1.38lbs
    • Weight of DSLR Plate: 0.748lbs
    • Height of Teleprompter: 16.1" (411mm)

      15" SDI Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000cd/m²
    • Screen Size (Diagonal): 15"
    • Video Inputs: SDI, HDMI, VGA, Composite
    • Input Voltage: DC 12V/4A
    • Power Consumption: 28W
    • Product Weight: 3.97 lbs
    • Product Dimensions: 12.13" x 14.25" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H)/170° (V)
    • Reading Range: 17ft Max
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes

      GH25 Head
    • Payload Range: 0lbs - 44.0lbs (0kg - 20kg)
    • Safety Payload: 55.0lbs (25kg)
    • Net Weight: 7.7lbs (3.5kg)
    • Bowl Size: 100mm
    • Counterbalance: 0 - 8
    • Grades of Pan Drag: Fixed
    • Grades of Tilt Drag: Fixed
    • Tilt Range: -50°/+90°
    • Temperature Range: -22°F - 140°F (-30°C - 60°C)
    • Camera Plate: P3 sliding plate
    • Slide Length: 106mm
    • Pan Bar/Number: GB3/1pc
    • Bubble Level/Illuminated Bubble Level: Yes/No

      Dolly
    • Net Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Cable Guard Diameter: 4.92" (12cm)
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3lbs (60kg)

      Tripod
    • Payload Capacity: 61.7lbs (28kg)
    • Height Range: 37" - 75.5"

      General
    • Available Payload Capacity: 22lbs
    • Shipping Dimensions:
      - Box 1: 41" x 20" x 11"
      - Box 2: 28" x 27" x 17"
    • Shipping Weight: 77lbs

  • Item Includes:

    • 1x GH25 Head
    • 2x GB4 Pan Handles
    • 1x GP2 Tripod Plate
    • 1x GA102 Tripod
    • 1x T20 Carrying Bag
    • 1x EI-7004B Dolly
    • 1x DB-01 Dolly Carrying Bag
    • 1x Teleprompter Base
    • 1x 15" SDI Teleprompter Monitor
    • 1x 15" SDI Widescreen Talent Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Standard Teleprompter Hood
    • 1x PTZ Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 2x Power Supply
    • 1x Prompter Pro 4 Digital Download
