Ikan PT421W-PTZ-TK Aura Professional 21-Inch High Bright Teleprompter with Widescreen Tally SDI Monitor & Hard Case Kit

ITEM #: IKAN-PT421WPTZTK MFG #: PT421W-PTZ-TK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,899.00

Our Price:

$3,799.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT421W-PTZ-TK - Overview

The Ikan PT421W-PTZ-TK is designed for quick, easy setup and efficient operation in studio or broadcast applications. The included teleprompter hood fully encloses the PTZ camera, allowing it to move freely inside. The teleprompter features 65/35 reflective glass, which makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4"-20 and 3/8"-16 threads for mounting to a tripod or pedestal. The widescreen monitor includes SDI, HDMI, and VGA video inputs. Its high-brightness screen ensures clear visibility in any lighting condition. An intuitive image-flip button allows easy adjustment of the display orientation. The widescreen monitor also features a wide viewing angle.

PTZ Teleprompting
The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt, and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

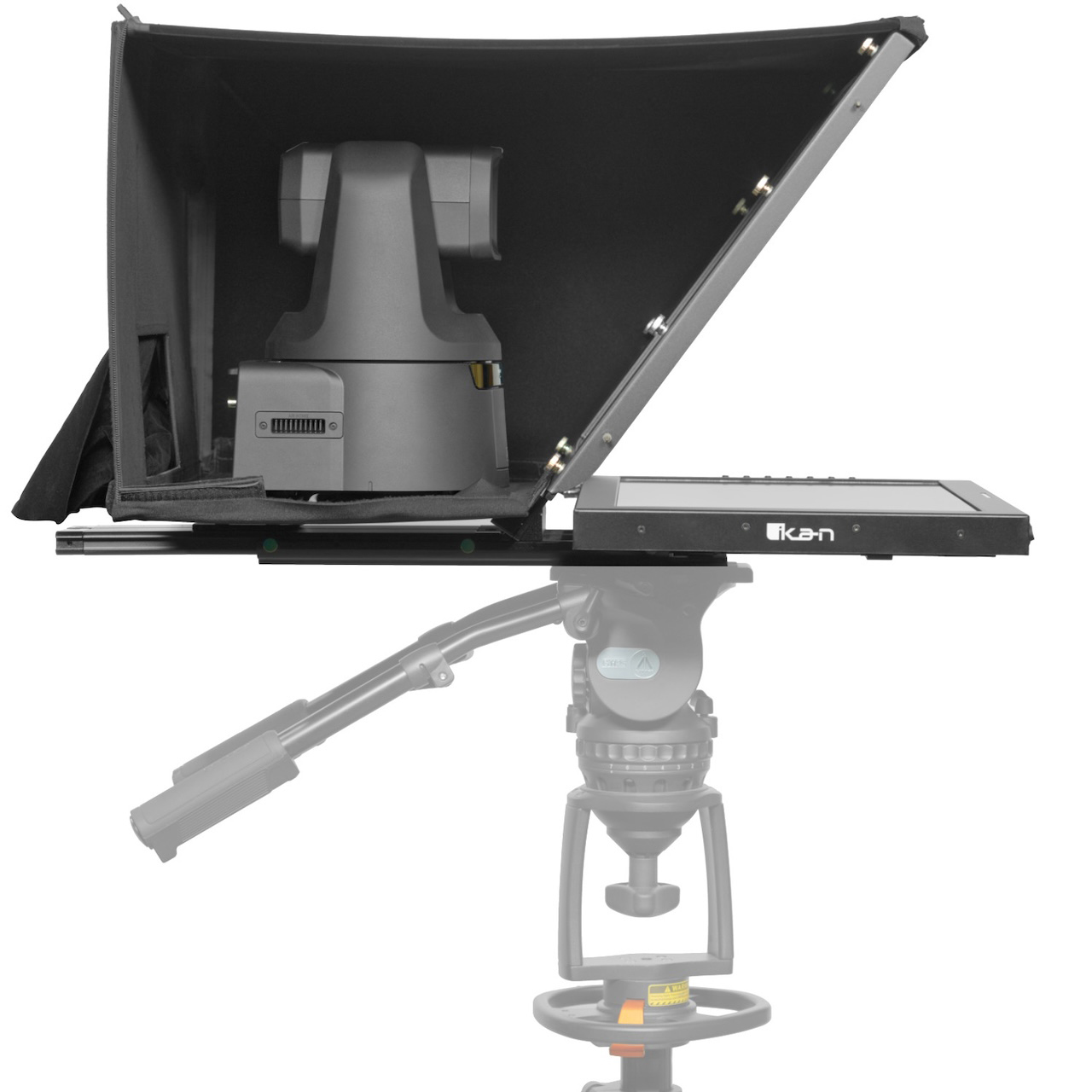

Fully Enclosed PTZ Hood
The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows its movement to remain unconstrained. The hood includes a rear opening that gives you quick access to the PTZ camera's inputs and outputs. The opening can be closed with a drawstring, which removes the possibility of any light leaks.

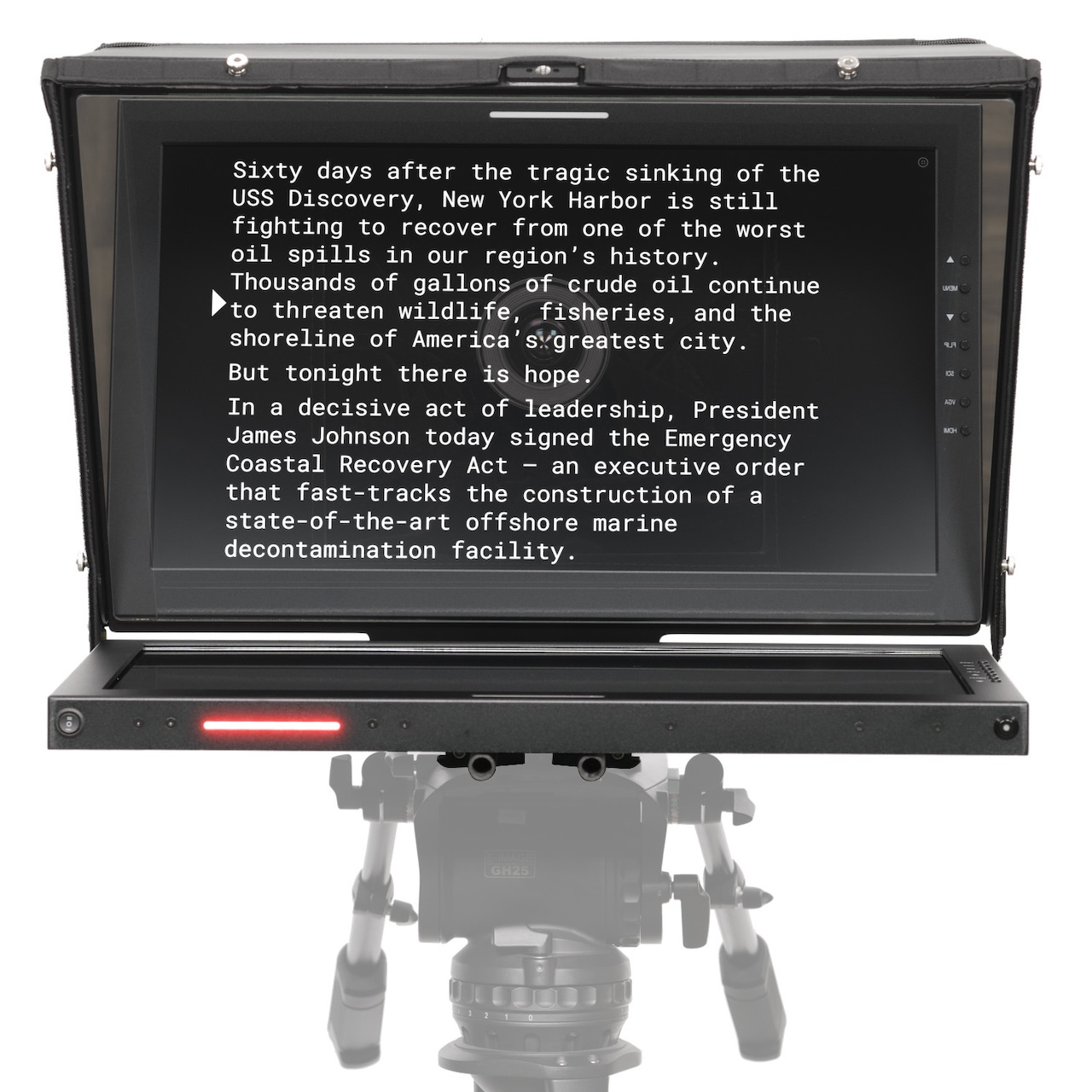

High-Bright Widescreen Teleprompter Monitor

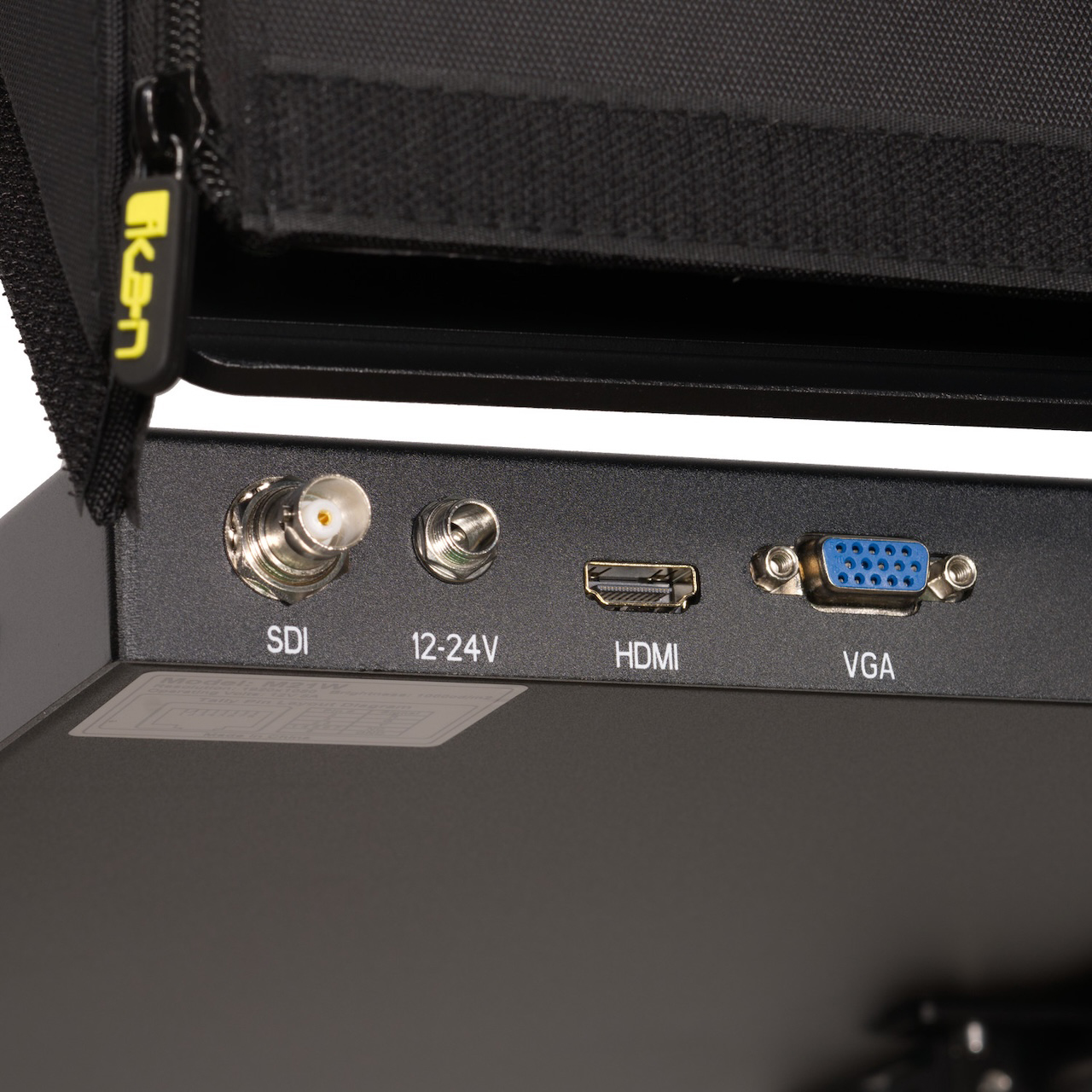

The 1000-nit high-brightness screen delivers clear, vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The monitor features SDI, HDMI, and VGA inputs. The native resolution is 1920 x 1080, and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, and sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set to 16:9, 4:3, full, or automatically detected and set accordingly.

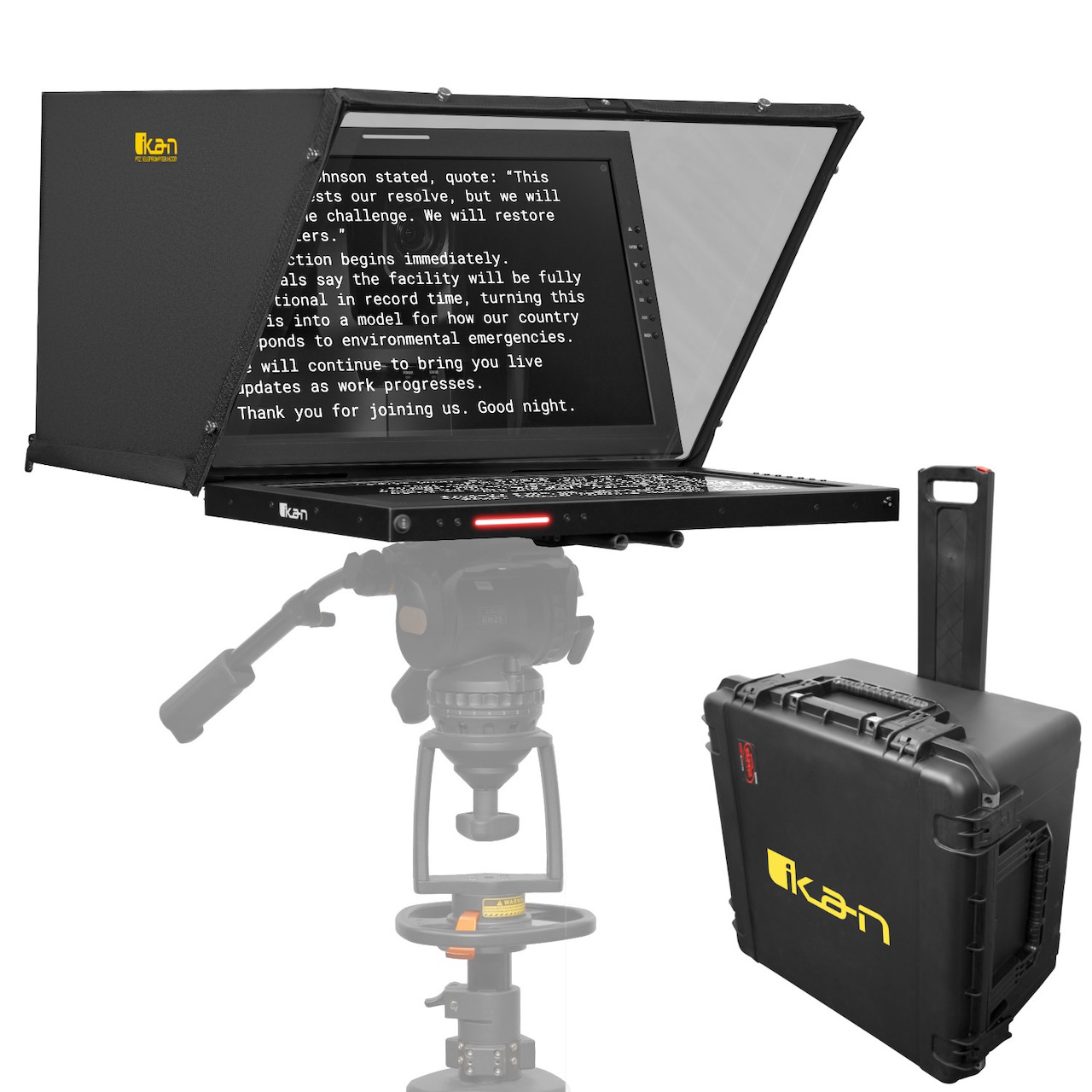

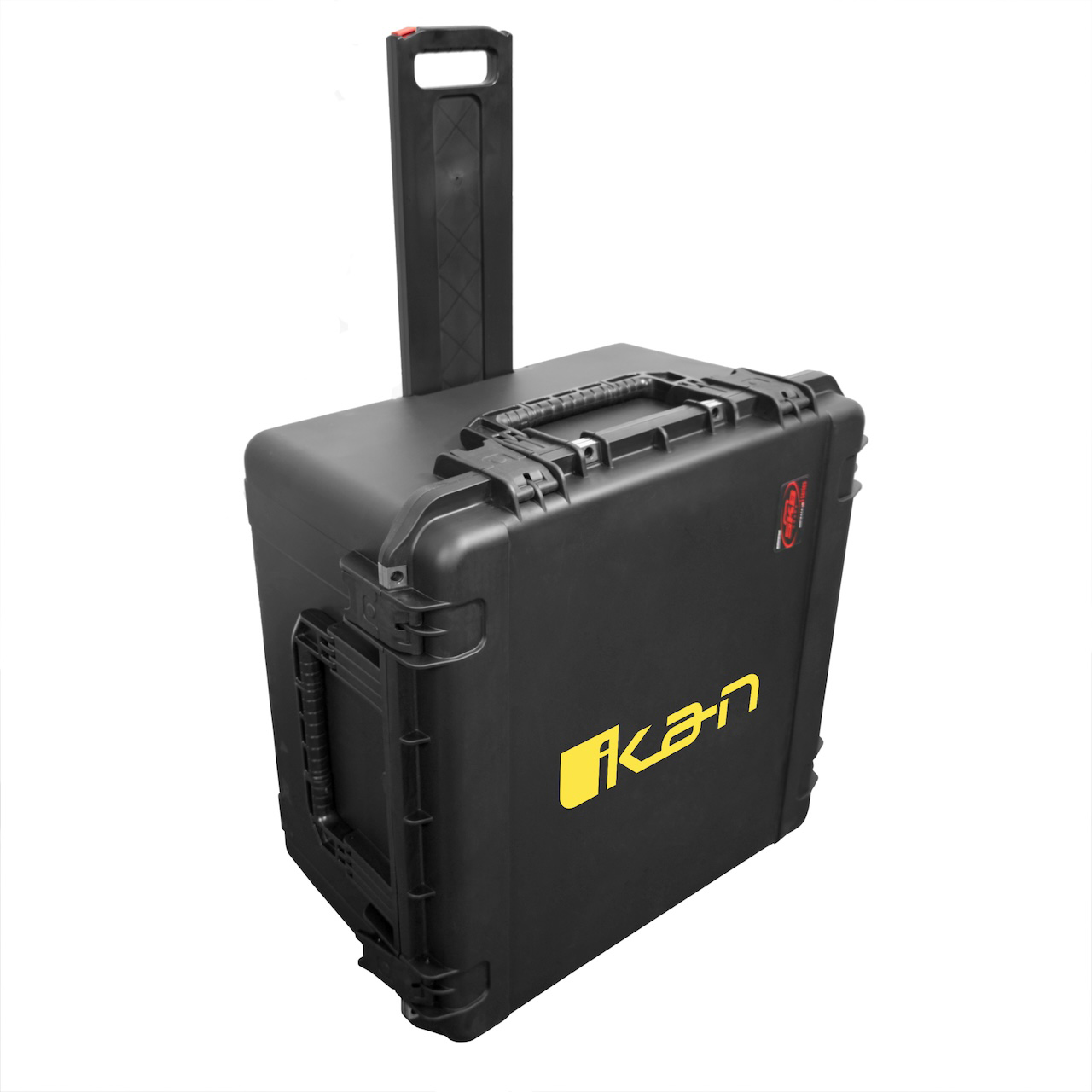

Rolling Hard Case
The rolling hard case is designed to accommodate the full teleprompter system, including the teleprompter base, risers, hoods, glass, monitors, and power supplies. The Injection Molded Mil-Standard Waterproof Case is crafted from ultra-high-strength polypropylene copolymer resin. This case features a gasket-sealed, water- and dust-tight design, ensuring submersion and compliance with MIL-STD 810H. It is designed to withstand corrosion and impact damage.

  • Features:

    • PTZ Hood Fully Encloses the Camera, Allowing it to Move Freely
    • Includes Hard Travel Case with Wheels
    • Compatible with Most PTZ Cameras
    • Widescreen Teleprompter Monitor features SDI, HDMI, & VGA Inputs
    • 1000-Nit High Bright Widescreen Monitor
    • High-Quality American Made 65/35 Beam Splitter Glass
    • Multiple Camera Mounting Options
    • Easy Balancing with Adjustable Base
    • Lightweight and Compact Design
    • Ships in Reusable Foam for Easy Transport
    • Widescreen Monitor Supports Image Flip
    • PrompterPro Software for MAC & PC is FREE with this Teleprompter

  • Specifications:

      21" Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 450mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11" x 1/4"-20 Female
      - 9 x 3/8"-16 Female
    • Weight of Teleprompter Base: 21.34lbs (9.8kg)
    • Weight of Low Plate: 1lb (0.5kg)
    • Weight of High Plate: 1.38lbs (0.6kg)
    • Weight of DSLR Plate: 0.748lbs (0.34kg)
    • Height of Teleprompter: 16.1" (411mm)

      21" Widescreen SDI Teleprompter Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000cd/m²
    • Screen Size (Diagonal): 21" (533.4mm)
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12V/5A
    • Power Consumption: 36.2W
    • Product Weight: 6.96lbs (4.5kg)
    • Product Dimensions: 15.5" x 13.75" x 1" (393.7mm x 349.3mm x 25.4mm)
    • Native Resolution: 1920x1080
    • Viewing Angle: 160° (H)/170° (V)
    • Build Material Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes
    • Tally Interface: RJ45

      21" PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 1.3" (34mm)
    • Weight of PTZ Riser: 0.57lbs (0.3kg)
    • Dimensions of PTZ Hood:
      - Top: 22" x 14"
      - Bottom: 22" x 12"
      - Height: 14"
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 2.8lbs (1.3kg)
    • Net Weight of Full PTZ Add-on Kit: 3.38lbs (1.5kg)

      21" PTZ Teleprompter Add-on Kit
    • Height of PTZ Riser: 1.3" (34mm)
    • Weight of PTZ Riser: 0.57lbs (0.3kg)
    • Dimensions of PTZ Hood:
      - Top: 22" x 14"
      - Bottom: 22" x 12"
      - Height: 14"
    • Material of Hood: Polyester Canvas
    • Material of PTZ Riser: Aluminum
    • Weight of PTZ Hood: 2.8lbs (1.3kg)
    • Net Weight of Full PTZ Add-on Kit: 3.38lbs (1.5kg)

      Travel Case
    • Exterior: Hard
    • Interior Dimensions (LxWxD): 24" x 24" x 14" (60.96cm x 60.96cm x 35.56cm)
    • Interior Lid Depth: 2" (5.08cm)
    • Interior Base Depth: 12" (30.48cm)
    • Product Weight: 25.39lbs (11.51kg)
    • Exterior Dimensions (LxWxH): 26.75" x 26.5" x 15.625" (67.95cm x 67.31cm x 39.69cm)
    • Carton Dimensions (LxWxH): 27.5" x 27" x 16.5" (69.85cm x 68.58cm x 41.91cm)
    • Shipping Weight: 28.72lbs (13.02kg)

  • Item Includes:

    • 1x Teleprompter Base
    • 1x 21" SDI Widescreen Teleprompter Monitor
    • 1x Hard Travel Case with Wheels
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x PTZ Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download

  • Warranty:

    • 1 Year Limited Warranty
