ikan PT4500-TRIPOD 15-Inch Turnkey Teleprompter Kit with Tripod & Dolly

ITEM #: IKAN-PT4500TRIPD MFG #: PT4500-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    PT4500-TRIPOD - Overview

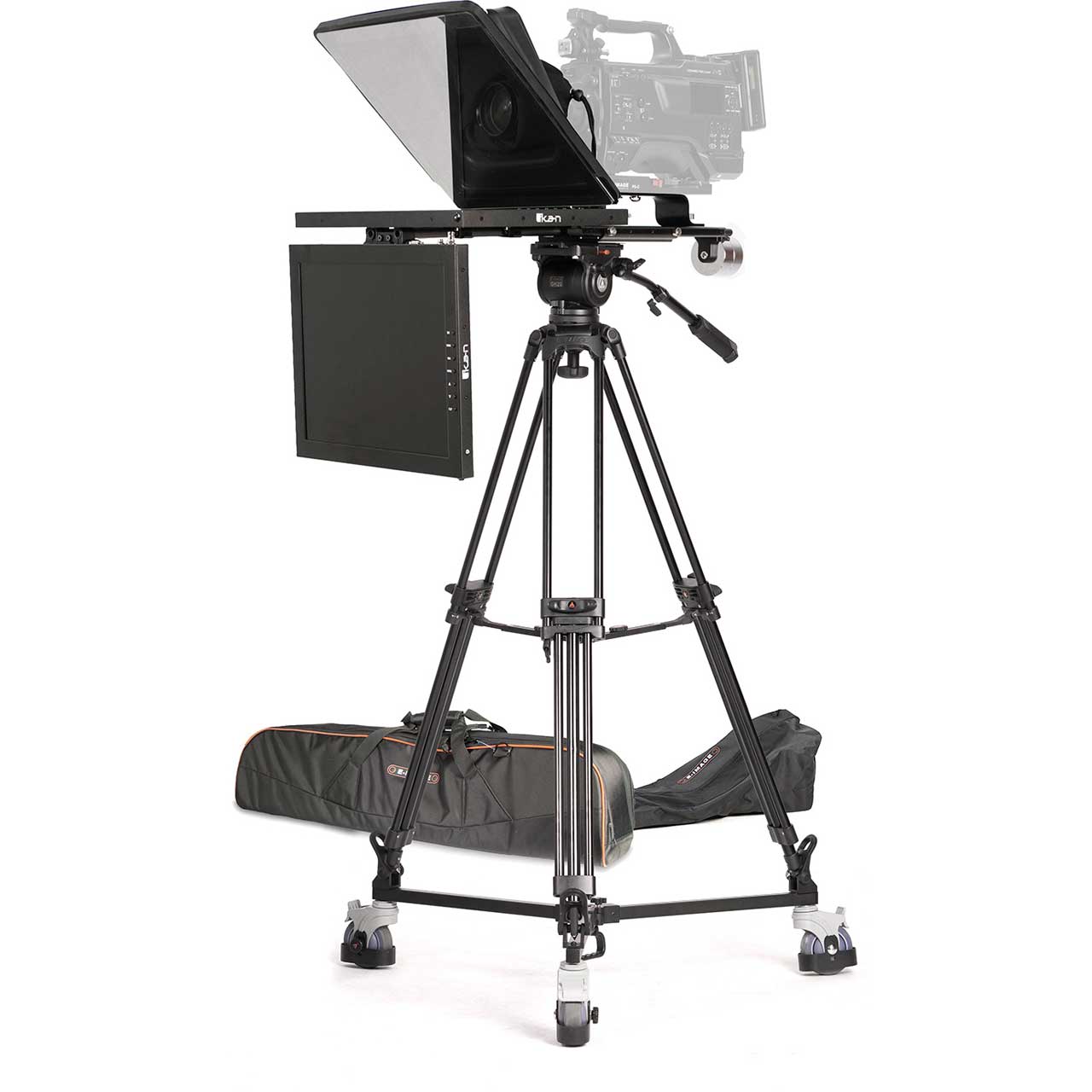

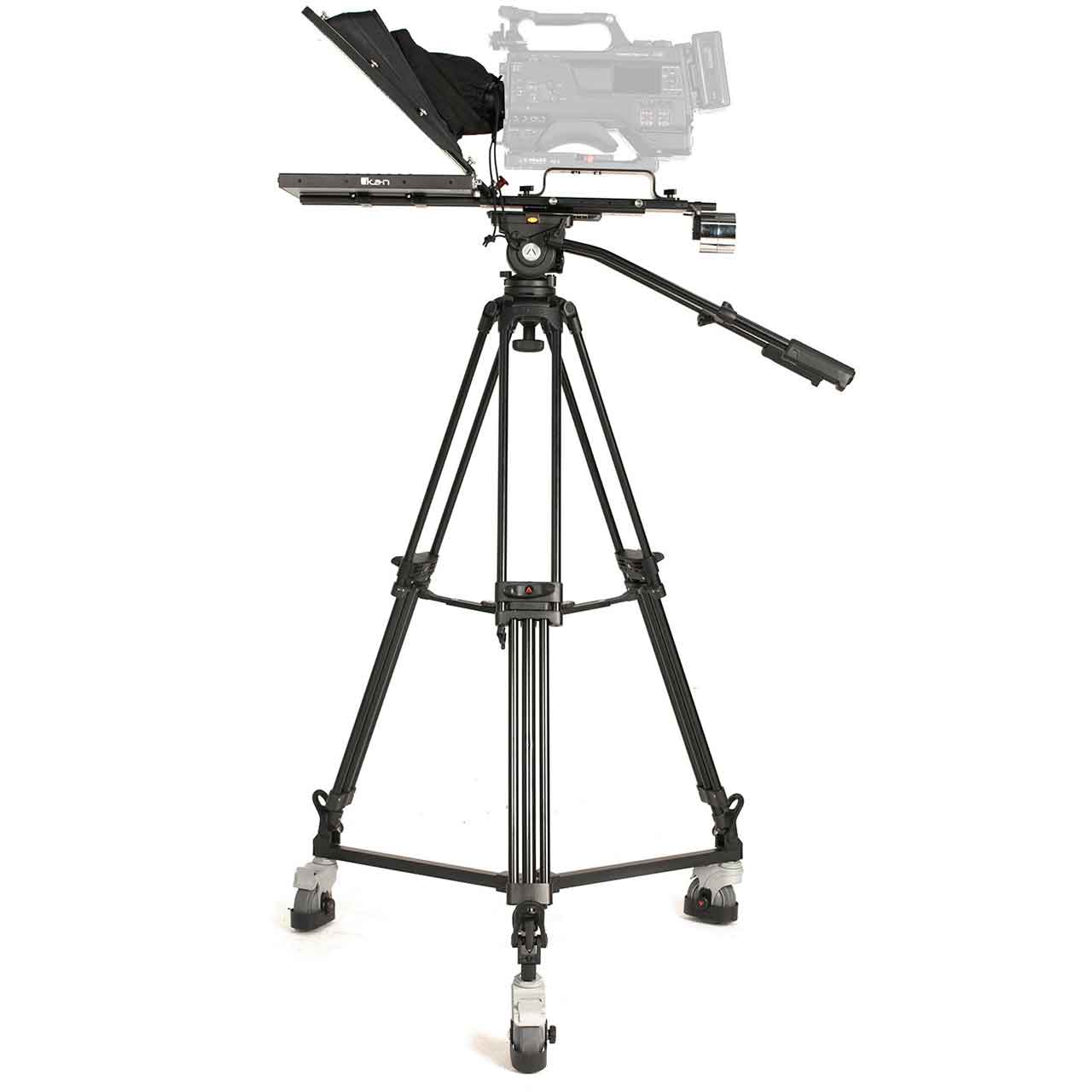

    Turnkey Broadcast Solution
    Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This PT4500-TRIPOD solution includes a 15" teleprompter, tripod, and dolly. All of their systems have been tested internally for payload compatibility.

    The remaining payload capacity, after mounting the full 15" teleprompter system without the counterweight, can accommodate camera setups up to 25.2 lbs. The tripod, without the teleprompter system, can accommodate cameras up to 44.1 lbs. This solution also includes a carrying bag for the tripod.

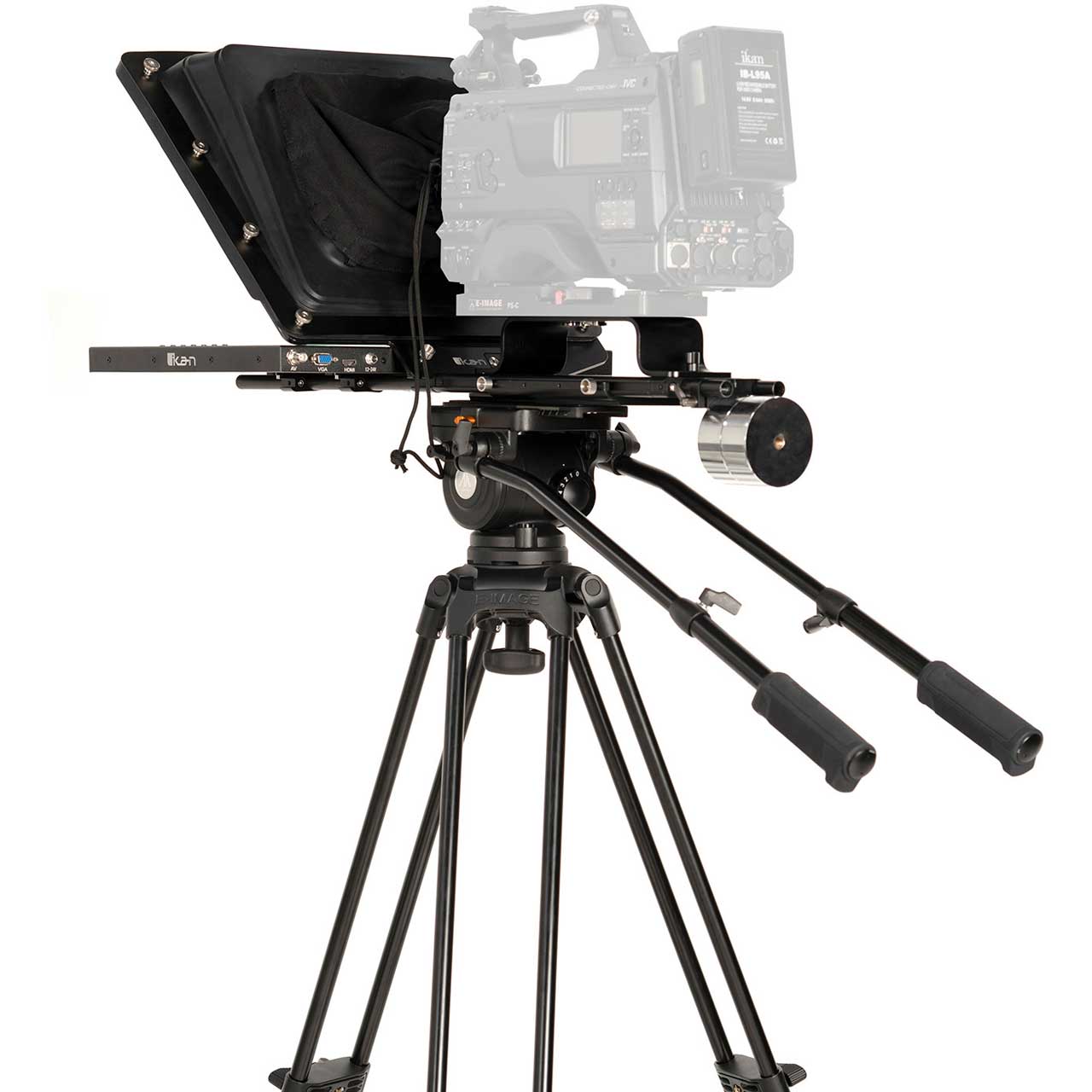

    15" Teleprompter System
    Ikan’s 4th generation teleprompter series is designed for quick and easy setups for all applications. The lightweight aluminum teleprompter has multiple 3/8-16"and 1/4-20" mounting points. The teleprompter monitor includes HDMI, VGA, and Composite (BNC) inputs.

    Extreme Clarity
    The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you’re under the sun or studio lighting.

    Easy To Balance
    The 15-inch Teleprompter includes a rail that allows you to easily balance your entire teleprompter setup. You can offset the entire teleprompter setup up to 7 inches.

    Large Range Of Camera Compatibility
    Thier professional line teleprompters not only include four different camera mount bases but also counterweights to allow for a large range of different-sized cameras to work. The base can conveniently slide to adjust the weight without the need to remove the plate.

    • Features:

      • Includes 15" Teleprompter, Tripod, & Dolly w/ Carrying Bags
      • Includes PrompterPro4 Software for Mac & PC
      • Accommodates Camera Payloads up to 25.2 lbs (w/o Counterweight)
      • For Use in Studios, Live Events, & Virtual Productions
      • Video Inputs: HDMI, VGA, Composite (BNC)
      • Tripod w/ Fluid Head
      • Dolly w/ Cable Guards
      • Carrying Bags for Tripod & Dolly

    • Specifications:

      • General Specs
      • Available Payload w/o Counterweight: 25.2Lbs
      • Available Payload w/ Counterweight: 19.3Lbs
      • Weight of Full System: 42.66Lbs
      • Max Height of Full System: 7.14' (2.18m)
      • Min Height of Full System: 3.43' (1.05m)

        15" Teleprompter
      • Riser Plate Height:
        Low: 2.06" (52.5mm)
        Medium: 3.74" (95mm)
        High: 5.31" (135mm)
        DSLR: 6.29" (160mm)
      • Length of Rods: .59 x 15.74" (15 x 400mm)
      • Build Material: Chassis: Anodized Aluminum / Rods: Carbon Fiber
      • Reading Range: 17 ft./5.18m
      • Beamsplitter Ratio: 70/30
      • Beamsplitter Shape: Rectangular
      • Beamsplitter Material: Glass
      • Tripod Mounts: 8 x 1/4" -20 Female / 6 x 3/8" -16 Female
      • Product Weight w/ Low Plate: 24.11Lbs
      • Product Weight w/ Medium Plate: 24.51Lbs
      • Product Weight w/ High Plate: 24.64Lbs
      • Product Weight w/ DSLR Plate: 24.01Lbs
      • Sliding Range: 5.9" (150mm)

        15" Teleprompter Monitor
      • Aspect Ratio: 4:3
      • Maximum Brightness: 1000 cd/m2
      • Screen Size (Diagonal): 15"
      • Mount: VESA 3.94" (100mm)
      • Video Inputs: AV COMPOSITE, HDMI, VGA
      • Input Voltage: DC 12v / 4A
      • Power Consumption: 28W
      • Product Weight: 3.97Lbs
      • Product Dimensions: 12.13 x 14.25 x 1"
      • Native Resolution: 1280 x 1024
      • Viewing Angle: 160° (H) / 170° (V)
      • Build Material: Aluminum Chassis
      • Image Flip: Horizontal: Yes / Vertical: Yes

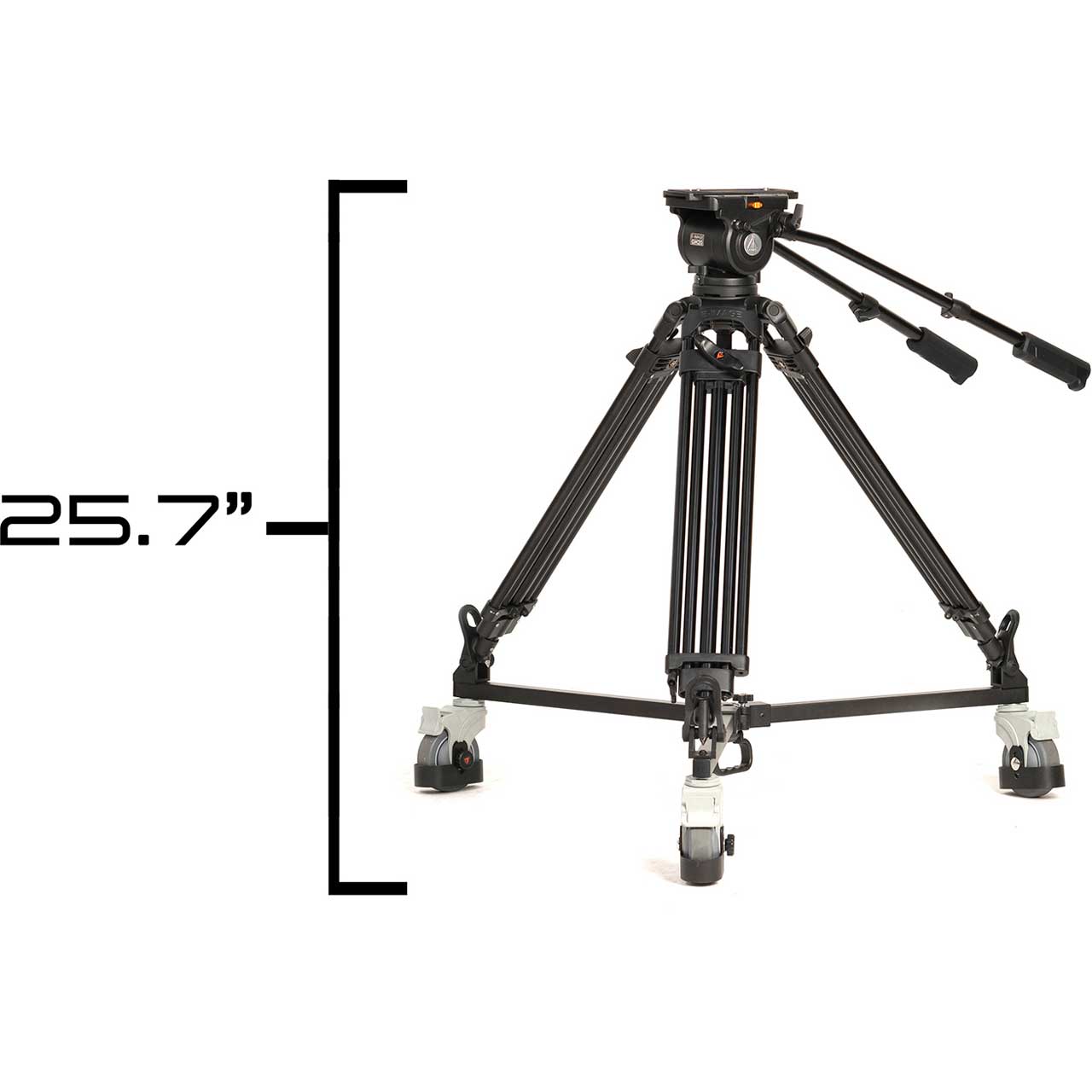

        Tripod
      • Material: Anodized aluminum alloy
      • Bowl Size: 3.94" (100mm)
      • Leg Stages/Sections: One-Stage / Three-Section
      • Leg Lock Type: Rotary clamp
      • Spreader: Mid-Level
      • Spiked/Retractable Feet: Yes
      • Load Capacity: 132.3Lbs
      • Height Range: 18.5 to 63" (47 to 160cm)
      • Folded Length: 29.1" (74cm)
      • Weight: 11.2Lbs (5.1kg)

        Fluid Head
      • Head Payload Capacity: 44.1Lbs - 20kg
      • Bowl Size: 3.94" (100mm)
      • Counterbalance System: Stepped, 1-8
      • Pan Drag Settings: Fixed
      • Tilt Drag Settings: Fixed
      • Tilt Lock: Thumb Lock
      • Tilt Range:: -60°/+90°
      • Bubble Level: Yes
      • Pan Handle Length Range: 16.7 - 24"
      • Net Weight: 7.7Lbs/3.5kg
      • Net Weight w/ Pan Handles: 9.5Lbs/4.30kg
      • Sliding Plate Range: 7.87" 200mm
      • Temperature Range: -40°F - 194°F
      • Camera Plate Length: 8" 203.2mm

        Dolly
      • Net Weight: 15Lbs/6.8 kg
      • Footprint Diameter: 39.4" 100cm
      • Cable Guard Diameter: 4.92" 12cm
      • Height: 6.7" (17cm)
      • Radius: 19.7" (50cm)
      • Wheel Width: 3.94" (100mm)
      • Lockable Wheels: Yes
      • Build Material:
      • Legs: Aluminum
        Wheels: Rubber
        Screws: Steel
      • Payload: 132.3Lbs (60kg)

    • Item Includes:

      • 1x Tripod w/ Head
      • 1x Dolly w/ Wheels & Cable Guards
      • 1x 15" Teleprompter System w/ Monitor
      • 4x Camera Riser Plates
      • 1x PrompterPro Software (FREE with this teleprompter)

    • Warranty:

      • 1-Year Limited Warranty

    • GTIN:

      0847983034116
